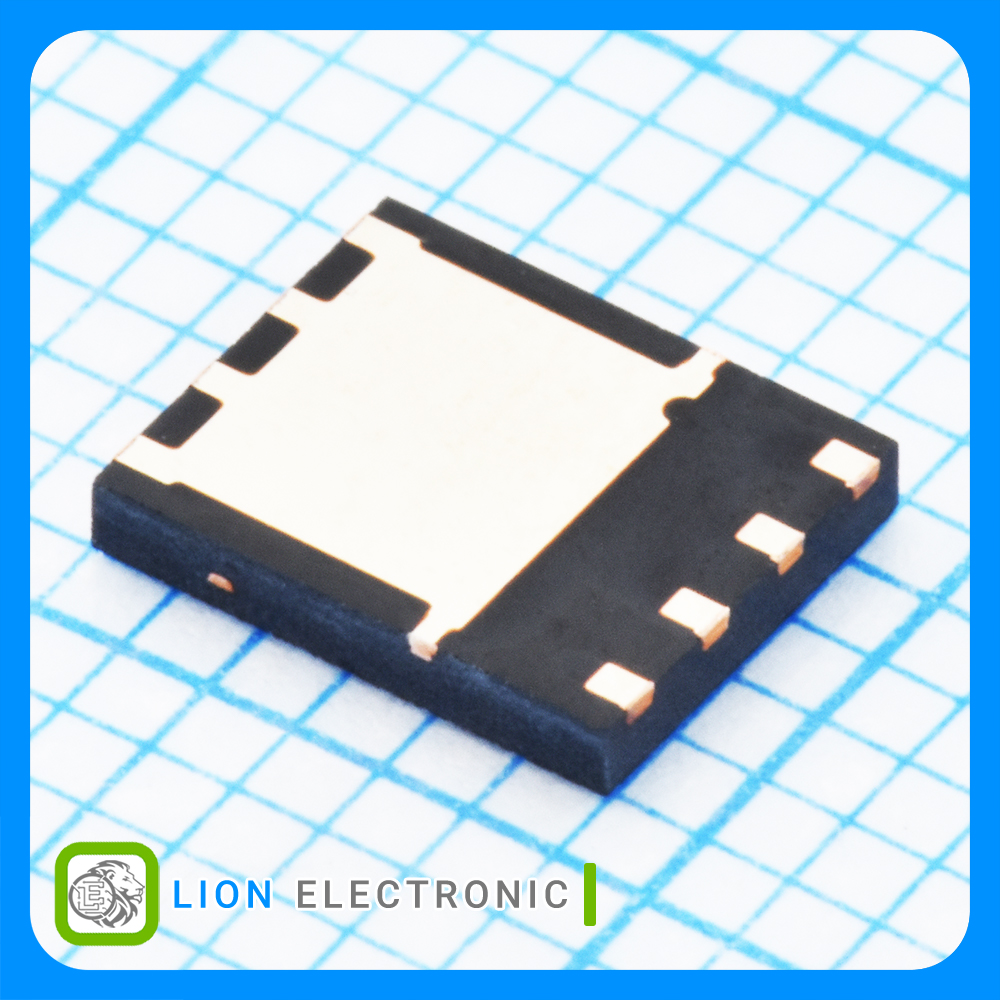

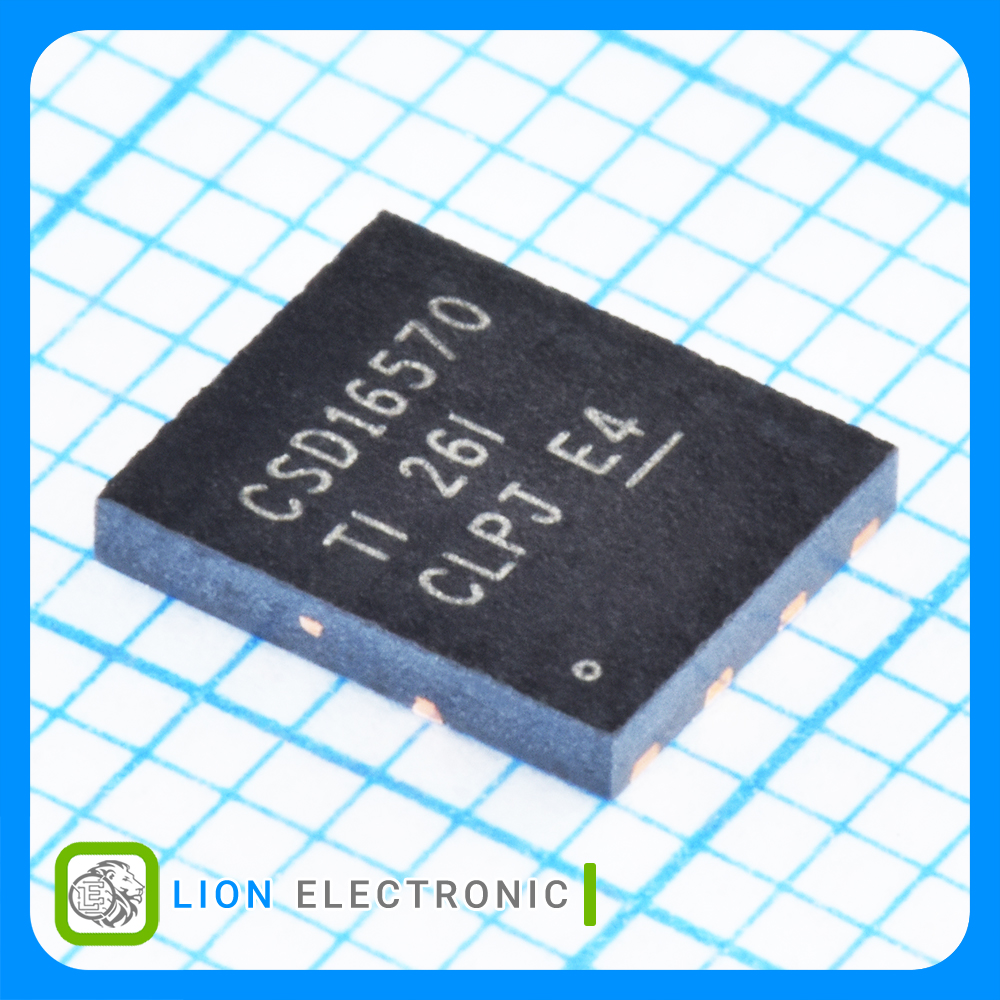

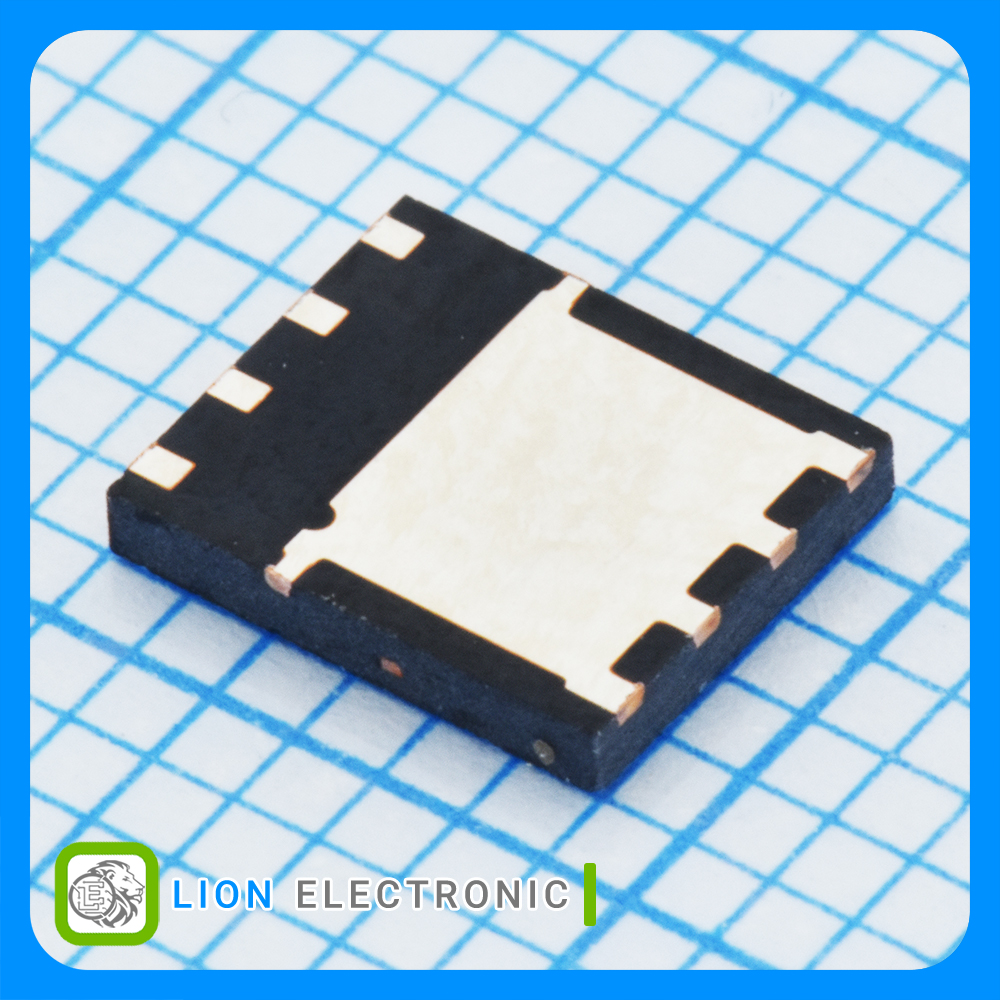

CSD16570Q5B
CSD16570Q5B
Part Number
3305
Lion Part
Datasheet
Texas Instruments Manufacture
ماسفت 25 ولت 100 آمپر نوع N با پکیج VSON-CLIP-8
N-CH MOSFET 25V, 100A with VSON-CLIP-8 Package
معرفی
ماسفت 25 ولت 100 آمپر نوع N با پکیج VSON-CLIP-8
N-CH MOSFET 25V, 100A with VSON-CLIP-8 Package
Specifications
- Package/Case: VSON-CLIP-8
- Vds - Drain - Source Breakdown Voltage: 25V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 490uΩ
- Pd - Power Dissipation: 195W
- Qg - Gate Charge: 192nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت CSD16570Q5B

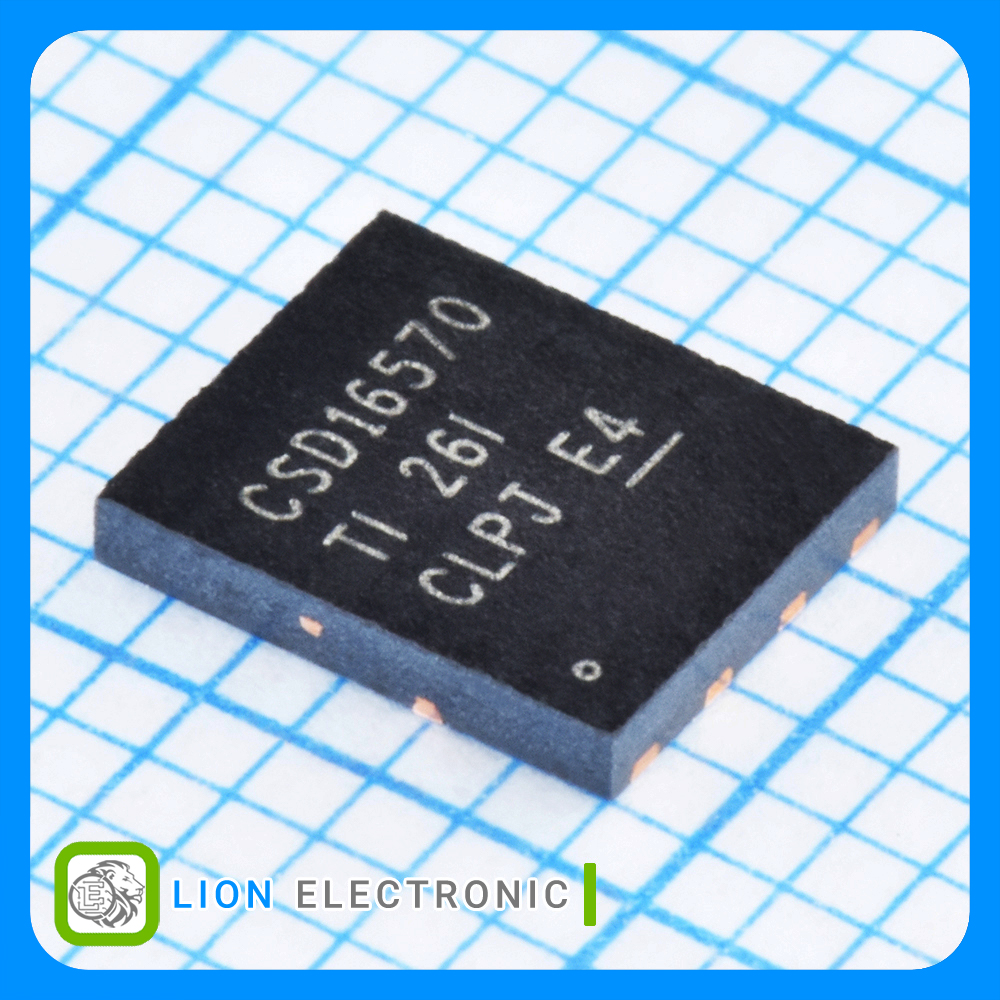

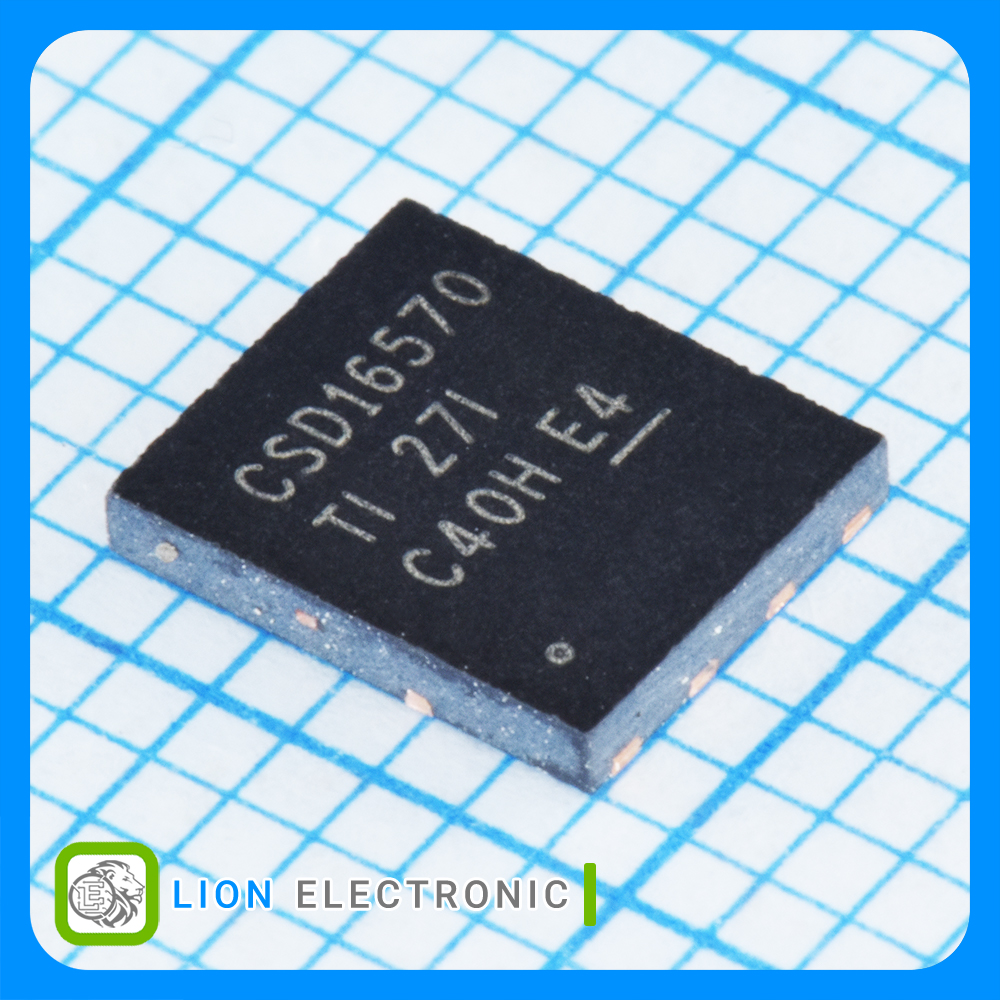

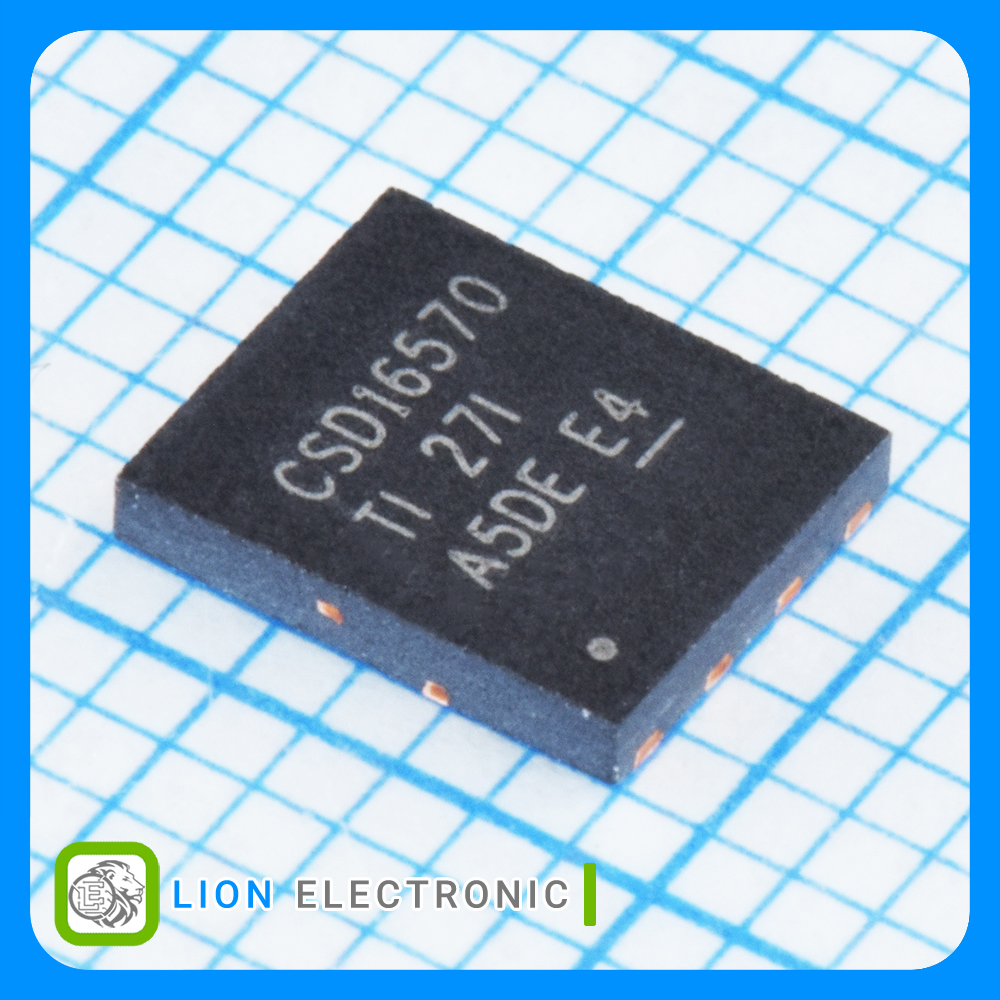

ماسفت CSD16570Q5B
Part Number
1
Number of Channels
Enhancement
Channel Mode
490uΩ
Rds On - Drain - Source Resistance
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
25V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
1.1V
Vgs th - Gate - Source Threshold Voltage
192nC
Qg - Gate Charge
100A
Id - Continuous Drain Current
195W
Pd - Power Dissipation
VSON-CLIP-8
Package-Case
