TOSHIBA
معرفی

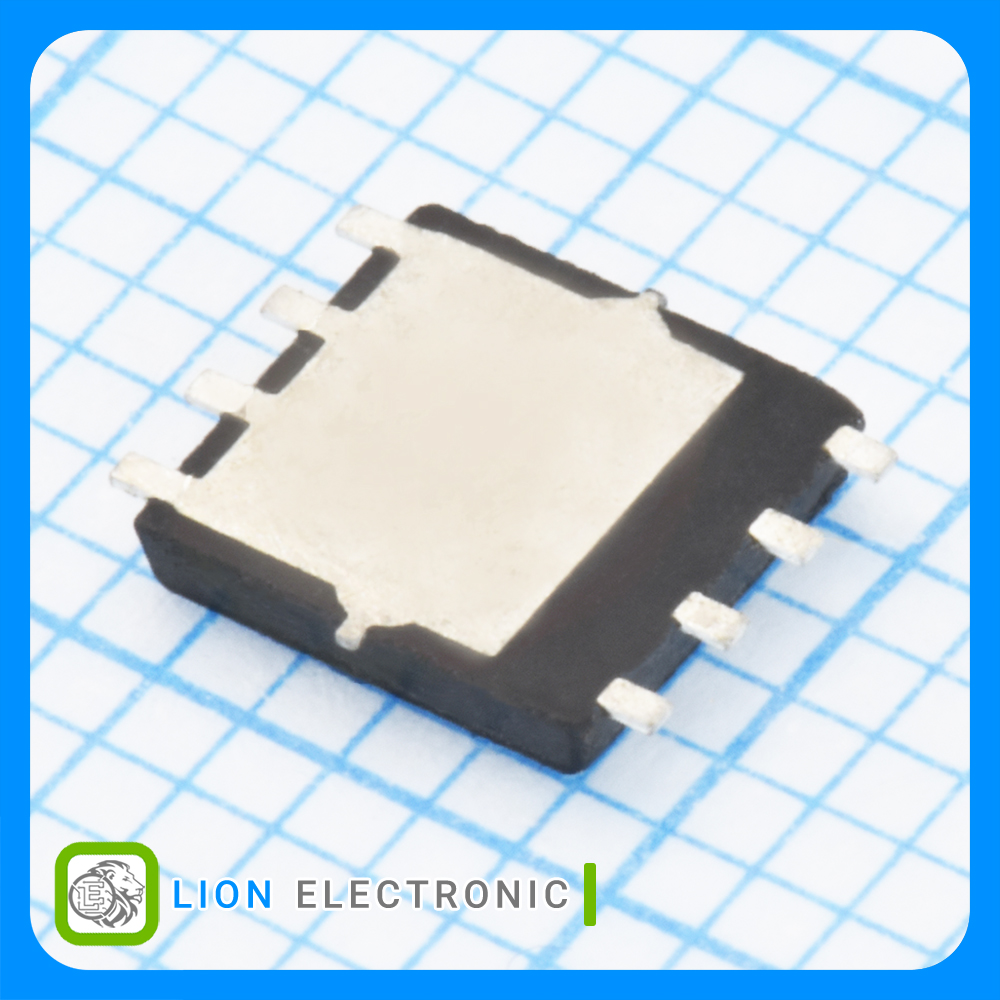

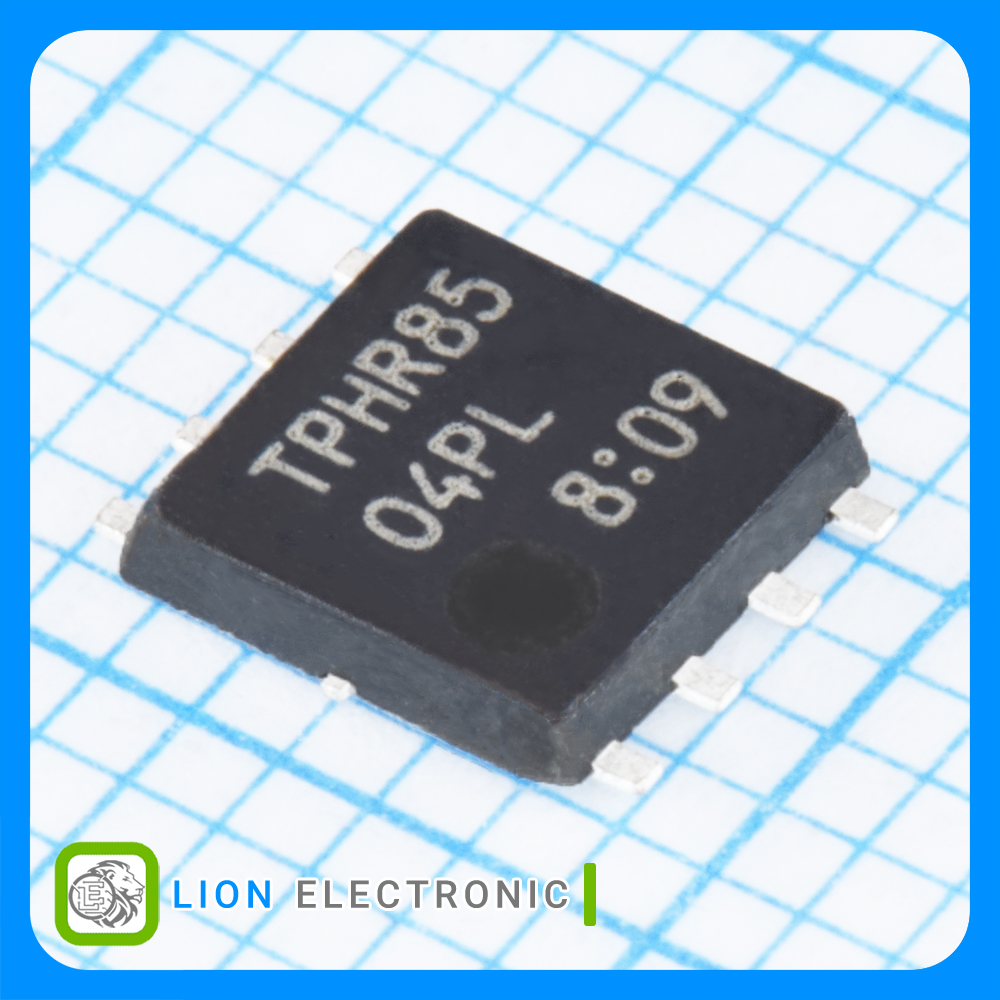

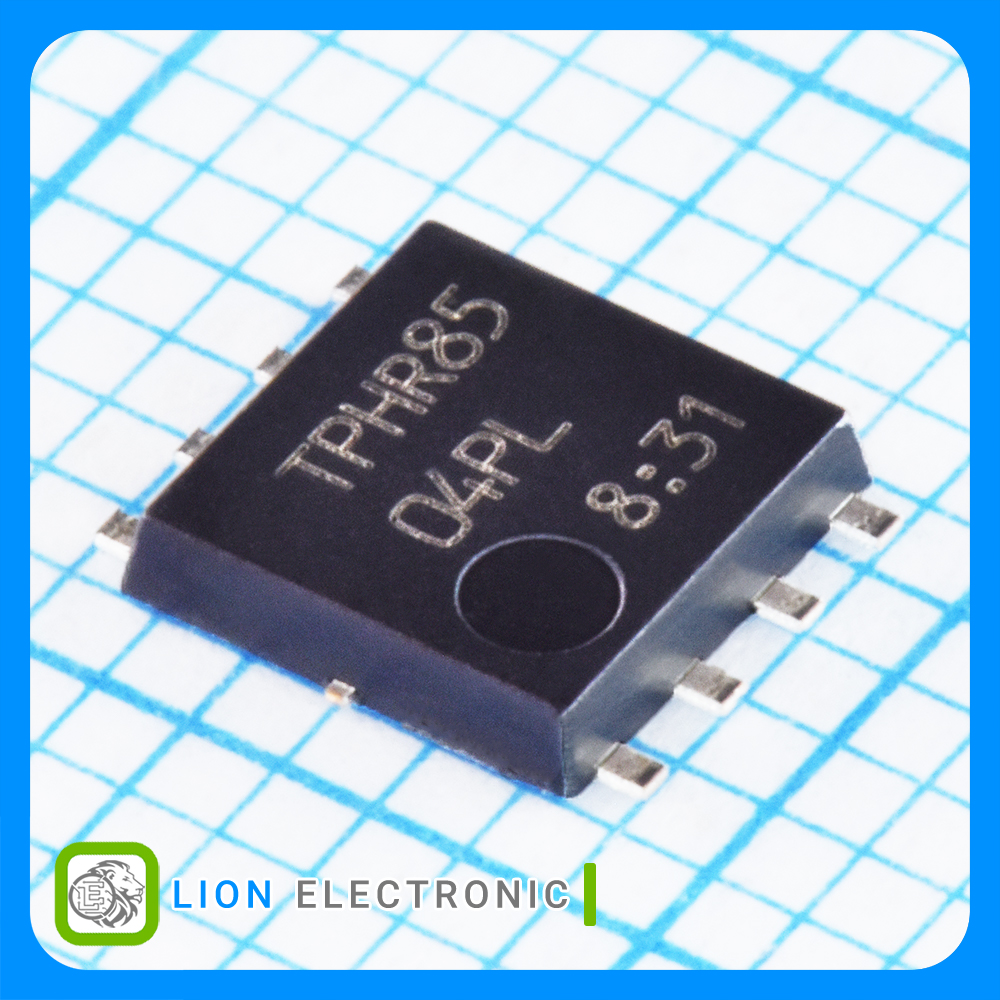

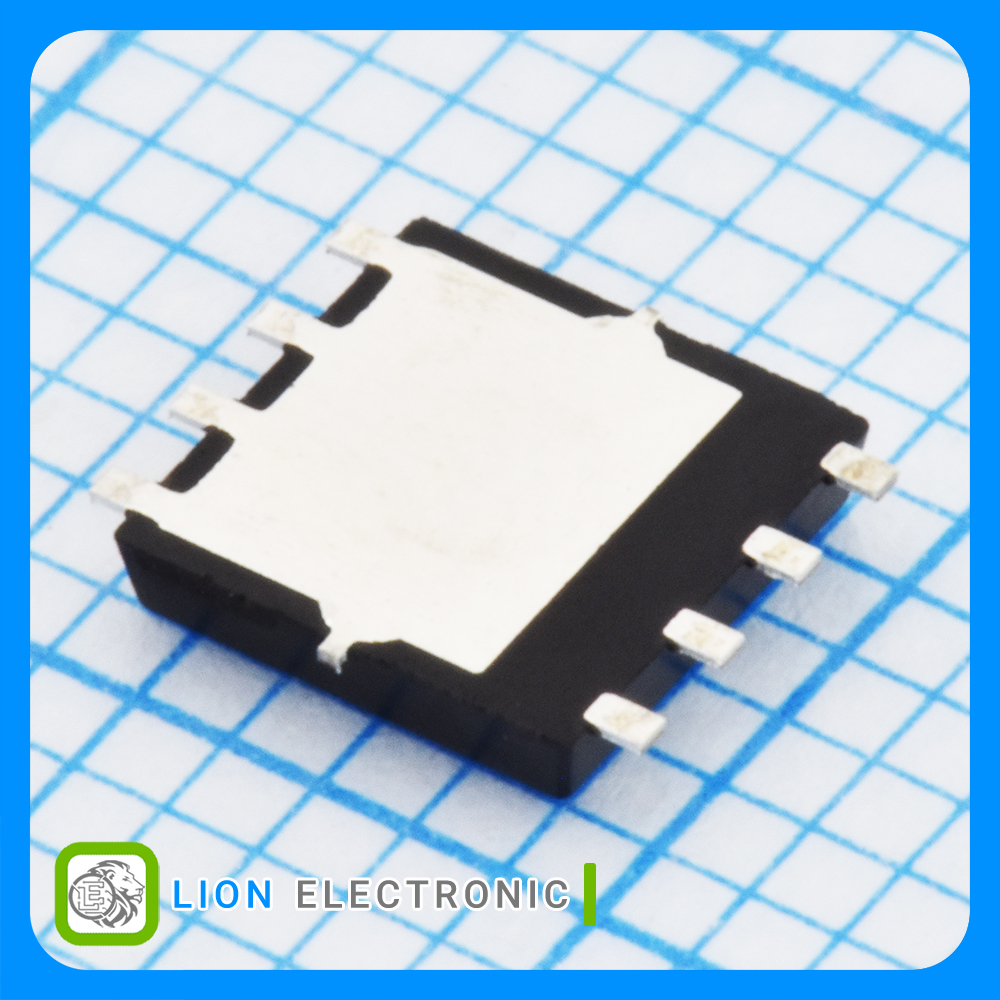

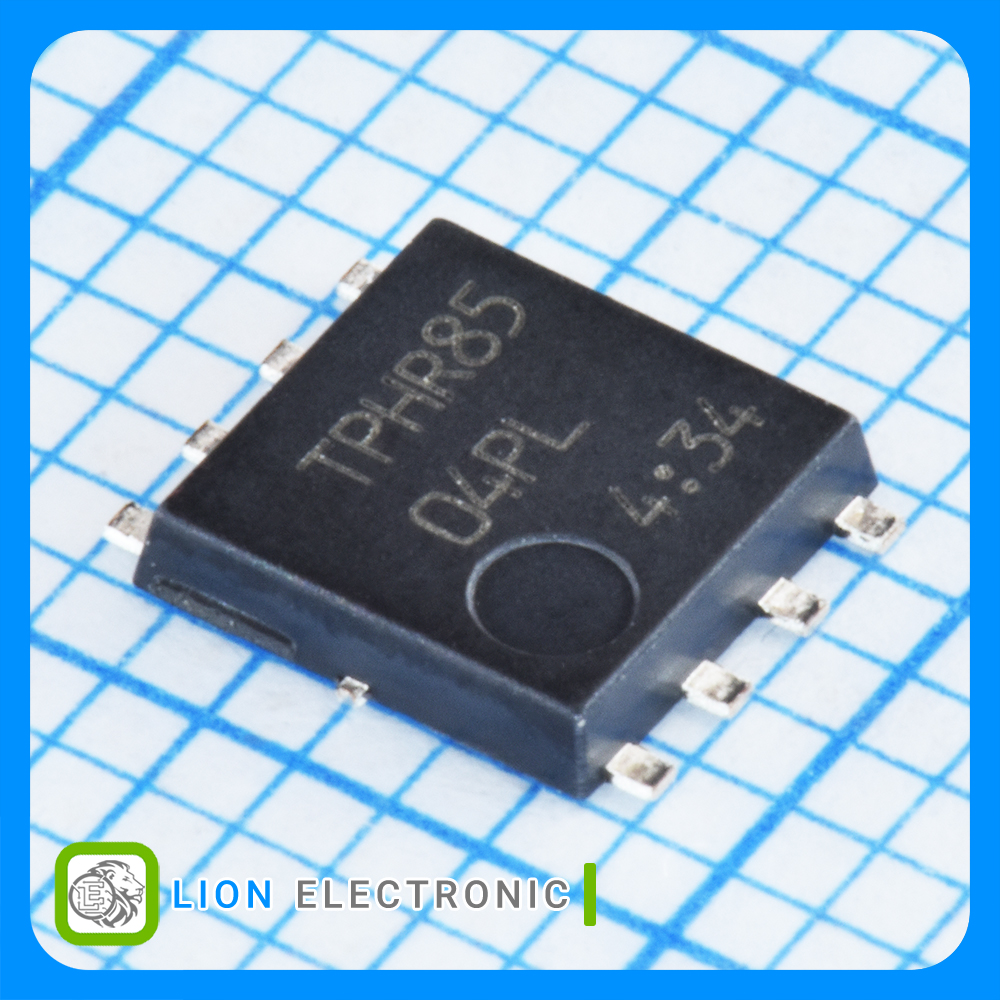

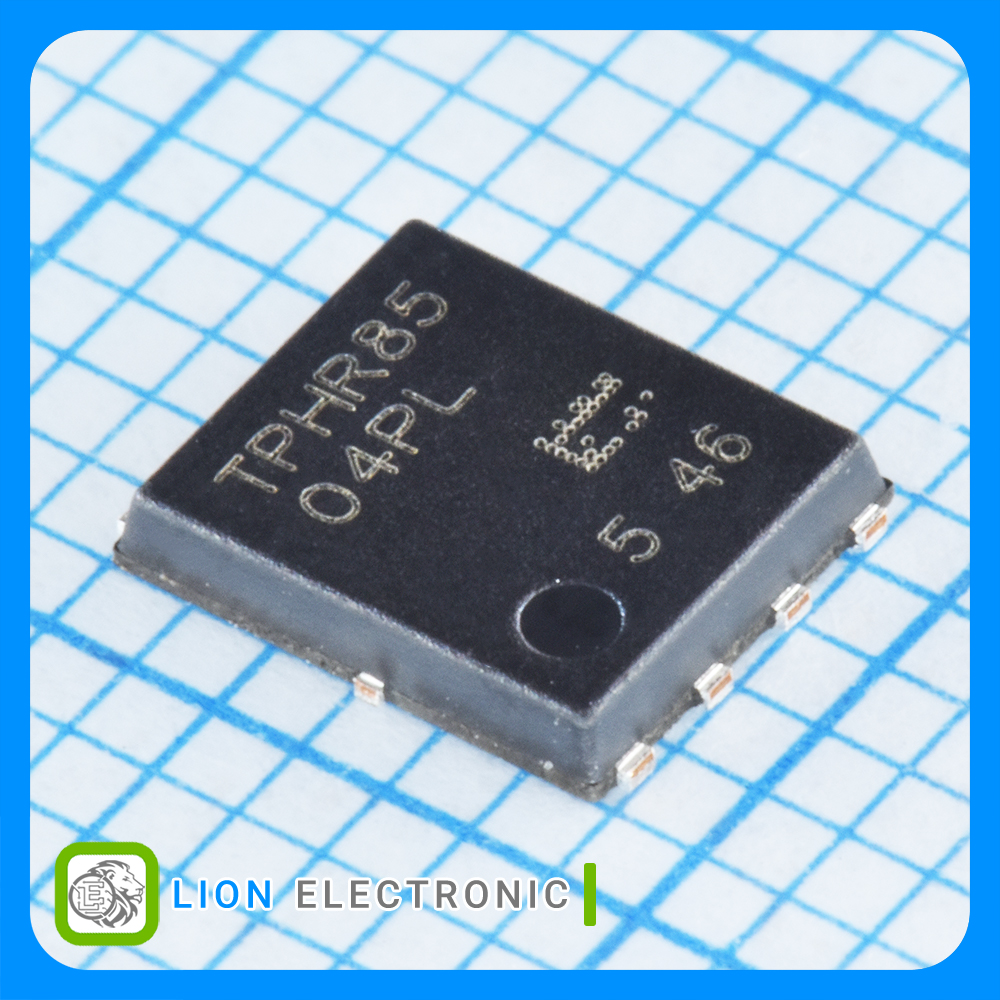

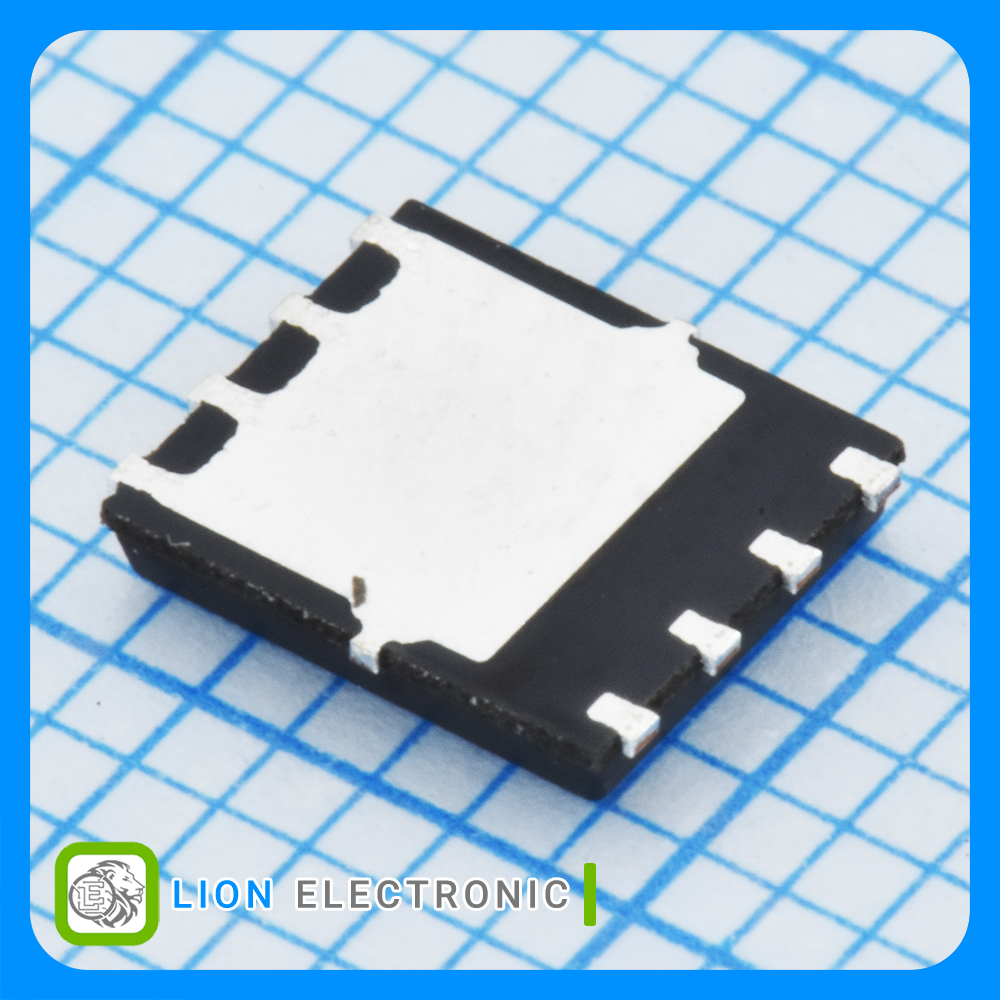

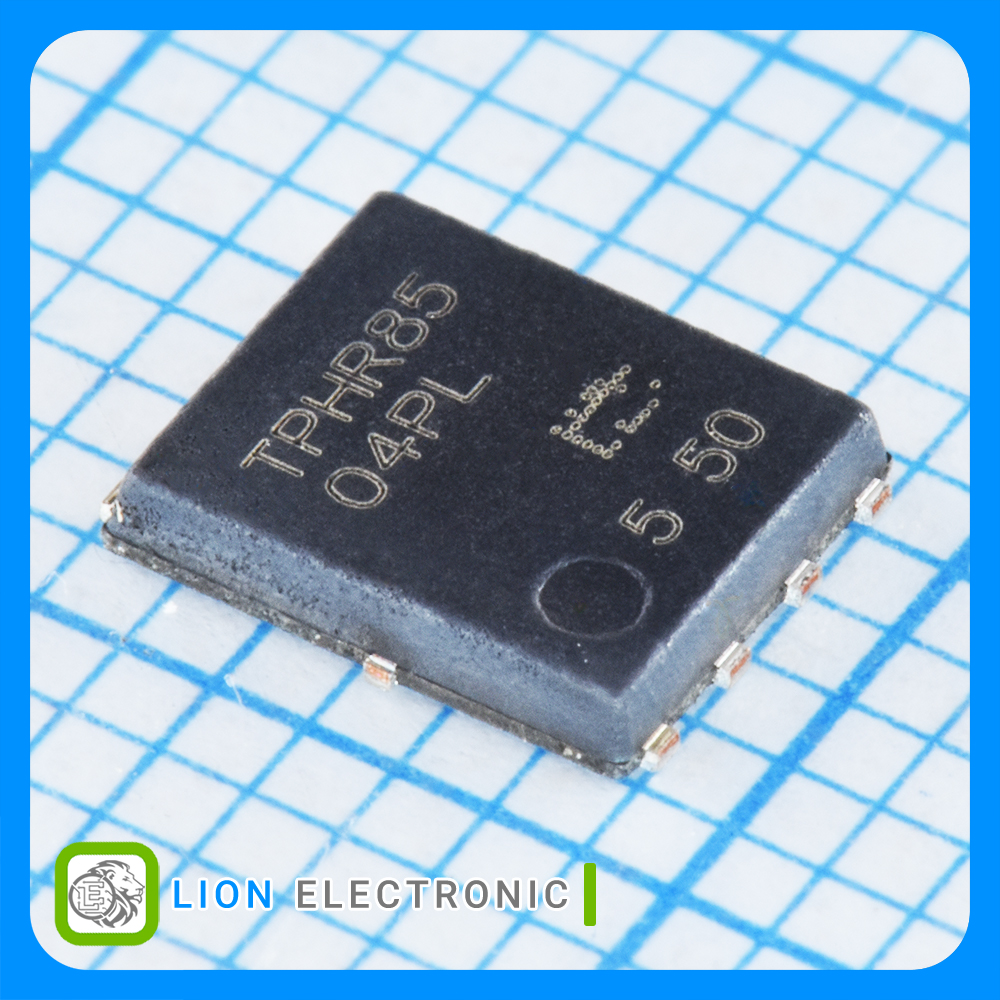

ماسفت 40 ولت 150 آمپر نوع N با پکیج SOP-8
N-CH MOSFET 40V, 150A with SOP-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 150A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.4V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 700uΩ
- Pd - Power Dissipation: 170W
- Qg - Gate Charge: 103nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPHR8504PL
ماسفت TPHR8504PL
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
700uΩ
Rds On - Drain - Source Resistance
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.4V
Vgs th - Gate - Source Threshold Voltage
103nC
Qg - Gate Charge
150A
Id - Continuous Drain Current
170W
Pd - Power Dissipation
SOP-8
Package-Case
