TOSHIBA
معرفی

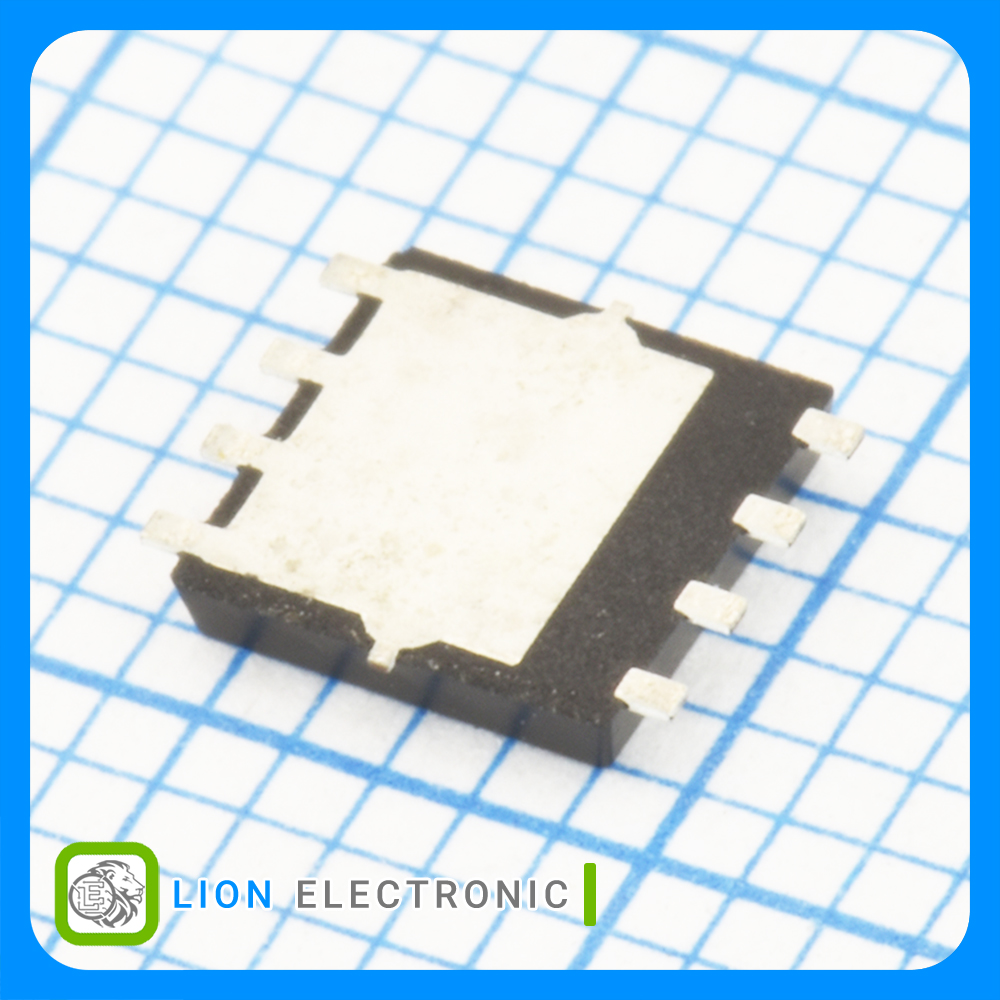

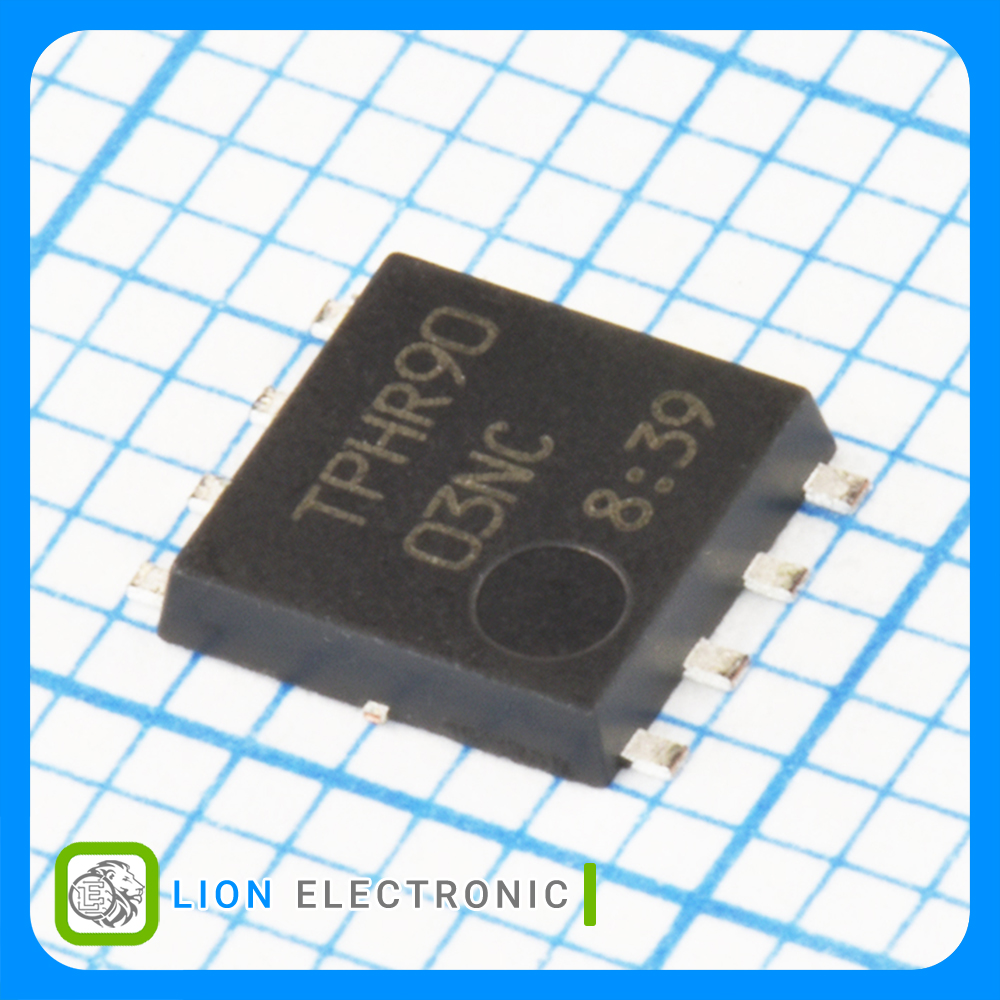

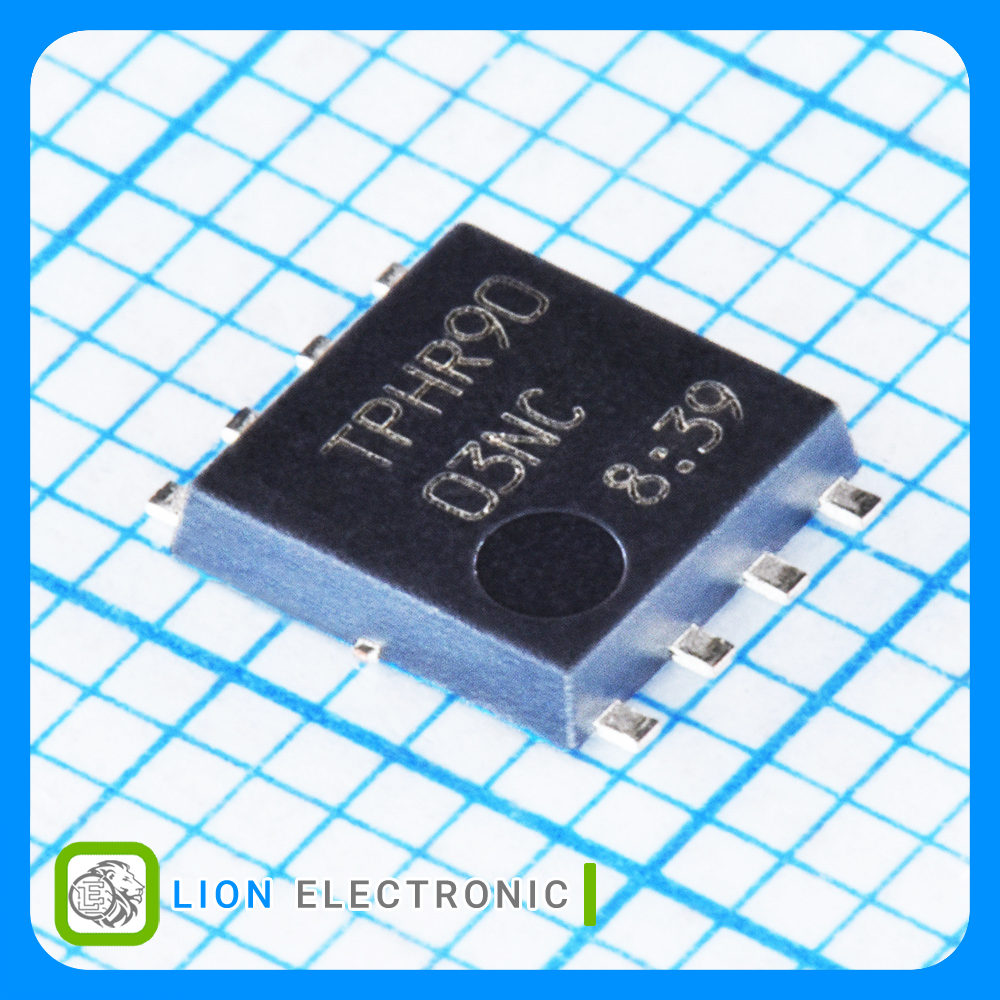

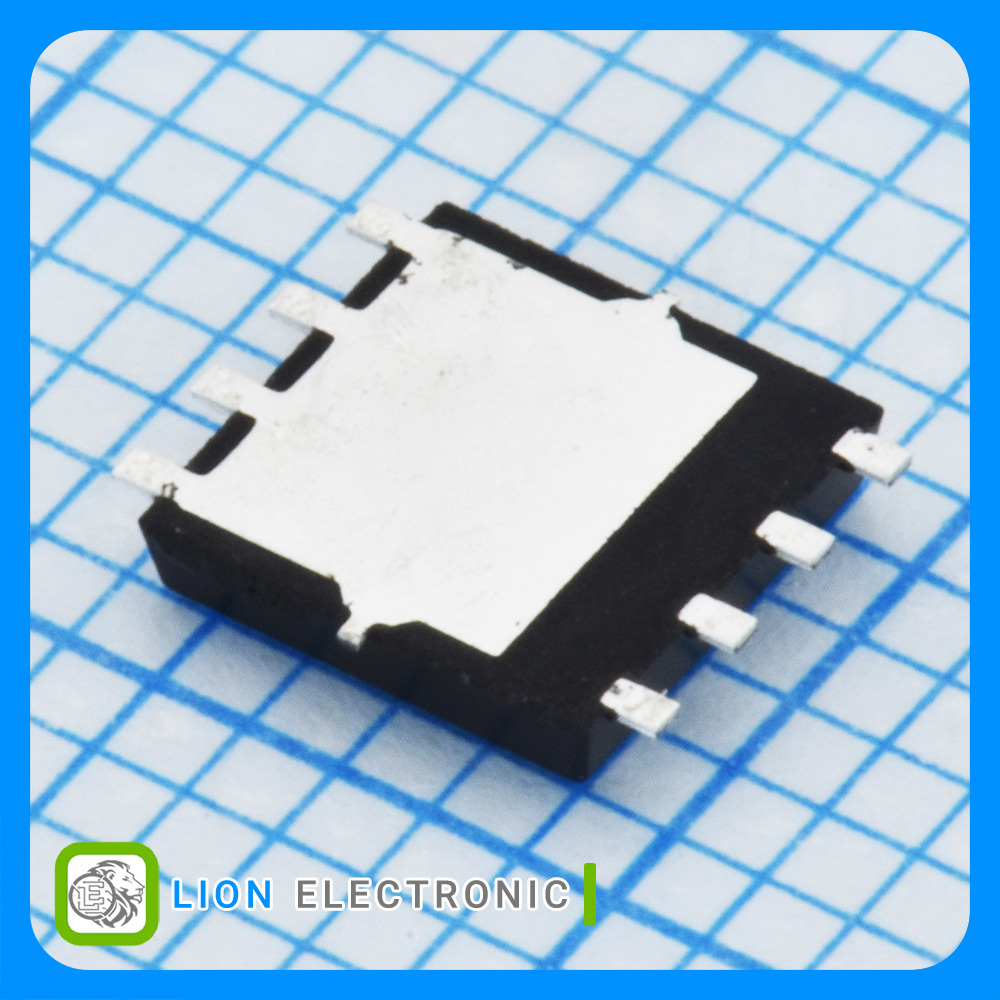

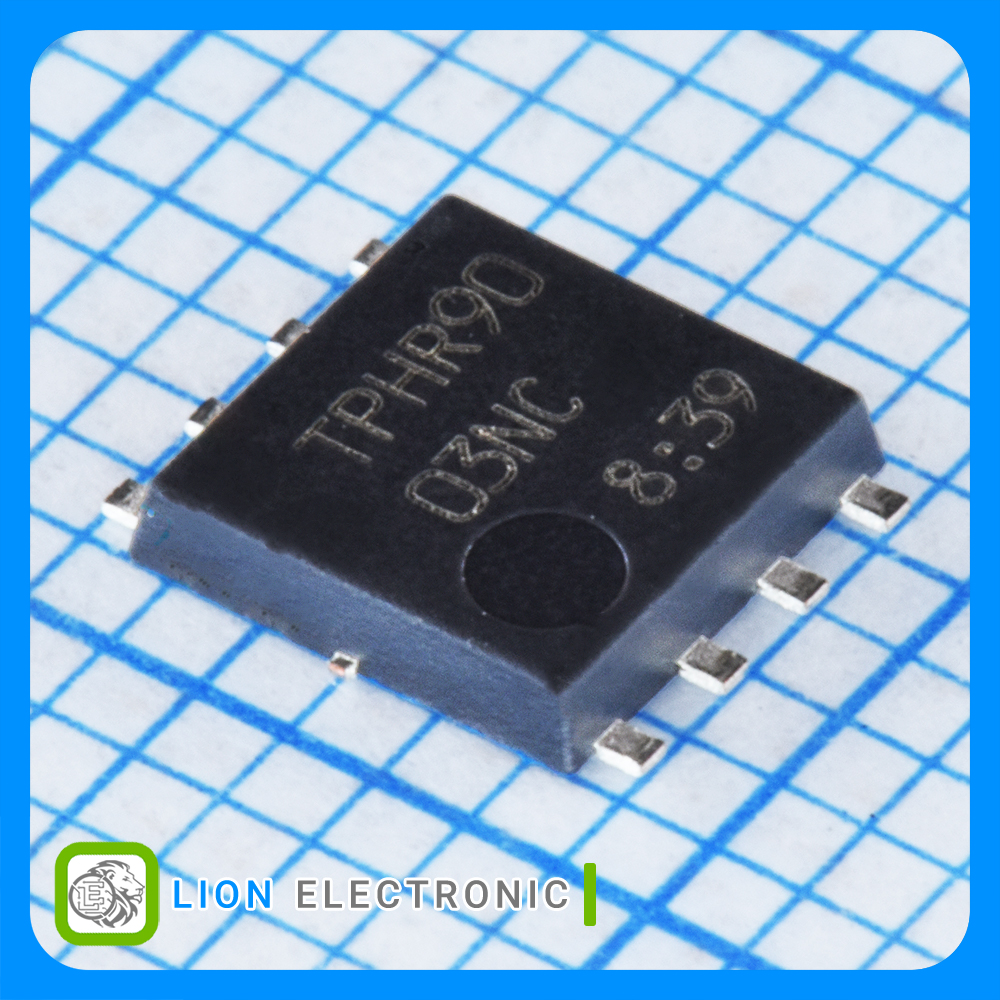

ماسفت 30 ولت 220 آمپر نوع N با پکیج SOP-8
N-CH MOSFET 30V, 220A with SOP-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 60A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.3V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 770uΩ
- Pd - Power Dissipation: 78W
- Qg - Gate Charge: 75nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت TPHR9003NC

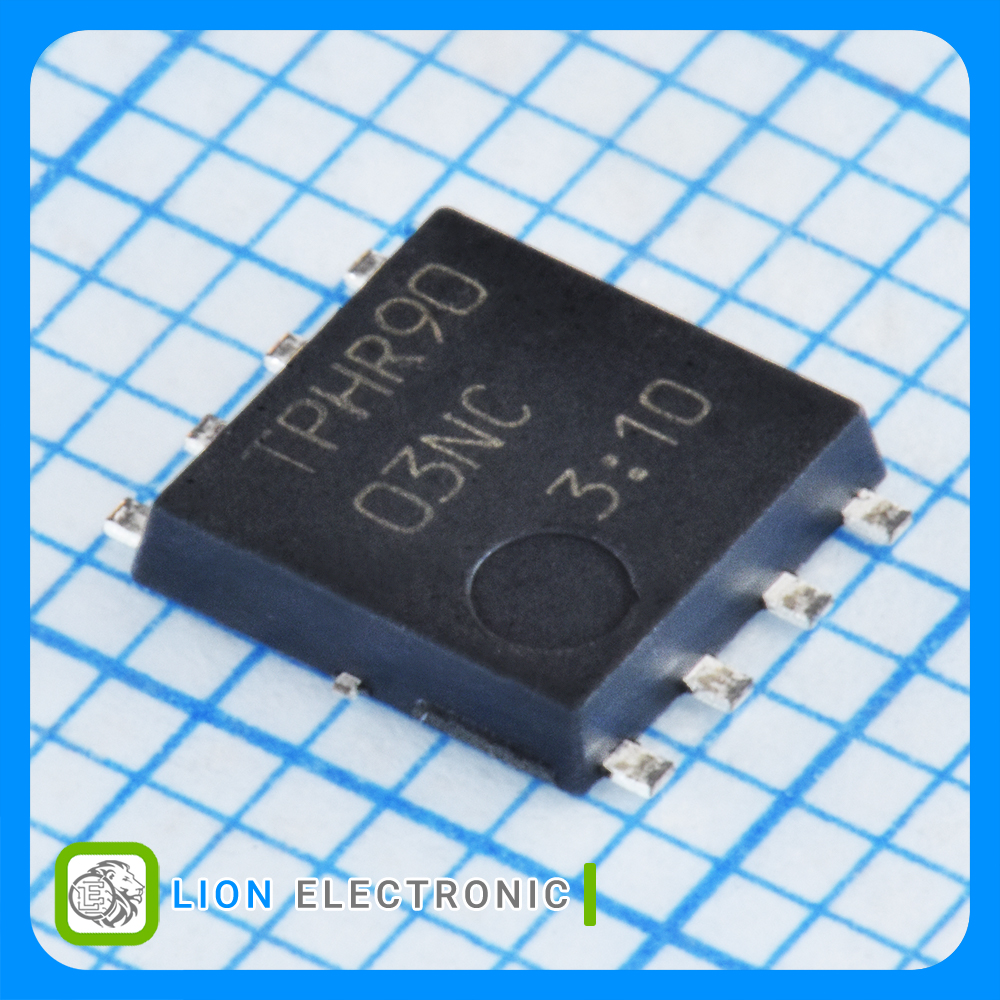

ماسفت TPHR9003NC
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
770uΩ
Rds On - Drain - Source Resistance
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1.3V
Vgs th - Gate - Source Threshold Voltage
75nC
Qg - Gate Charge
78W
Pd - Power Dissipation
60A
Id - Continuous Drain Current
SOP-8
Package-Case
