TOSHIBA
معرفی

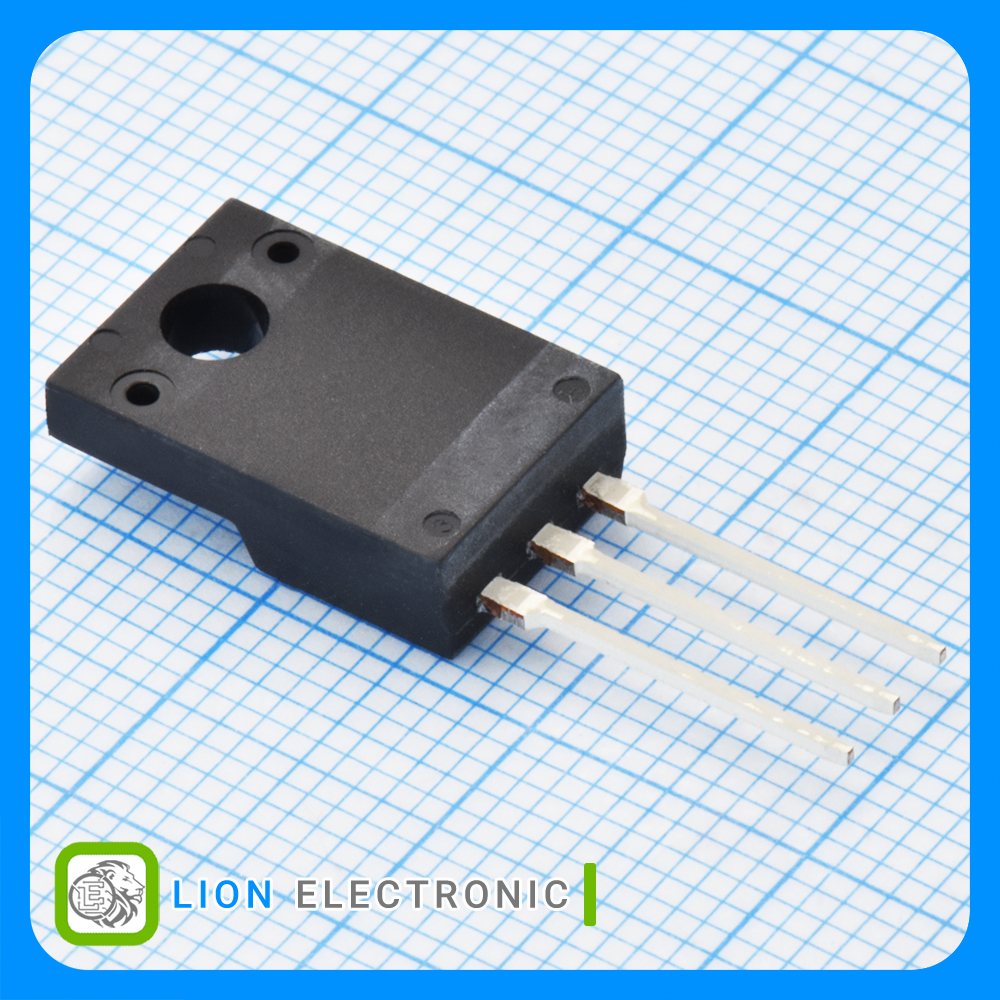

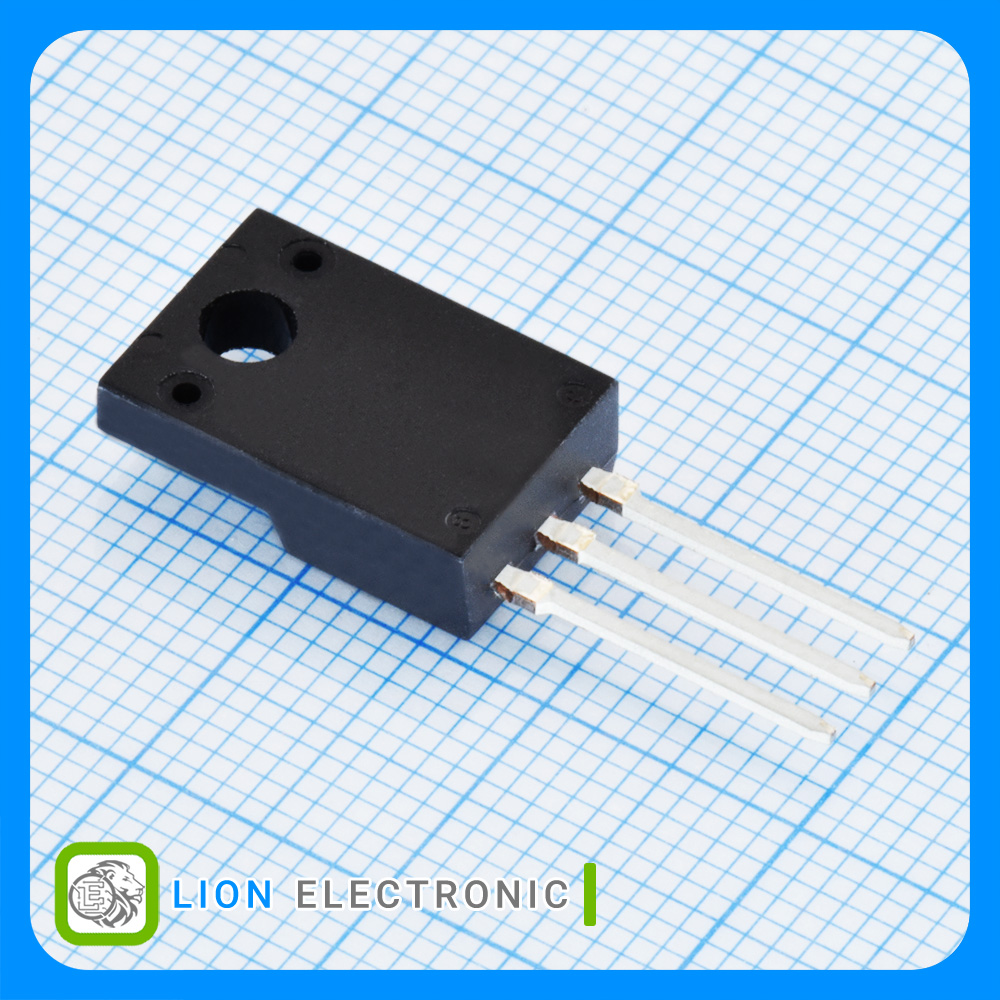

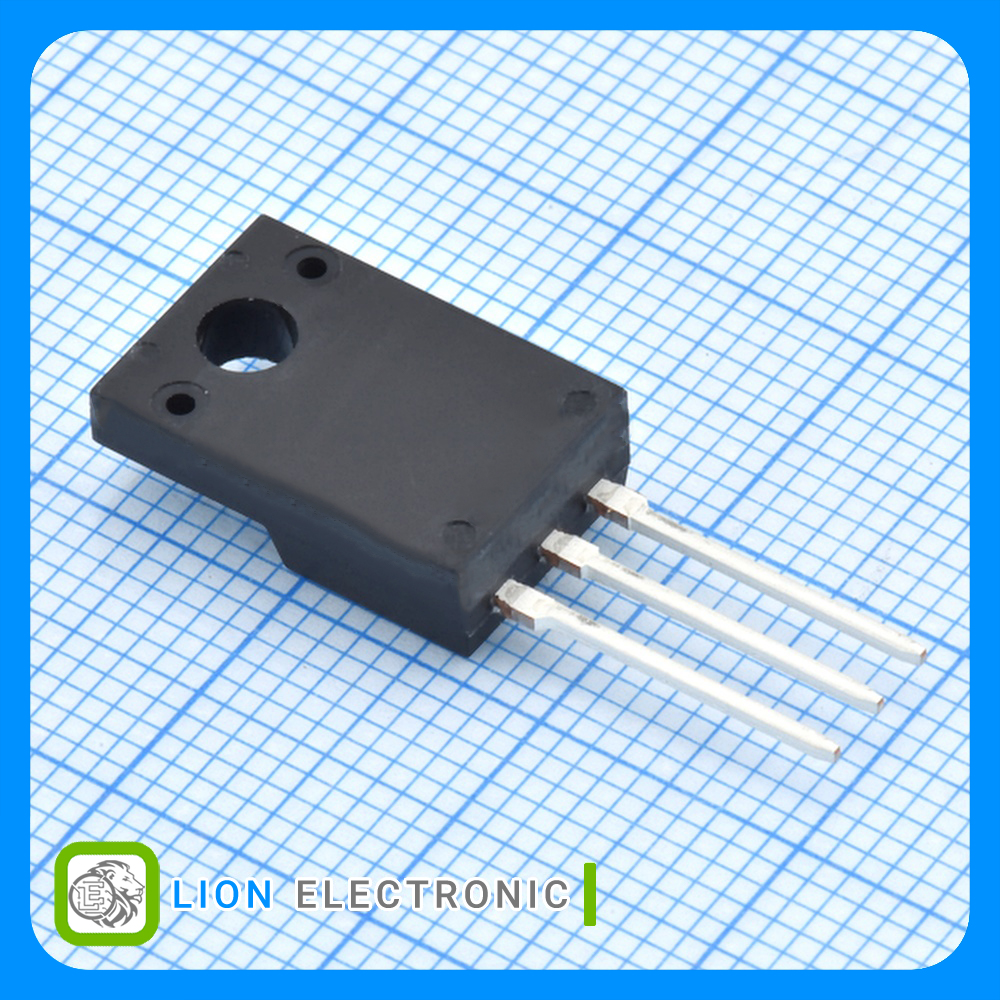

ماسفت 600 ولت 15.8 آمپر نوع N با پکیج TO-220SIS (TO-220FP-3)
N-CH MOSFET 600V, 15.8A with TO-220SIS (TO-220FP-3) Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 15.8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.7V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 160mΩ
- Pd - Power Dissipation: 40W
- Qg - Gate Charge: 38nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت TK16A60W

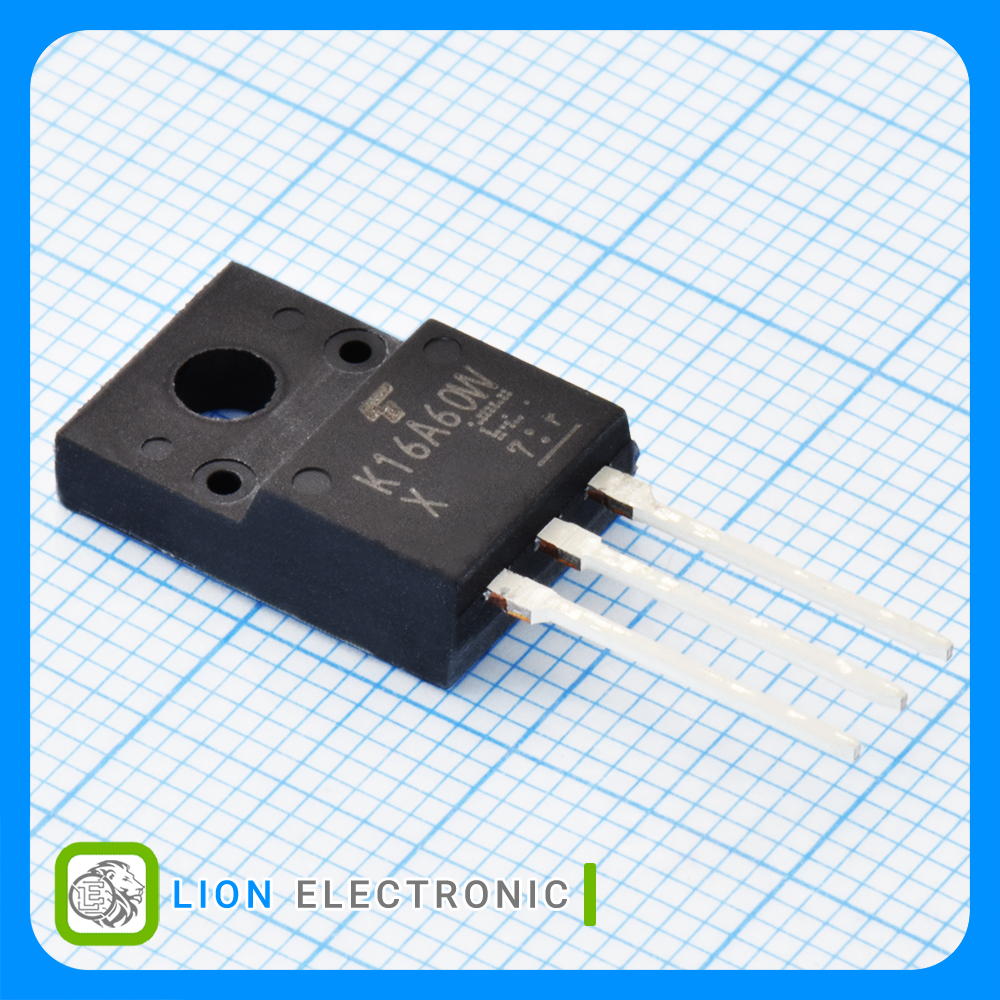

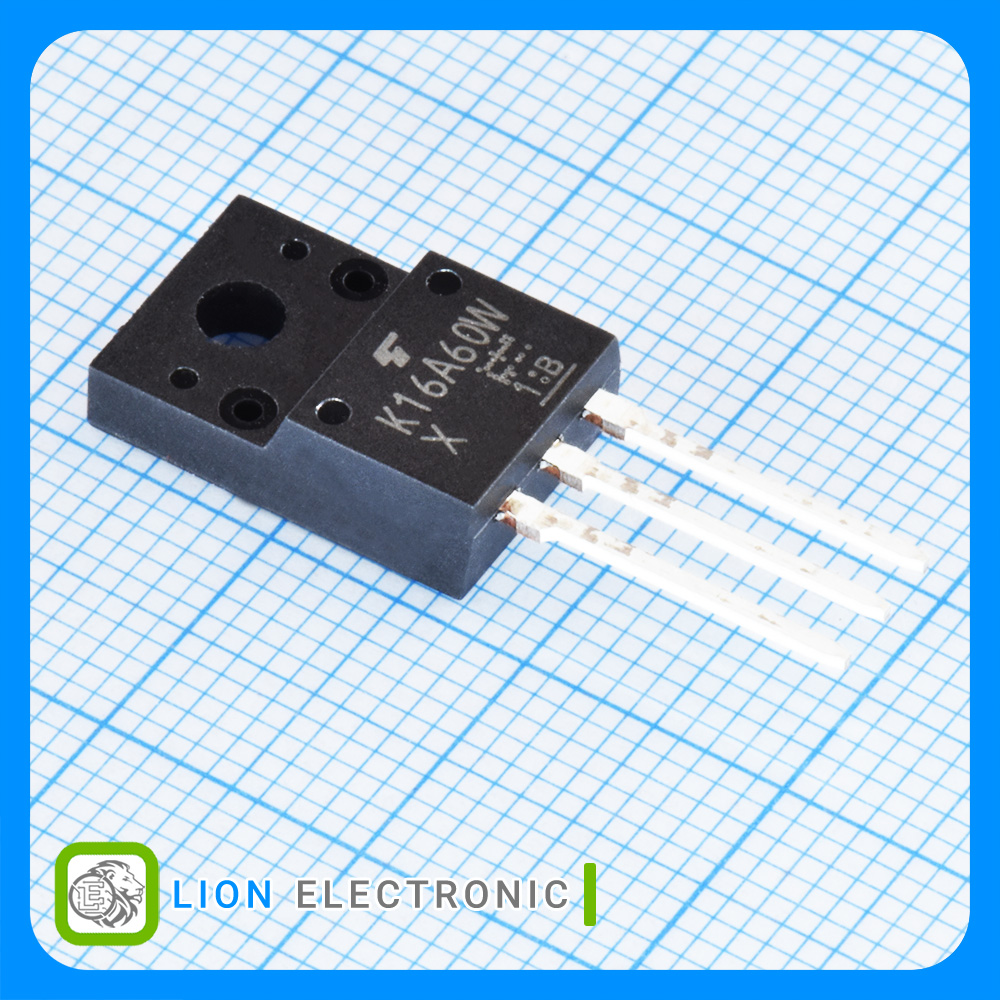

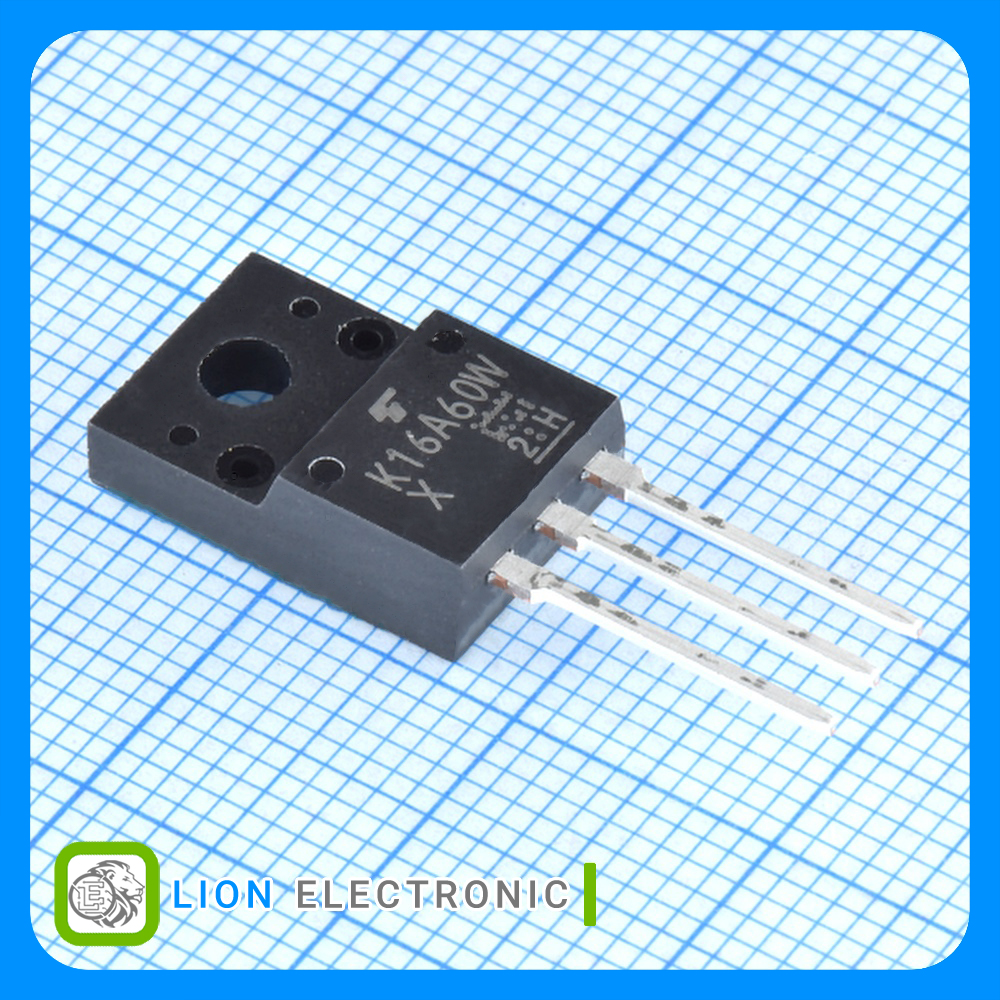

ماسفت TK16A60W
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
2.7V
Vgs th - Gate - Source Threshold Voltage
38nC
Qg - Gate Charge
40W
Pd - Power Dissipation
15.8A
Id - Continuous Drain Current
160mΩ
Rds On - Drain - Source Resistance
TO-220
Package-Case
