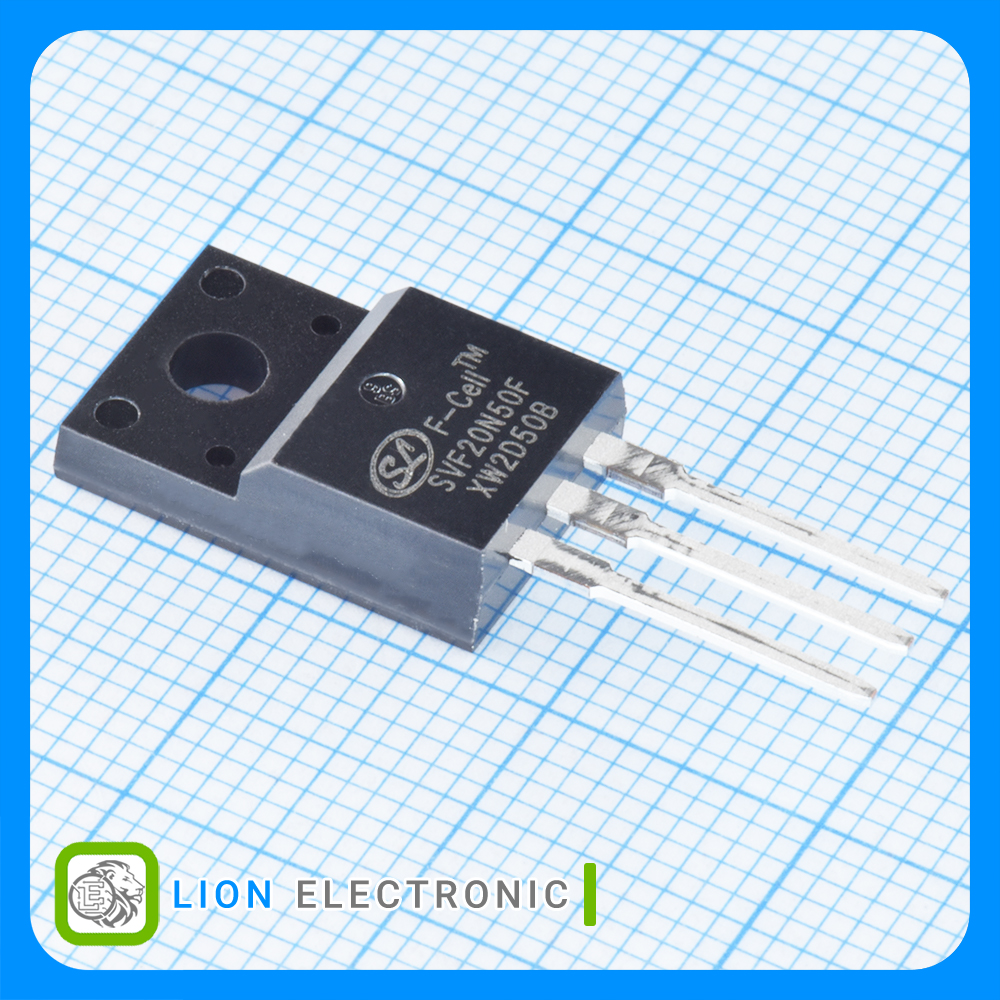

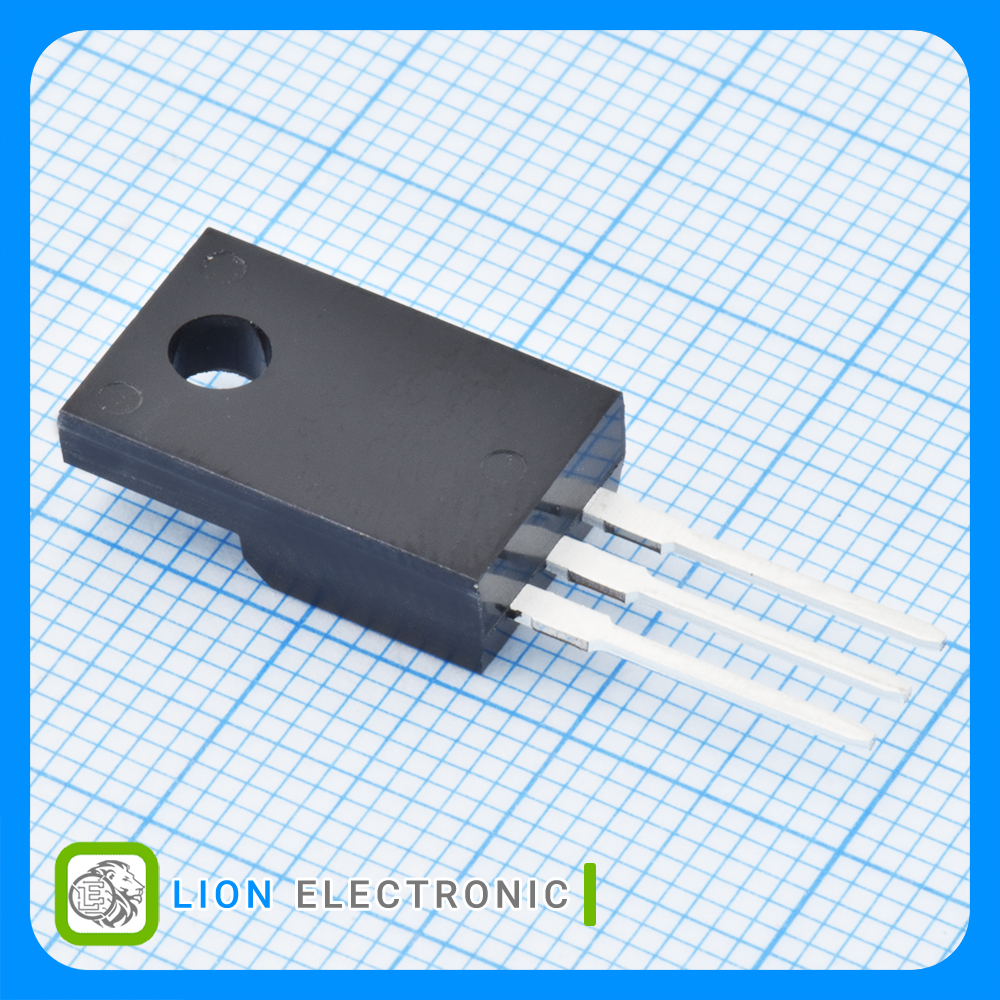

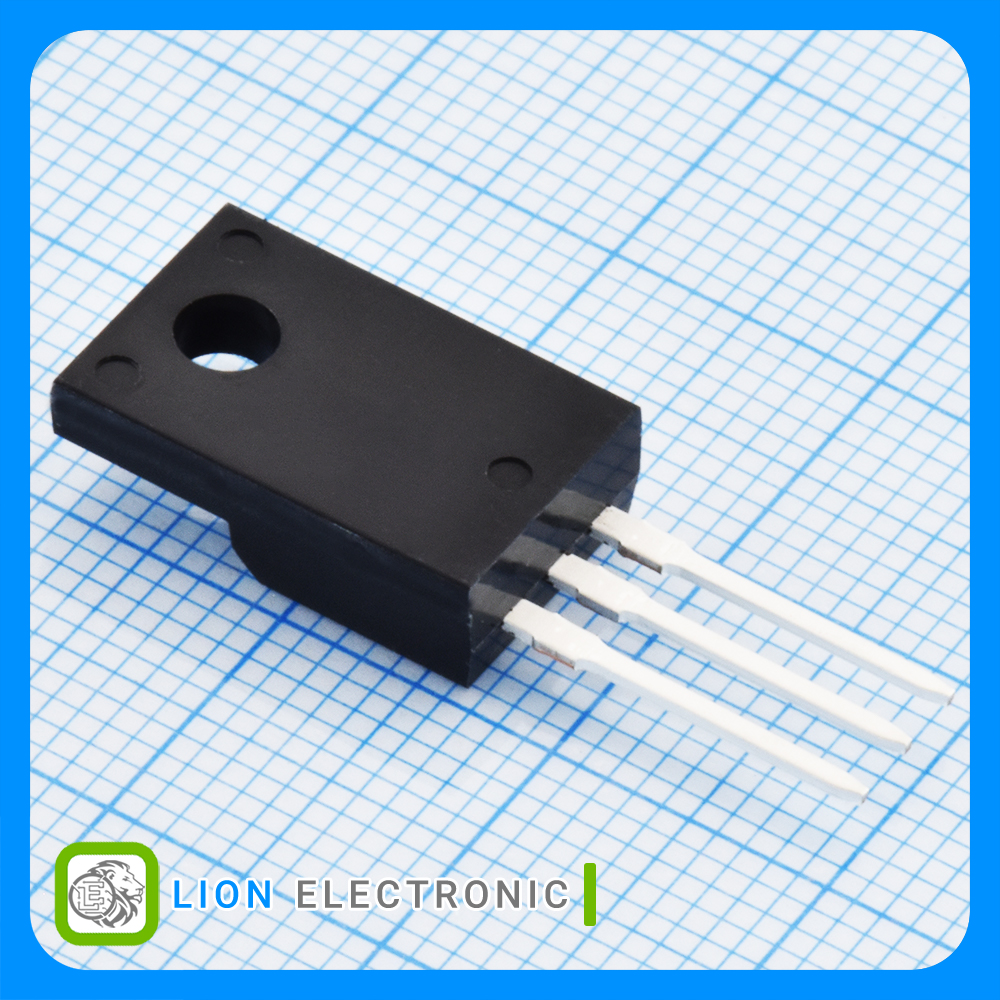

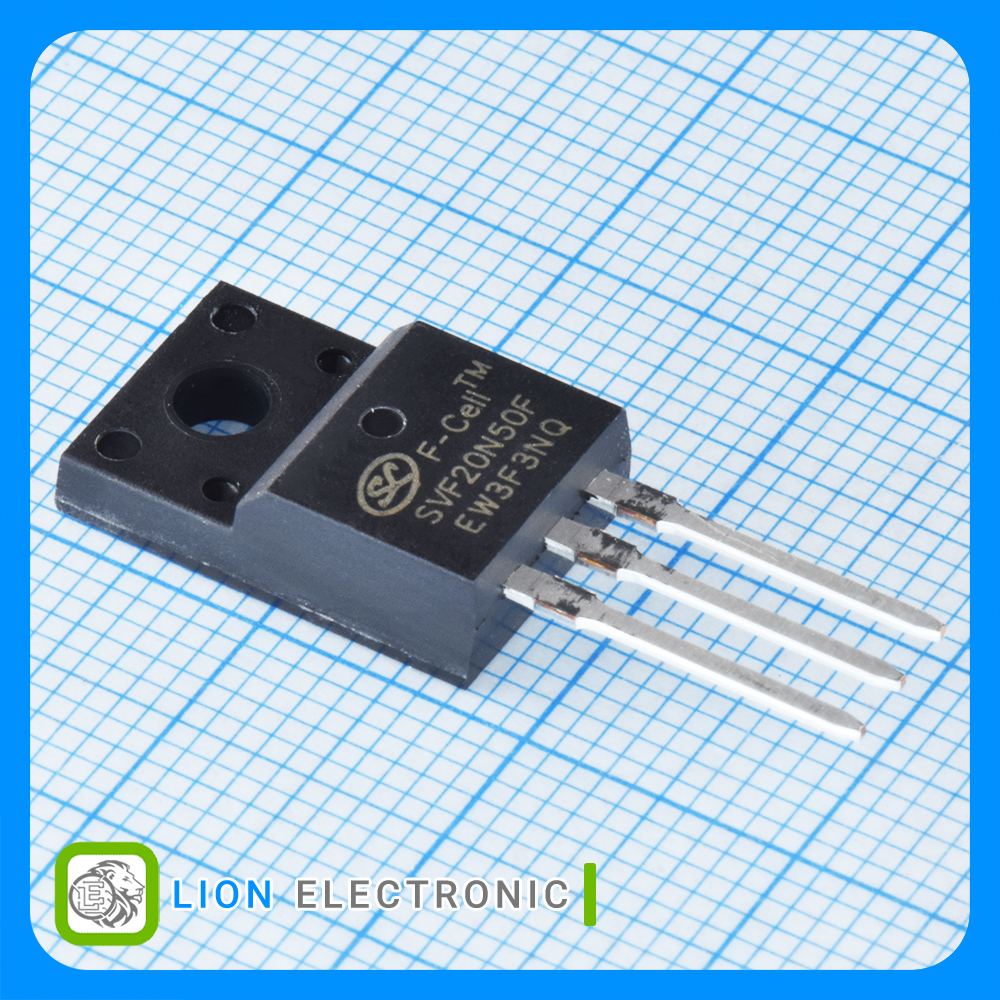

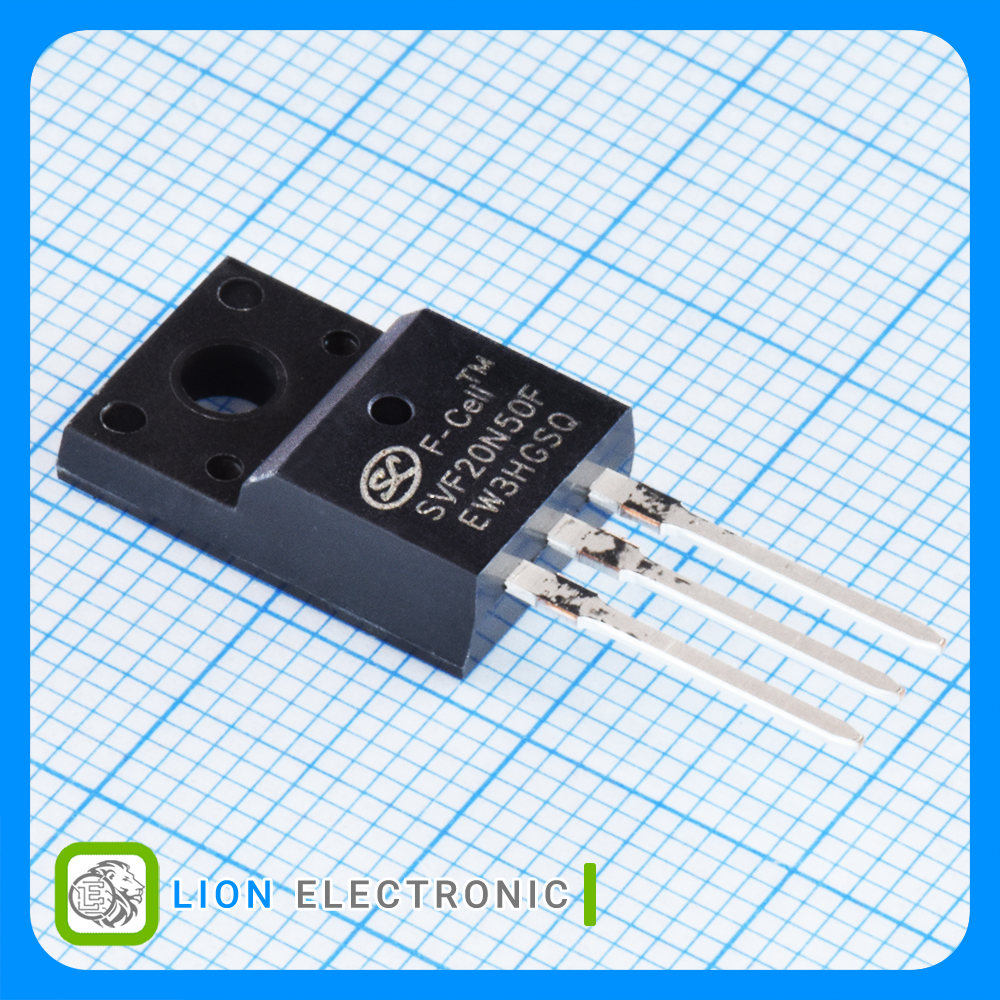

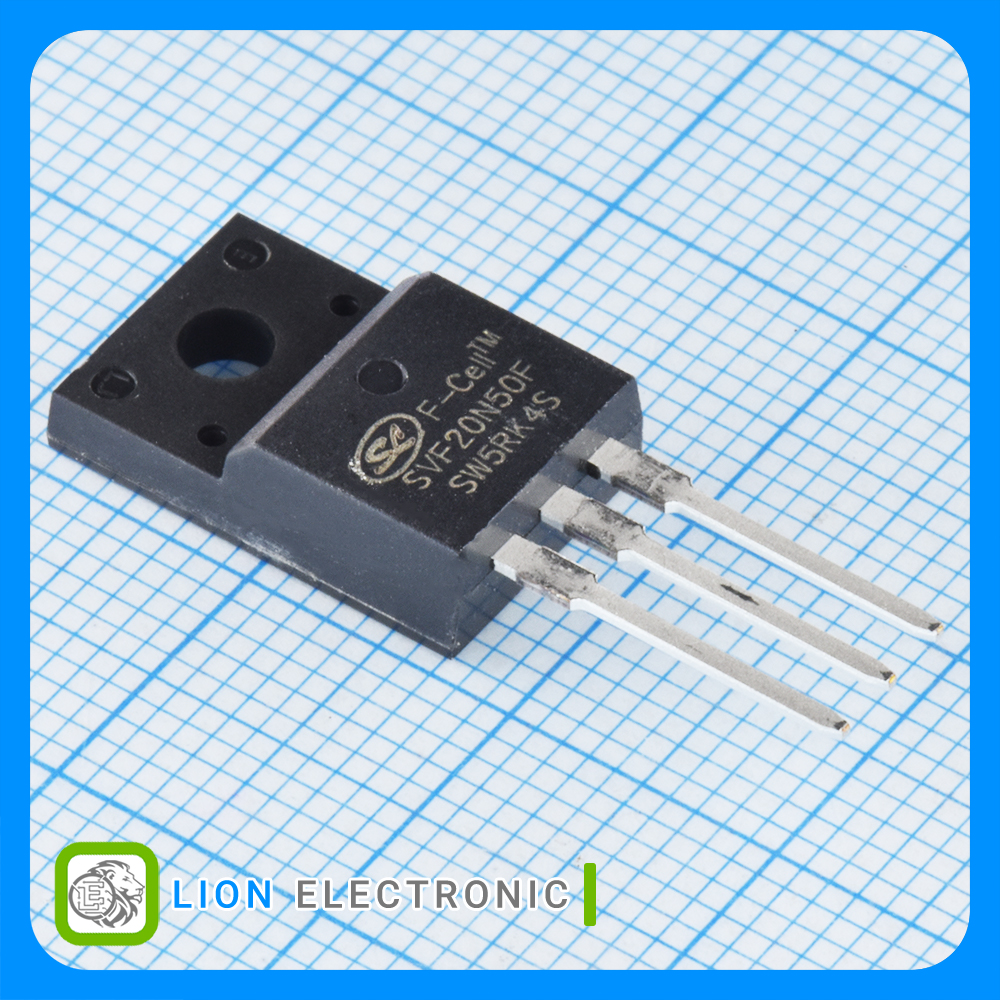

SVF20N50F
SVF20N50F
Part Number
3317
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ماسفت 500 ولت 20 آمپر نوع N با پکیج TO-220F-3L (TO-220FP-3)
N-CH MOSFET 500V, 20A with TO-220F-3L (TO-220FP-3) Package
معرفی
ماسفت 500 ولت 20 آمپر نوع N با پکیج TO-220F-3L (TO-220FP-3)
N-CH MOSFET 500V, 20A with TO-220F-3L (TO-220FP-3) Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 500V
- Id - Continuous Drain Current: 20A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 200mΩ
- Pd - Power Dissipation: 72W
- Qg - Gate Charge: 49.5nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت SVF20N50F
ماسفت SVF20N50F
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
500V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
49.5nC
Qg - Gate Charge
20A
Id - Continuous Drain Current
72W
Pd - Power Dissipation
200mΩ
Rds On - Drain - Source Resistance
TO-220
Package-Case
