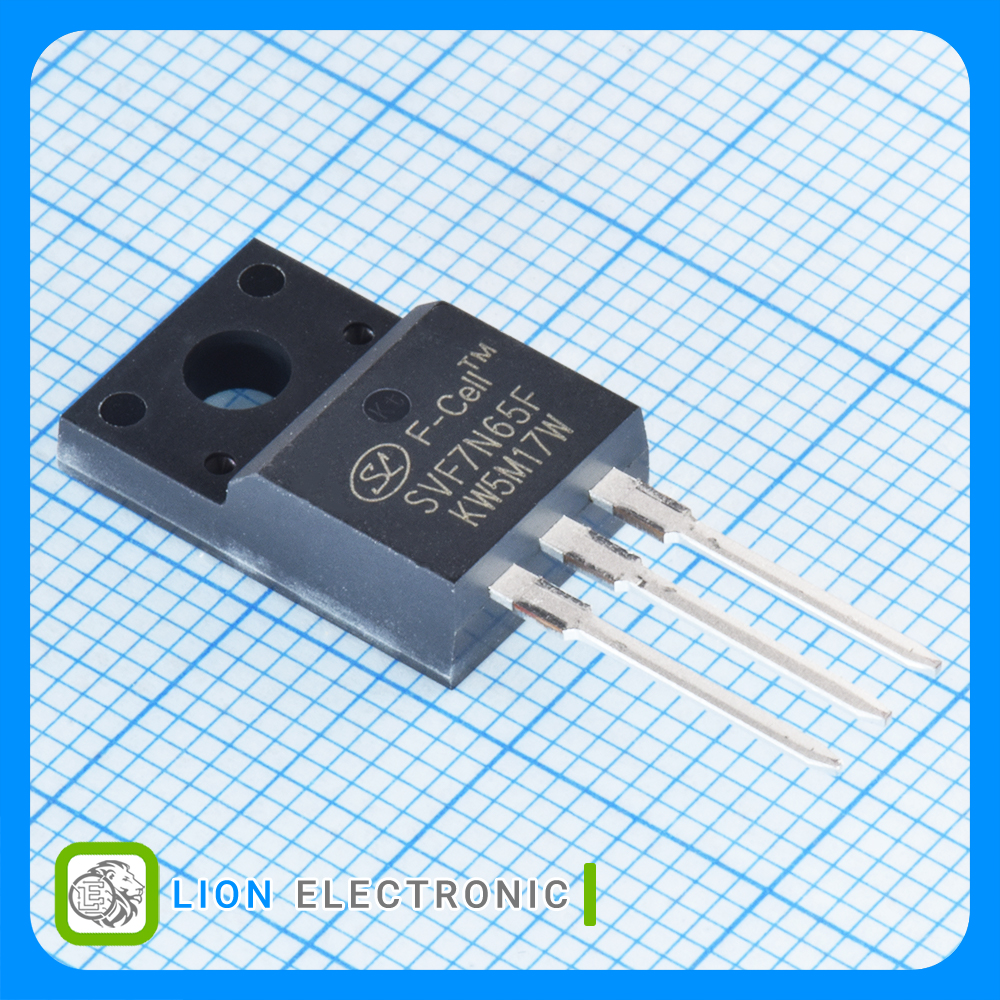

SVF7N65F
SVF7N65F
Part Number
3318
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ماسفت 650 ولت 7 آمپر نوع N با پکیج TO-220F-3L (TO-220FP-3)

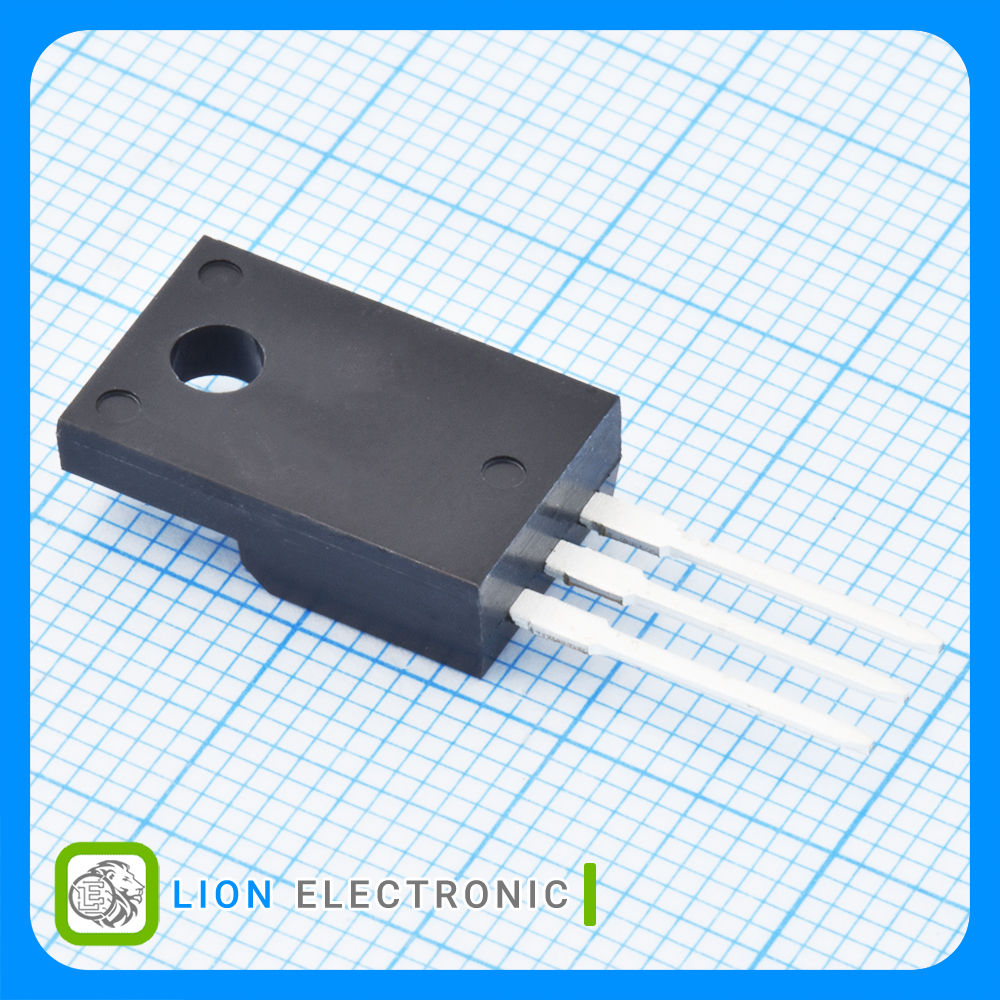

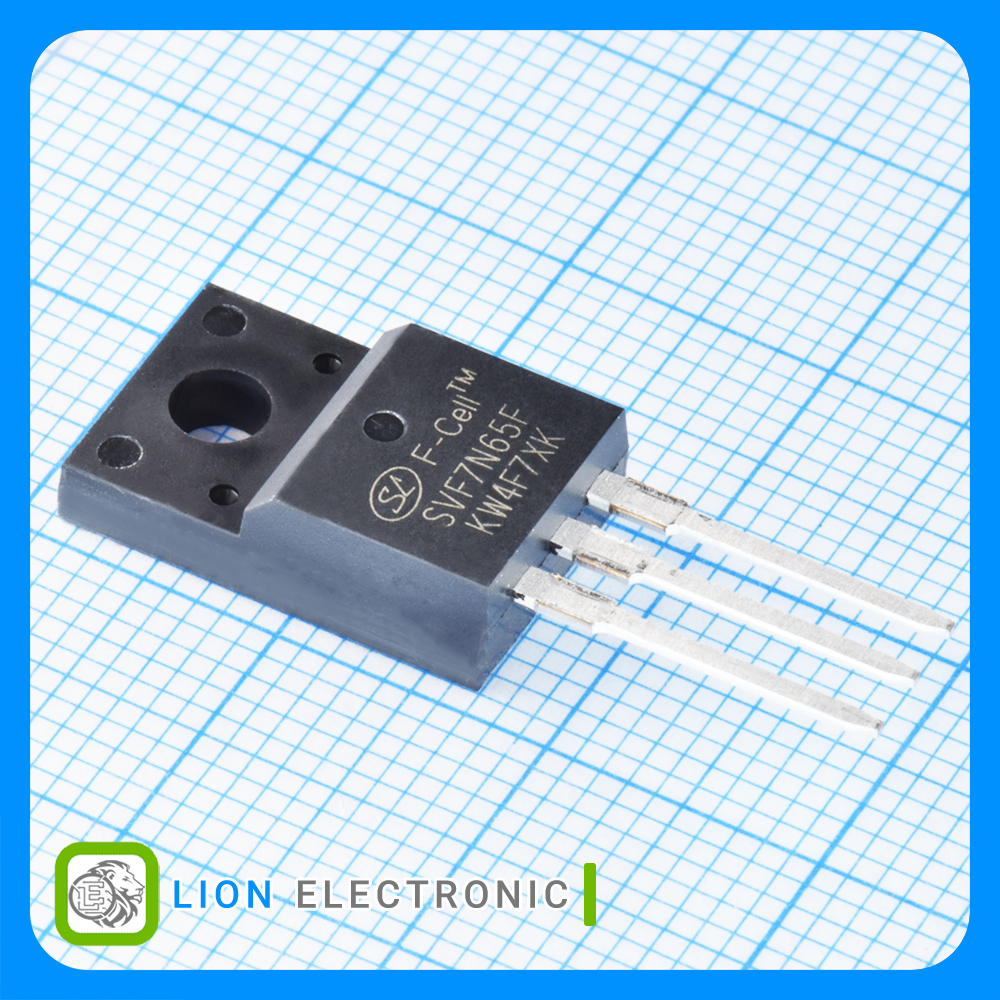

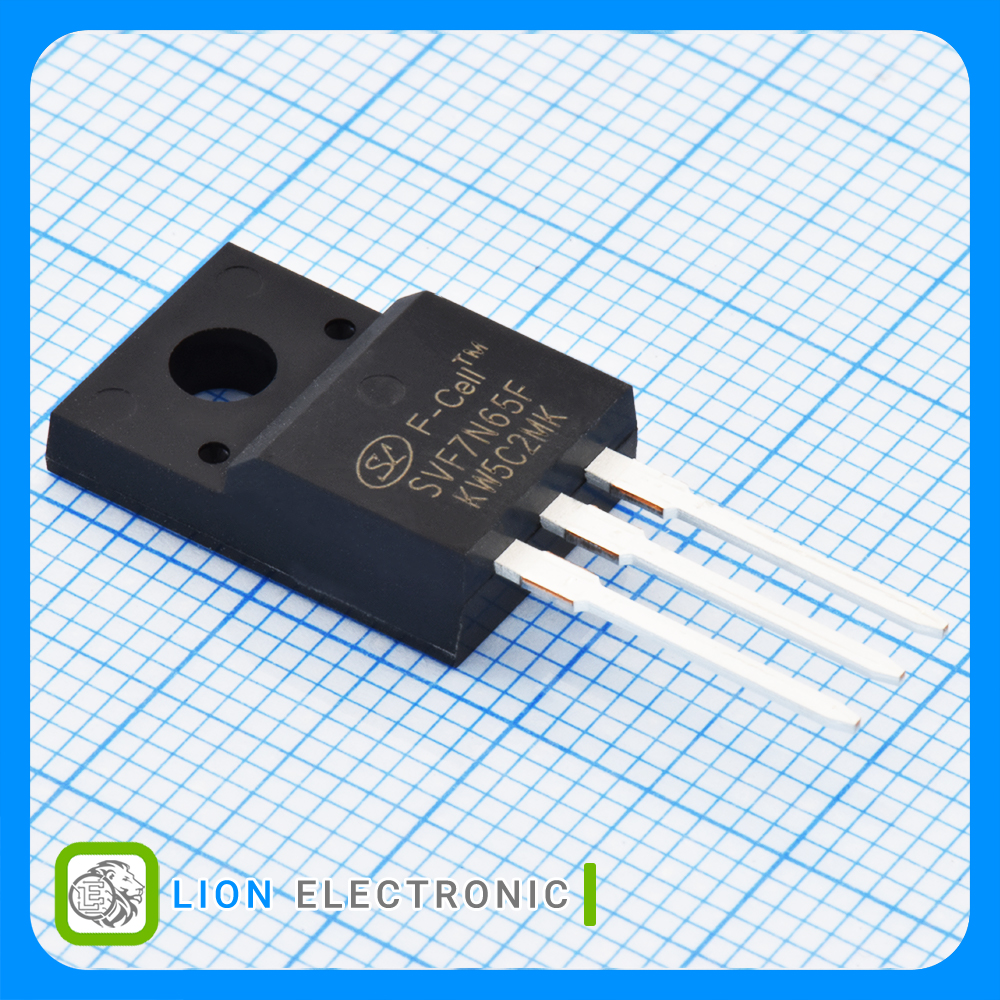

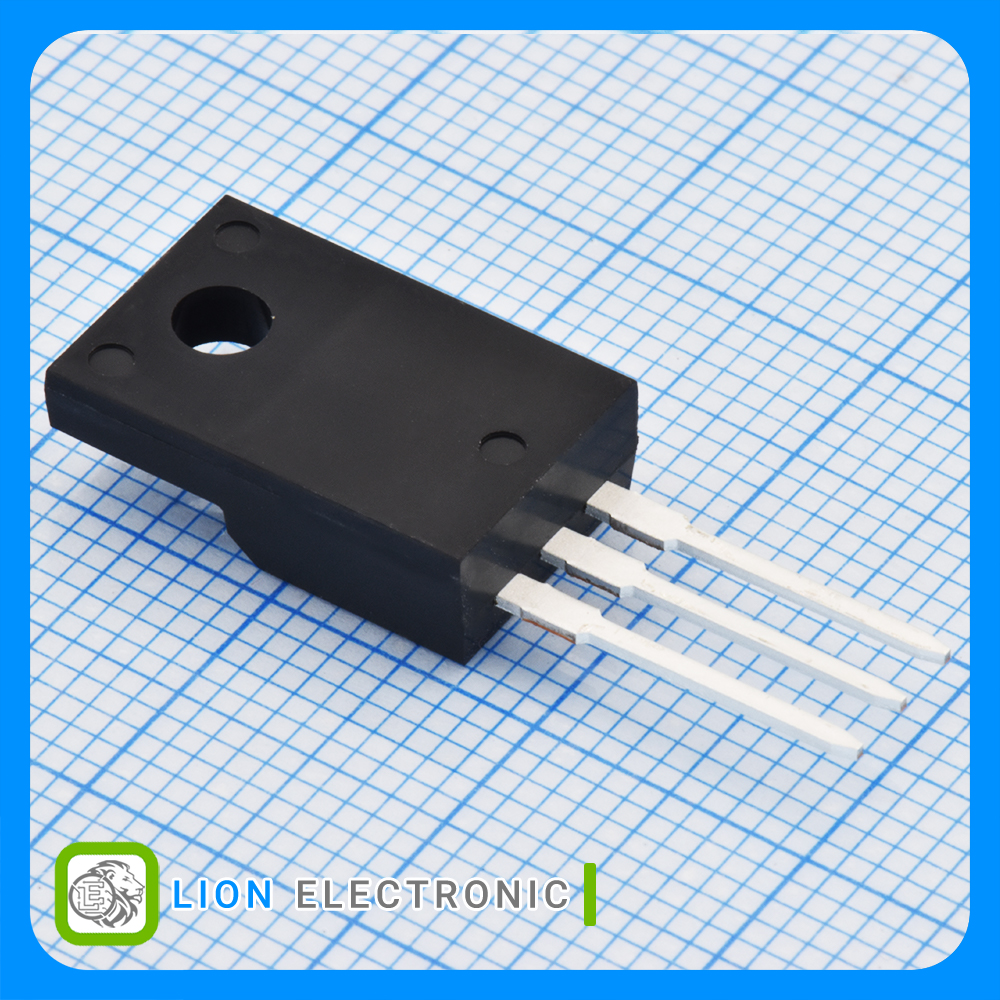

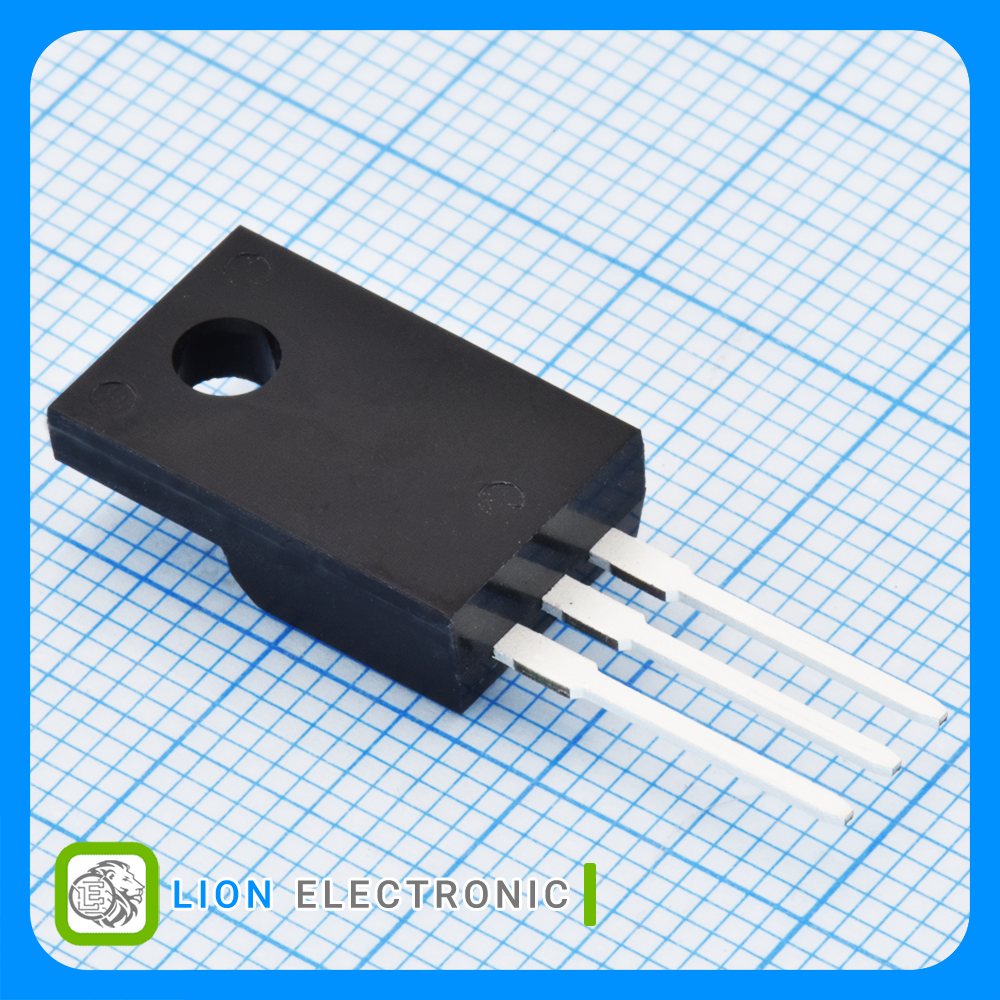

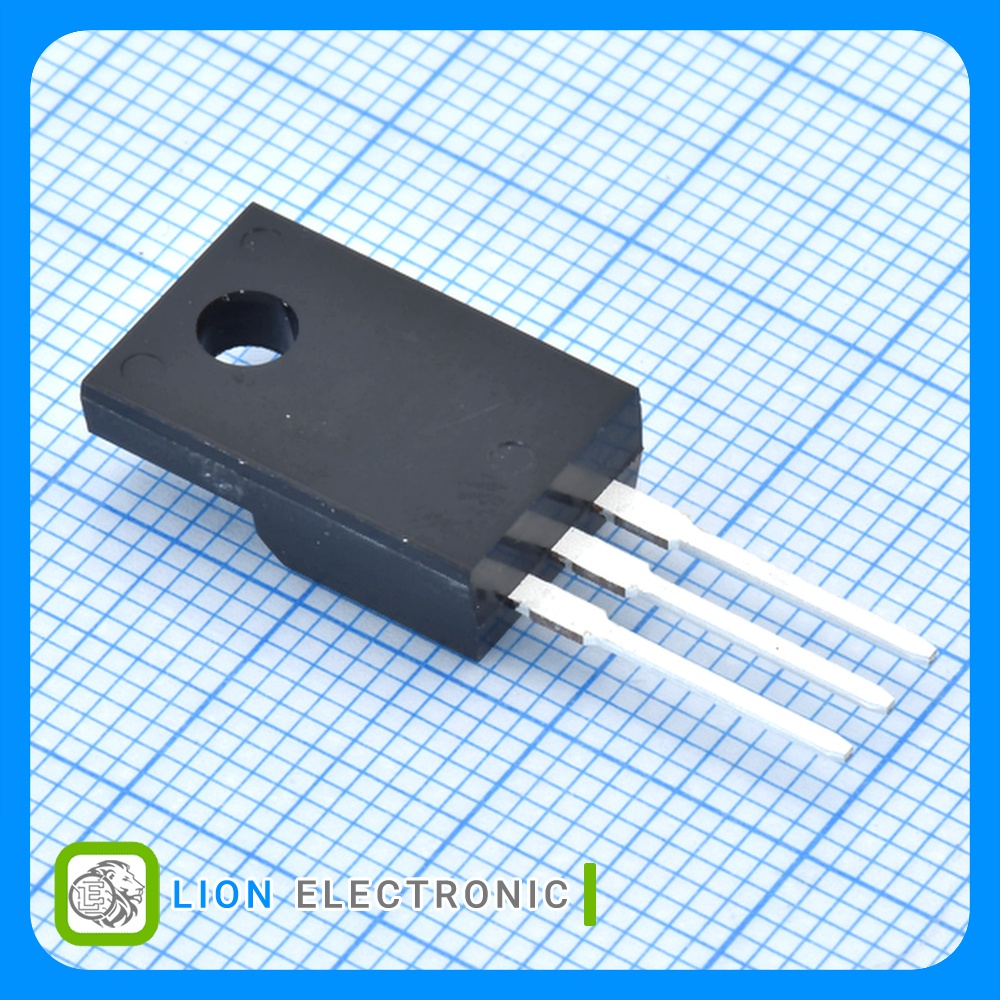

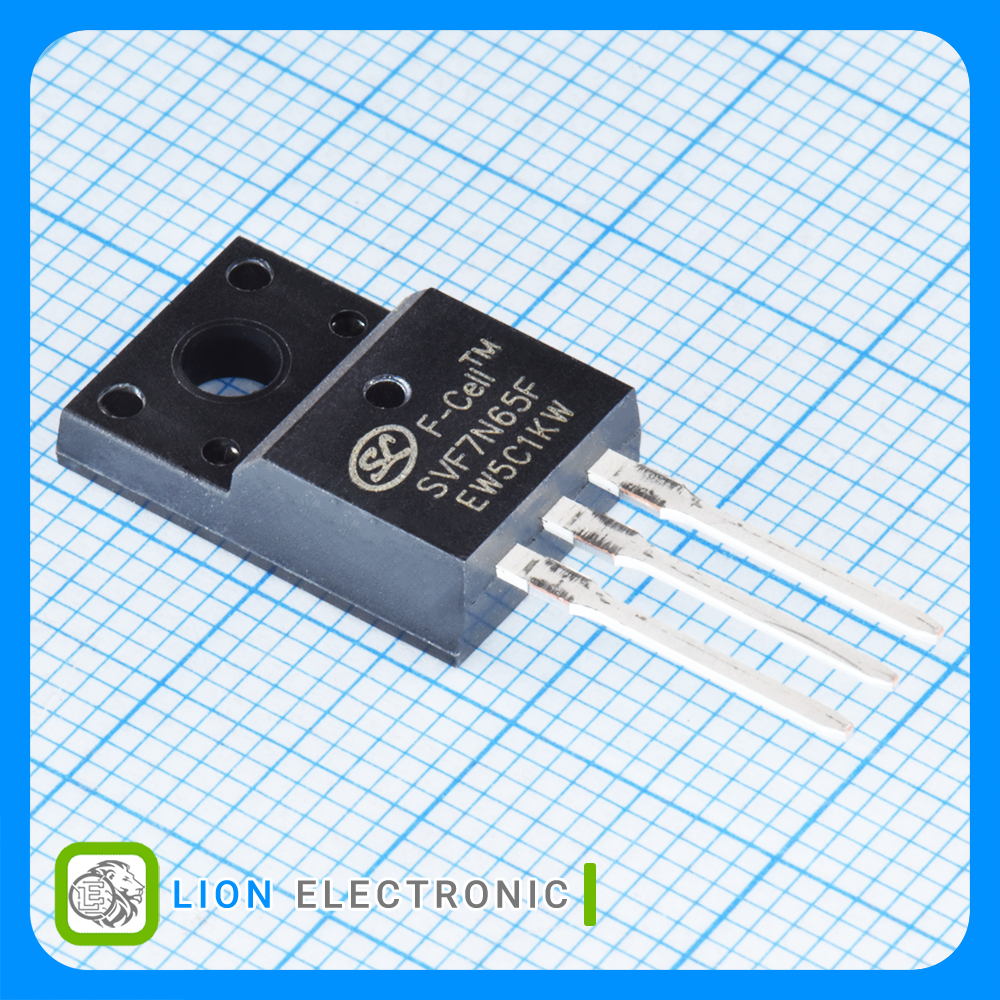

N-CH MOSFET 650V, 7A with TO-220F-3L (TO-220FP-3) Package
معرفی
ماسفت 650 ولت 7 آمپر نوع N با پکیج TO-220F-3L (TO-220FP-3)
N-CH MOSFET 650V, 7A with TO-220F-3L (TO-220FP-3) Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 650V
- Id - Continuous Drain Current: 7A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 1.1Ω
- Pd - Power Dissipation: 46W
- Qg - Gate Charge: 21.2nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت SVF7N65F

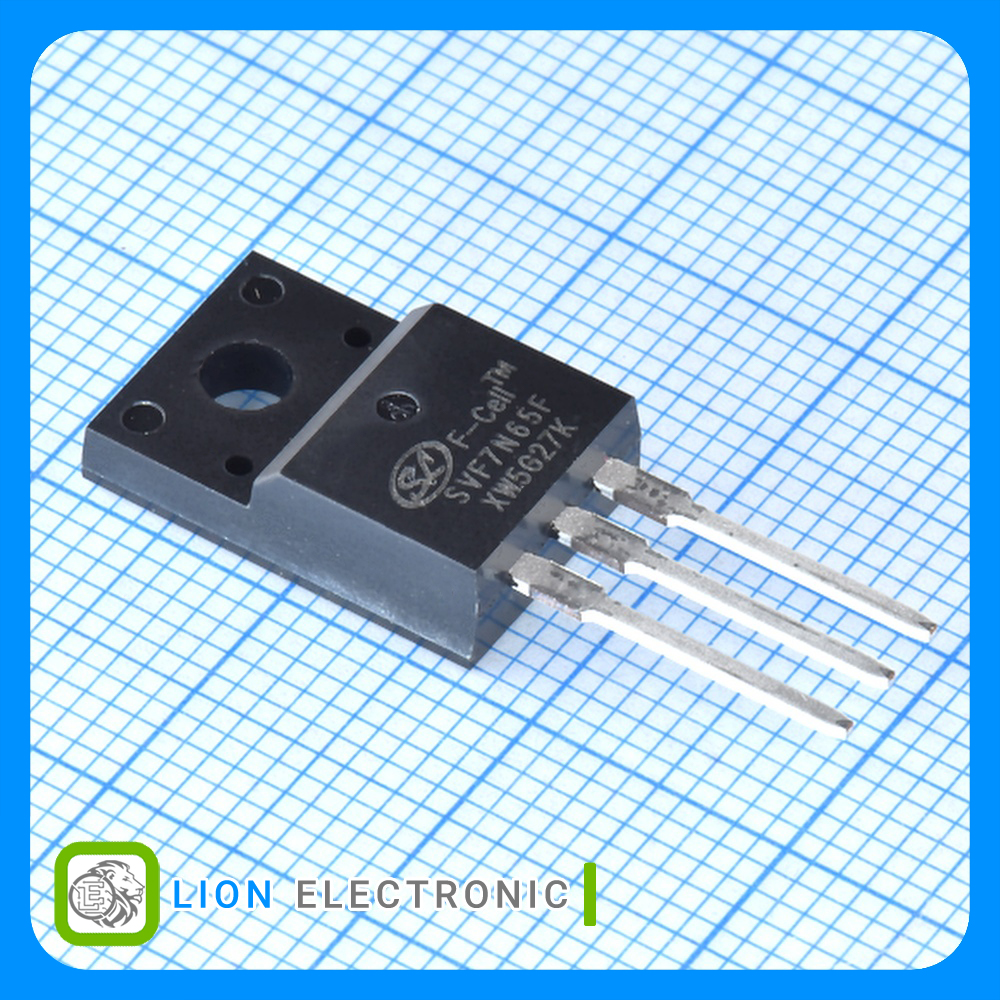

ماسفت SVF7N65F
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
650V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
21.2nC
Qg - Gate Charge
7A
Id - Continuous Drain Current
46W
Pd - Power Dissipation
1.1Ω
Rds On - Drain - Source Resistance
TO-220
Package-Case
