IRLML2502TRPBF
IRLML2502TRPBF
Part Number
3319
Lion Part
Datasheet
Infineon Technologies Manufacture

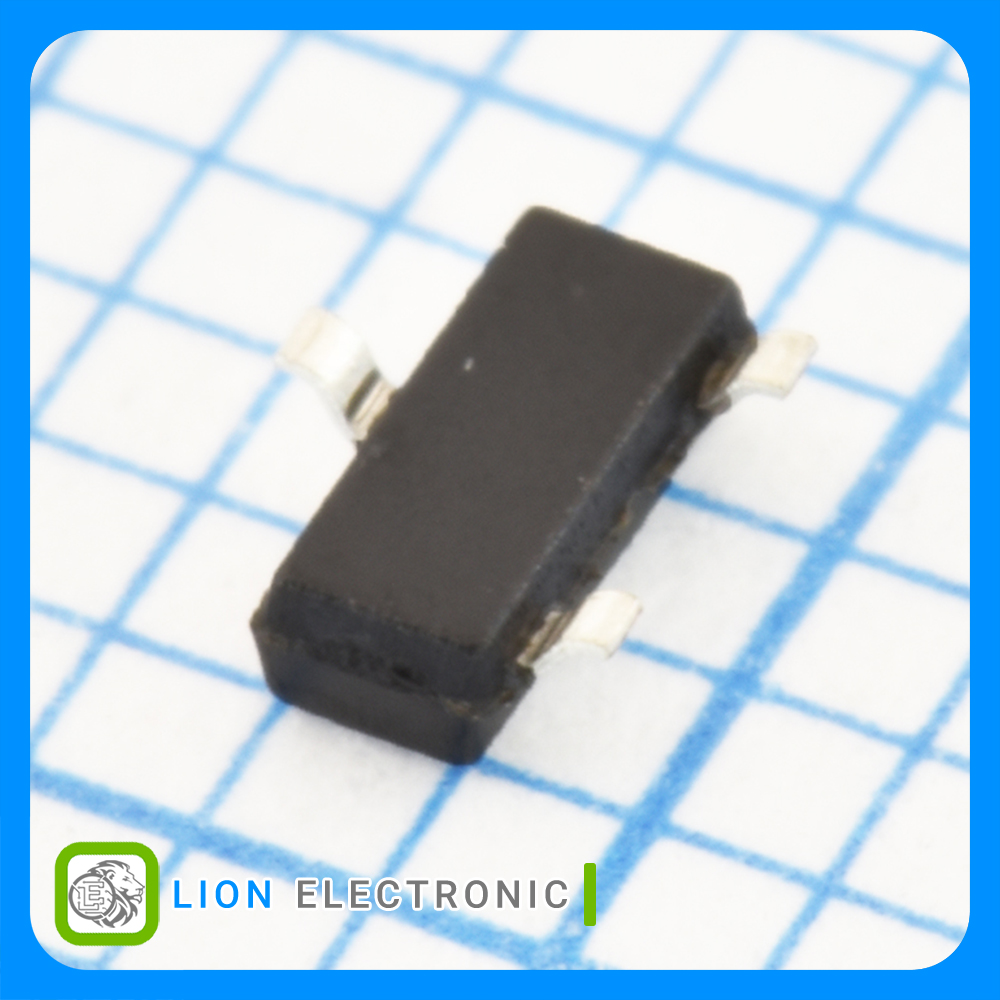

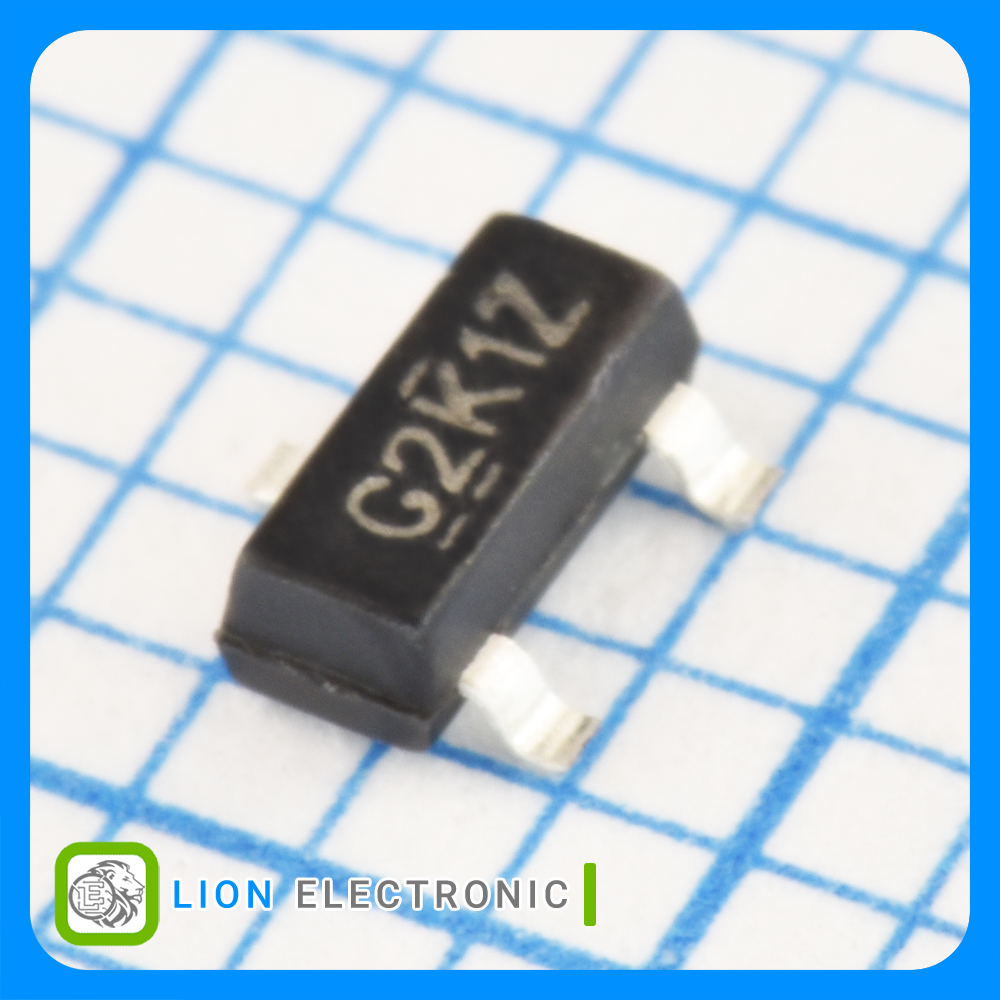

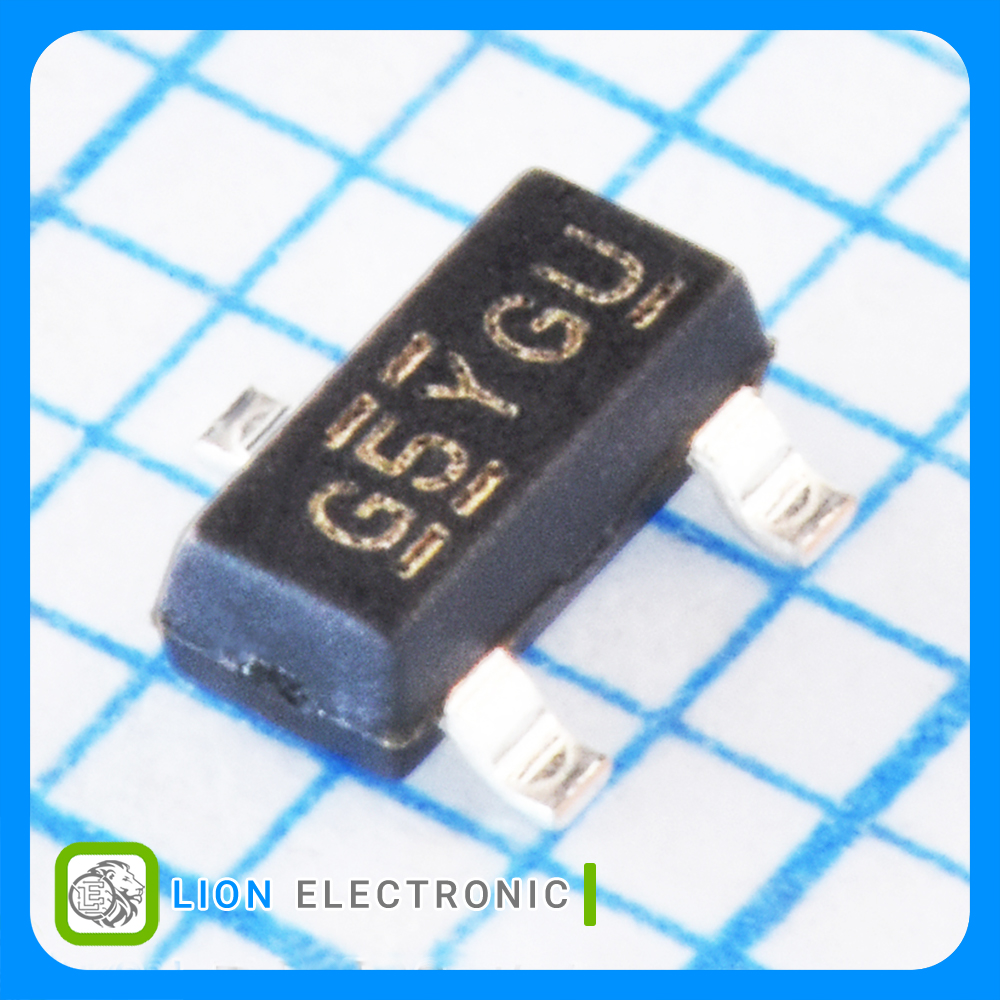

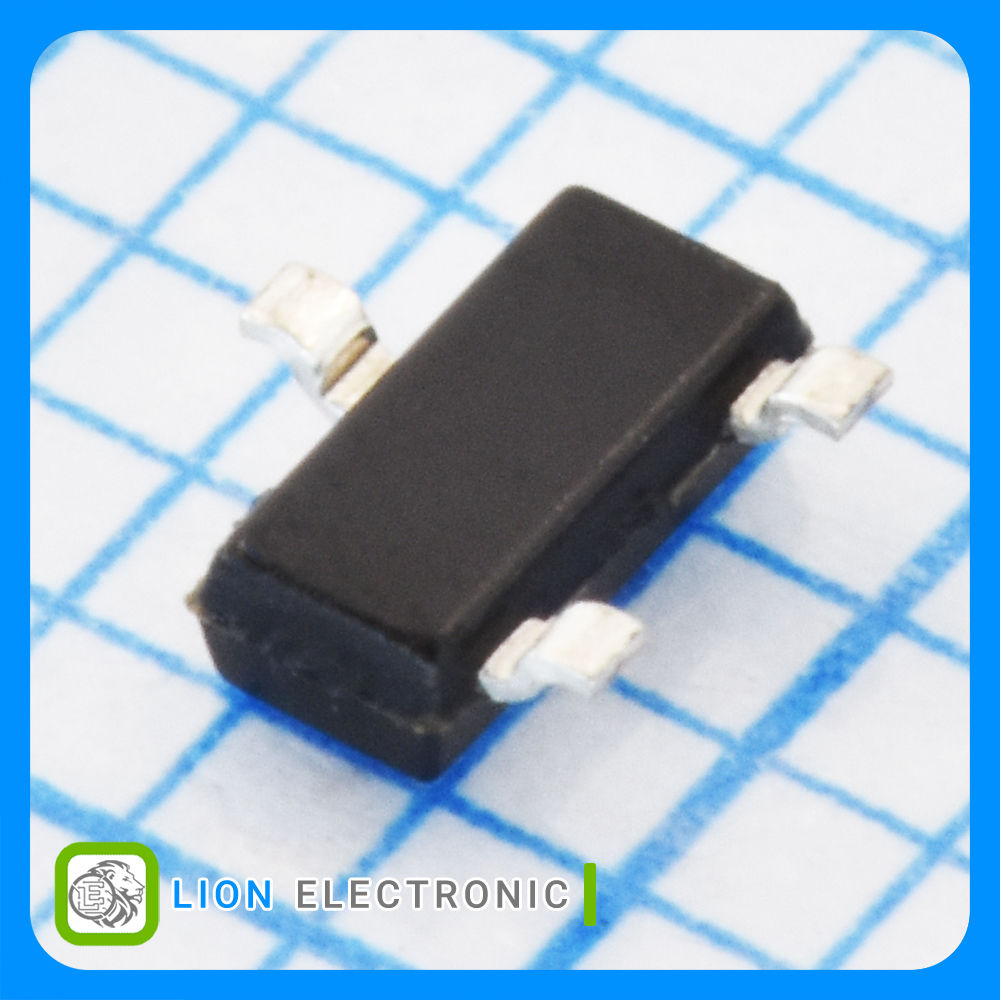

ماسفت 20 ولت 4.2 آمپر نوع N با پکیج SOT-23 (SOT-23-3)
N-CH MOSFET 20V, 4.2A with SOT-23 (SOT-23-3) Package
معرفی
ماسفت 20 ولت 4.2 آمپر نوع N با پکیج SOT-23 (SOT-23-3)
N-CH MOSFET 20V, 4.2A with SOT-23 (SOT-23-3) Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 4.2A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 600mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 35mΩ
- Pd - Power Dissipation: 1.25W
- Qg - Gate Charge: 8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

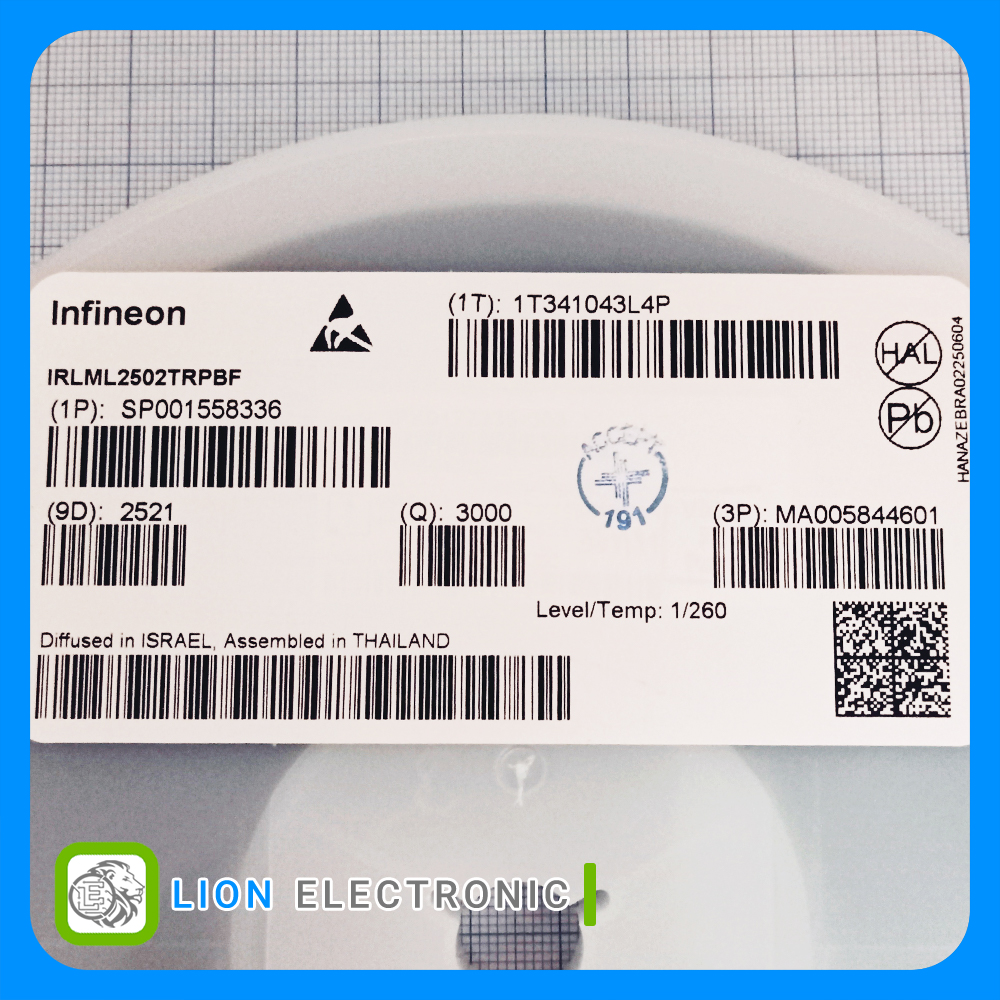

- Packaging: Reel
مشخصات ماسفت IRLML2502TRPBF
ماسفت IRLML2502TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
600mV
Vgs th - Gate - Source Threshold Voltage
8nC
Qg - Gate Charge
1.25W
Pd - Power Dissipation
4.2A
Id - Continuous Drain Current
35mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
