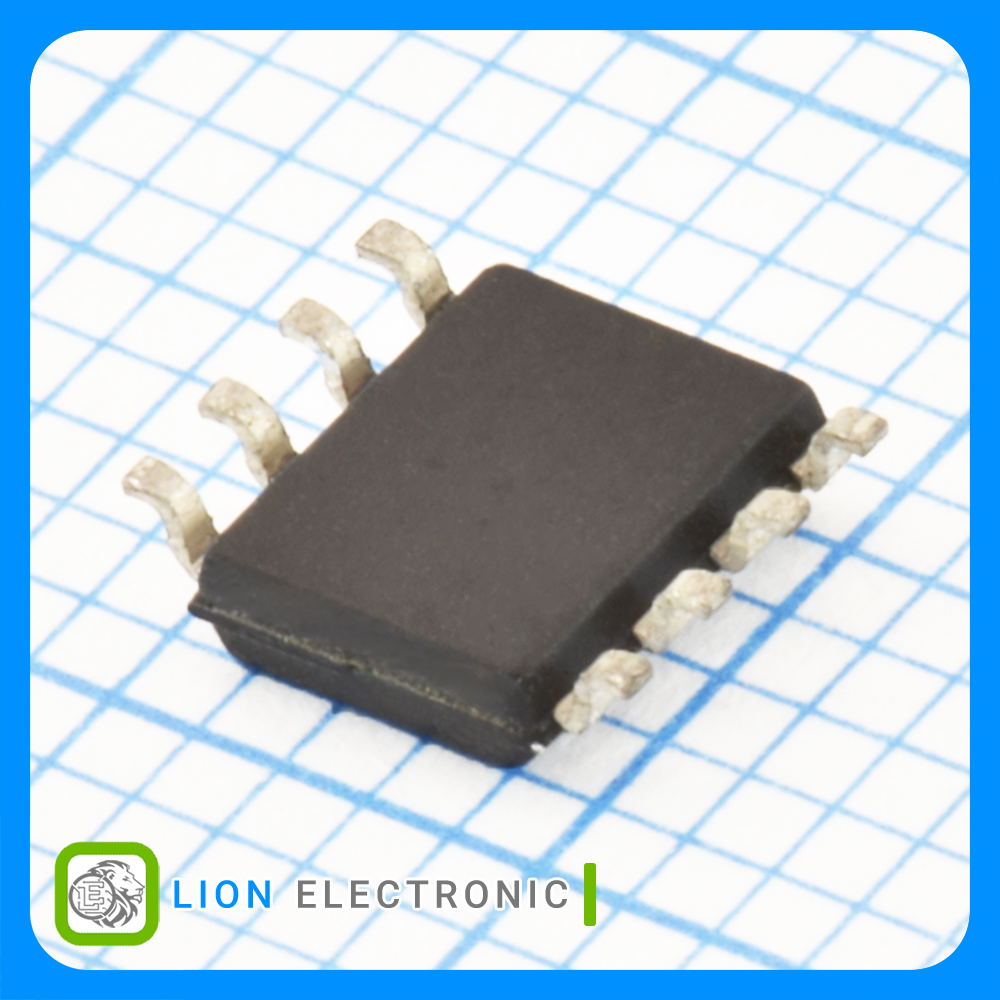

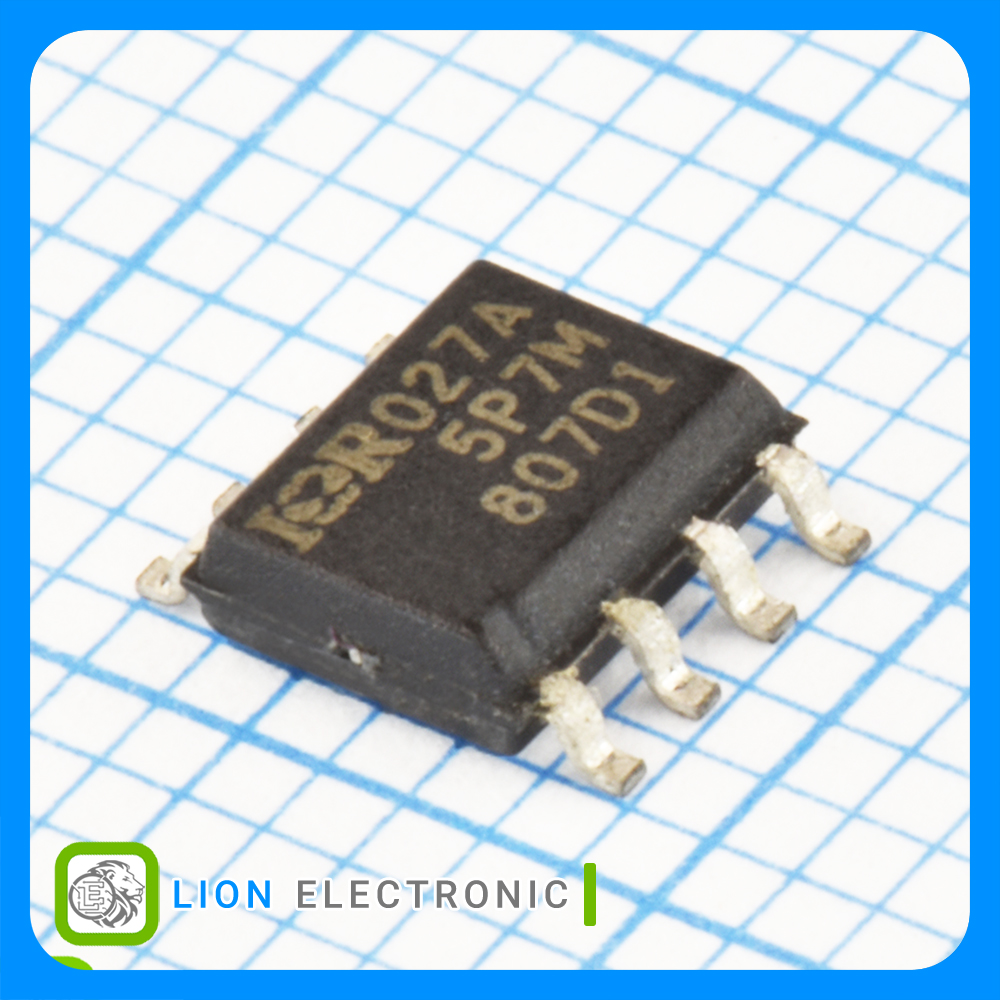

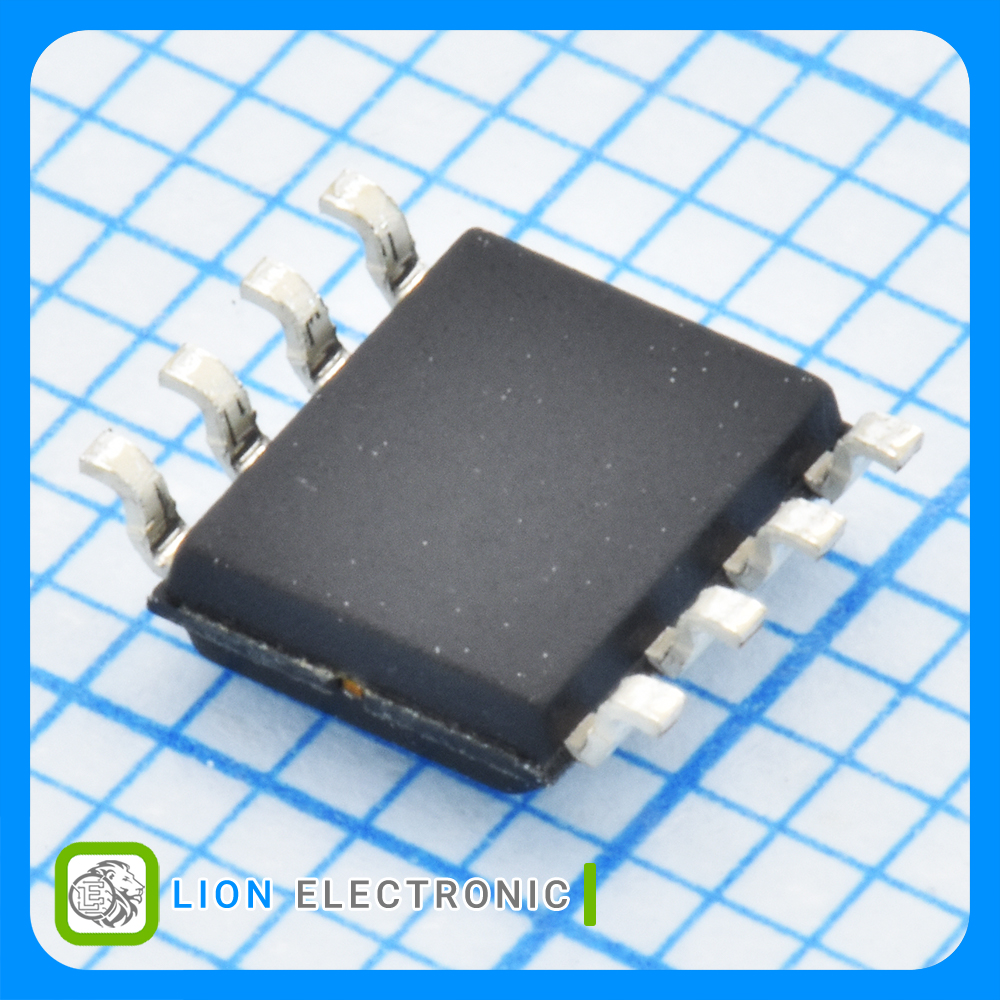

IRF7807D1TRPBF
IRF7807D1TRPBF
Part Number
3320
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 30 ولت 8.3 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 30V, 8.3A with SOIC-8 Package
معرفی
ماسفت 30 ولت 8.3 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 30V, 8.3A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 8.3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 17mΩ
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 10.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRF7807D1TRPBF

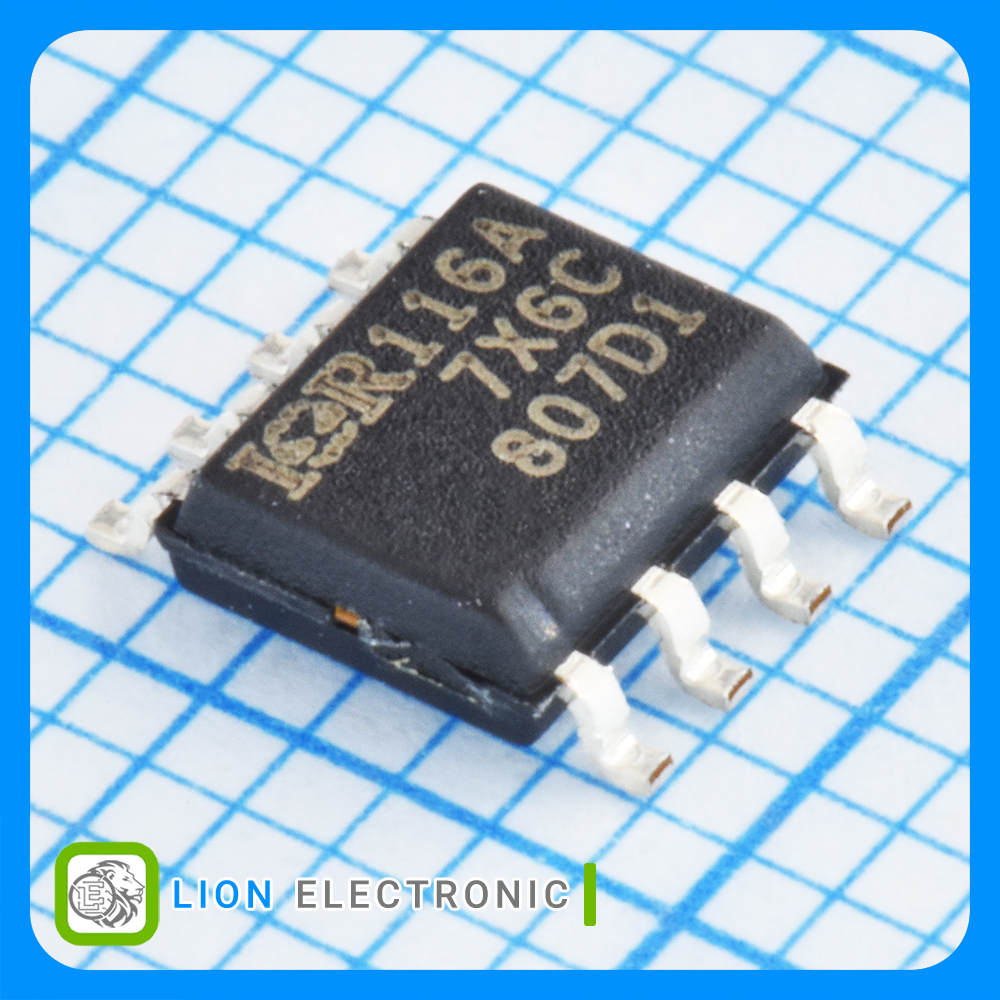

ماسفت IRF7807D1TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
10.5nC
Qg - Gate Charge
17mΩ
Rds On - Drain - Source Resistance
2.5W
Pd - Power Dissipation
8.3A
Id - Continuous Drain Current
SOIC-8
Package-Case
