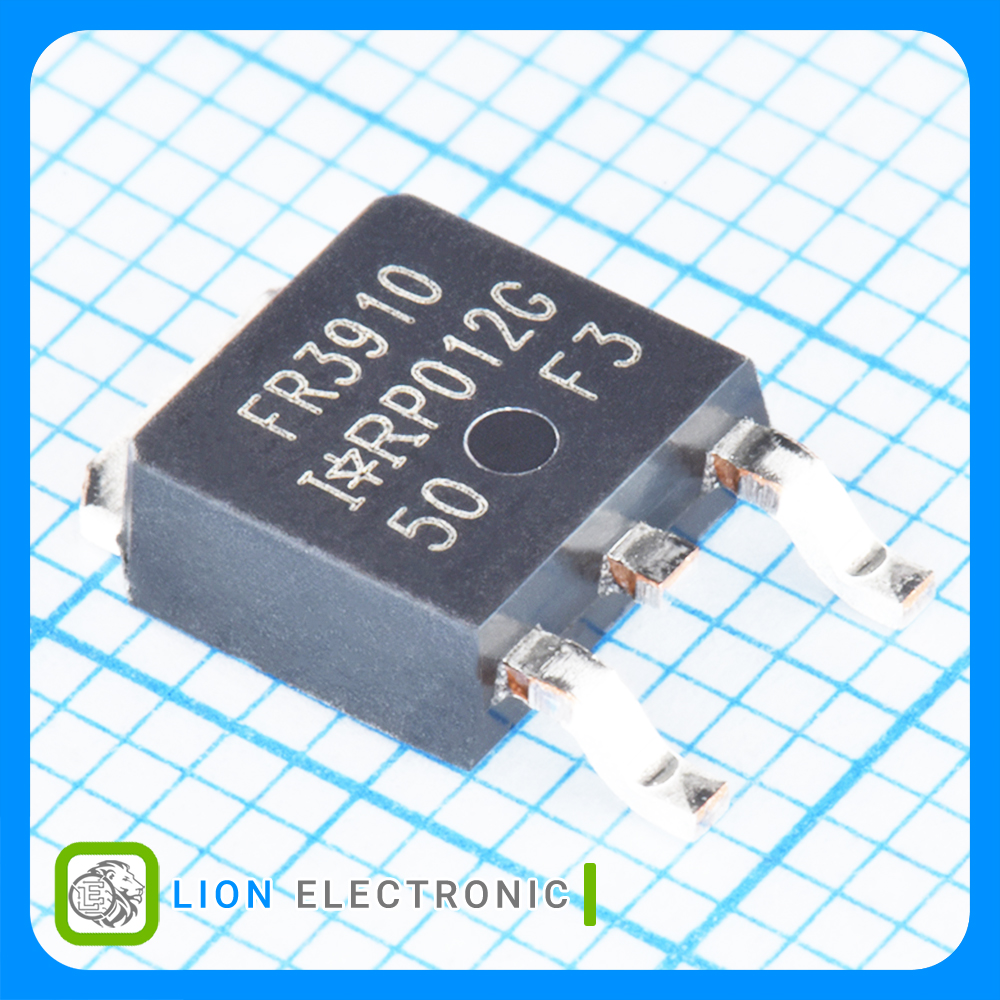

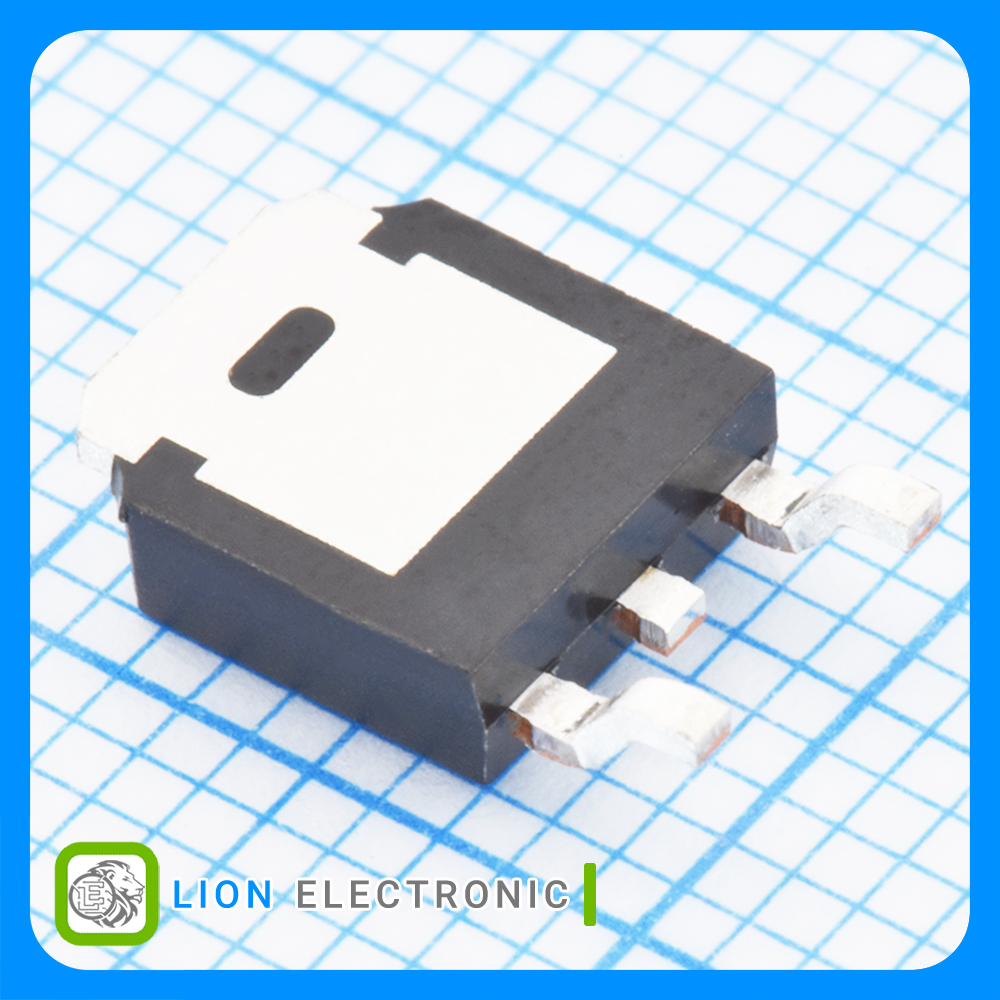

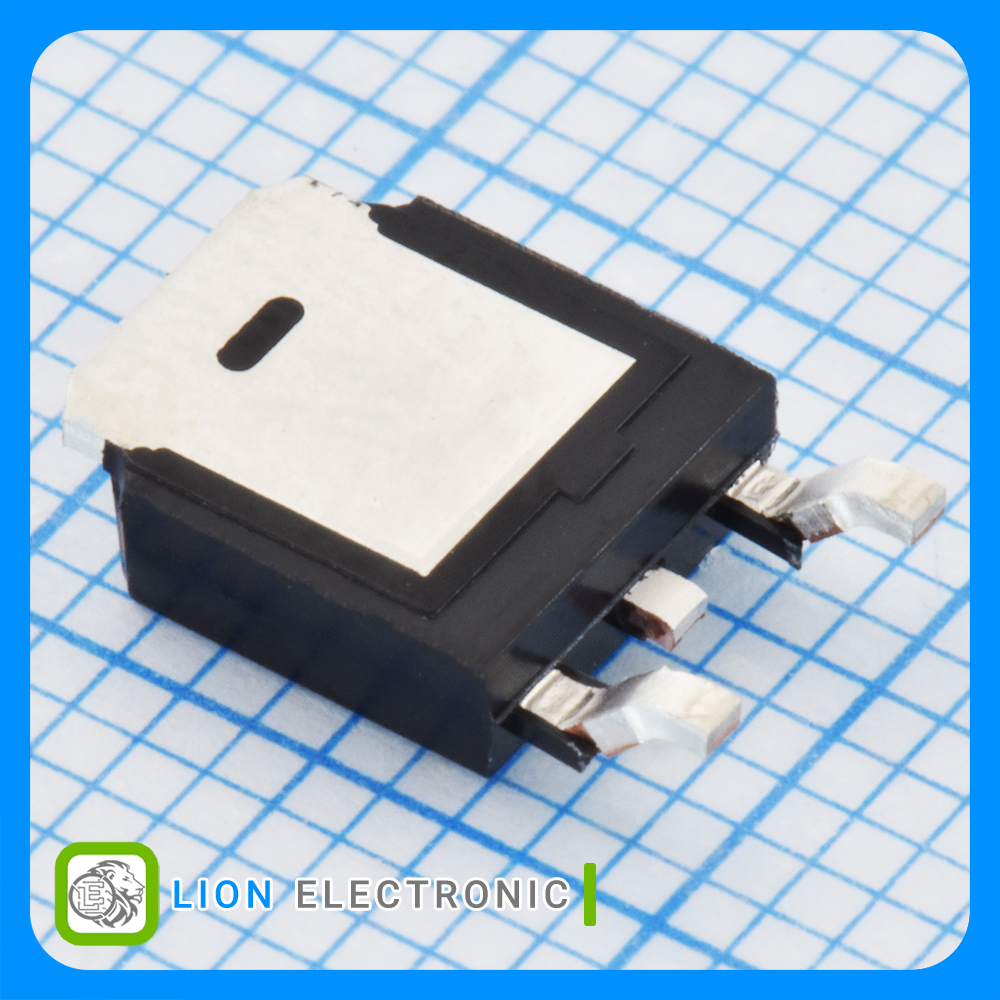

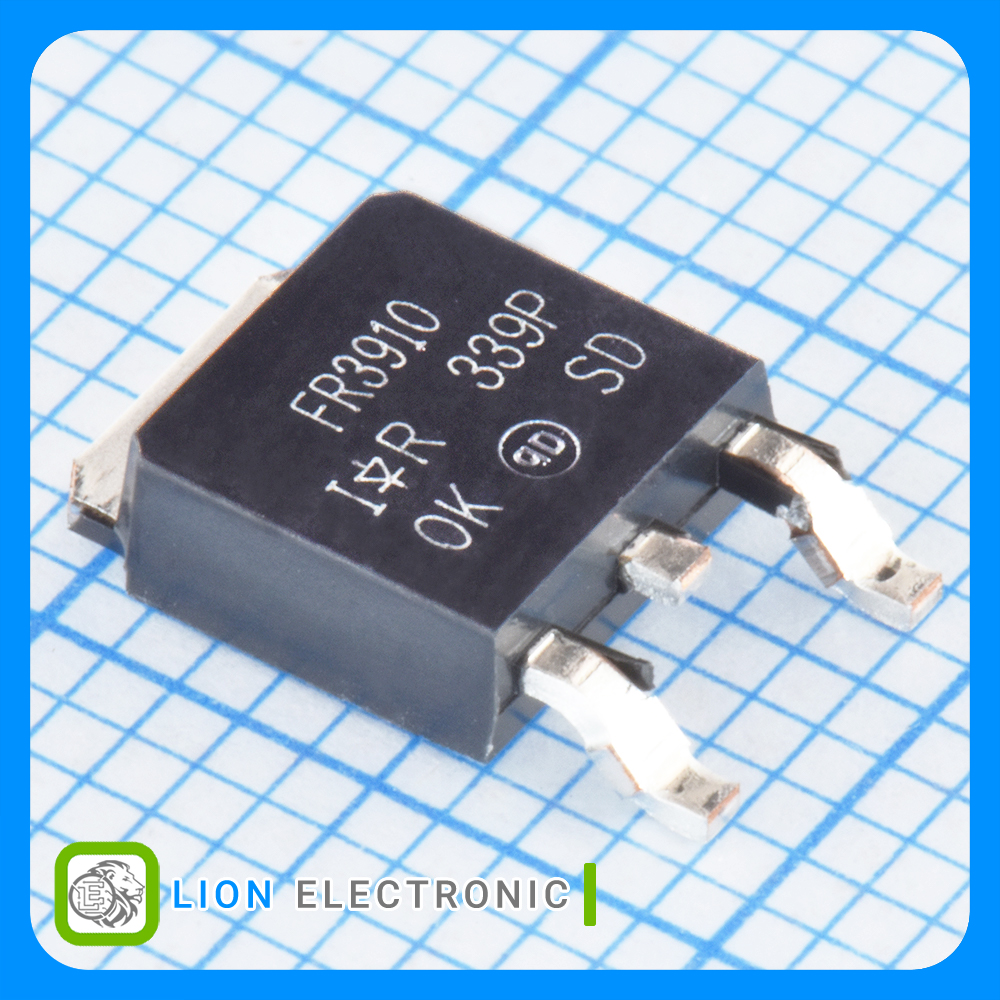

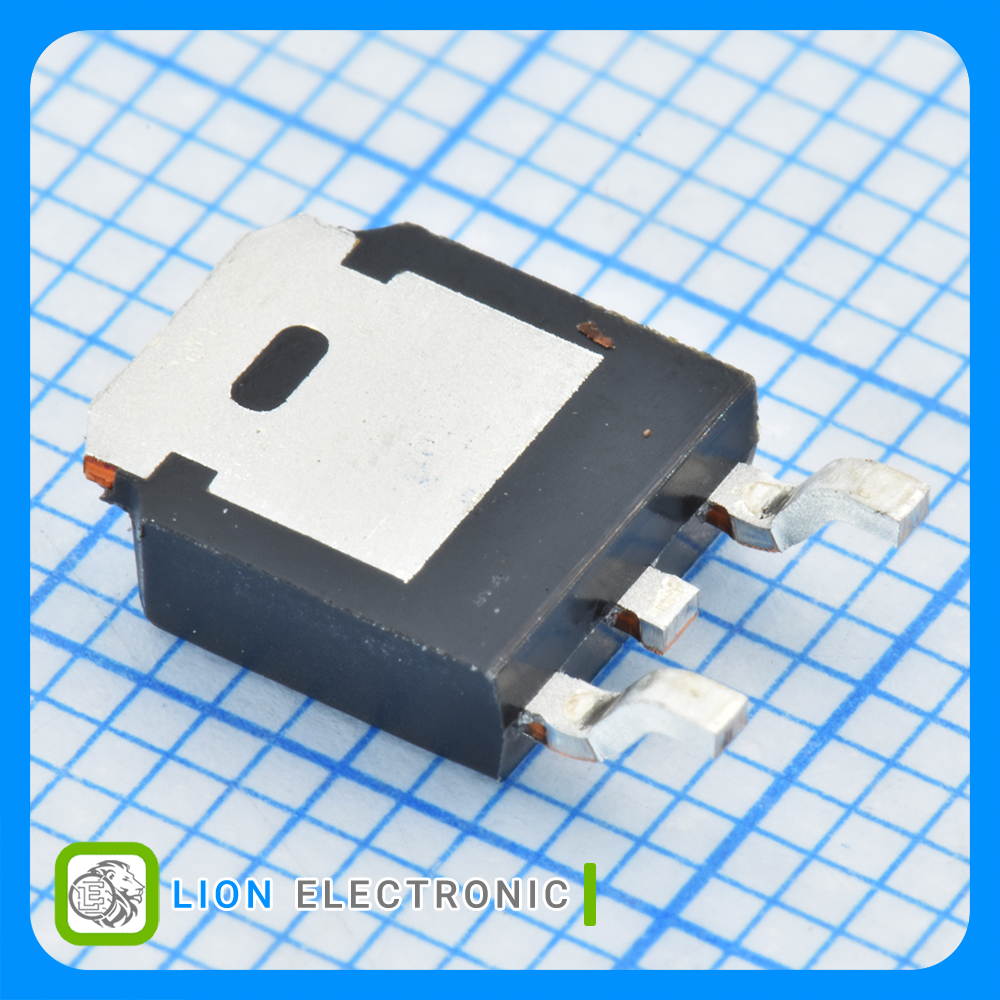

IRFR3910TRPBF
IRFR3910TRPBF
Part Number
3321
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 100 ولت 16 آمپر نوع N با پکیج TO-252-3 (DPAK)
N-CH MOSFET 100V, 16A with TO-252-3 (DPAK) Package
معرفی
ماسفت 100 ولت 16 آمپر نوع N با پکیج TO-252-3 (DPAK)
N-CH MOSFET 100V, 16A with TO-252-3 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 16A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 115mΩ
- Pd - Power Dissipation: 79W
- Qg - Gate Charge: 44nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت IRFR3910TRPBF

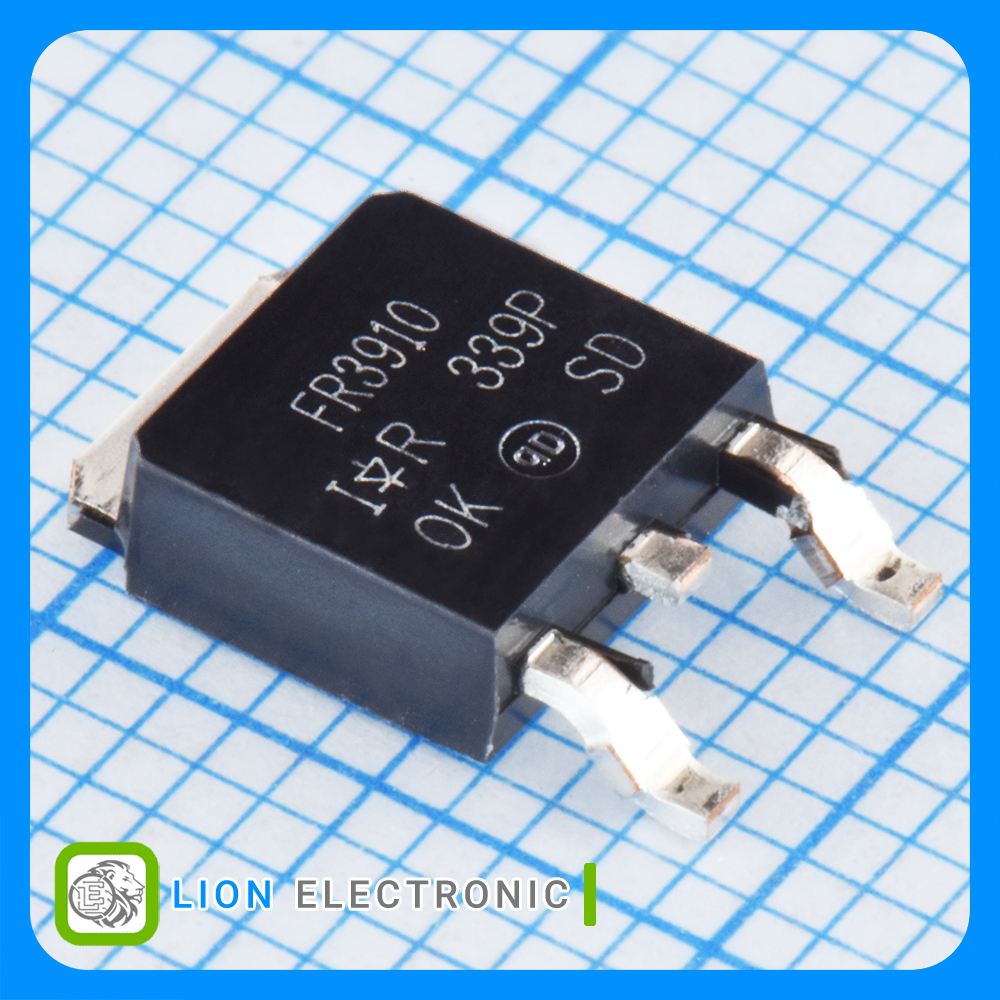

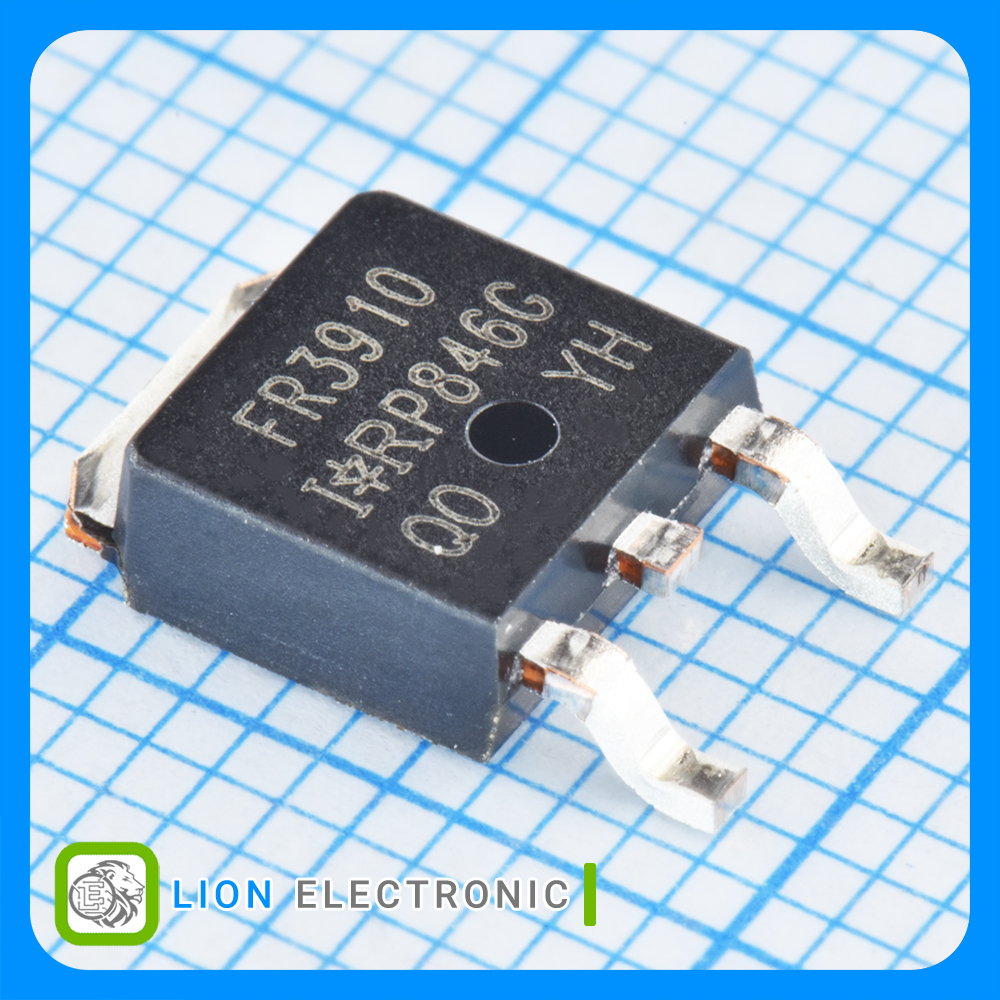

ماسفت IRFR3910TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
44nC
Qg - Gate Charge
16A
Id - Continuous Drain Current
DPAK
Package-Case
115mΩ
Rds On - Drain - Source Resistance
79W
Pd - Power Dissipation
