Nexperia
معرفی

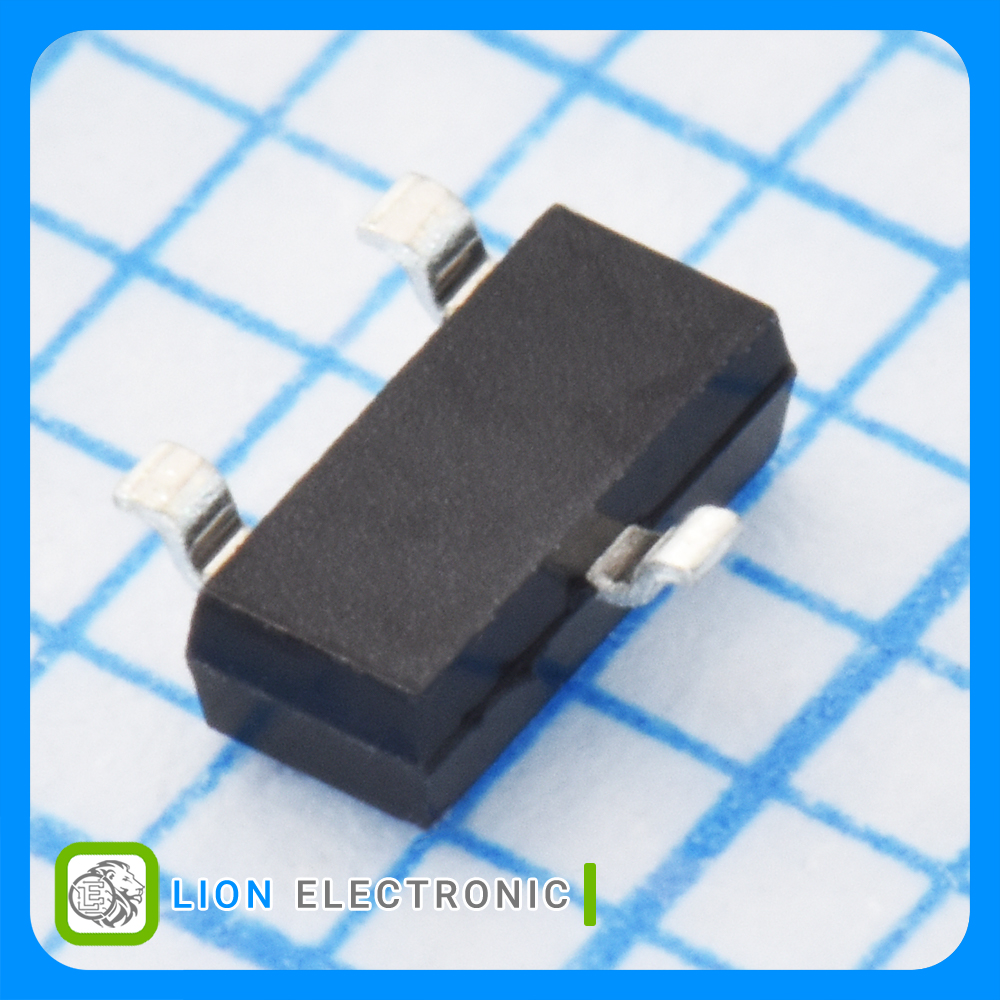

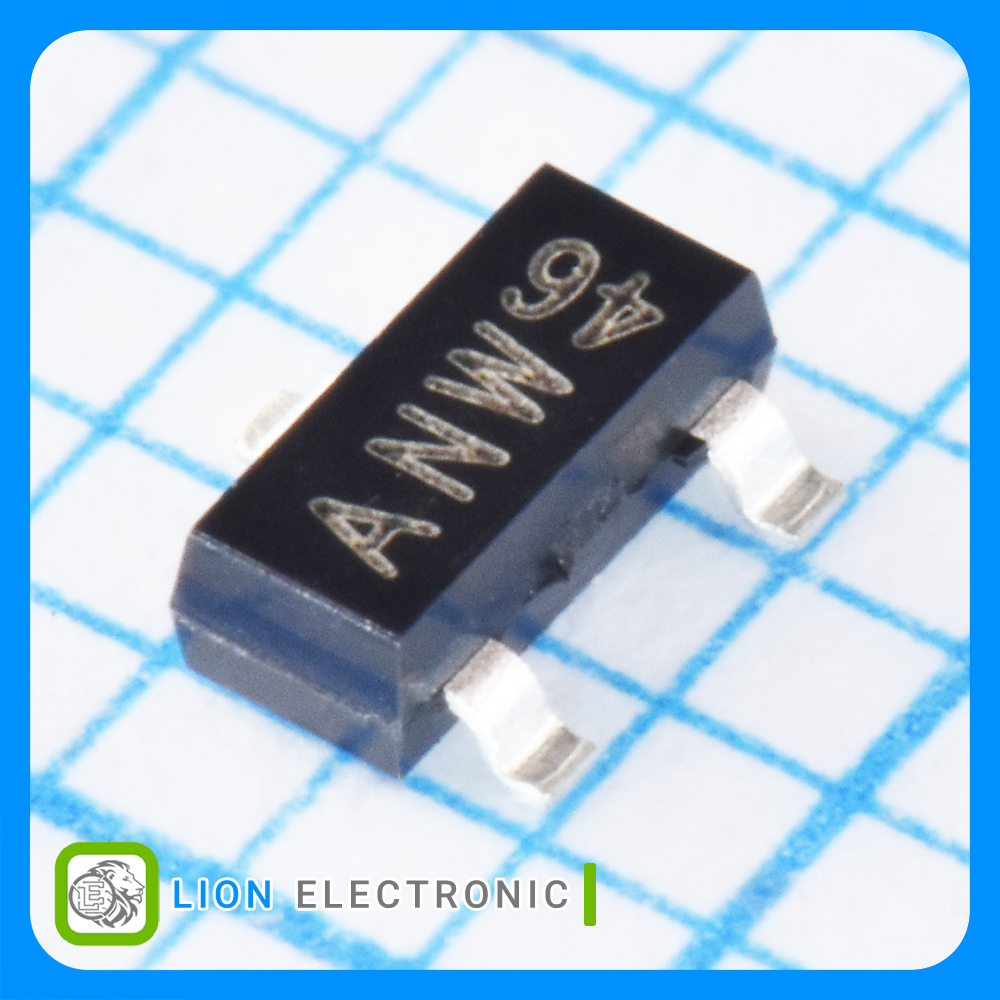

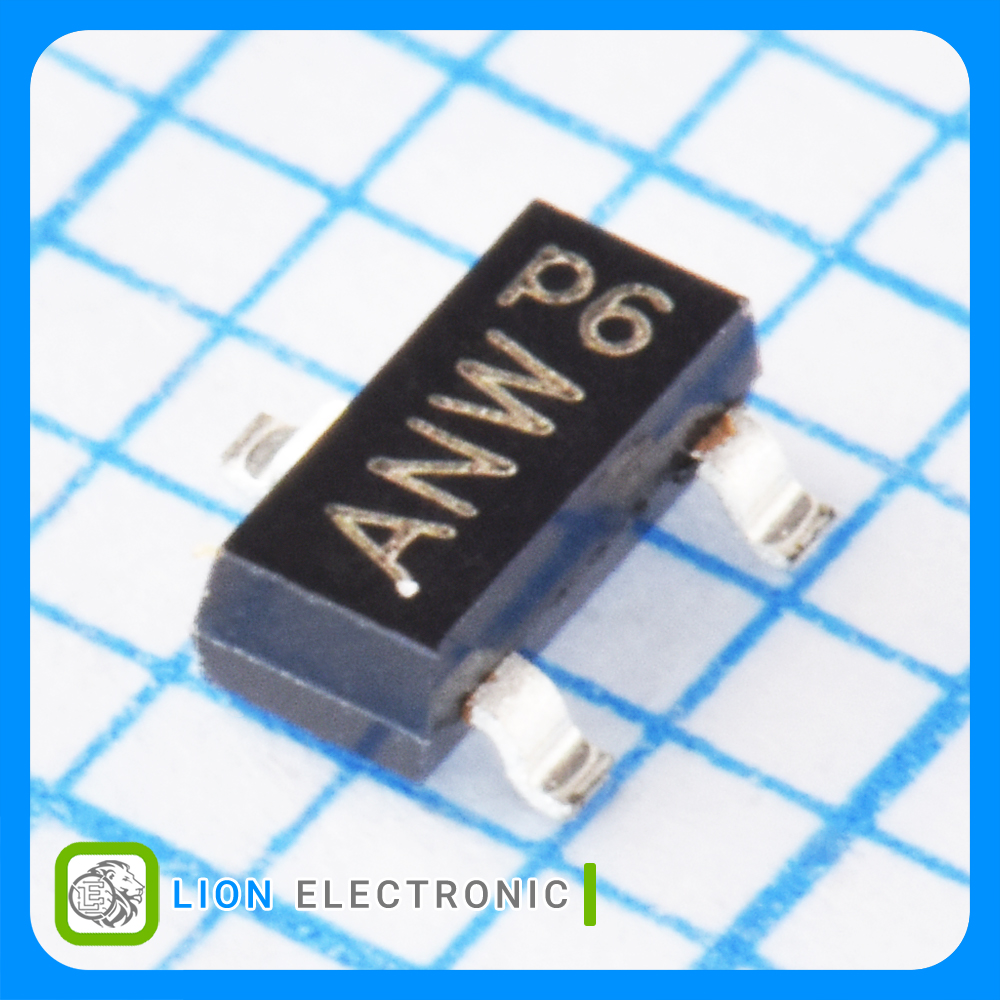

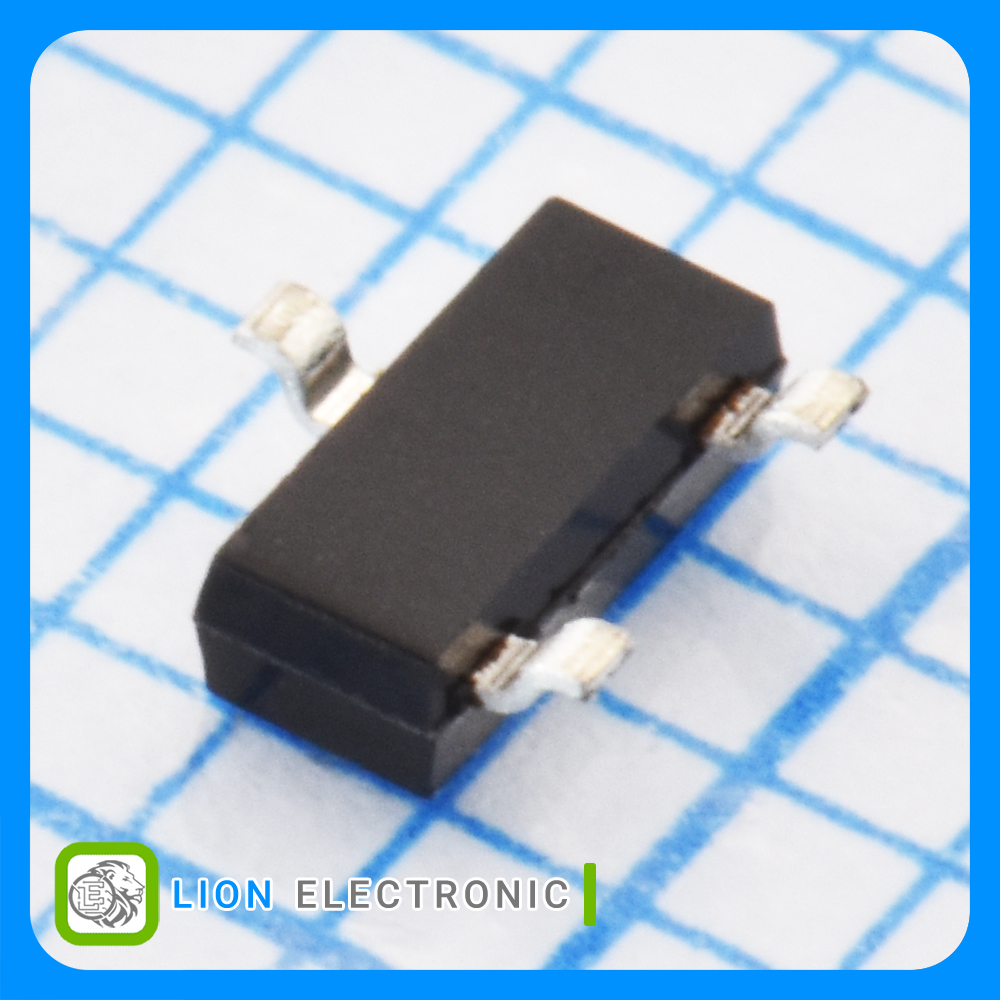

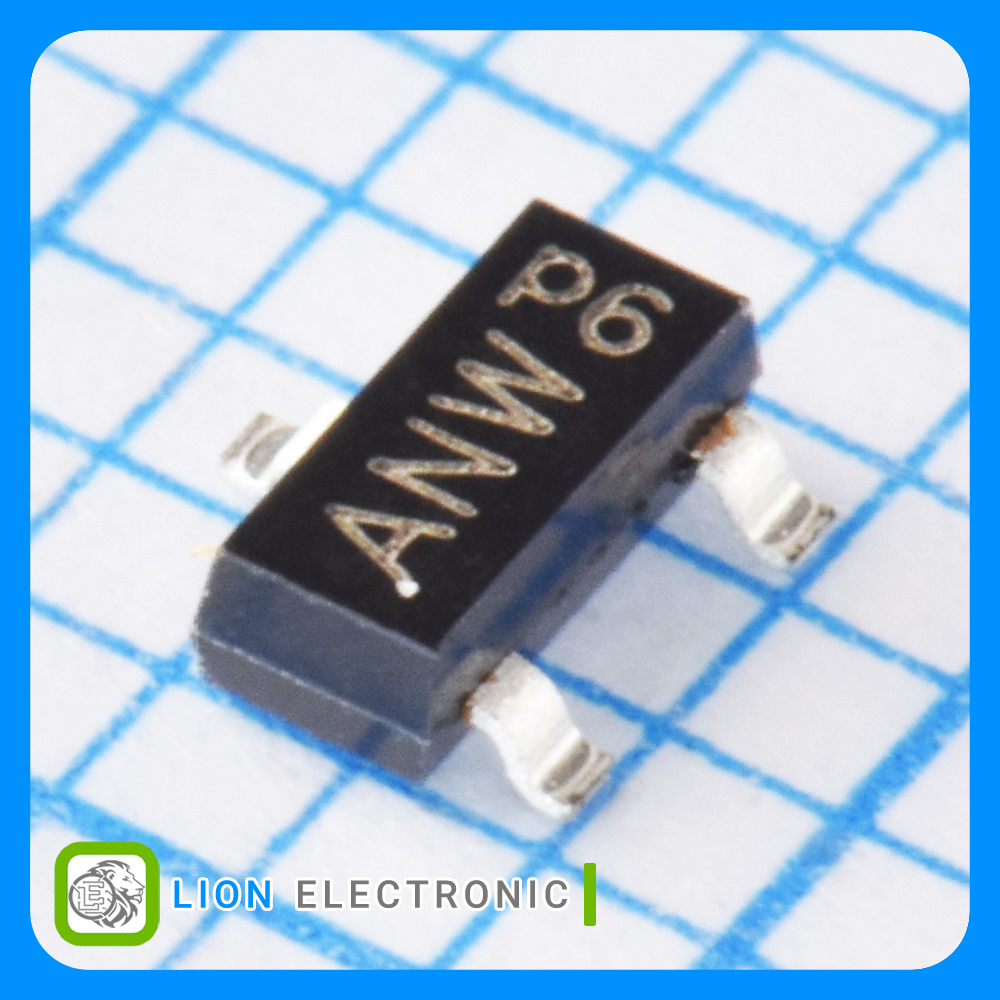

ماسفت 60 ولت 360 میلیآمپر نوع N با پکیج SOT-23-3
MOSFET 60V, 360mA with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 360mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 900mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.6Ω
- Pd - Power Dissipation: 420mW
- Qg - Gate Charge: 720pC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSS138P,215

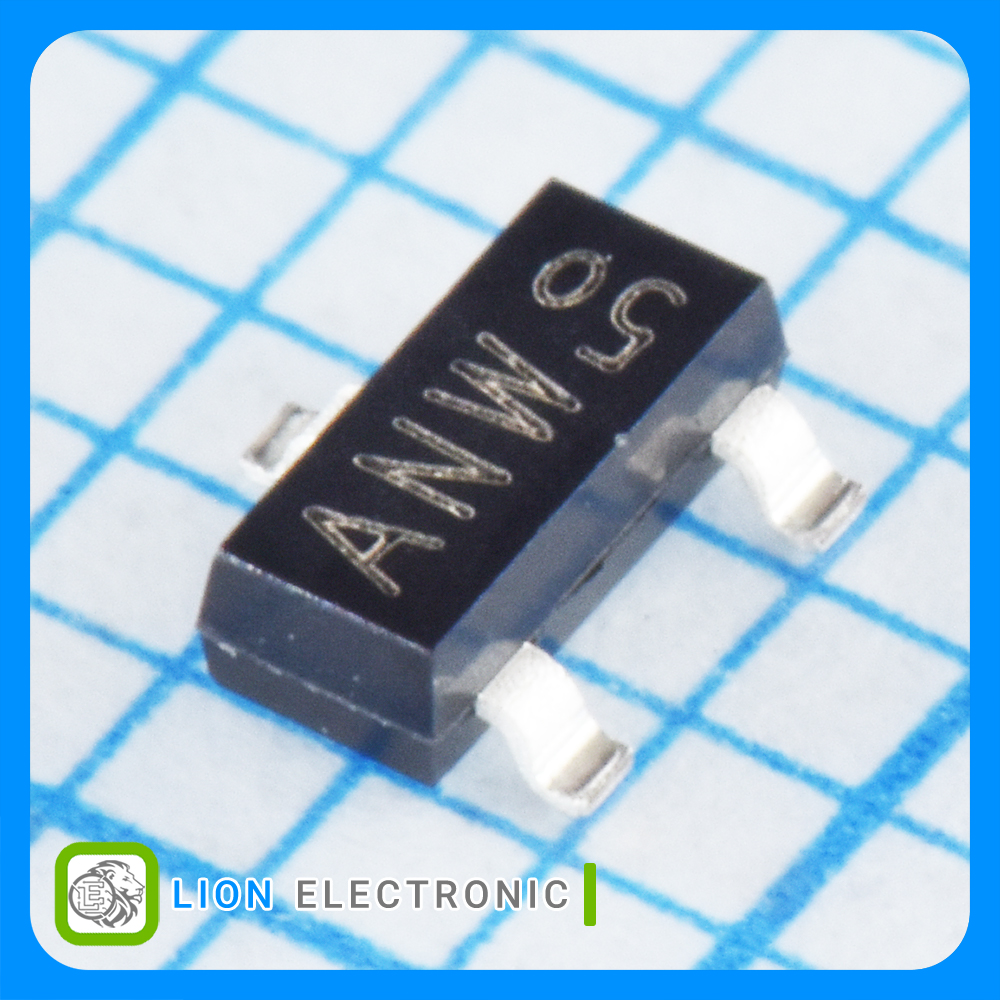

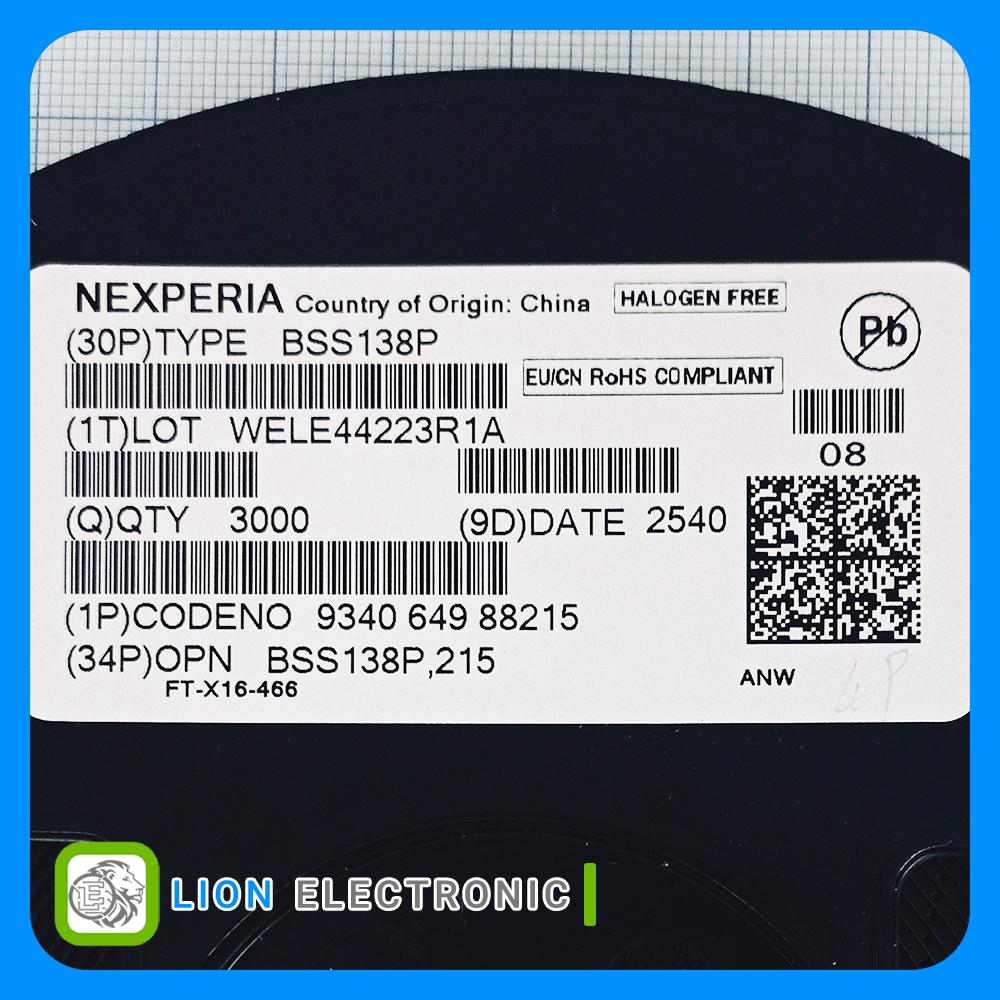

ماسفت BSS138P,215
Part Number
1
Number of Channels
720pC
Qg - Gate Charge
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
900mV
Vgs th - Gate - Source Threshold Voltage
420mW
Pd - Power Dissipation
360mA
Id - Continuous Drain Current
1.6Ω
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
