FQD2N60CTM
FQD2N60CTM
Part Number
3329
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture

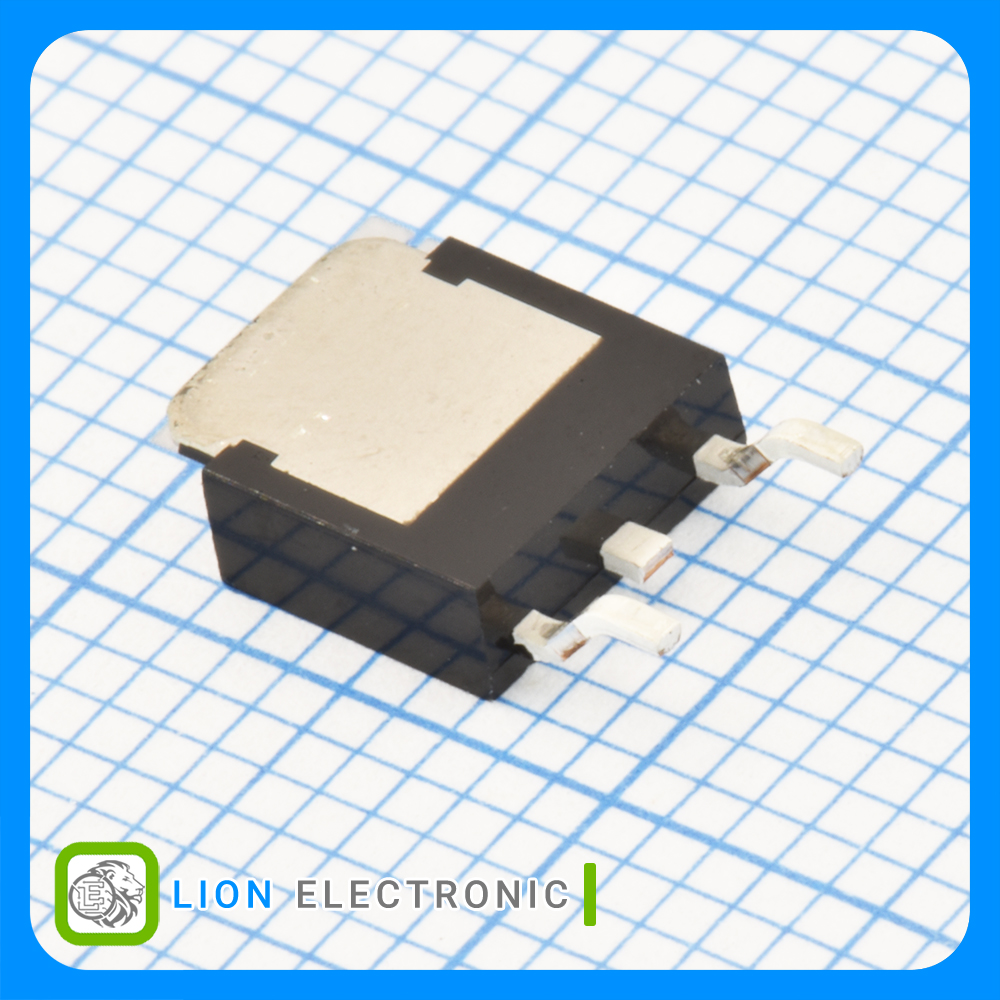

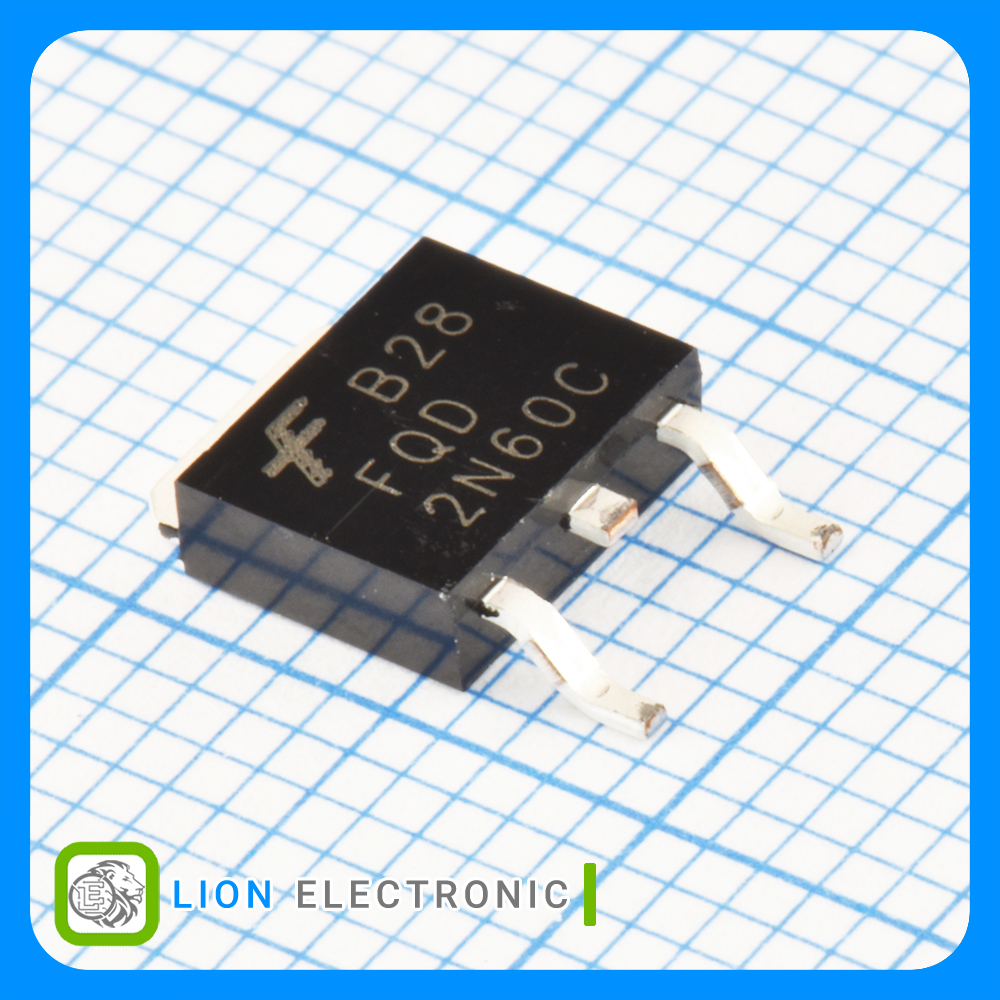

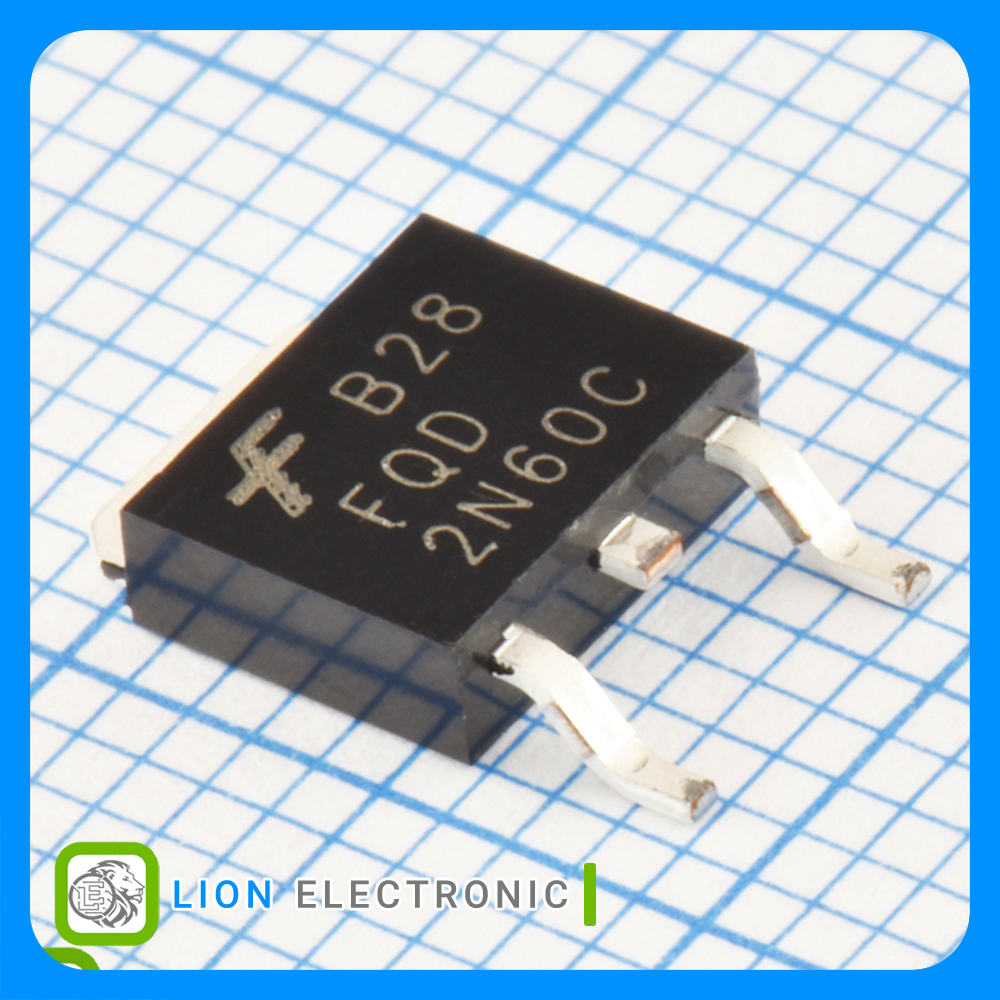

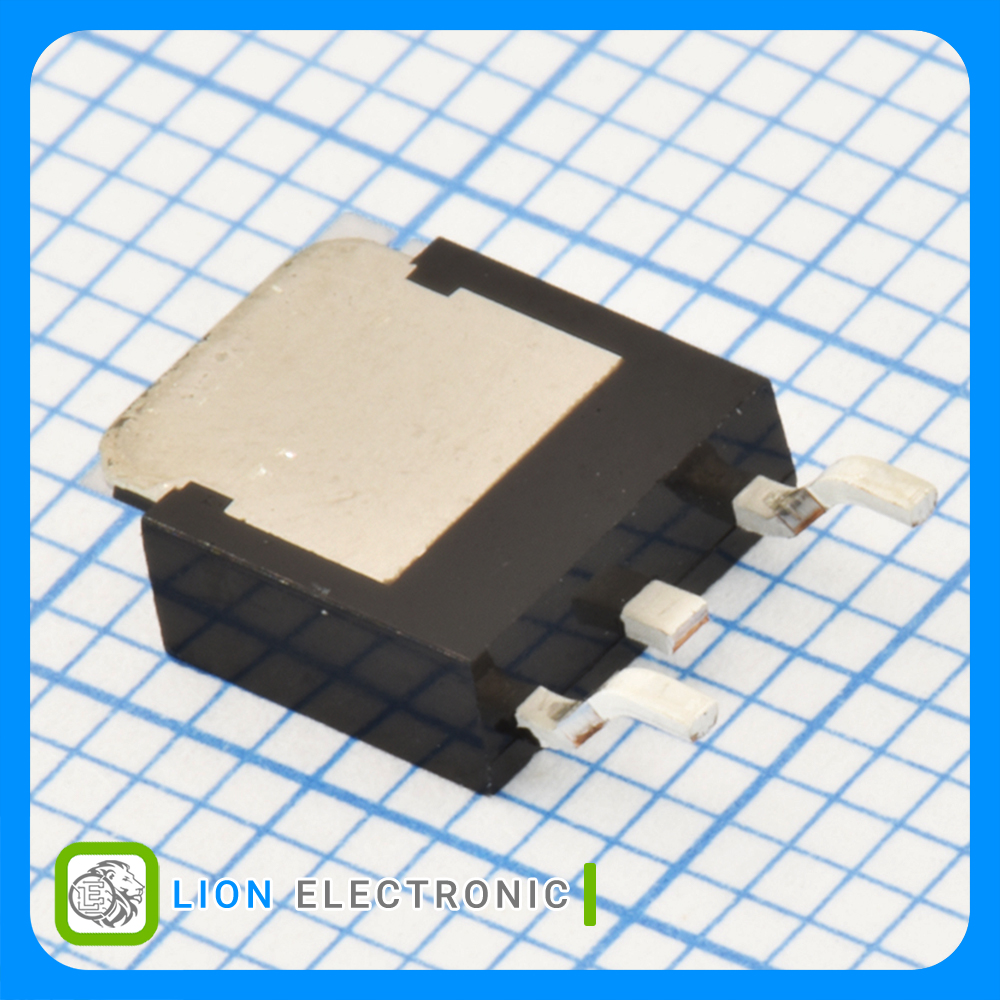

ماسفت 600 ولت 1.9 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 600V, 1.9A with TO-252-3 Package
معرفی
ماسفت 600 ولت 1.9 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 600V, 1.9A with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 1.9A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 3.6Ω
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 8.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FQD2N60CTM
ماسفت FQD2N60CTM
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
8.5nC
Qg - Gate Charge
2V
Vgs th - Gate - Source Threshold Voltage
1.9A
Id - Continuous Drain Current
2.5W
Pd - Power Dissipation
DPAK
Package-Case
3.6Ω
Rds On - Drain - Source Resistance
