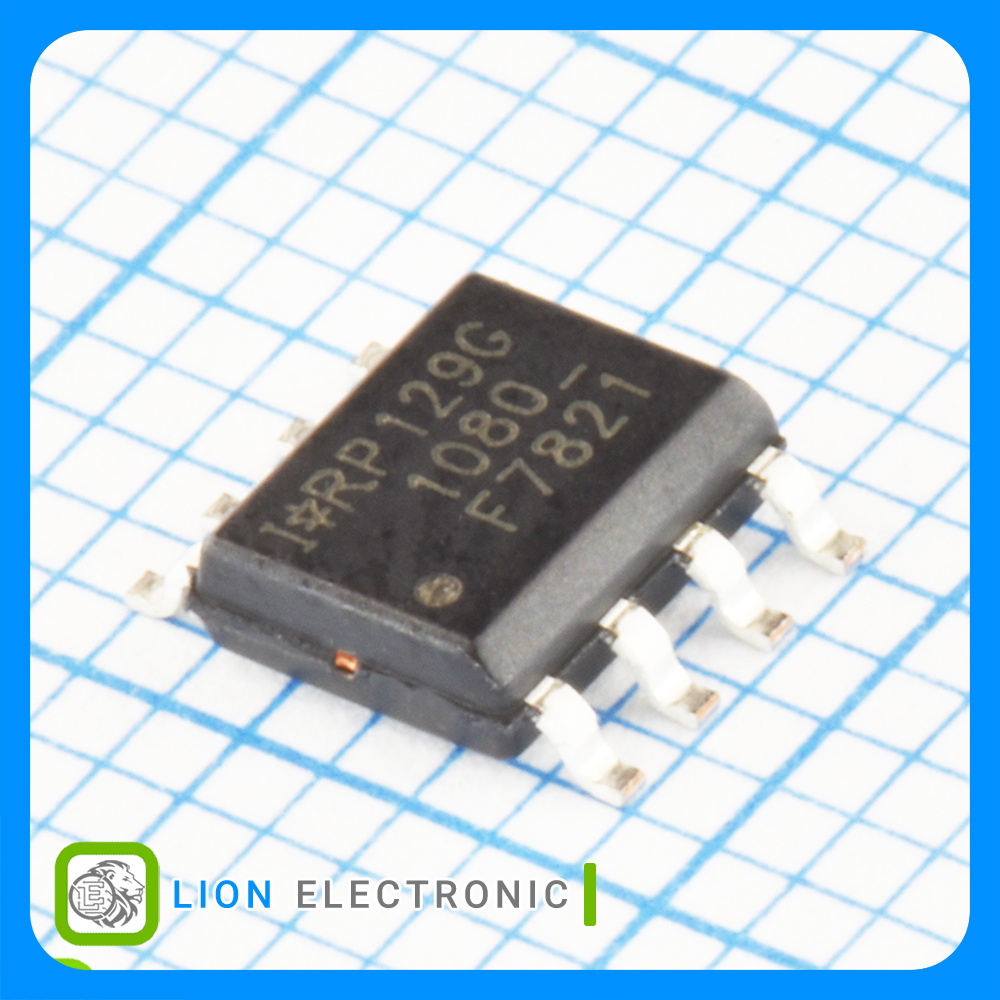

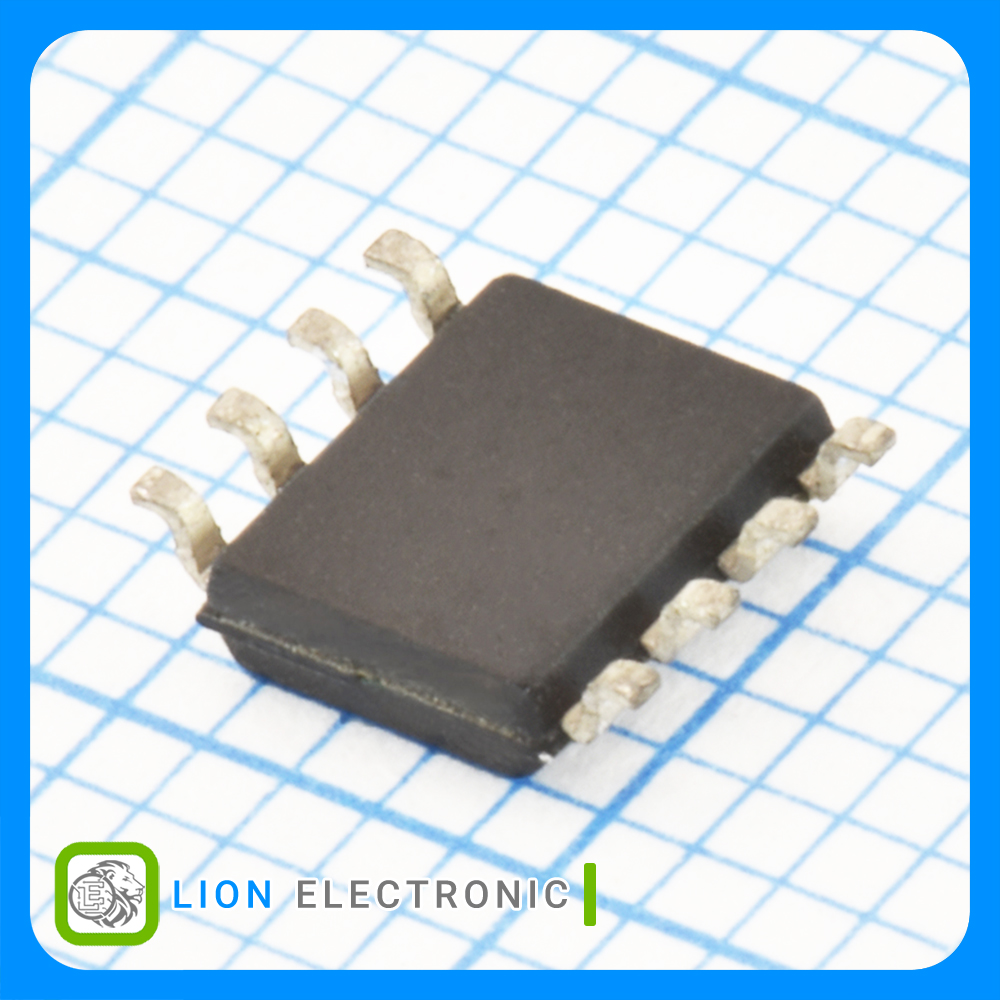

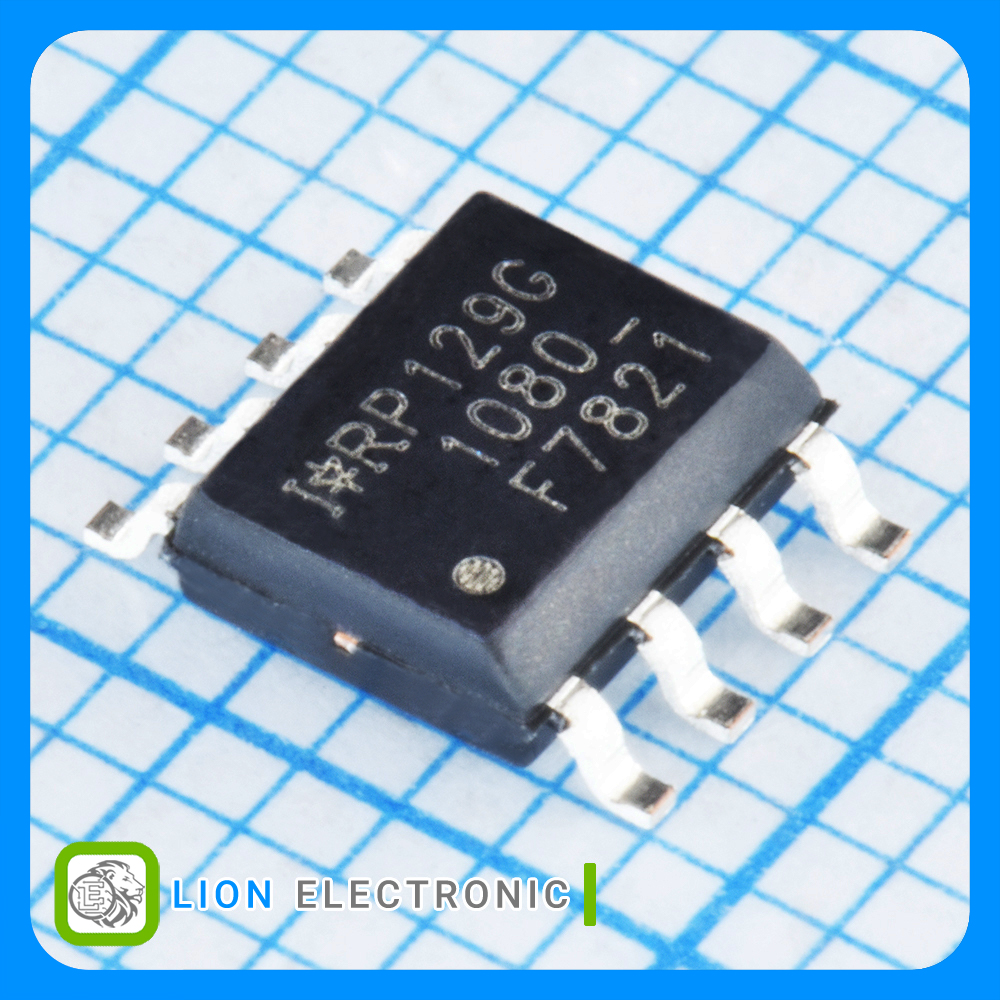

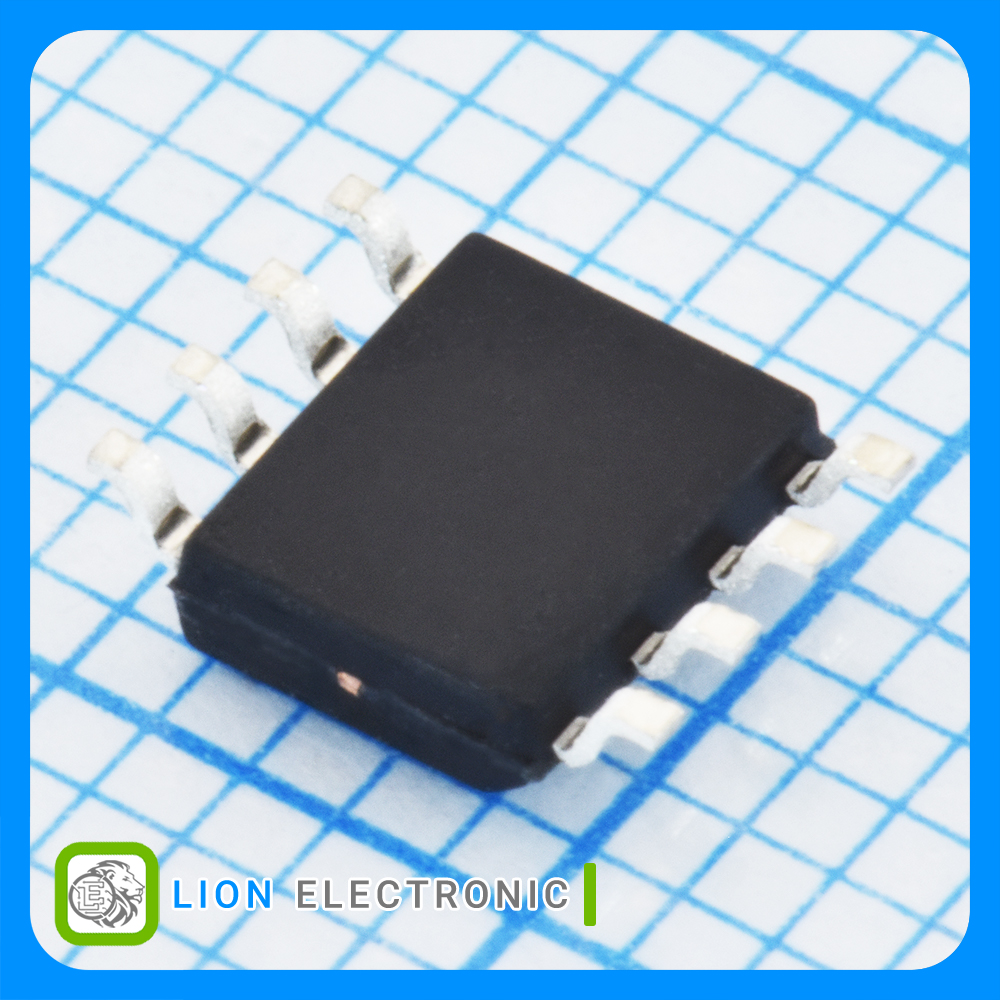

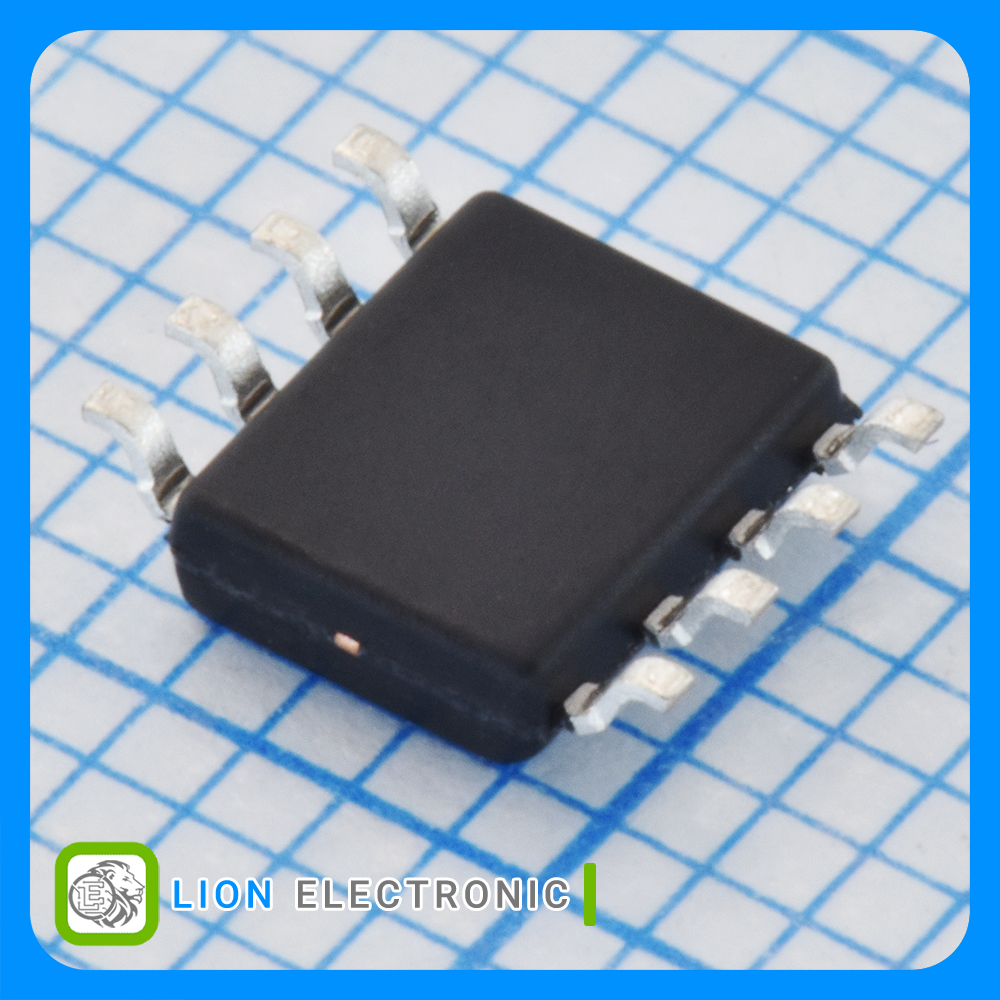

IRF7821TRPBF
IRF7821TRPBF
Part Number
3330
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 30 ولت 13.6 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 30V, 13.6A with SOIC-8 Package
معرفی
ماسفت 30 ولت 13.6 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 30V, 13.6A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 13.6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 7mΩ
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 9.3nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +155C
- Packaging: Reel
مشخصات ماسفت IRF7821TRPBF

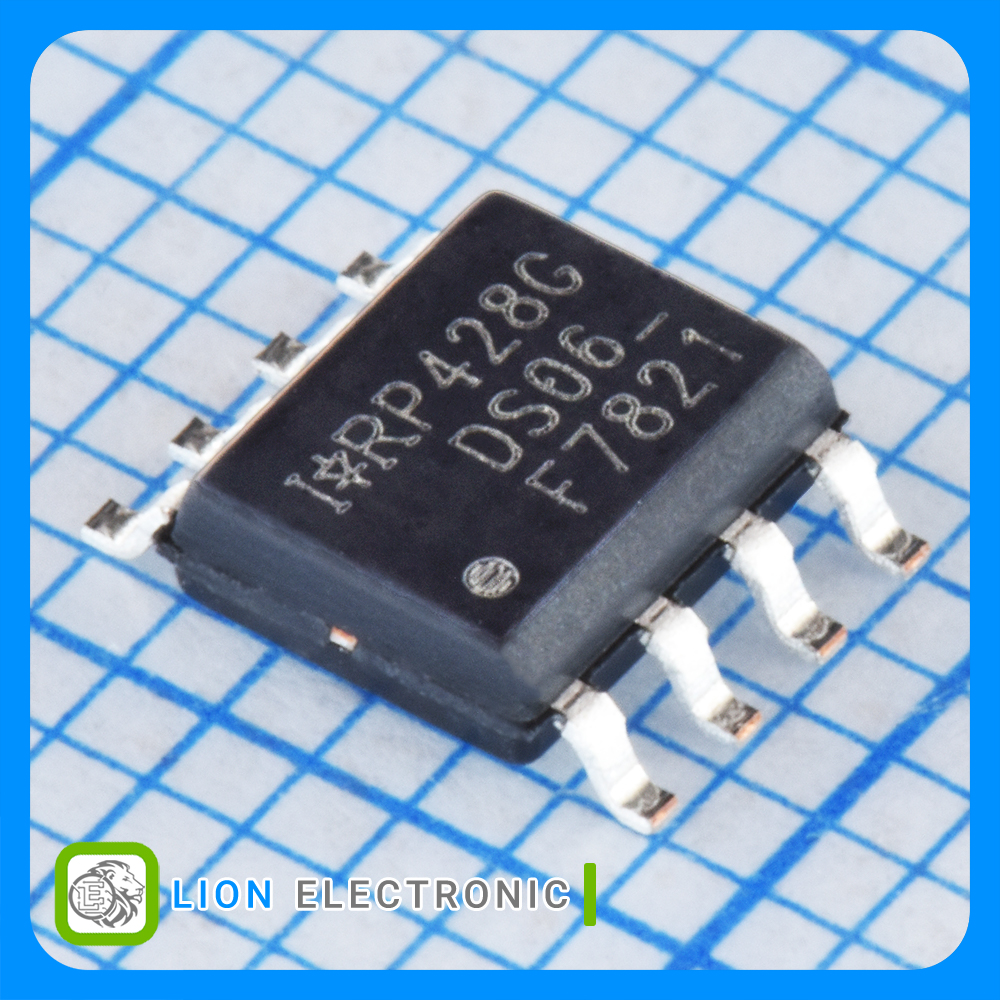

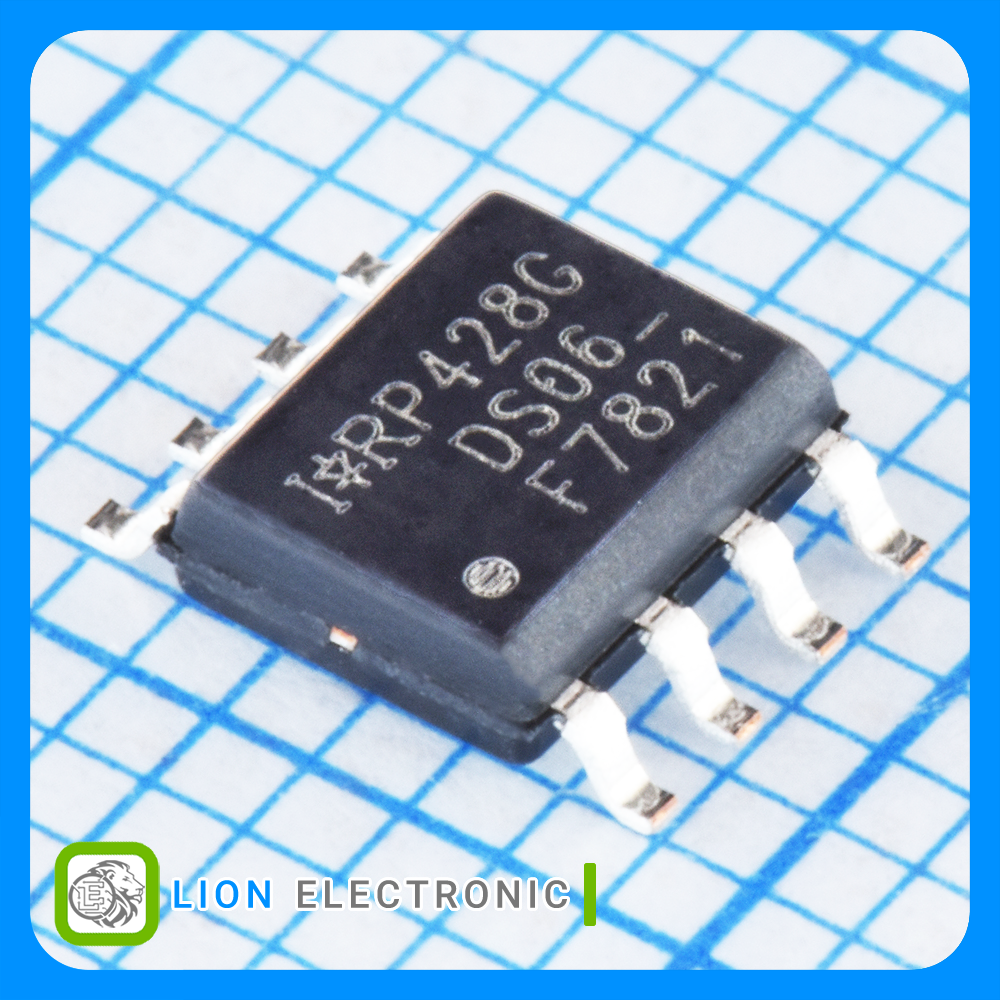

ماسفت IRF7821TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+155C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
9.3nC
Qg - Gate Charge
7mΩ
Rds On - Drain - Source Resistance
2.5W
Pd - Power Dissipation
13.6A
Id - Continuous Drain Current
SOIC-8
Package-Case
