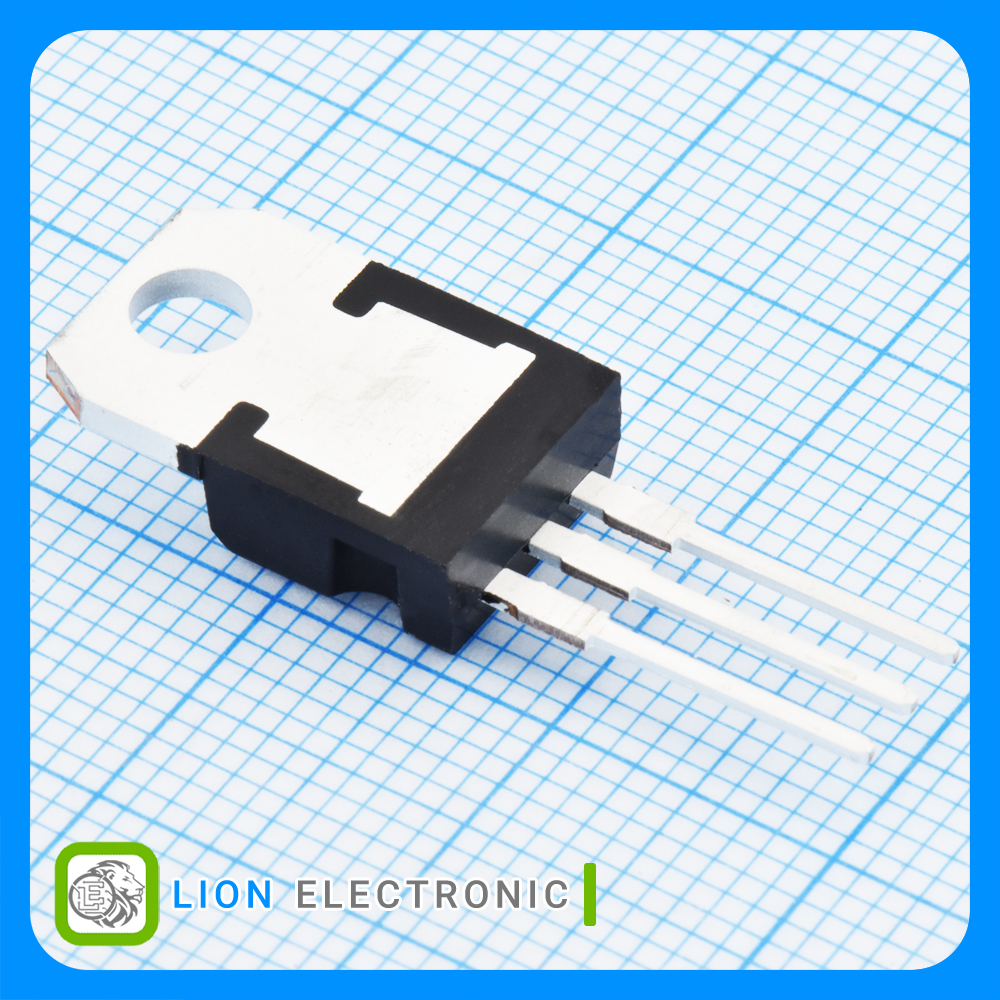

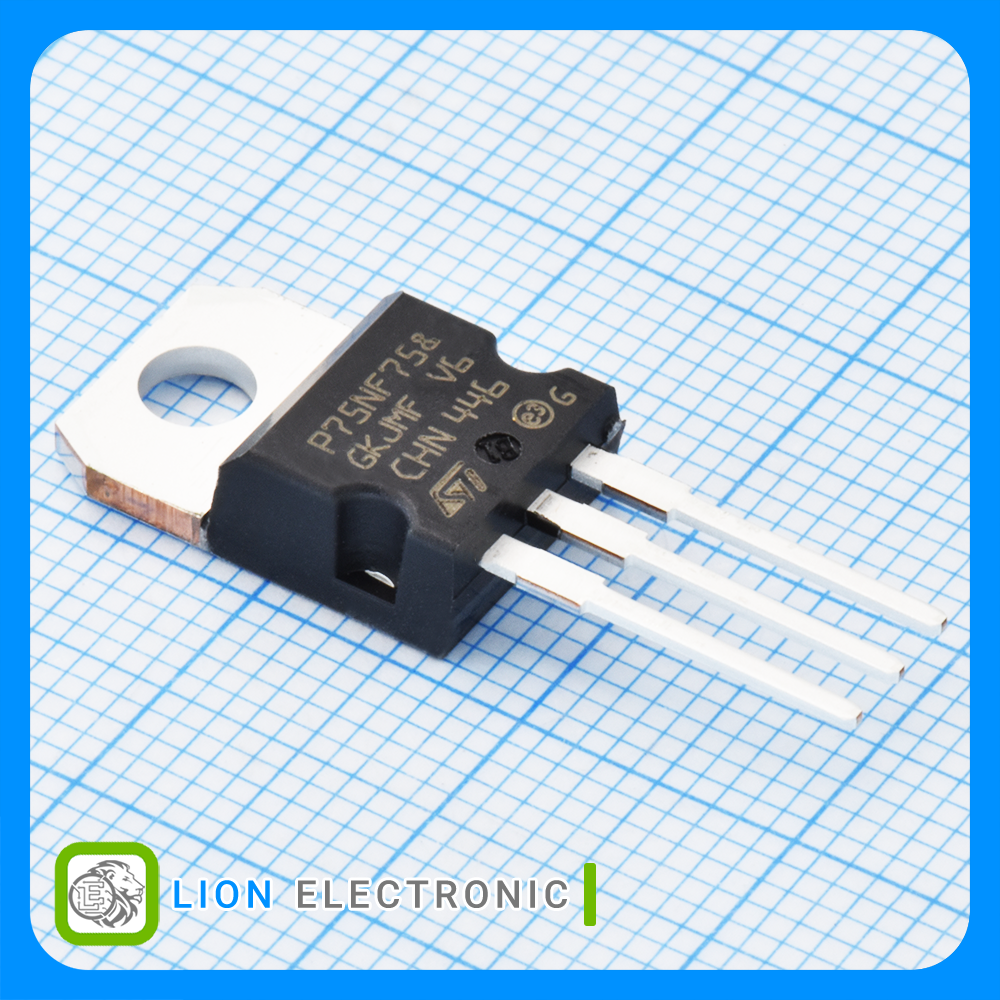

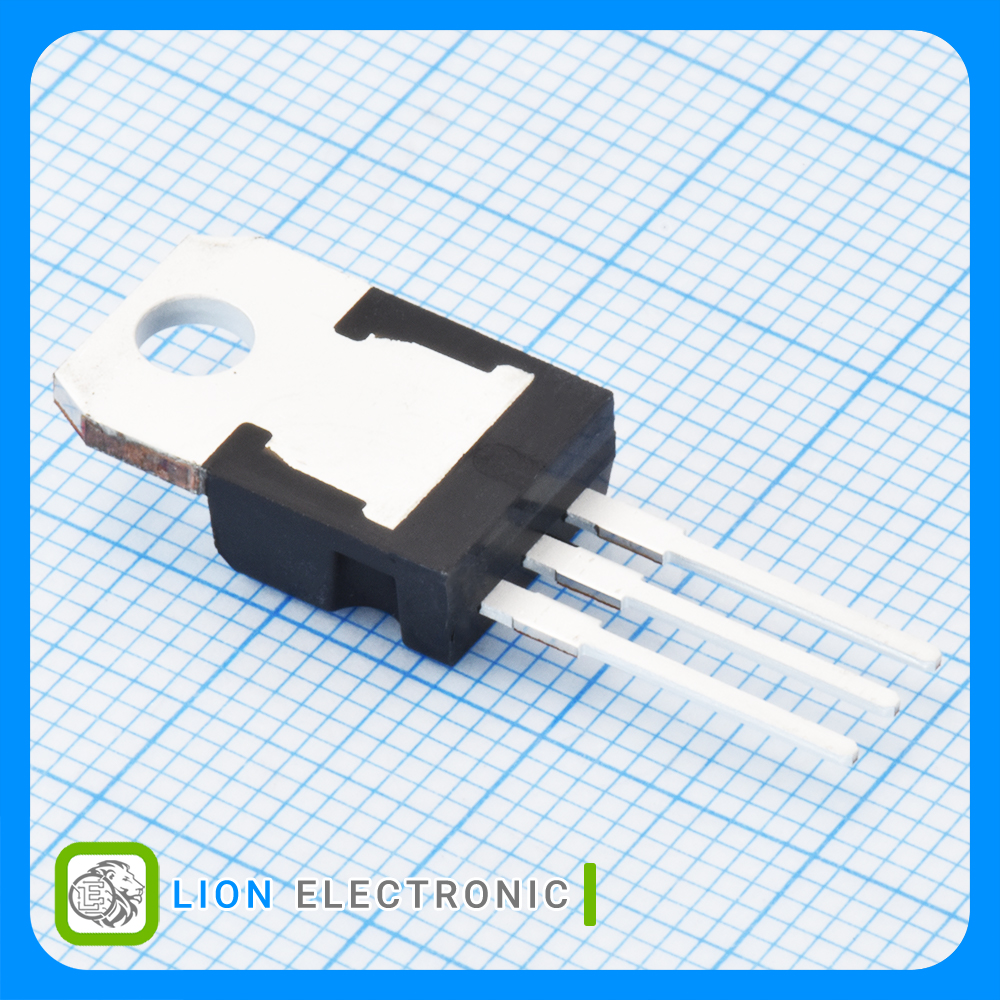

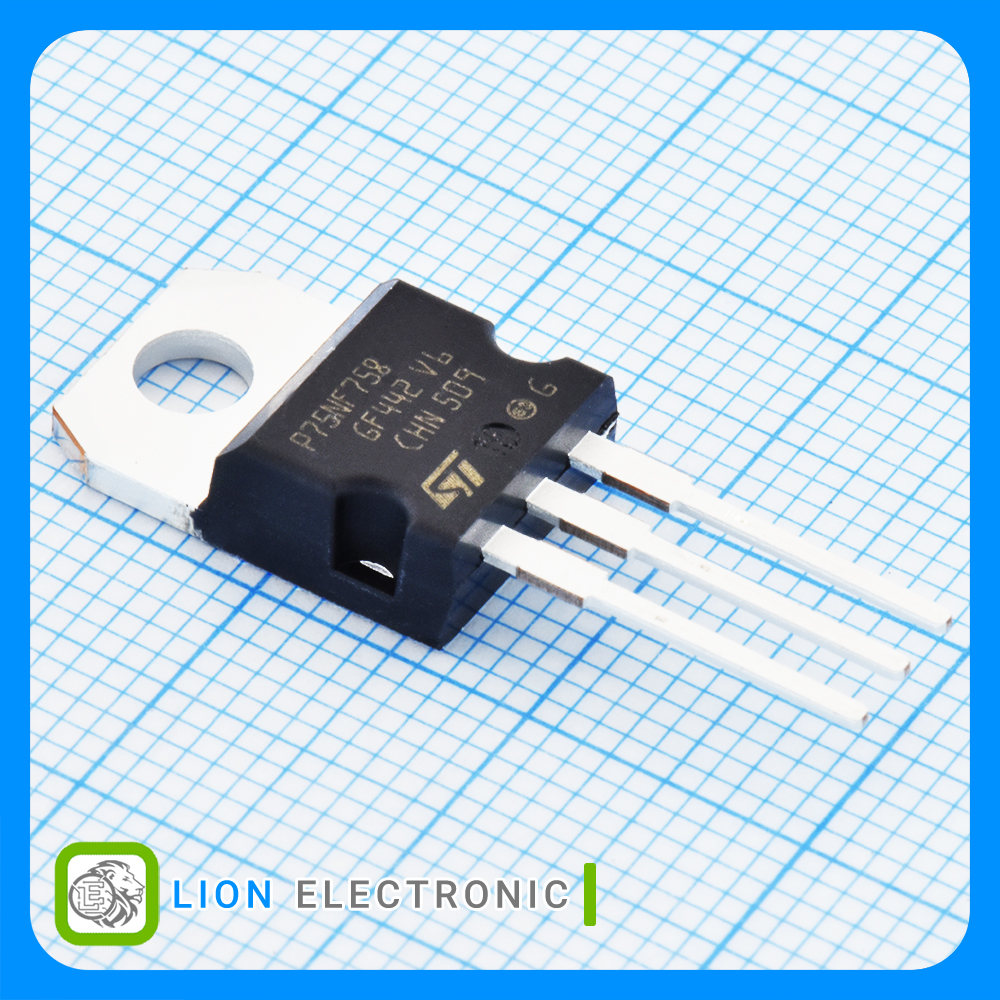

STP75NF75
STP75NF75
Part Number
3331
Lion Part
Datasheet
STMicroelectronics Manufacture
ماسفت 75 ولت 80 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 75V, 80A with TO-220-3 Package
معرفی
ماسفت 75 ولت 80 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 75V, 80A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 75V
- Id - Continuous Drain Current: 80A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 11mΩ
- Pd - Power Dissipation: 300W
- Qg - Gate Charge: 117nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت STP75NF75
ماسفت STP75NF75
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
75V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
11mΩ
Rds On - Drain - Source Resistance
117nC
Qg - Gate Charge
80A
Id - Continuous Drain Current
300W
Pd - Power Dissipation
TO-220
Package-Case
