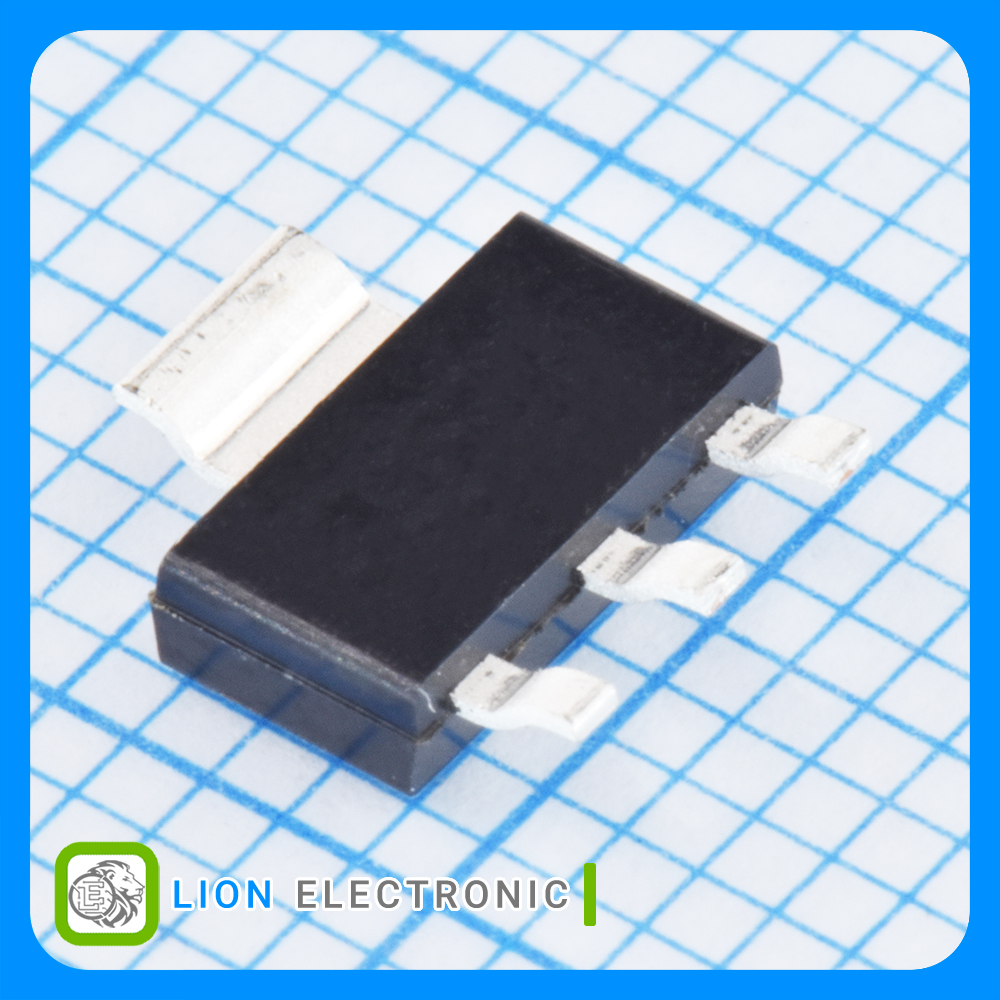

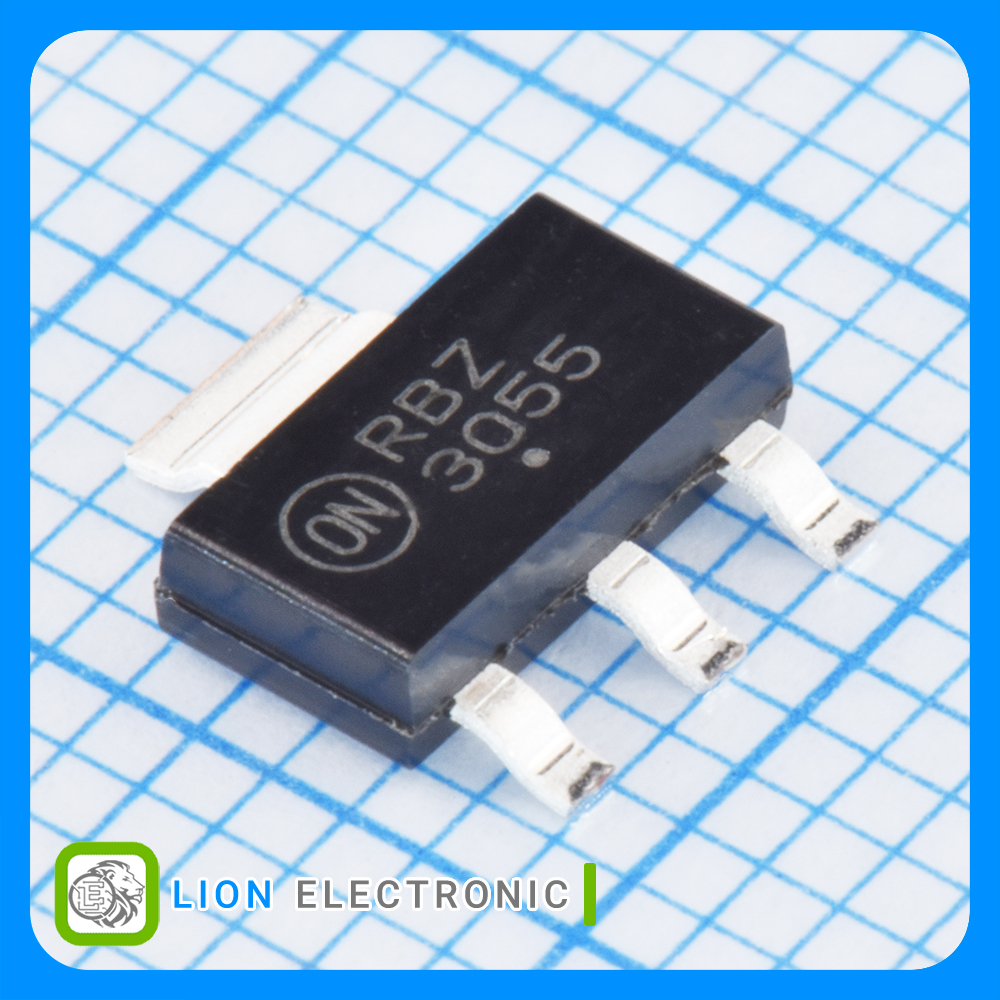

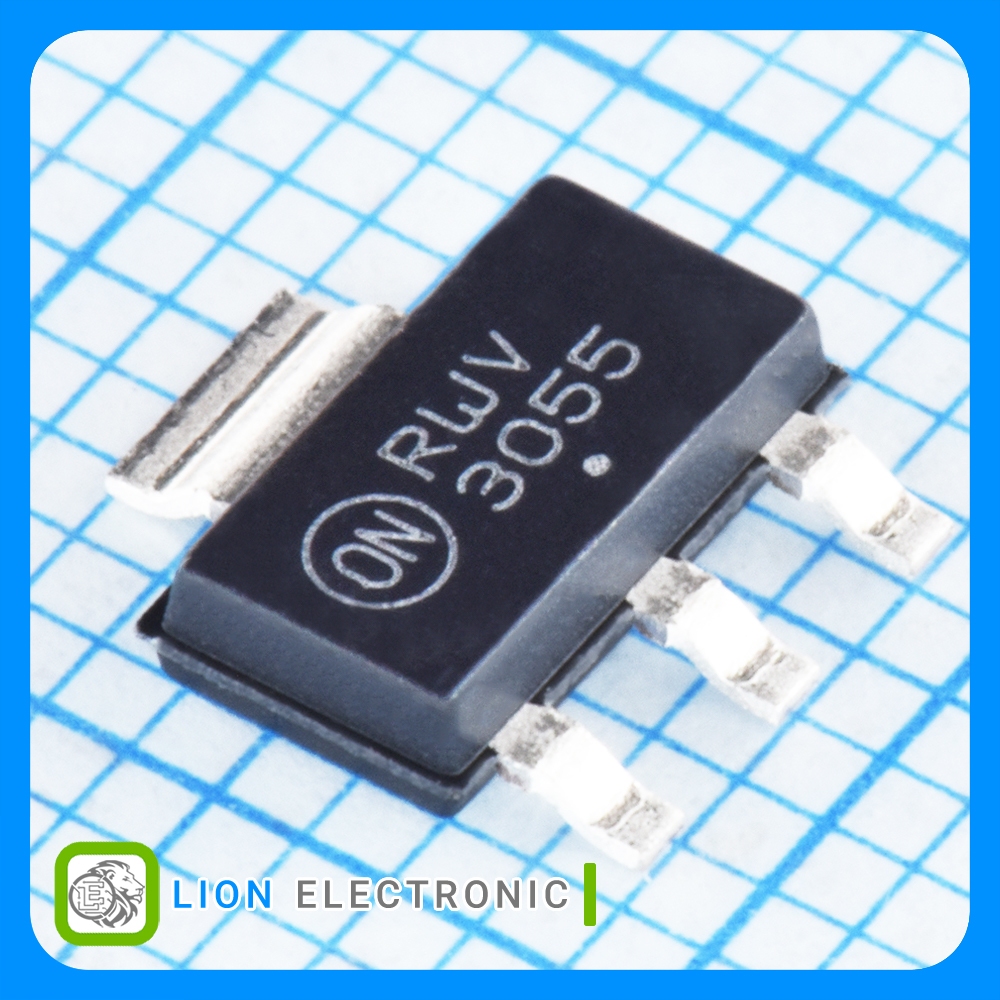

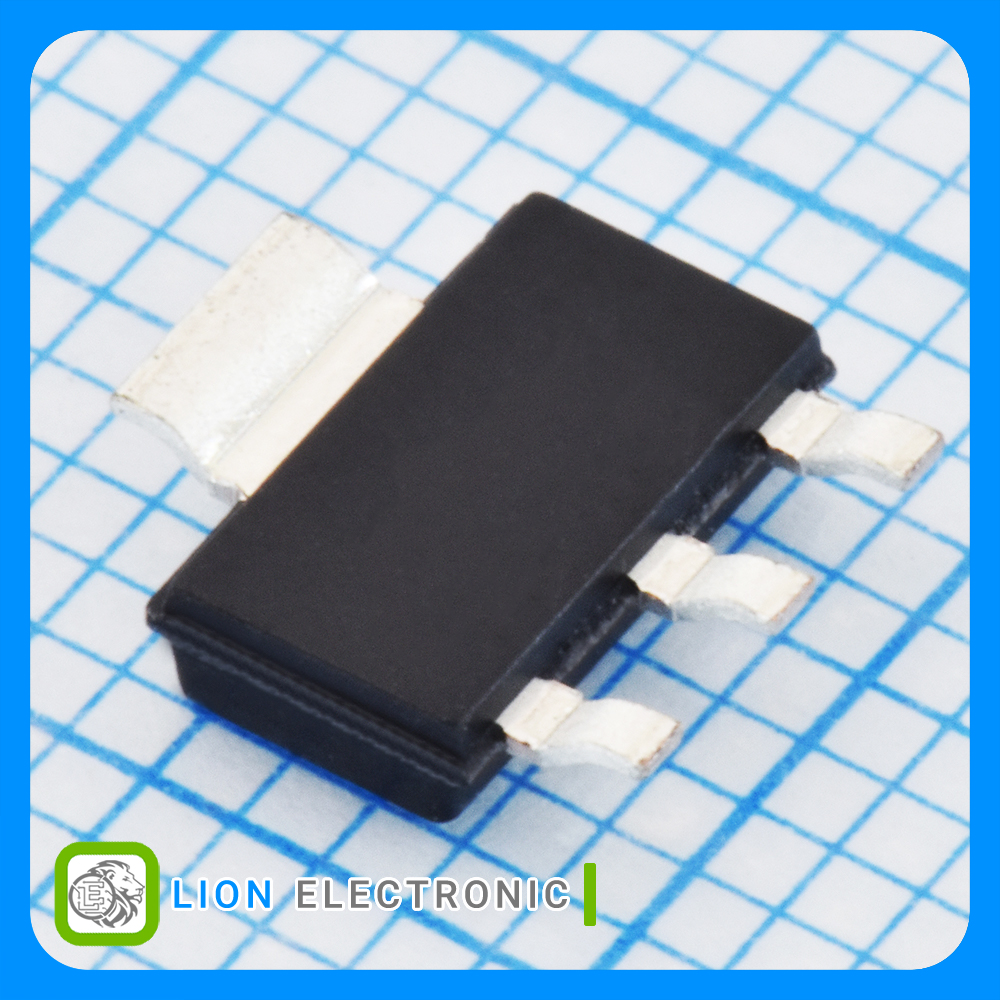

NTF3055-100T1G
NTF3055-100T1G
Part Number
3354
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 60 ولت 3 آمپر نوع N با پکیج SOT-223-3
N-CH MOSFET 60V, 3A with SOT-223-3 Package
معرفی
ماسفت 60 ولت 3 آمپر نوع N با پکیج SOT-223-3
N-CH MOSFET 60V, 3A with SOT-223-3 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 110mΩ
- Pd - Power Dissipation: 2.1W
- Qg - Gate Charge: 10.6nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت NTF3055-100T1G

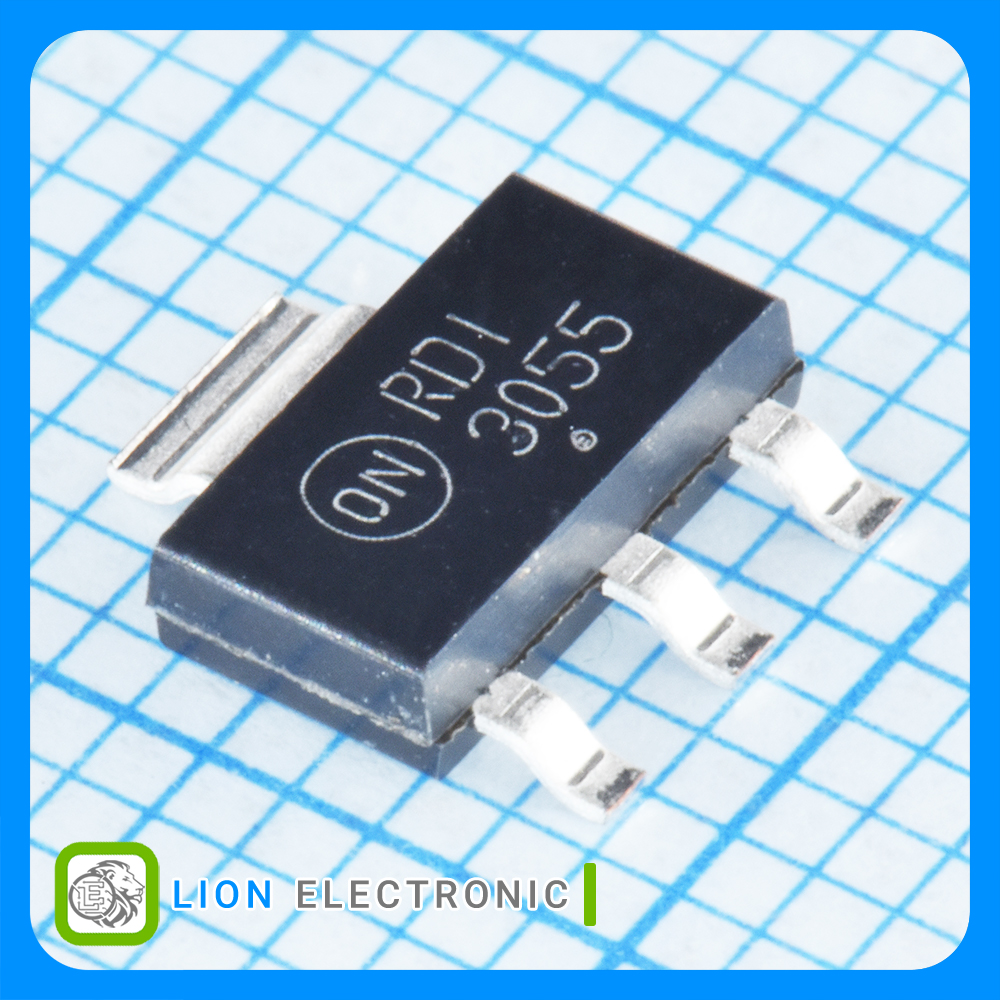

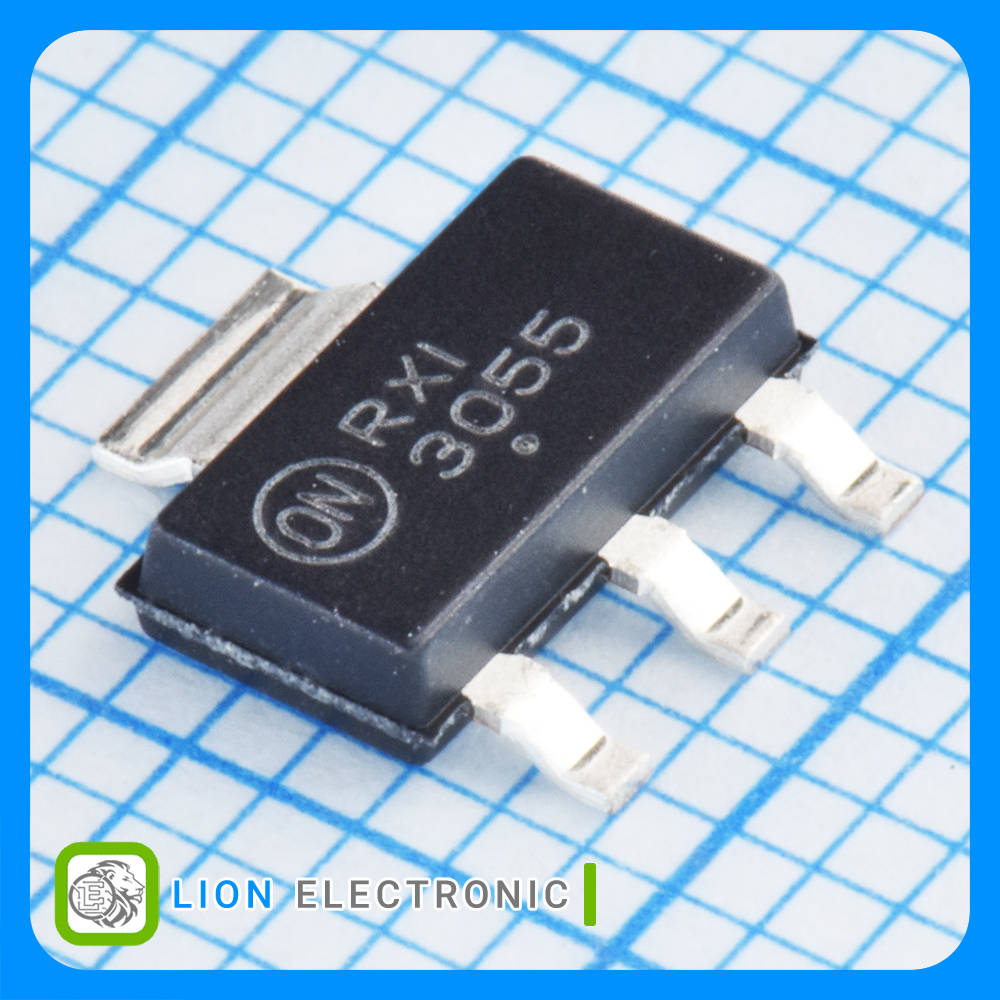

ماسفت NTF3055-100T1G
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
10.6nC
Qg - Gate Charge
2V
Vgs th - Gate - Source Threshold Voltage
3A
Id - Continuous Drain Current
2.1W
Pd - Power Dissipation
110mΩ
Rds On - Drain - Source Resistance
SOT-223
Package-Case
