YHDC
معرفی
سنسور جریان هال حلقه باز 200 آمپر DC و AC با دقت 1%، نصب آویز و خروجی کابلی

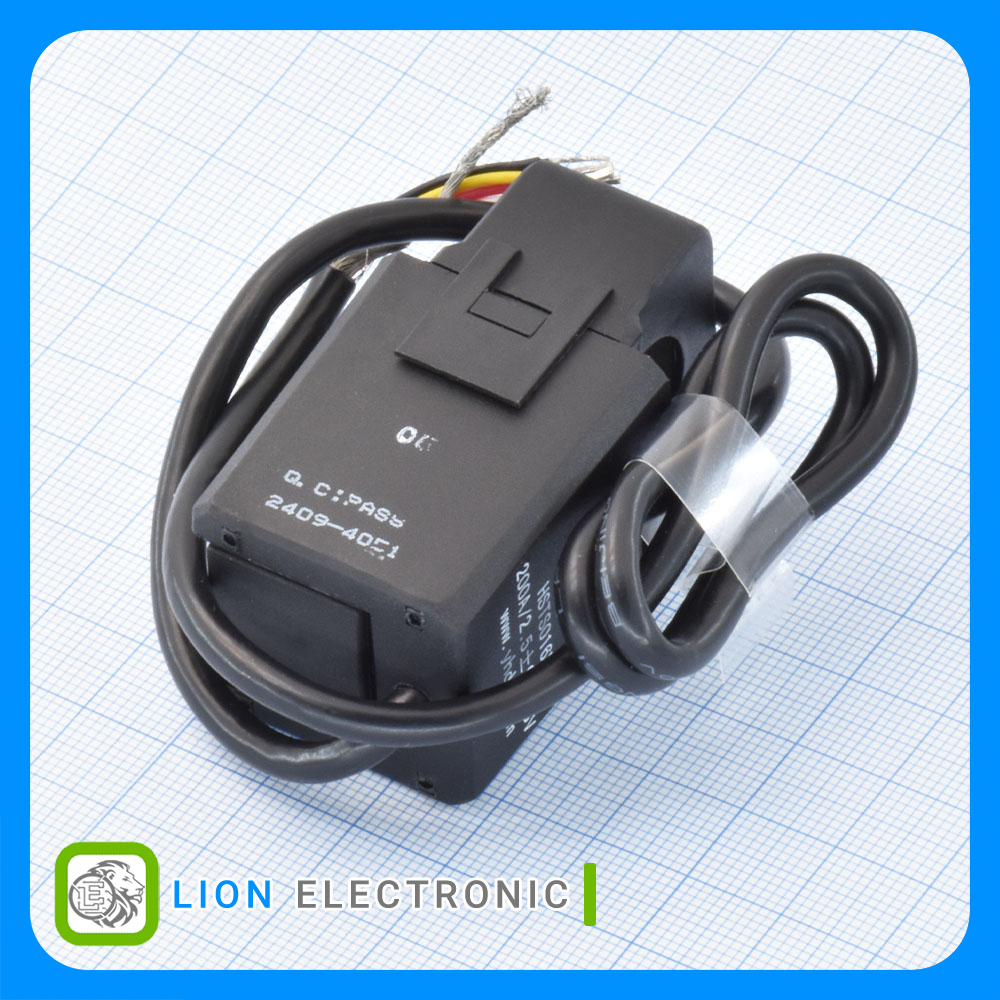

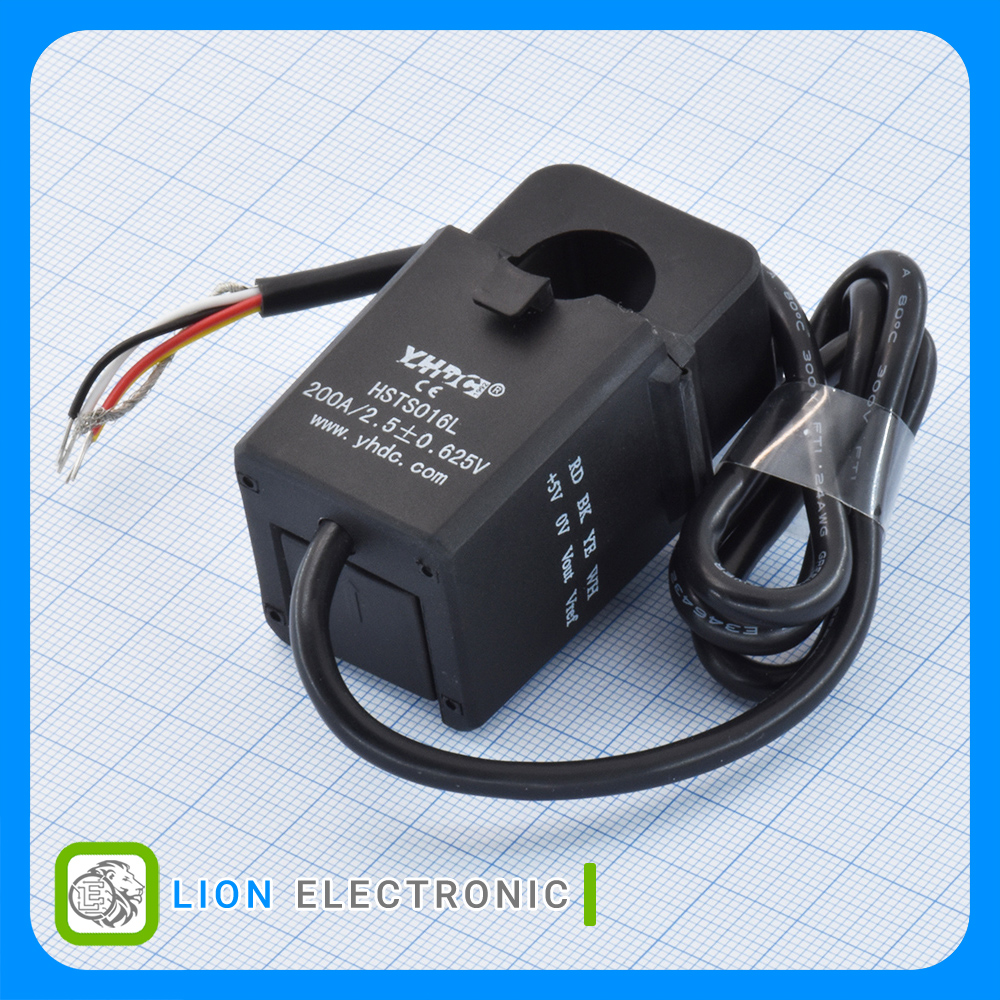

200A DC/AC Open Loop Split Core Hall Current Sensor, 1% Accuracy, Hanging Installation, Cable Output
Specifications
- Product Type: Current Transducer
- Frequency Range: DC
- Current Rating: 200A
- Accuracy: 1%
- Linearity: ≤1%
- Length: 29.5mm
- Width: 31mm
- Height: 55mm
- Mounting Style: Cable
- Packaging: Bulk
مشخصات سنسور جریان HSTS016L-200A
سنسور جریان HSTS016L-200A
Part Number
DC
Frequency Range
Analog
Output Type
Bulk
Packaging
≤1%
Linearity
Cable
Mounting Style
+70C
Maximum Operating Temperature
N/A
Turns Ratio
-10C
Minimum Operating Temperature
3us
Response Time
1%
Accuracy
Current Transducer
Product Type
5.05V
Supply Voltage - Max
Analog
Interface Type
200A
Current Rating
4.95V
Supply Voltage - Min
29.5mm
Length
31mm
Width
55mm
Height
