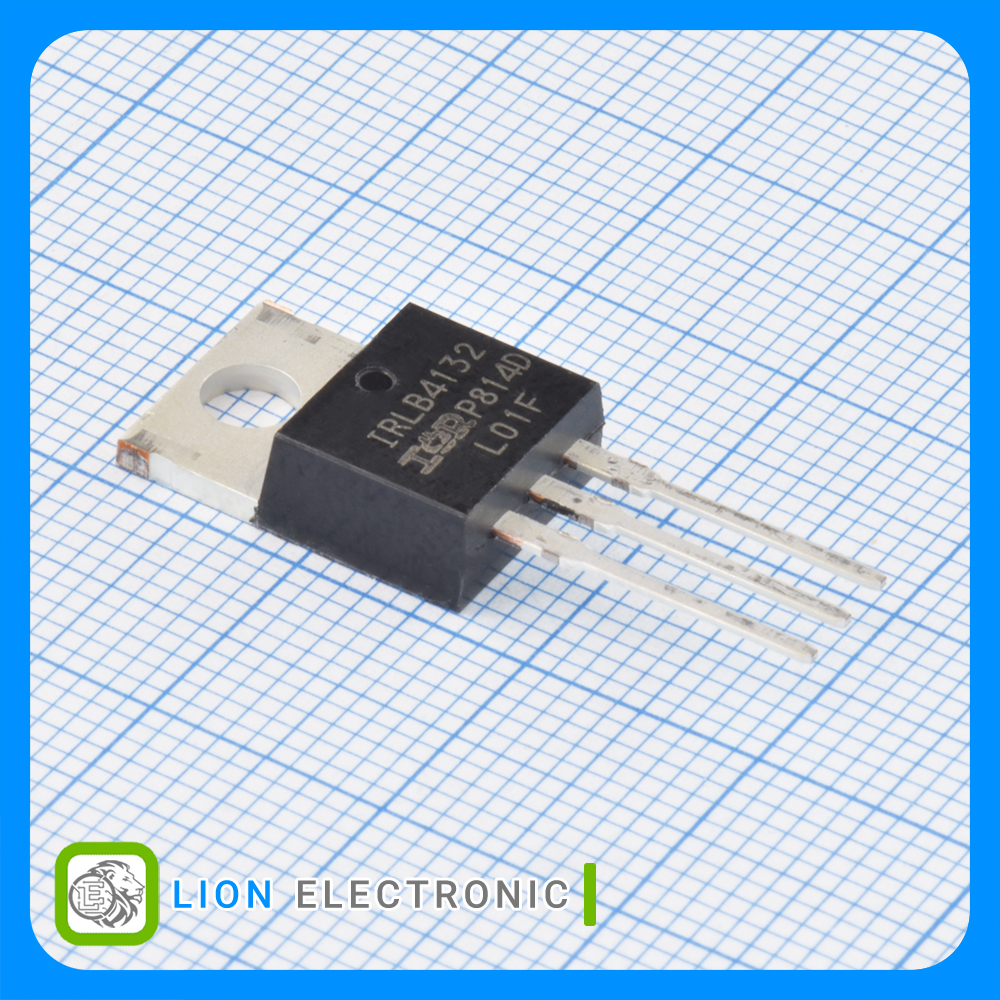

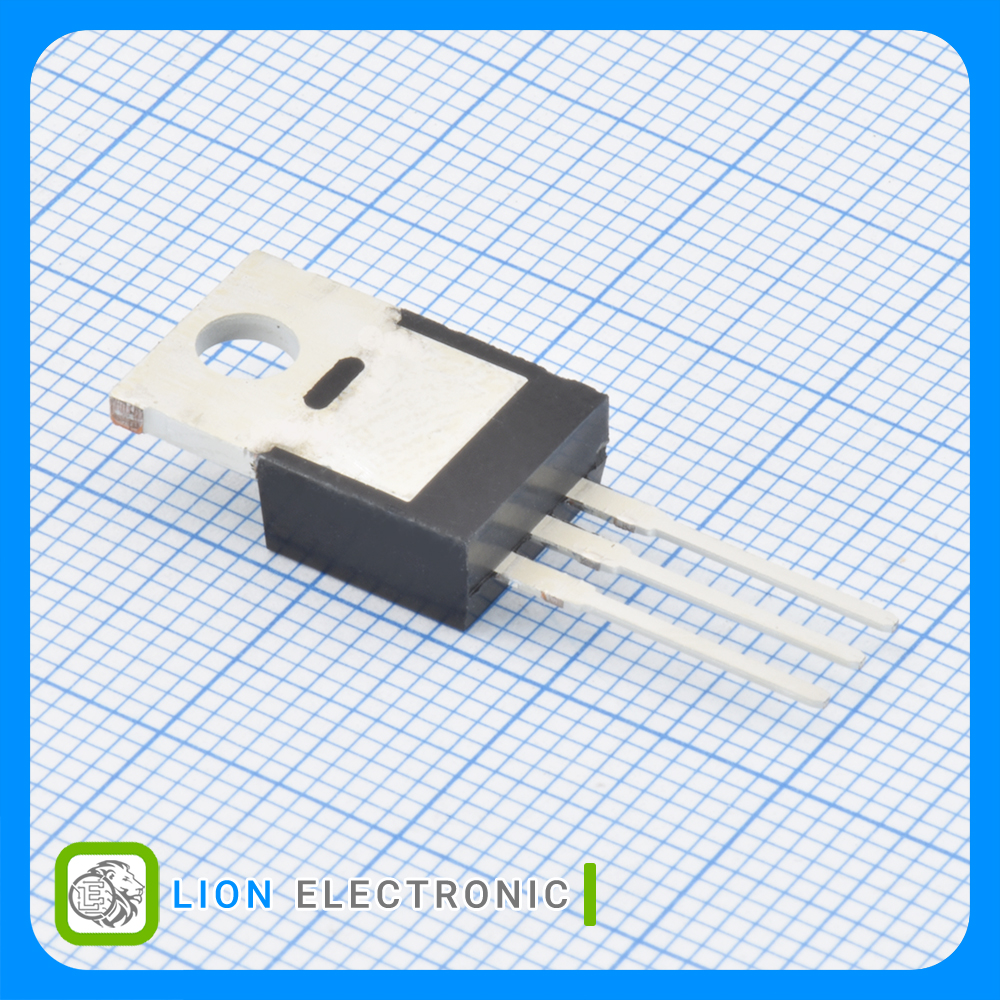

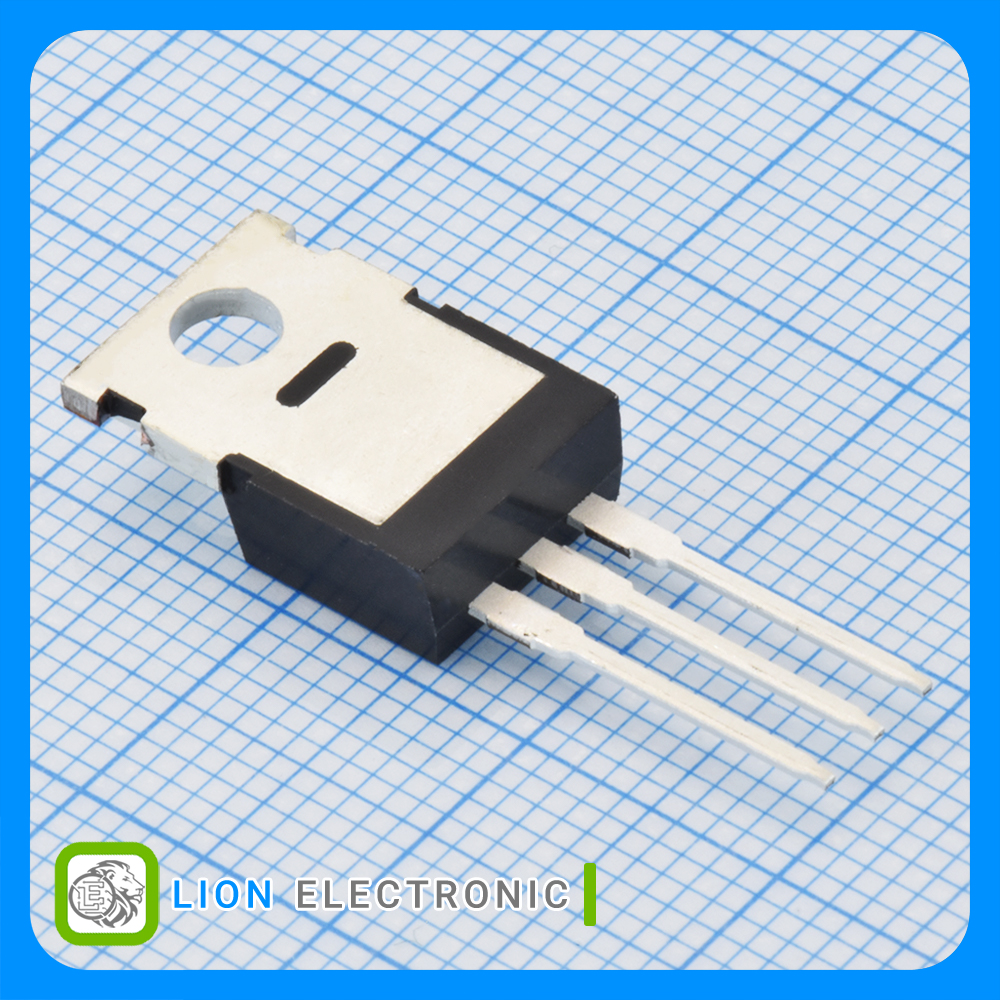

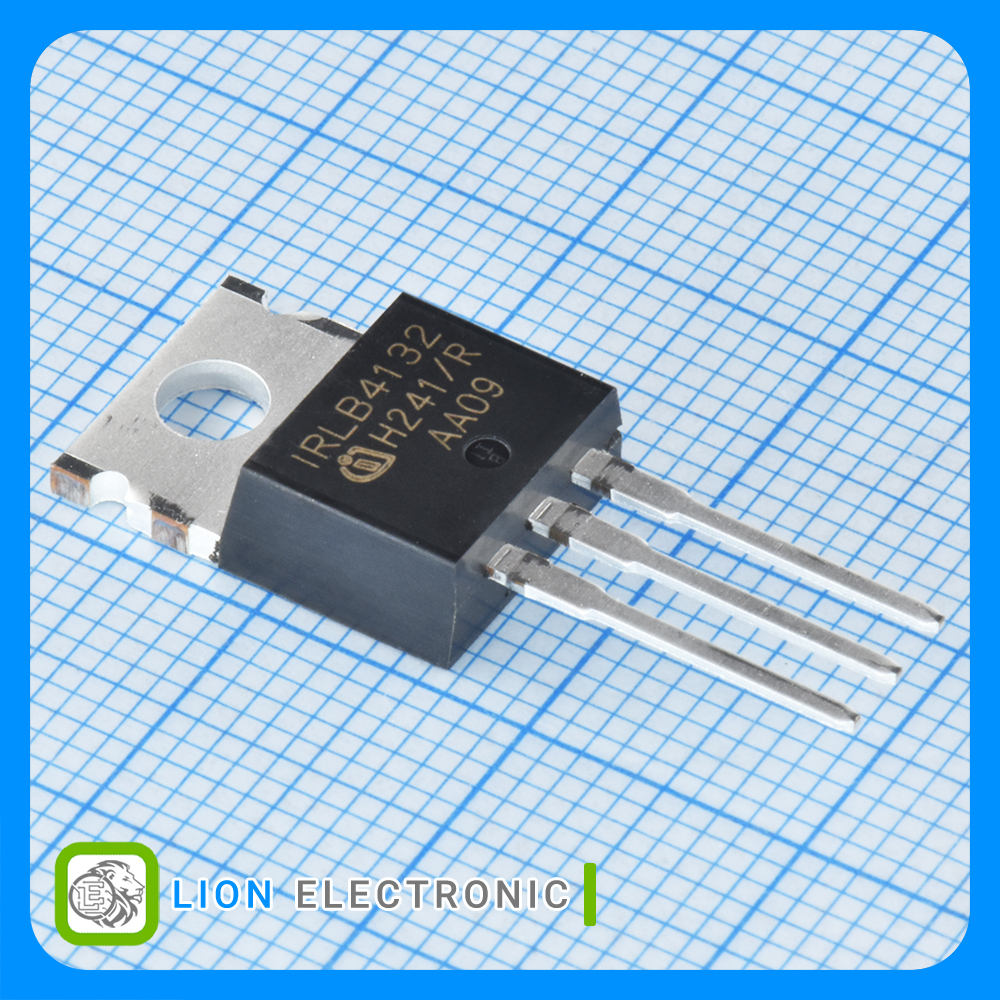

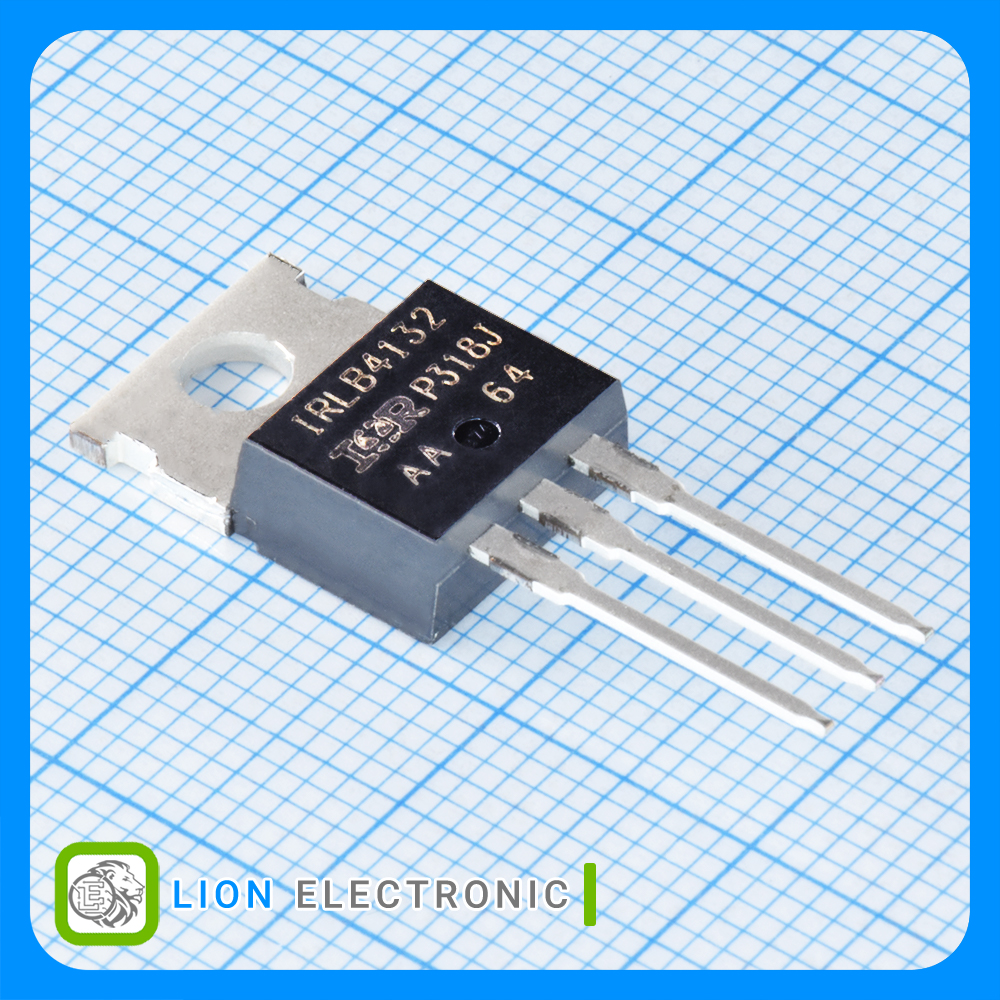

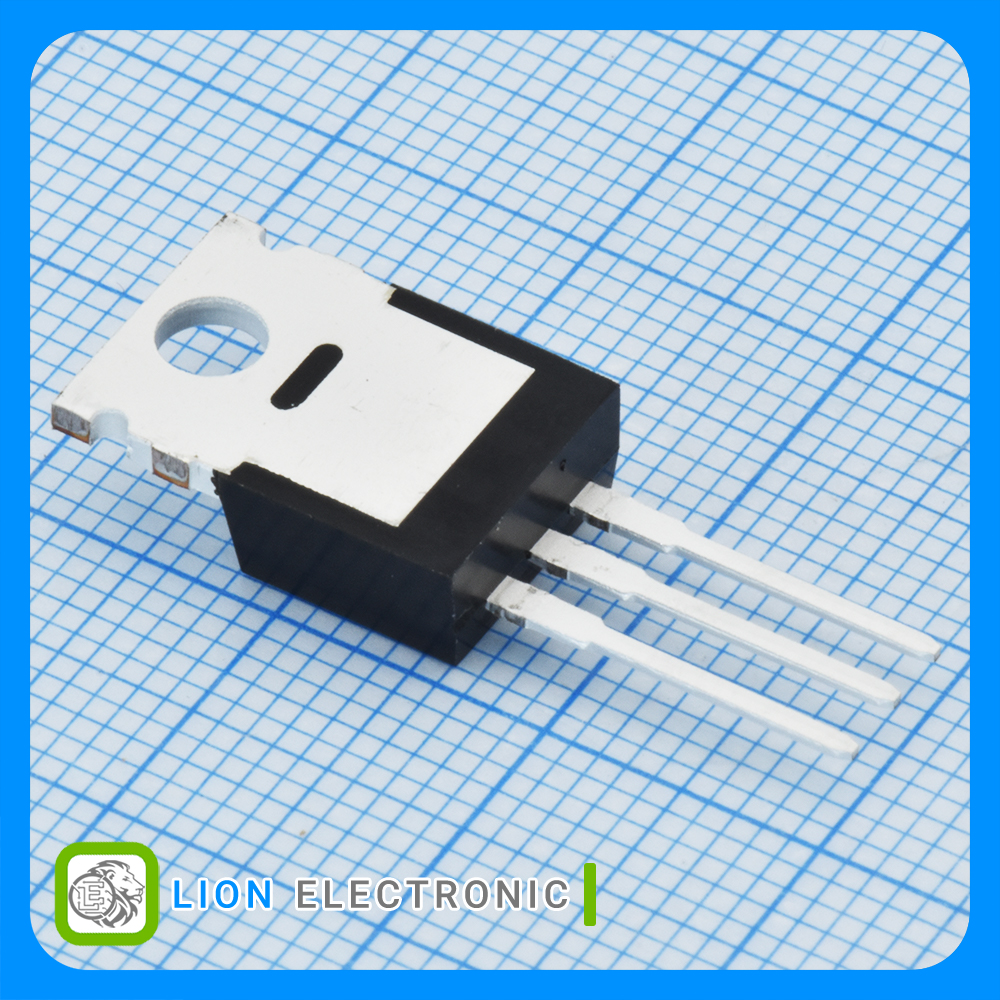

IRLB4132PBF
IRLB4132PBF
Part Number
3503
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 30 ولت جریان 150 آمپر و جریان پیوسته درین 78 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 30V, 150A, Continuous Drain Current 78A with TO-220-3 Package
معرفی
ماسفت 30 ولت جریان 150 آمپر و جریان پیوسته درین 78 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 30V, 150A, Continuous Drain Current 78A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 78A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.35V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 2.5mΩ
- Pd - Power Dissipation: 140W
- Qg - Gate Charge: 36nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRLB4132PBF
ماسفت IRLB4132PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
2.5mΩ
Rds On - Drain - Source Resistance
+175C
Maximum Operating Temperature
1.35V
Vgs th - Gate - Source Threshold Voltage
36nC
Qg - Gate Charge
78A
Id - Continuous Drain Current
140W
Pd - Power Dissipation
TO-220
Package-Case
