VBsemi
معرفی

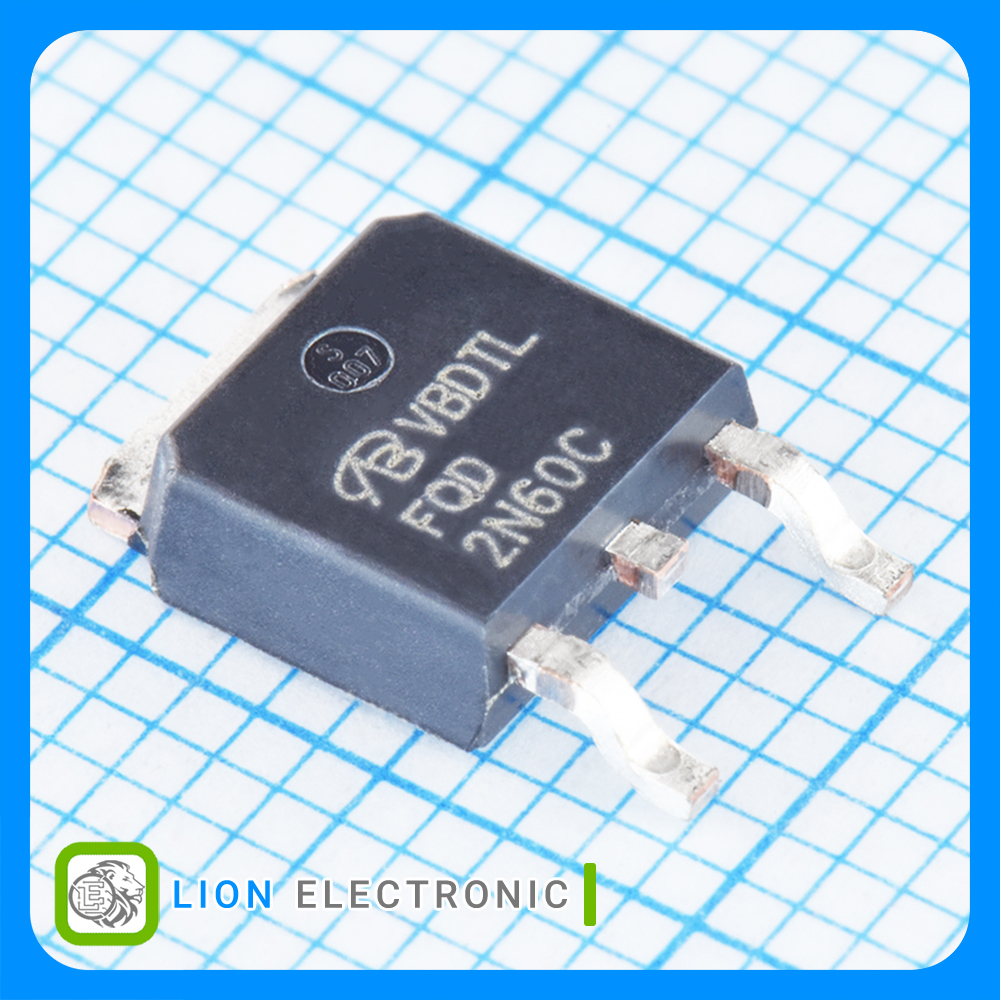

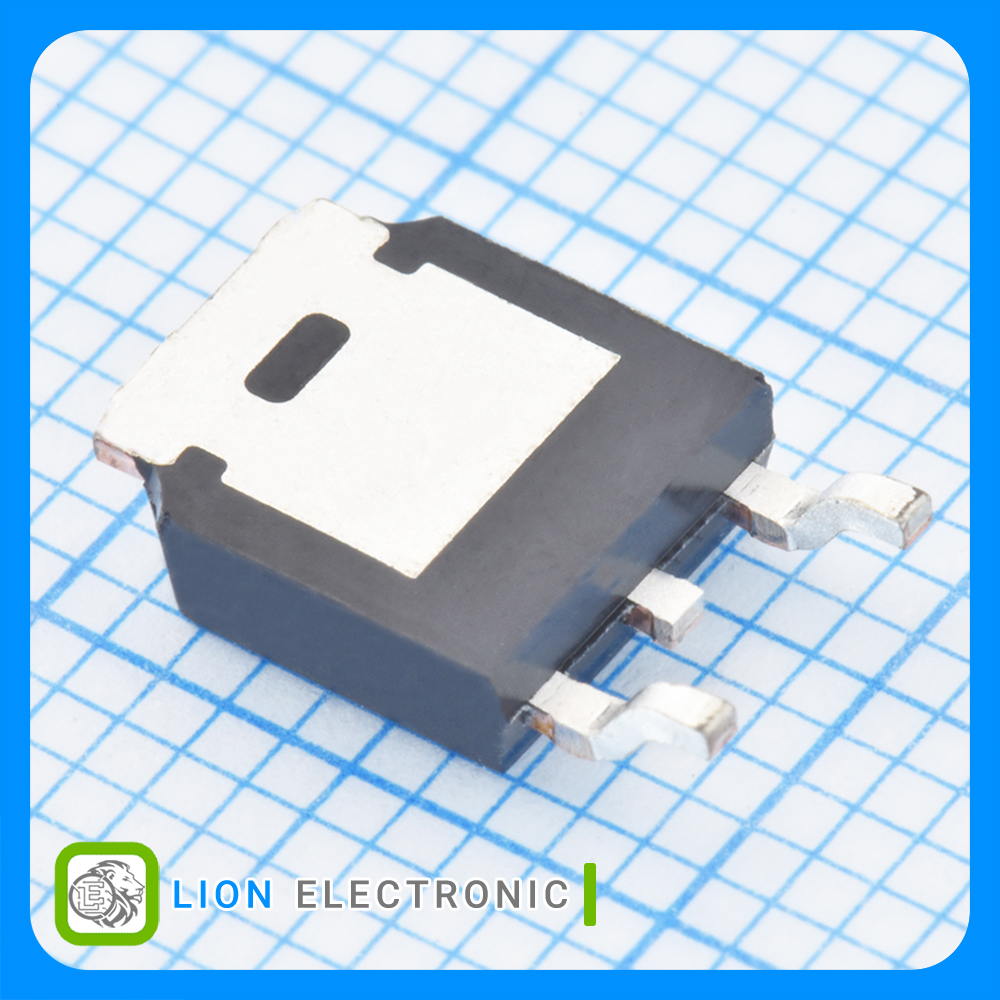

ماسفت 650 ولت 2 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 650V, 2A with TO-252-3 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 650V
- Id - Continuous Drain Current: 2A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 3.8Ω
- Pd - Power Dissipation: 60W
- Qg - Gate Charge: 15nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FQD2N60C-VB

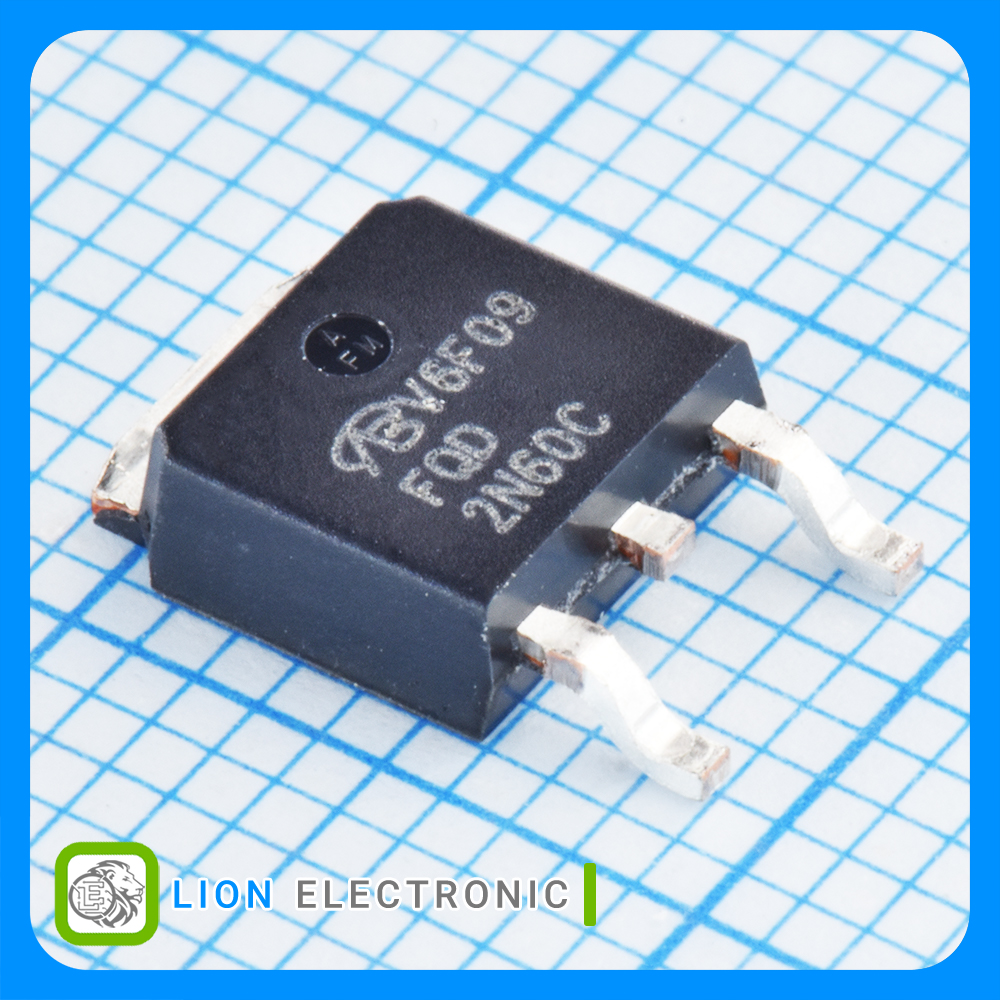

ماسفت FQD2N60C-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
650V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
15nC
Qg - Gate Charge
2A
Id - Continuous Drain Current
DPAK
Package-Case
60W
Pd - Power Dissipation
3.8Ω
Rds On - Drain - Source Resistance
