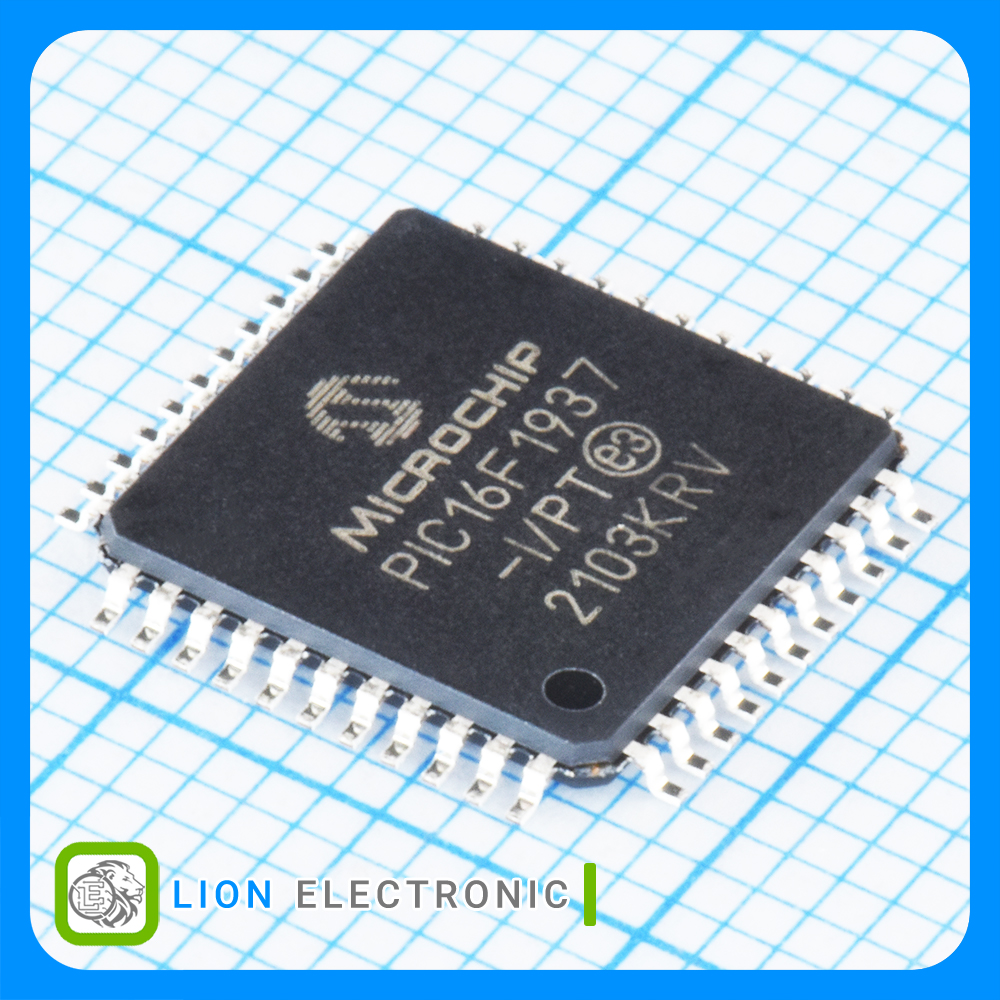

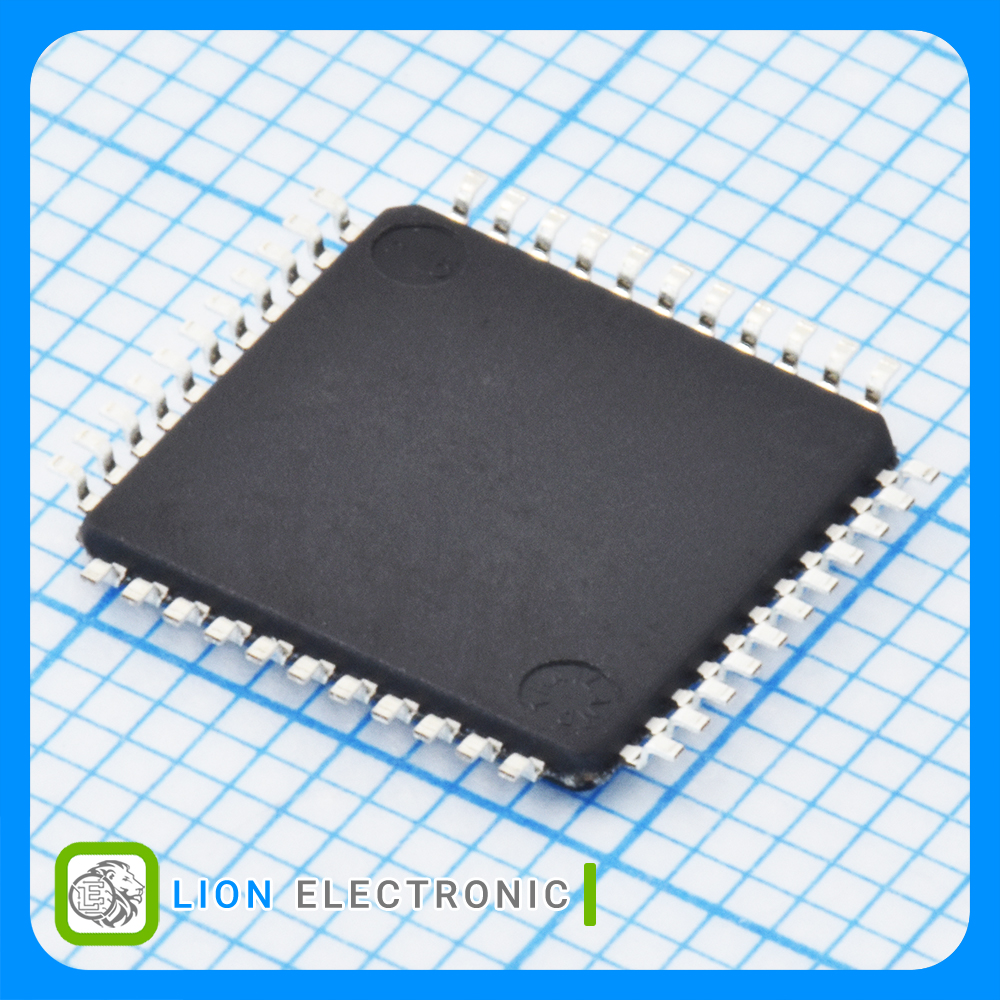

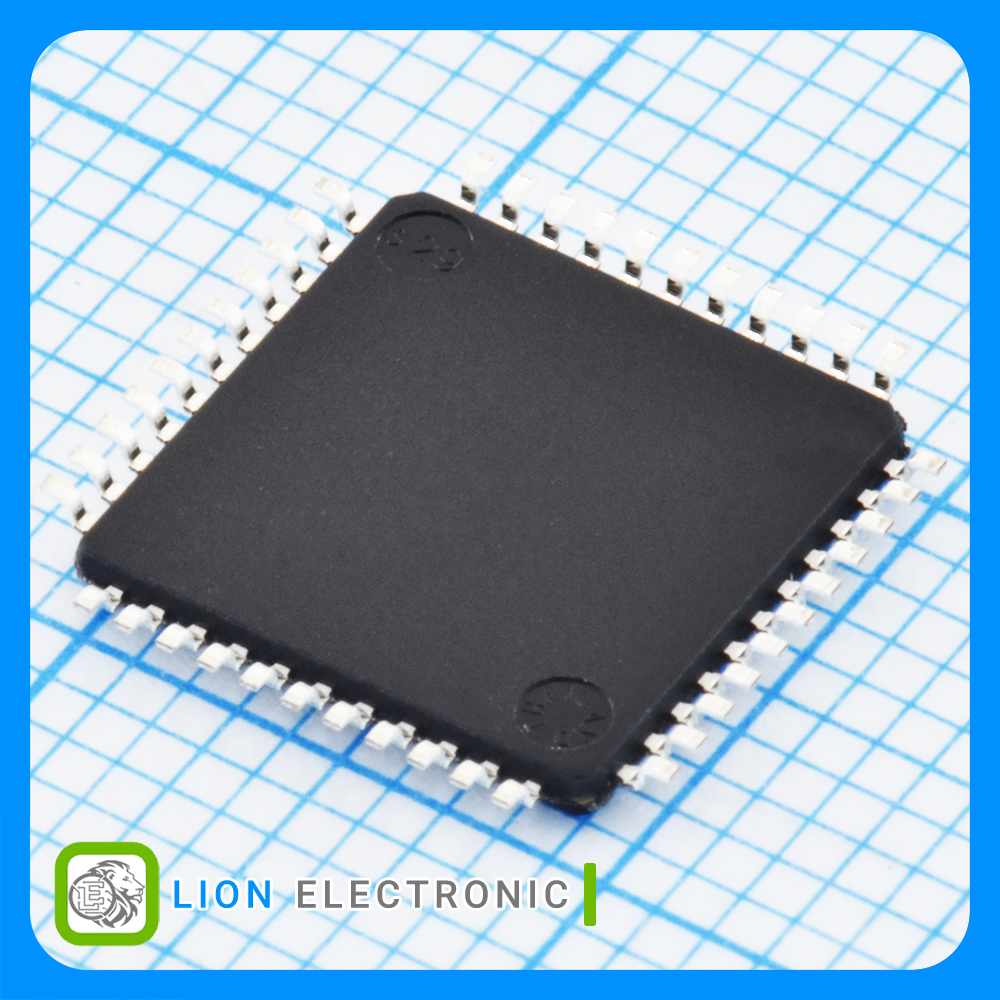

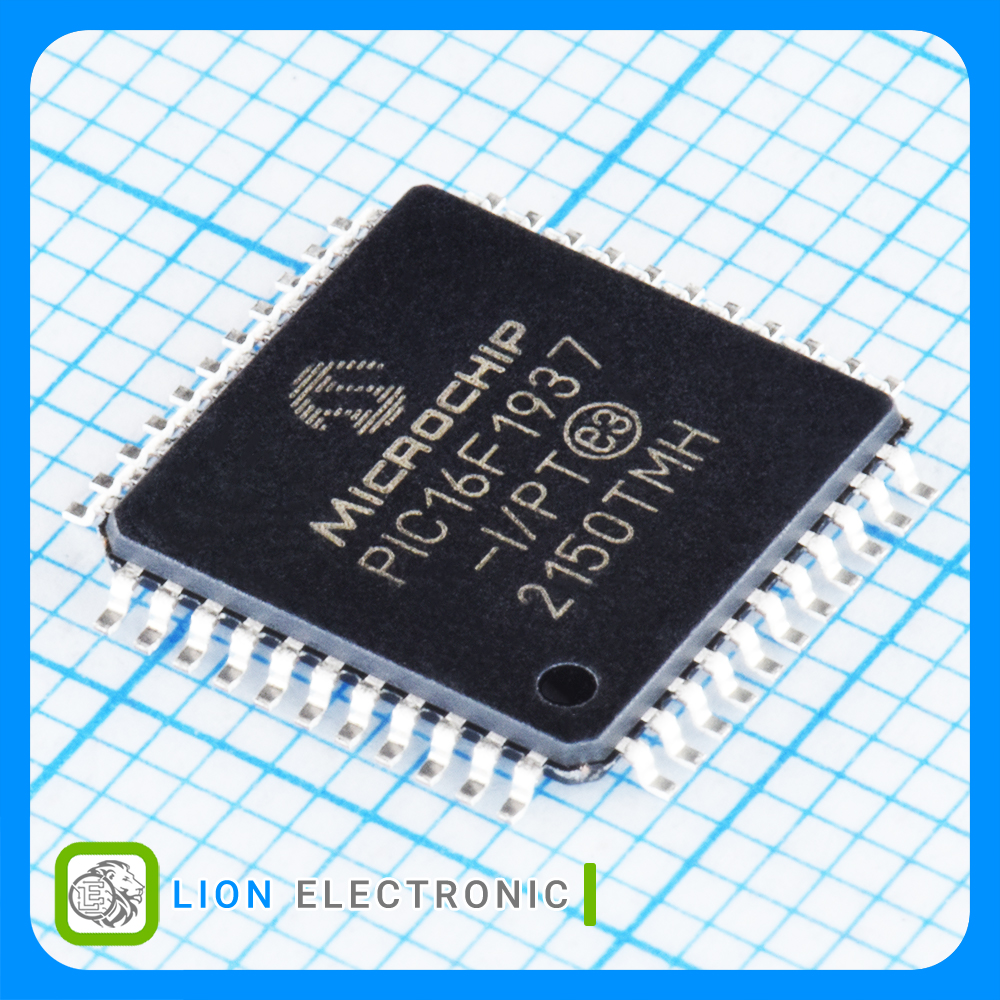

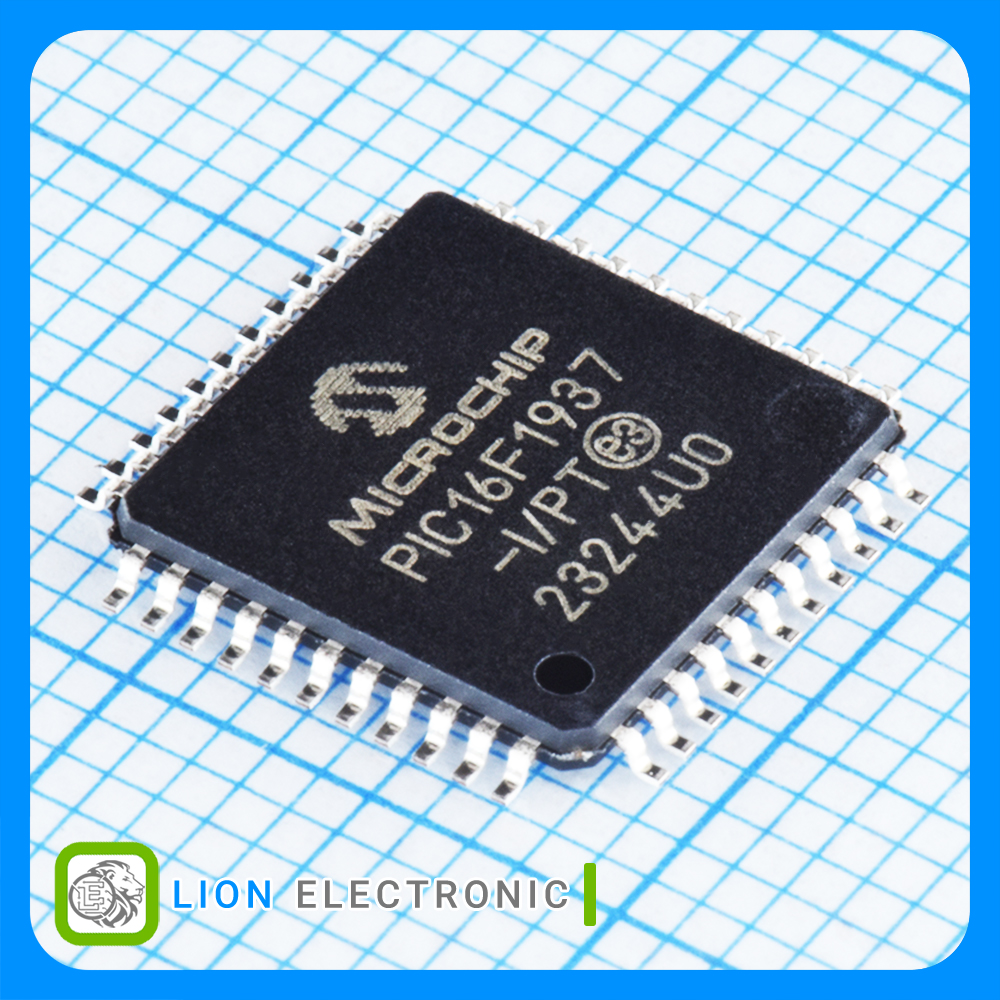

PIC16F1937-I/PT
PIC16F1937-I/PT
Part Number
363
Lion Part
Datasheet
Microchip Technology Manufacture
میکروکنترلر PIC با معماری 8 بیتی CMOS، با 14 کیلوبایت فلش 512 بایت رم 32 مگاهرتز با پکیج TQFP-44
8Bit CMOS PIC Microcontroller, 14kB Flash, 512B RAM, 32MHz with TQFP-44 Package
معرفی
میکروکنترلر PIC با معماری 8 بیتی CMOS، با 14 کیلوبایت فلش 512 بایت رم 32 مگاهرتز با پکیج TQFP-44
8Bit CMOS PIC Microcontroller, 14kB Flash, 512B RAM, 32MHz with TQFP-44 Package
Specifications
- Series: PIC16(L)F193x
- Core: PIC
- Number of I/Os: 36
- ADC Resolution: 10bit
- Program Memory Size: 14kB
- Data RAM Size: 512B
- Data Bus Width: 8bit
- Maximum Clock Frequency: 32MHz
- Operating Supply Voltage: 1.8 - 5.5V
- Mounting Style: SMD/SMT
- Package/Case: TQFP-44
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات PIC16F1937-I/PT
PIC16F1937-I/PT
Part Number
8bit
Data Bus Width
10bit
ADC Resolution
-40C
Minimum Operating Temperature
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
512B
Data RAM Size
14kB
Program Memory Size
32MHz
Maximum Clock Frequency
PIC
Core
36
Number of I-Os
1.8 - 5.5V
Operating Supply Voltage
EUSART, MI2C, SPI
Interface Type
TQFP-44
Package-Case
