XFCN
معرفی
کانکتور FPC 40 پین با فاصله پایه 0.5 میلیمتر، اتصال از پایین، با قفل کشویی، نصب زاویه راست

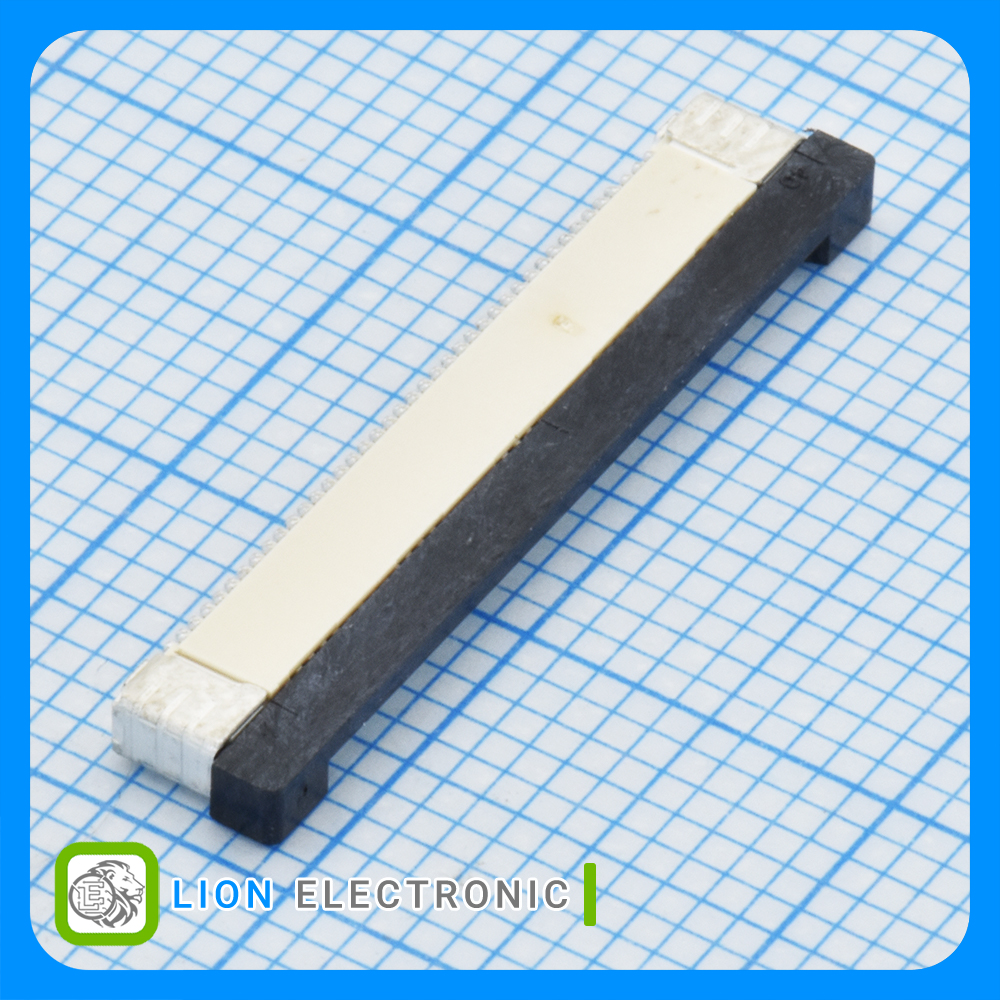

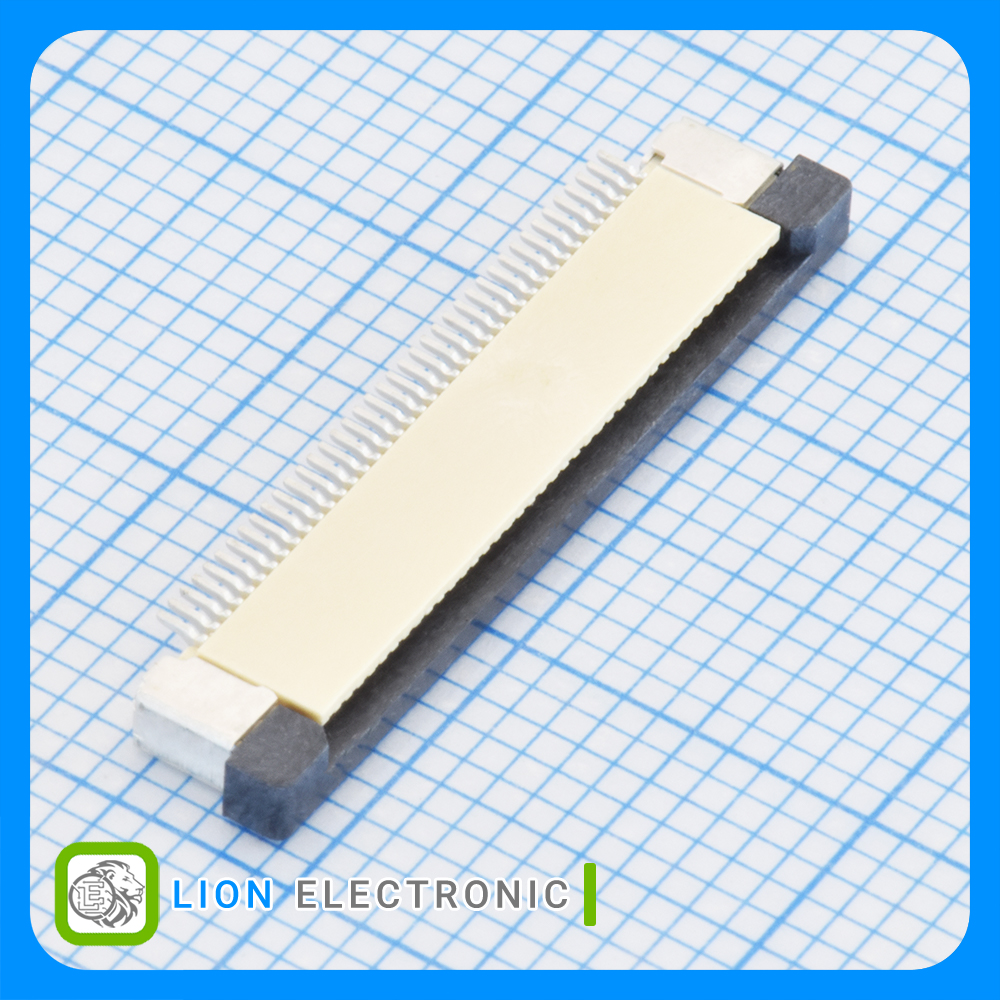

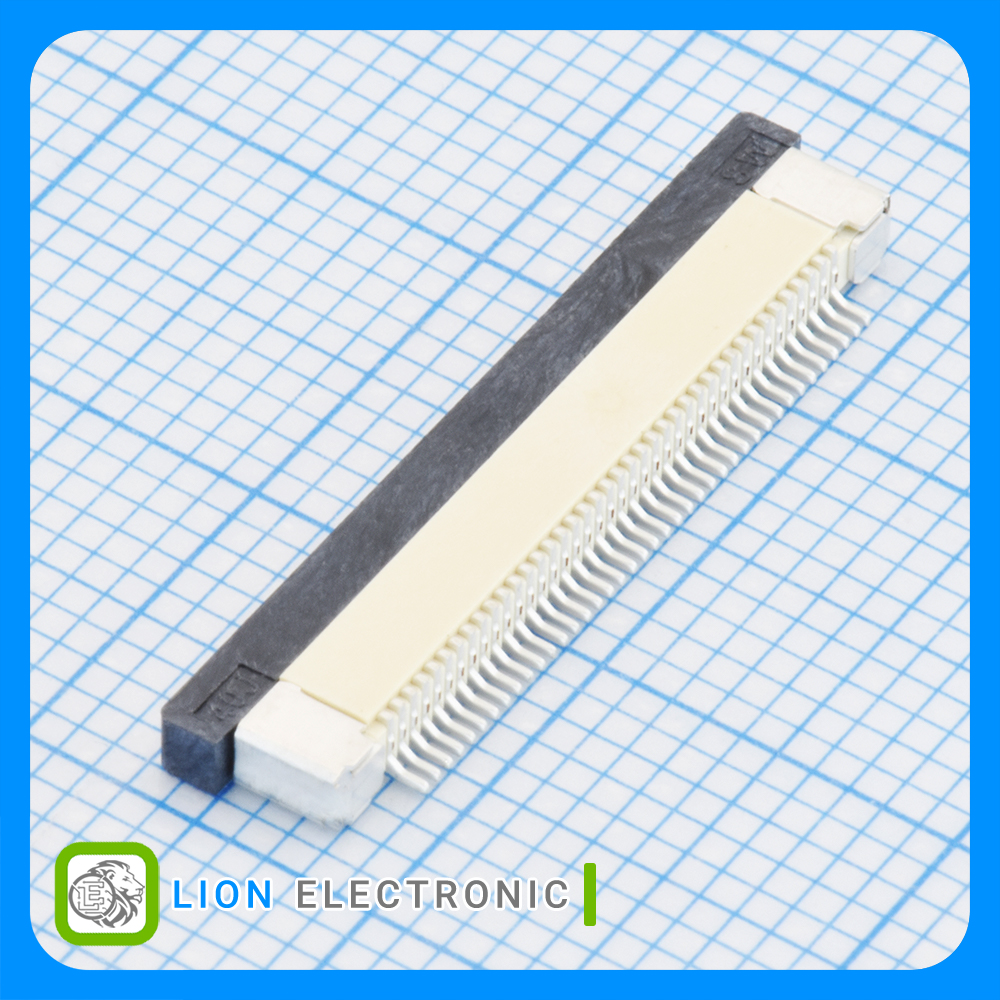

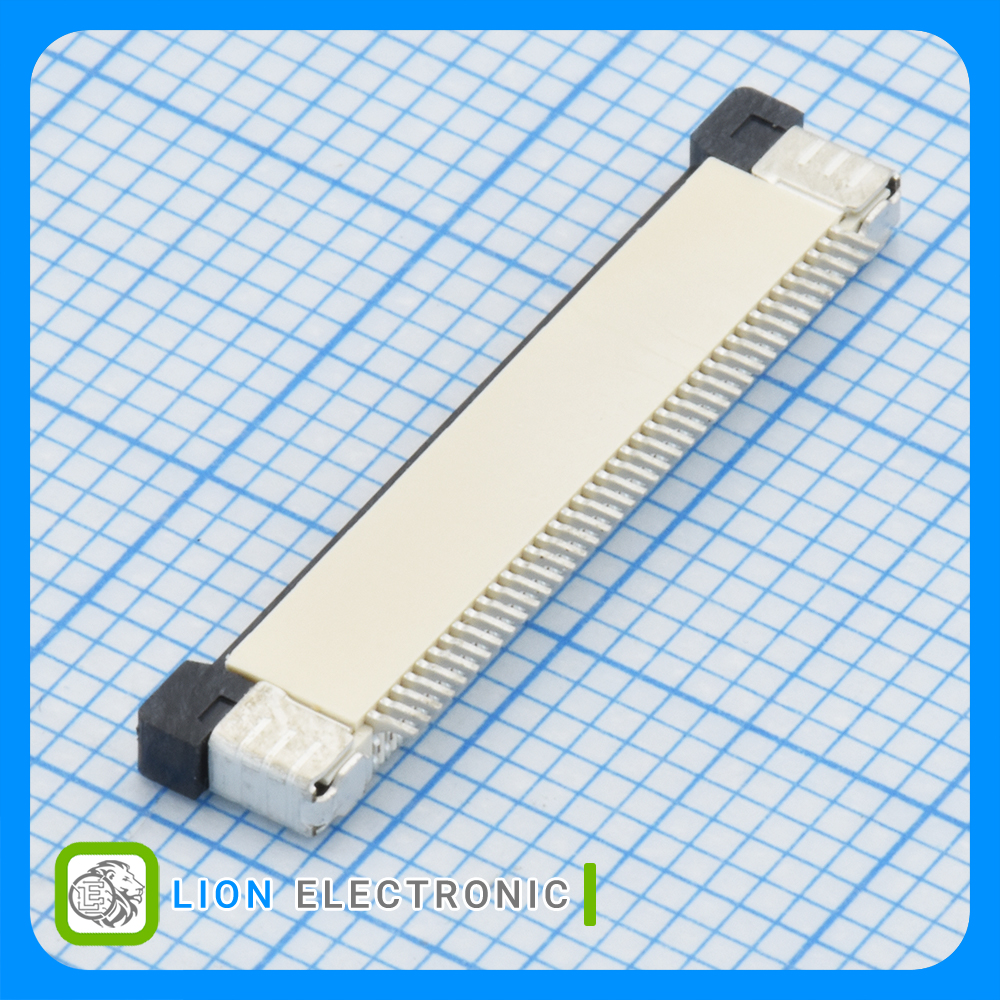

FPC Connector 40 Position, 0.5mm Pitch, Bottom Contact with Drawer Type Lock, Right Angle Mount
Specifications
- Contact Location: Bottom Contact
- Locking Type: Drawer Type
- Number of Positions: 40 Position
- Pitch: 0.5mm
- Mounting Angle: Right Angle
- Termination style: SMD/SMT
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات کانکتور(FPC) F0501-B-40-20T-R
کانکتور(FPC) F0501-B-40-20T-R
Part Number
Right Angle
Mounting Angle
Drawer Type
Locking Type
Bottom Contact
Contact Location
0.5mm
Pitch
SMD/SMT
Termination style
Tube
Packaging
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
40 Position
Number of Positions
