TOSHIBA
معرفی

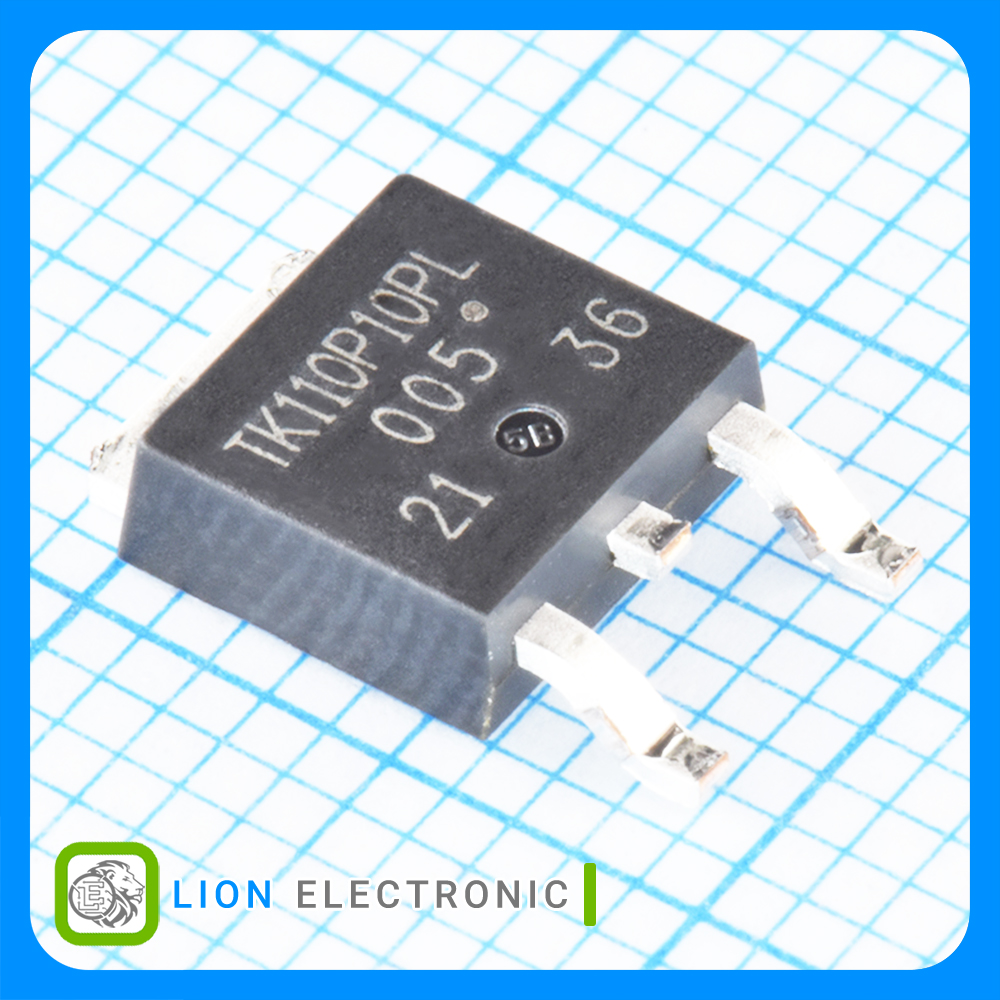

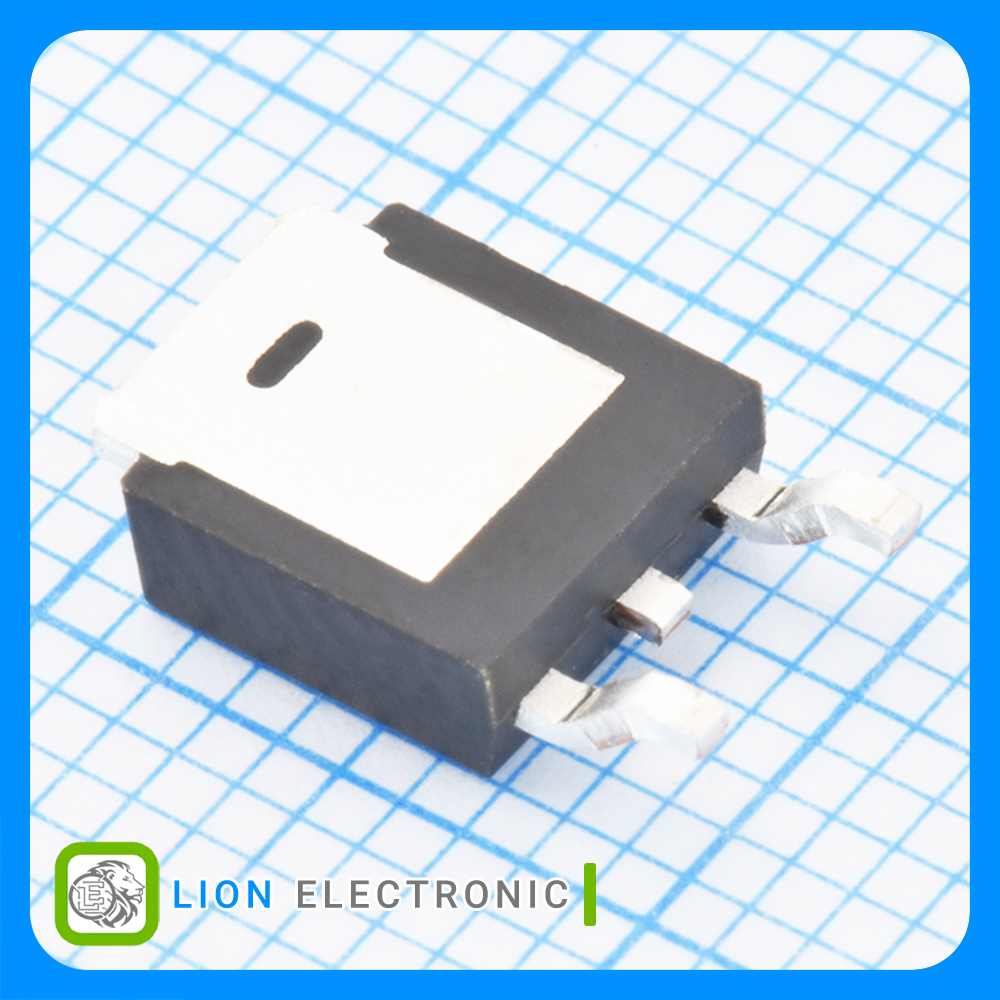

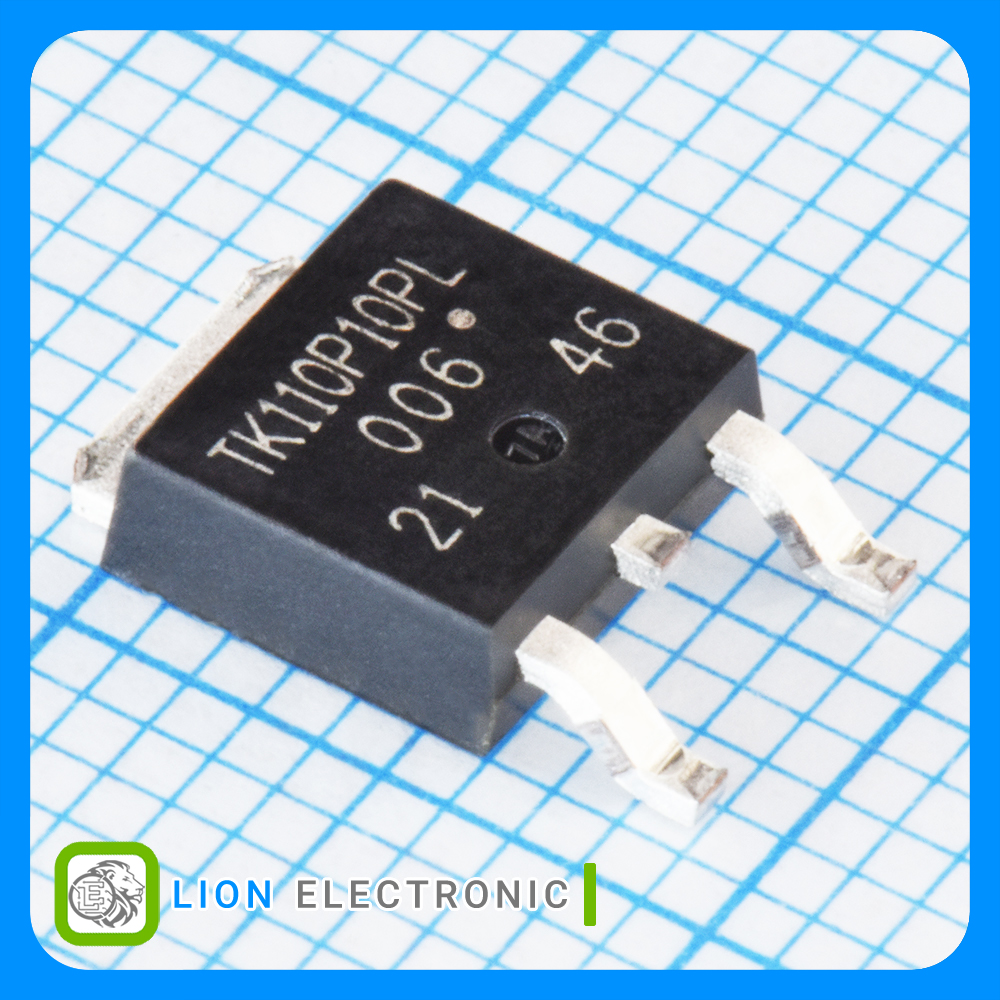

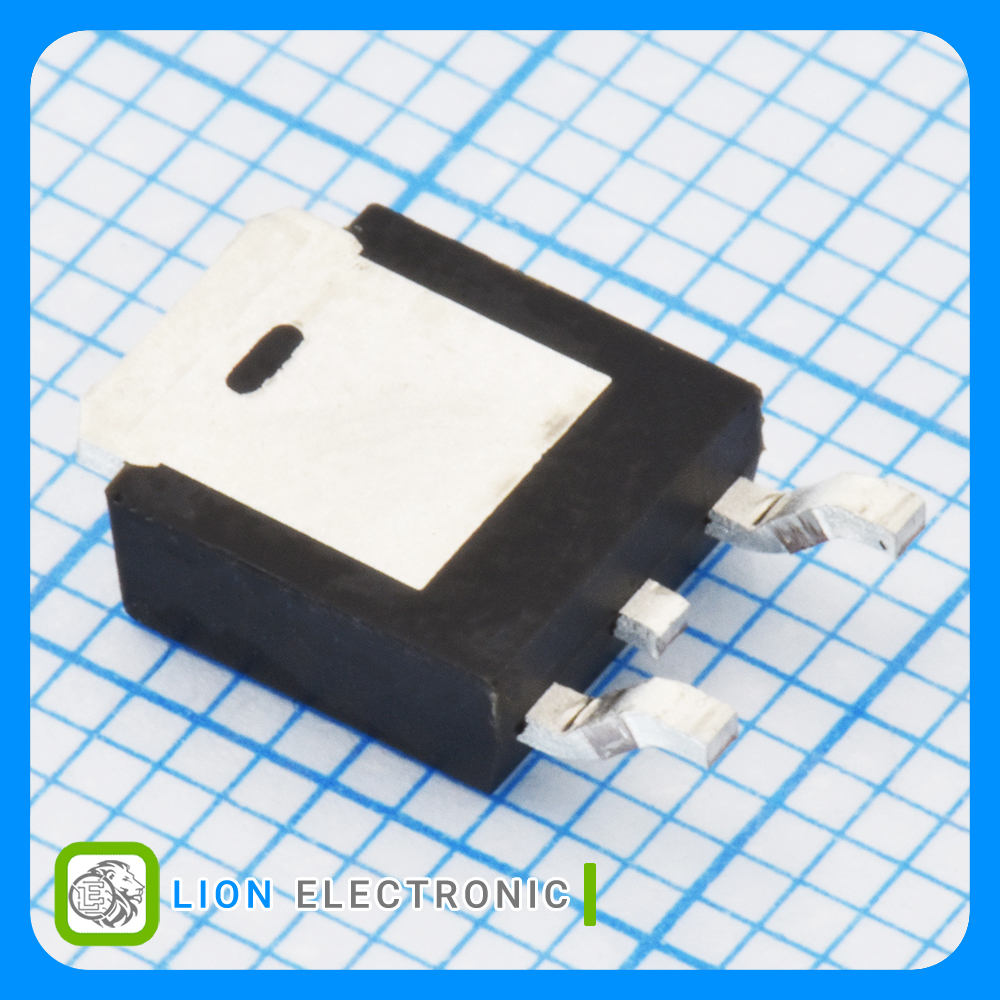

ماسفت 100 ولت 40 آمپر نوع N با پکیج DPAK-3
N-CH MOSFET 100V, 40A with DPAK-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 40A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 8.9mΩ
- Pd - Power Dissipation: 75W
- Qg - Gate Charge: 33nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TK110P10PL,RQ
ماسفت TK110P10PL,RQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1.5V
Vgs th - Gate - Source Threshold Voltage
8.9mΩ
Rds On - Drain - Source Resistance
33nC
Qg - Gate Charge
DPAK
Package-Case
40A
Id - Continuous Drain Current
75W
Pd - Power Dissipation
