TOSHIBA
معرفی

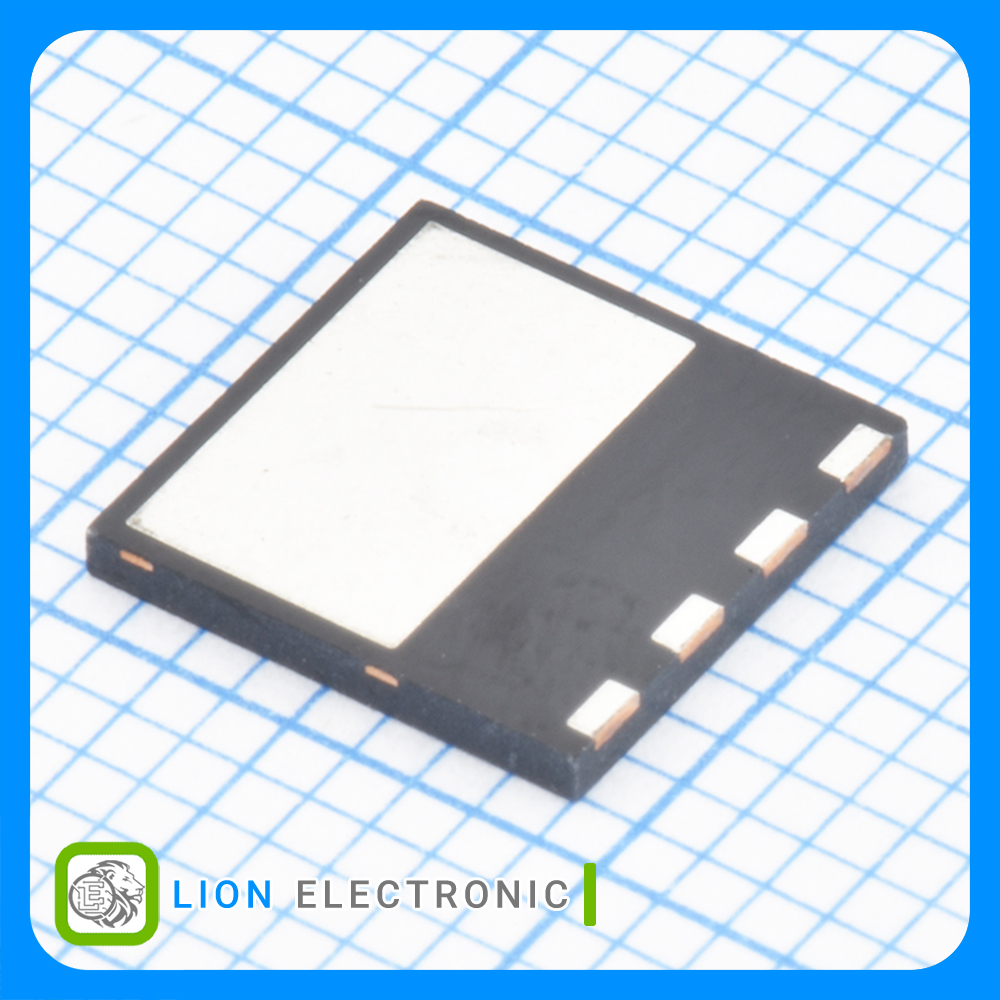

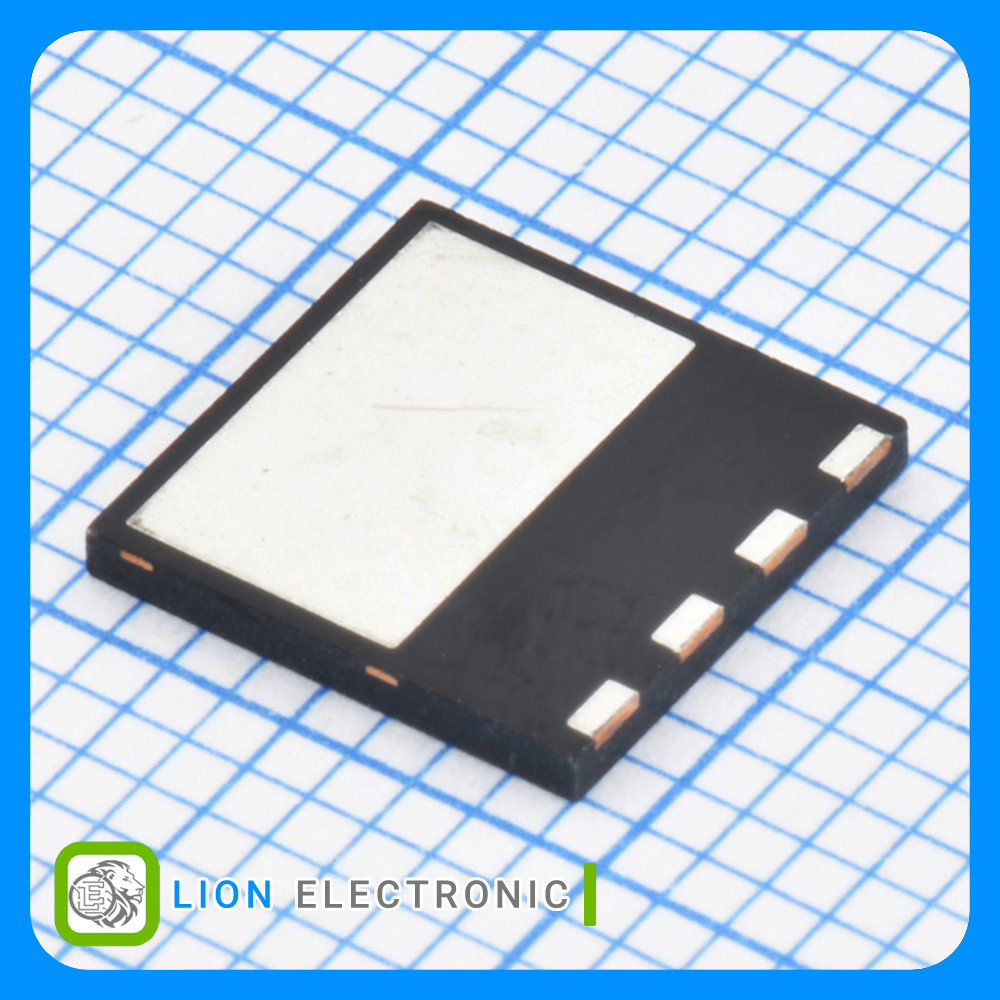

ماسفت 650 ولت 13.7 آمپر نوع N با پکیج DFN8x8-5
N-CH MOSFET 650V, 13.7A with DFN8x8-5 Package
Specifications
- Package/Case: DFN8x8-5
- Vds - Drain - Source Breakdown Voltage: 650V
- Id - Continuous Drain Current: 13.7A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 250mΩ
- Pd - Power Dissipation: 139W
- Qg - Gate Charge: 35nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت TK14V65W,LQ

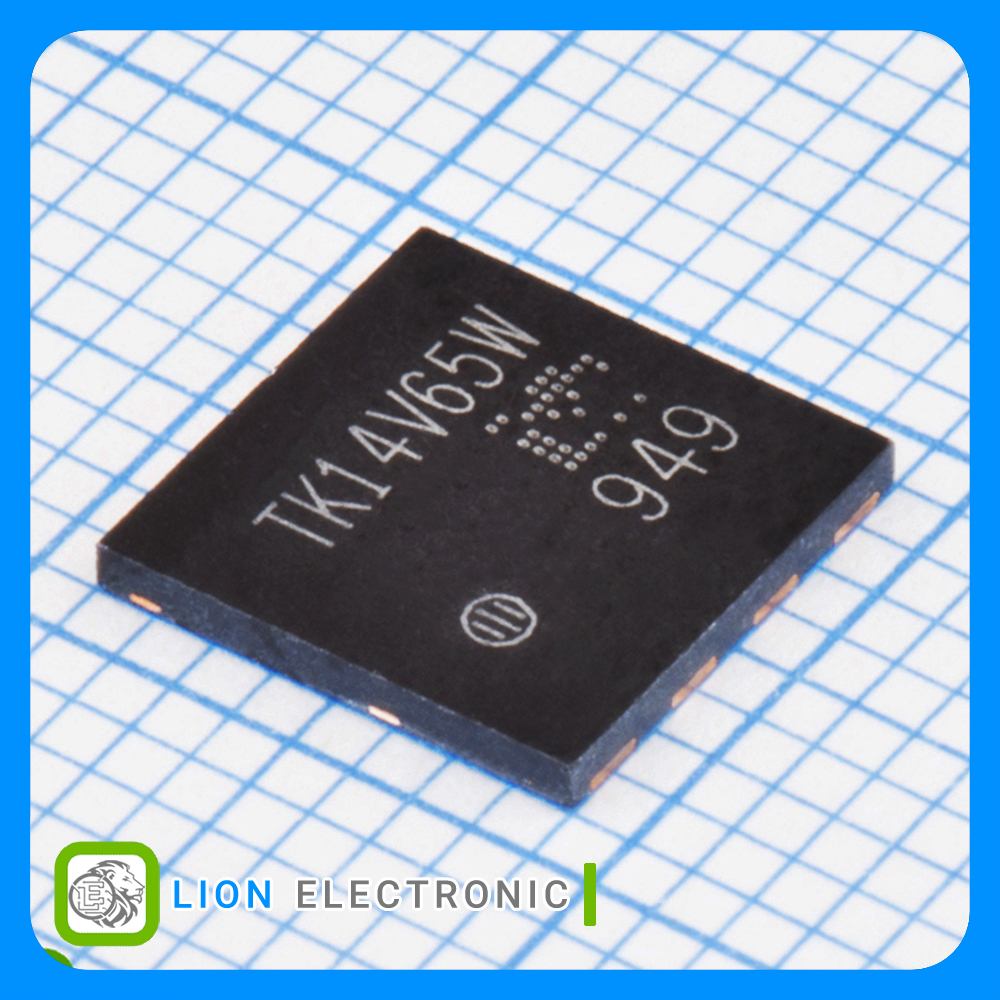

ماسفت TK14V65W,LQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
650V
Vds - Drain - Source Breakdown Voltage
2.5V
Vgs th - Gate - Source Threshold Voltage
35nC
Qg - Gate Charge
DFN8x8-5
Package-Case
13.7A
Id - Continuous Drain Current
250mΩ
Rds On - Drain - Source Resistance
139W
Pd - Power Dissipation
