TOSHIBA
معرفی

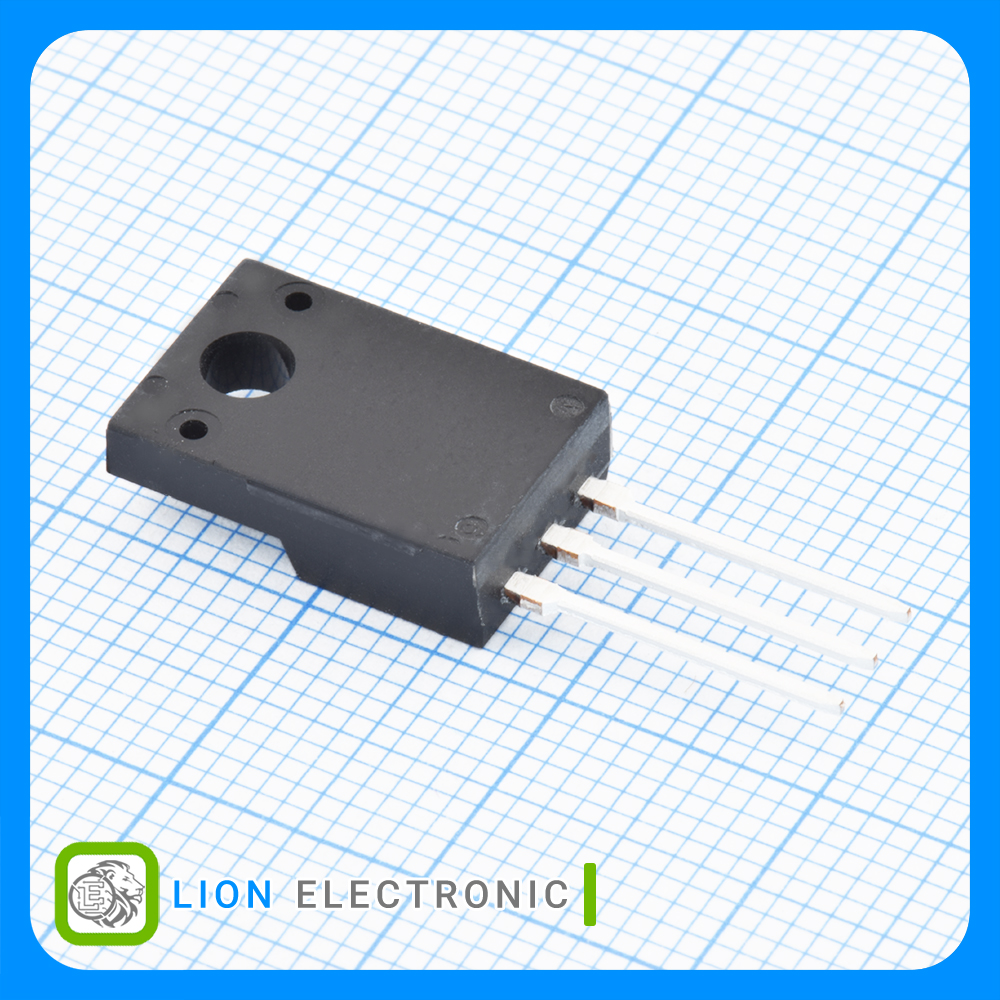

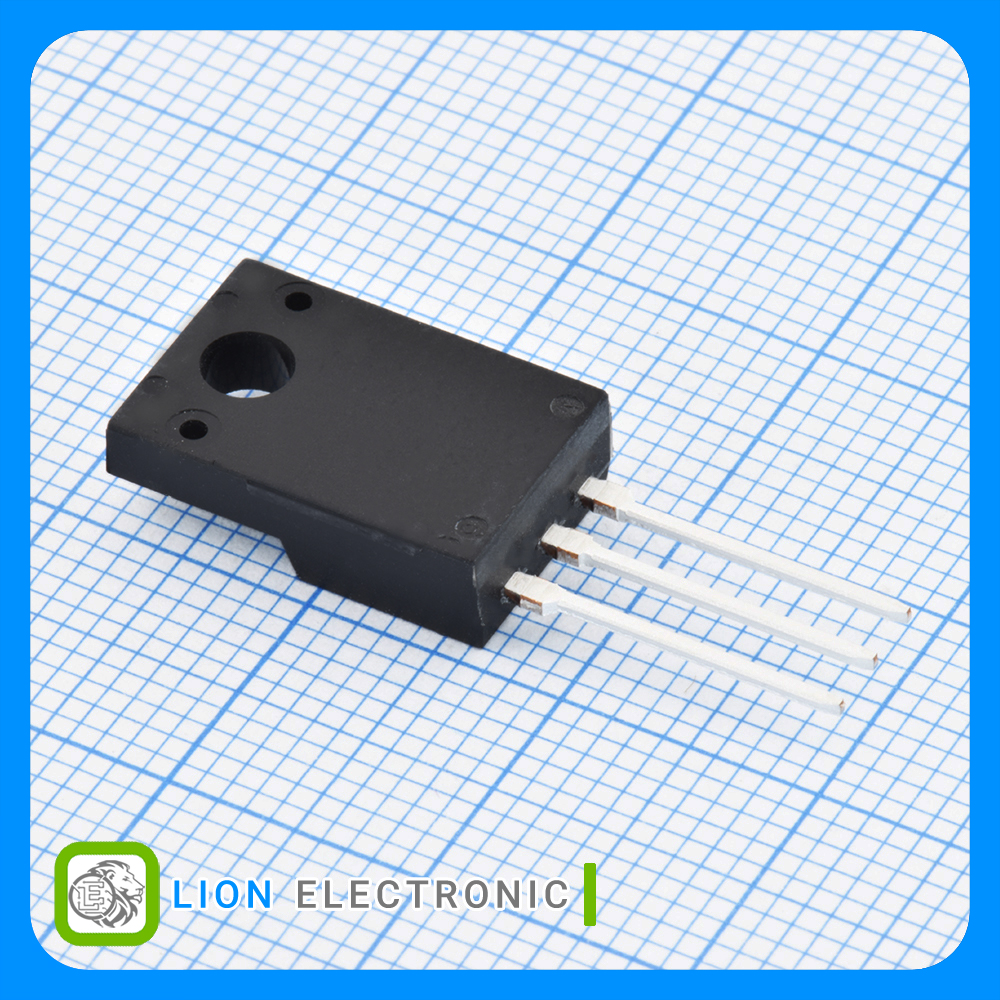

ماسفت 200 ولت 25 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 200V, 25A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 200V
- Id - Continuous Drain Current: 25A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 47mΩ
- Pd - Power Dissipation: 45W
- Qg - Gate Charge: 60nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت TK25A20D,S5X

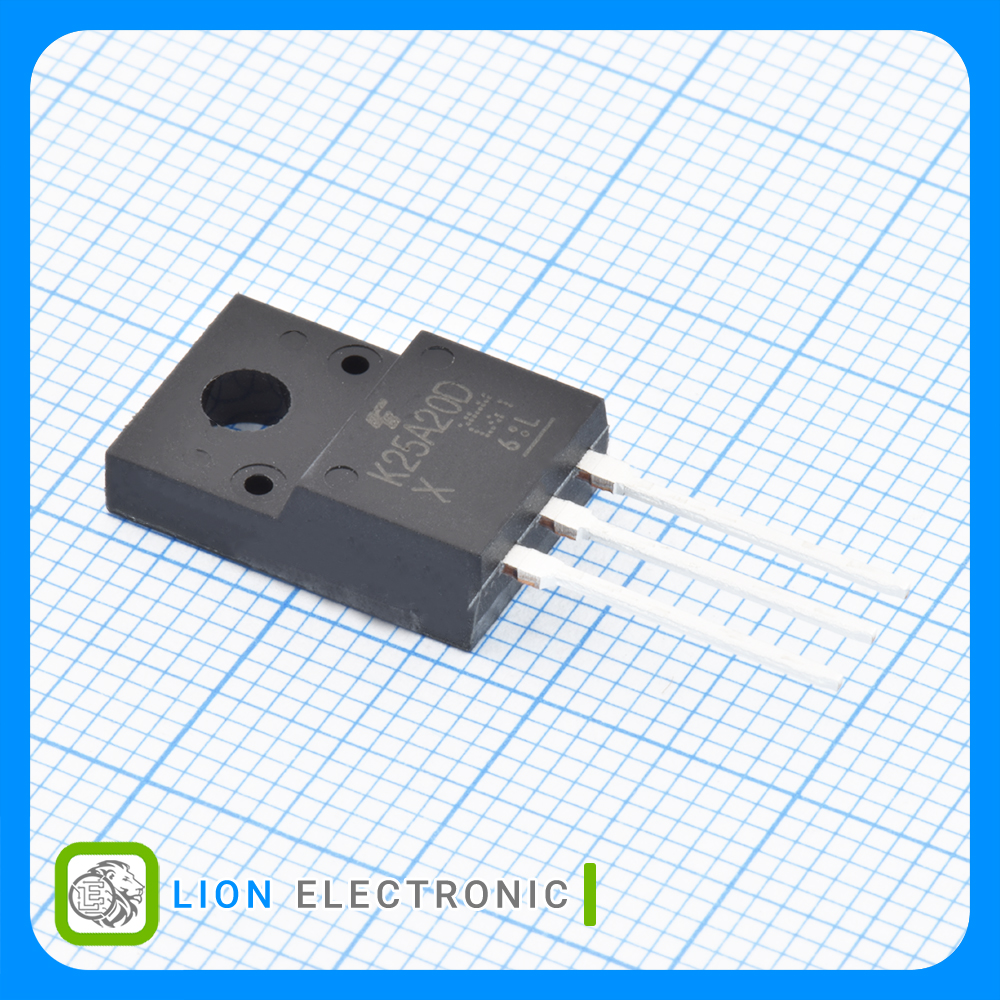

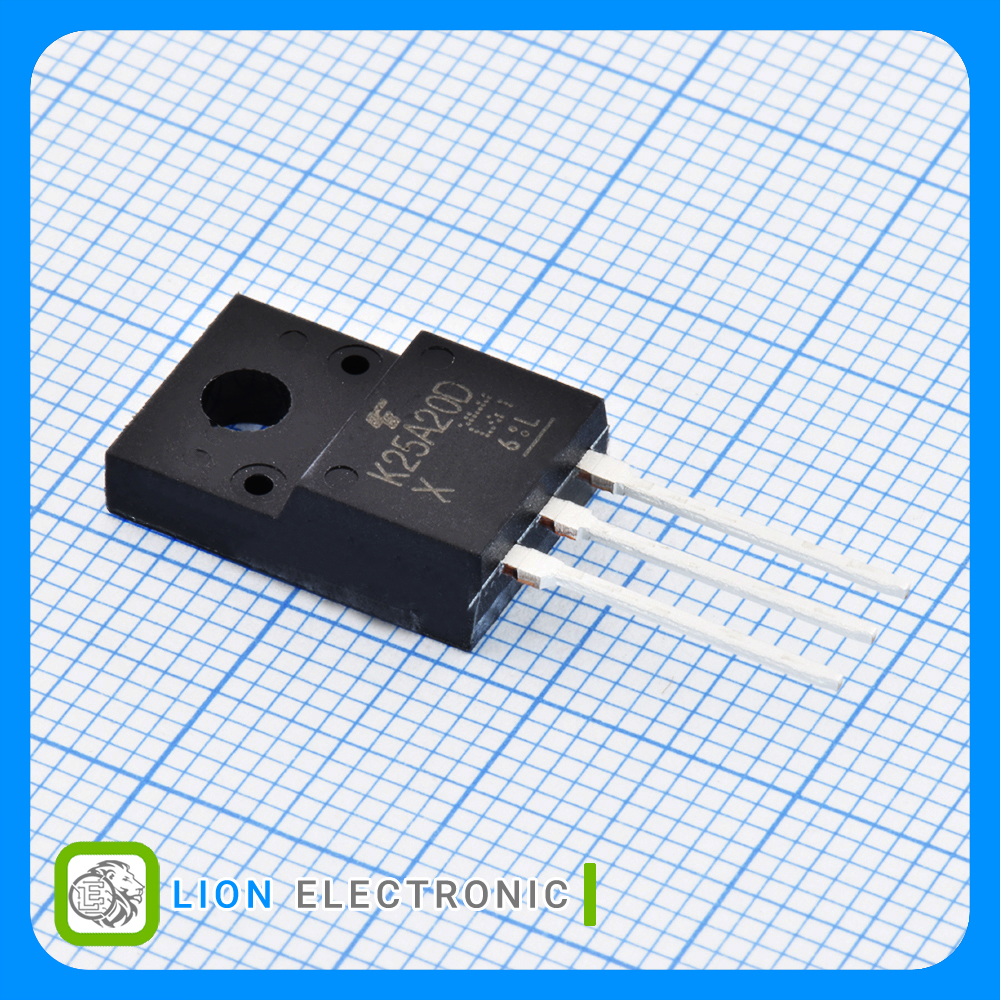

ماسفت TK25A20D,S5X
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
200V
Vds - Drain - Source Breakdown Voltage
1.5V
Vgs th - Gate - Source Threshold Voltage
47mΩ
Rds On - Drain - Source Resistance
60nC
Qg - Gate Charge
45W
Pd - Power Dissipation
25A
Id - Continuous Drain Current
TO-220
Package-Case
