TOSHIBA
معرفی

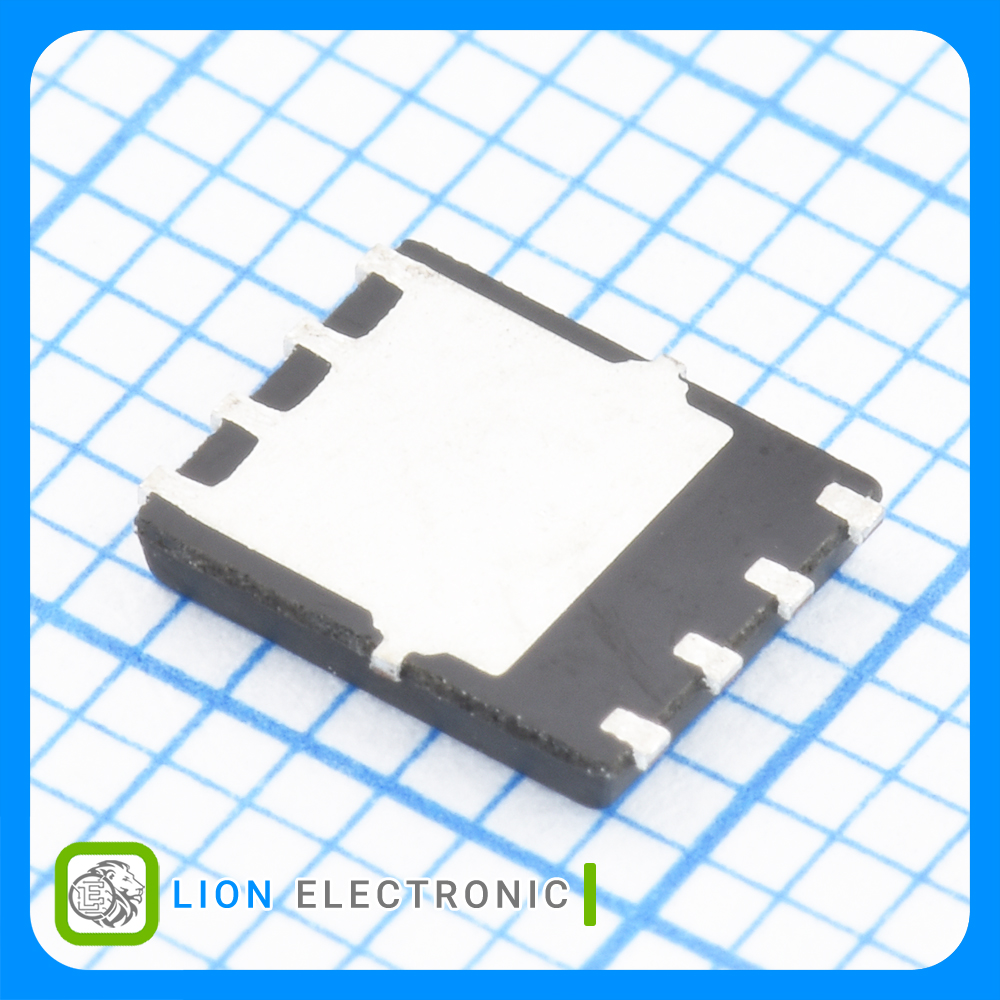

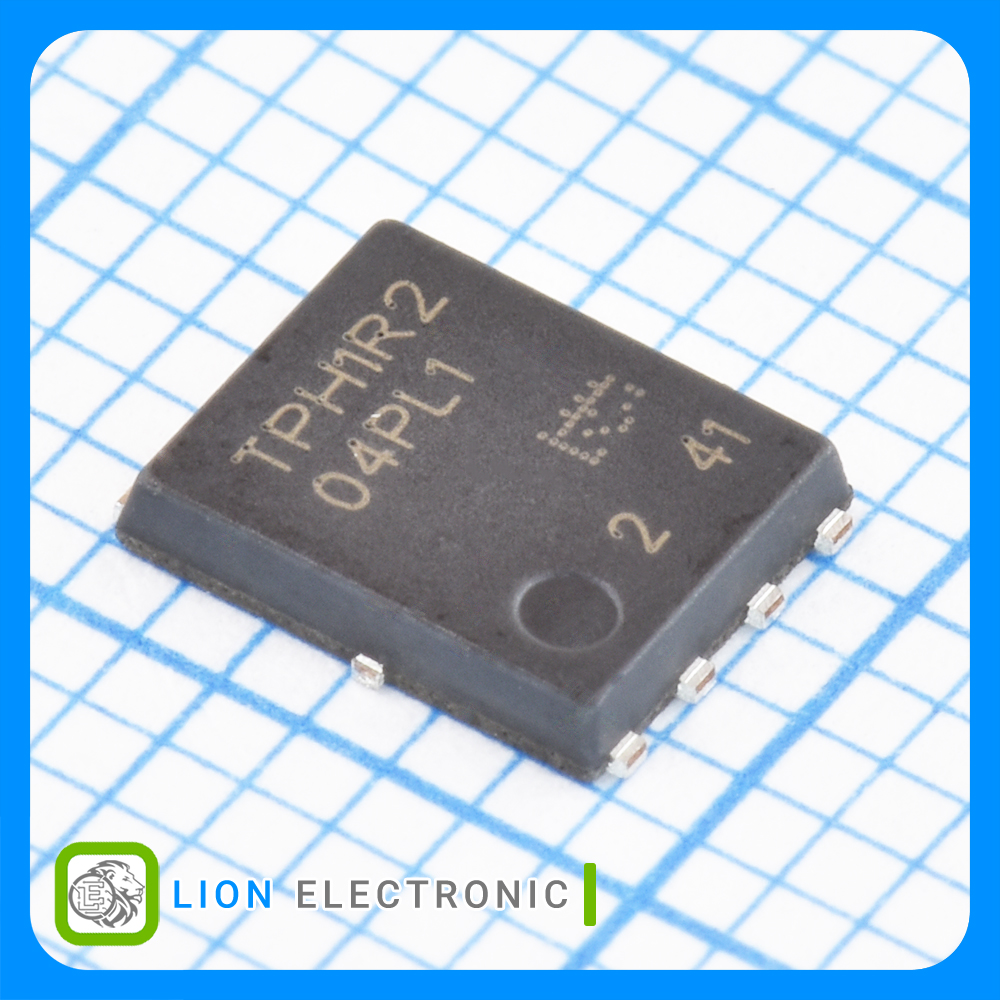

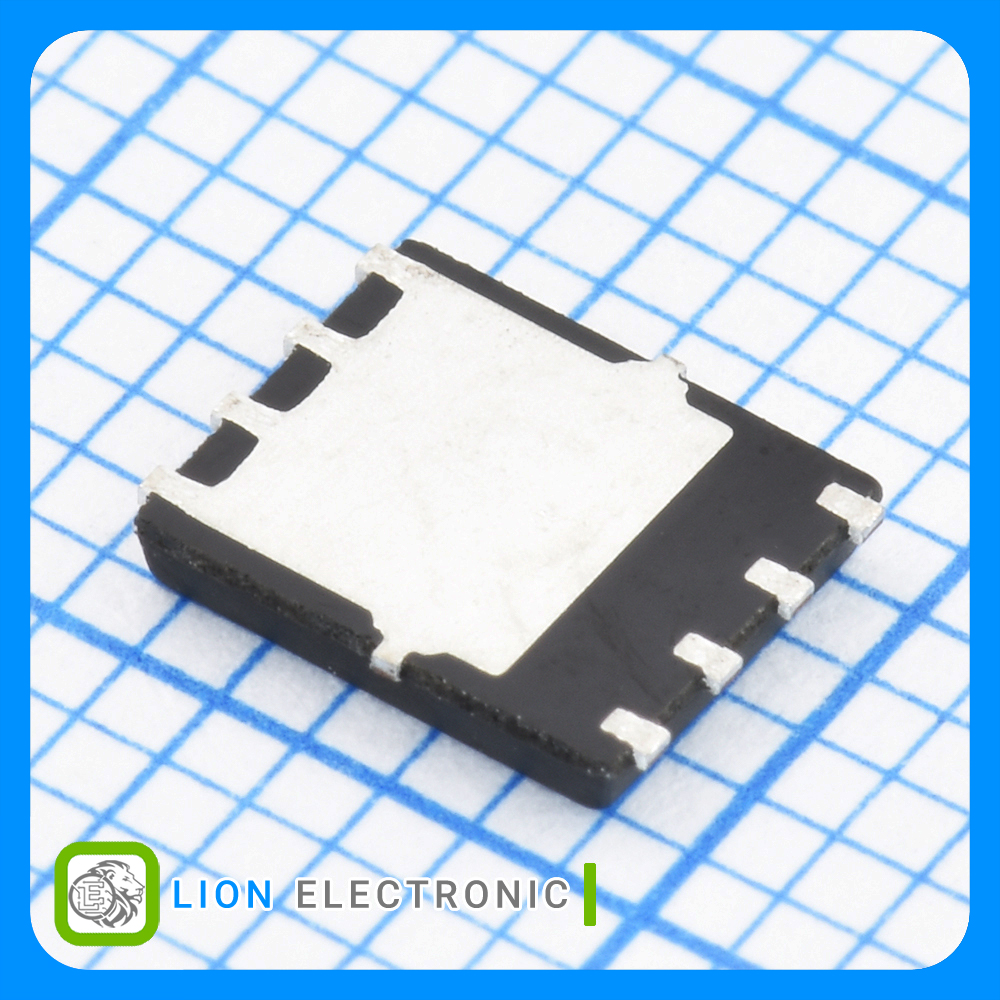

ماسفت 40 ولت 150 آمپر، جریان 270 آمپر، نوع N با پکیج SOP-8
MOSFET 40V, 150A, 270A N-Channel with SOP-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 150A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.4V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1mΩ
- Pd - Power Dissipation: 170W
- Qg - Gate Charge: 74nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPH1R204PL1,LQ
ماسفت TPH1R204PL1,LQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.4V
Vgs th - Gate - Source Threshold Voltage
74nC
Qg - Gate Charge
150A
Id - Continuous Drain Current
170W
Pd - Power Dissipation
SOP-8
Package-Case
