TOSHIBA
معرفی

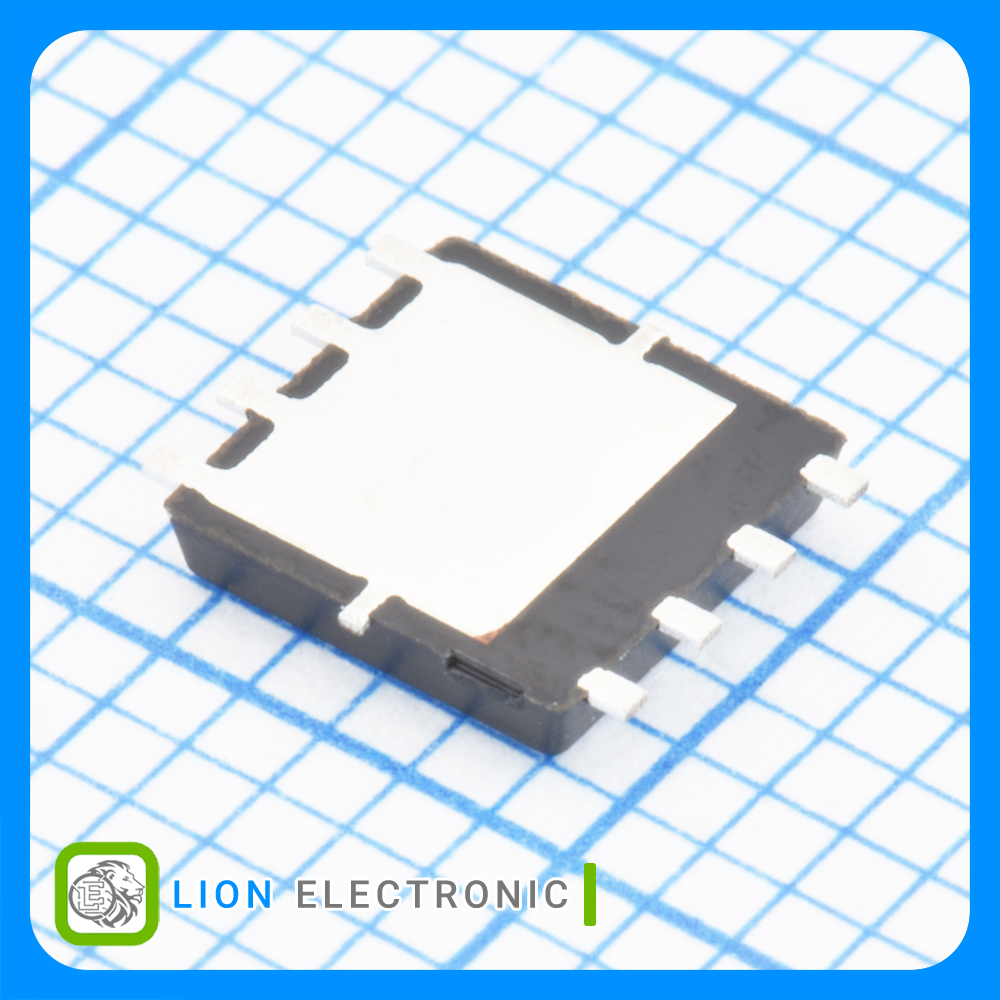

ماسفت 30 ولت 100 آمپر نوع N با پکیج SOP-8
MOSFET 30V, 100A with SOP-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.3mΩ
- Pd - Power Dissipation: 116W
- Qg - Gate Charge: 86nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPH2R003PL,LQ

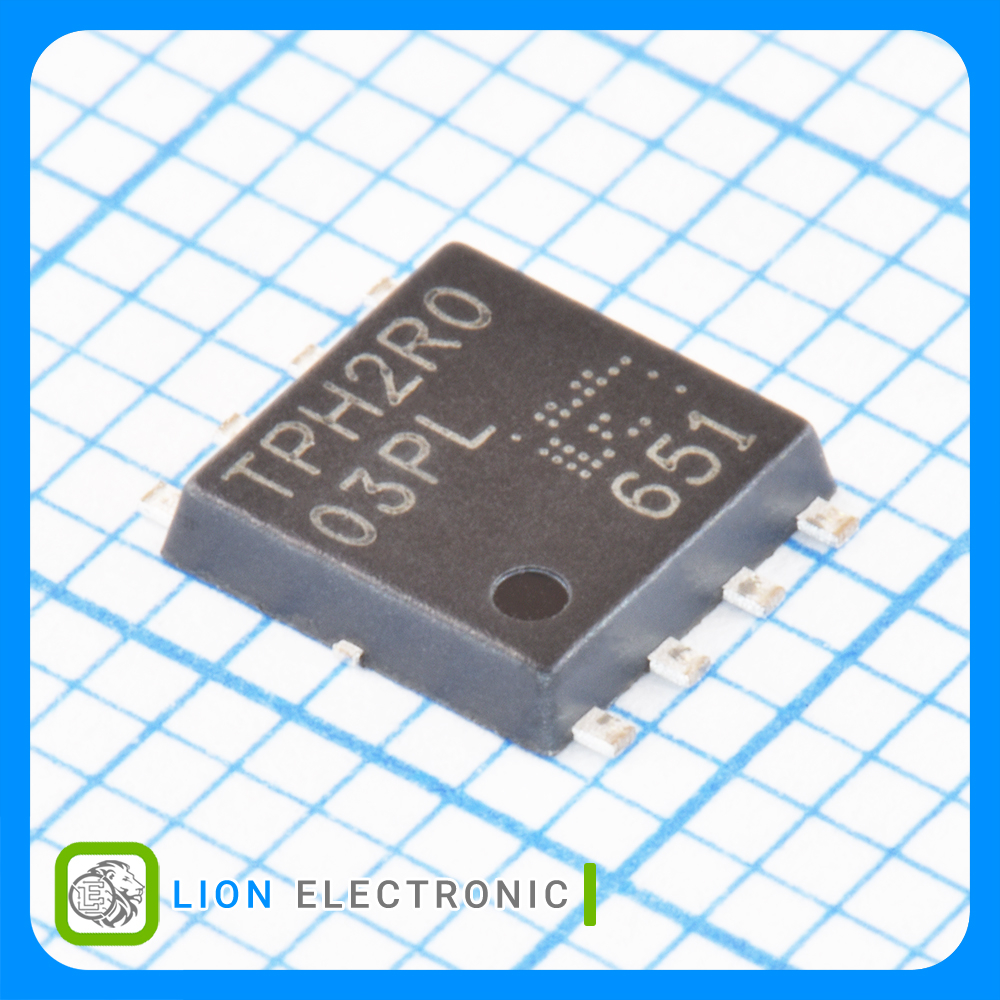

ماسفت TPH2R003PL,LQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1.3mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.1V
Vgs th - Gate - Source Threshold Voltage
86nC
Qg - Gate Charge
100A
Id - Continuous Drain Current
116W
Pd - Power Dissipation
SOP-8
Package-Case
