TOSHIBA
معرفی

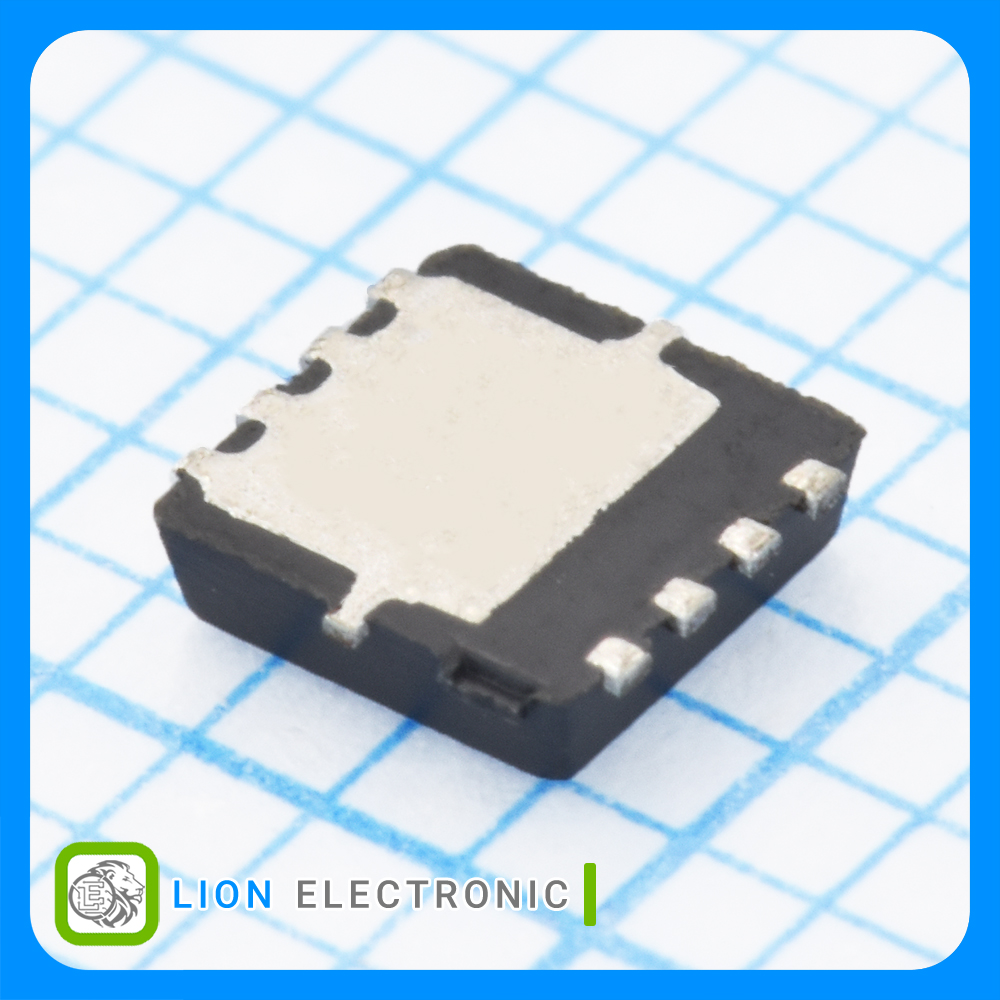

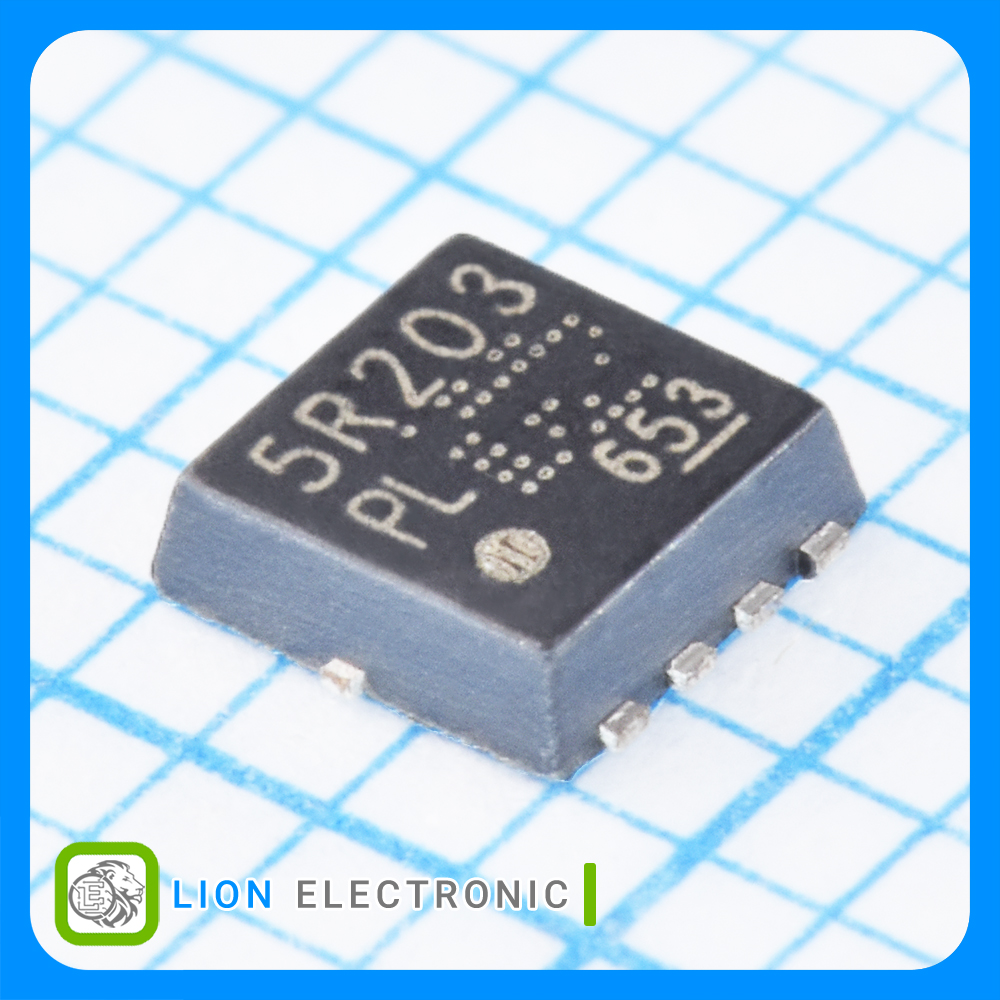

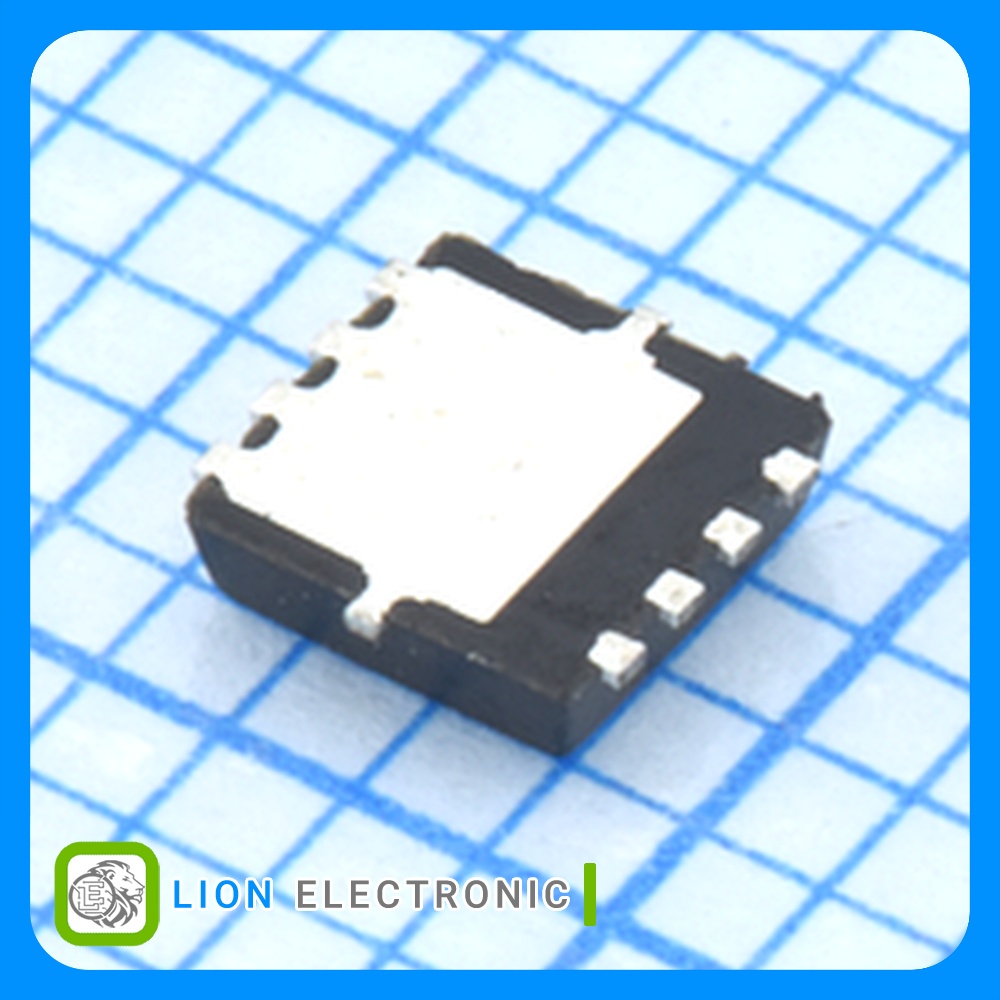

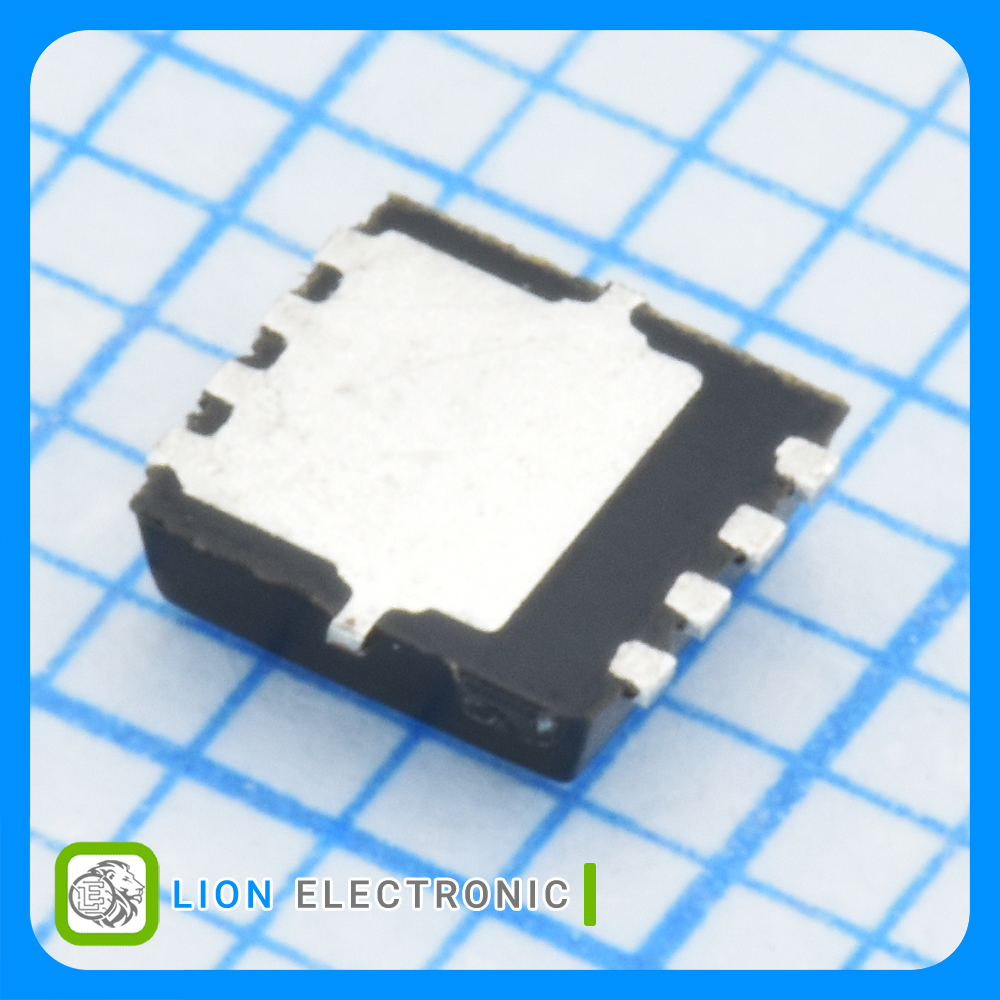

ماسفت 30 ولت 38 آمپر، جریان 76 آمپر، نوع N با پکیج TSON-8
MOSFET 30V, 38A, 76A N-Channel with TSON-8 Package
Specifications
- Package/Case: TSON-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 38A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.9mΩ
- Pd - Power Dissipation: 61W
- Qg - Gate Charge: 22nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPN5R203PL,LQ

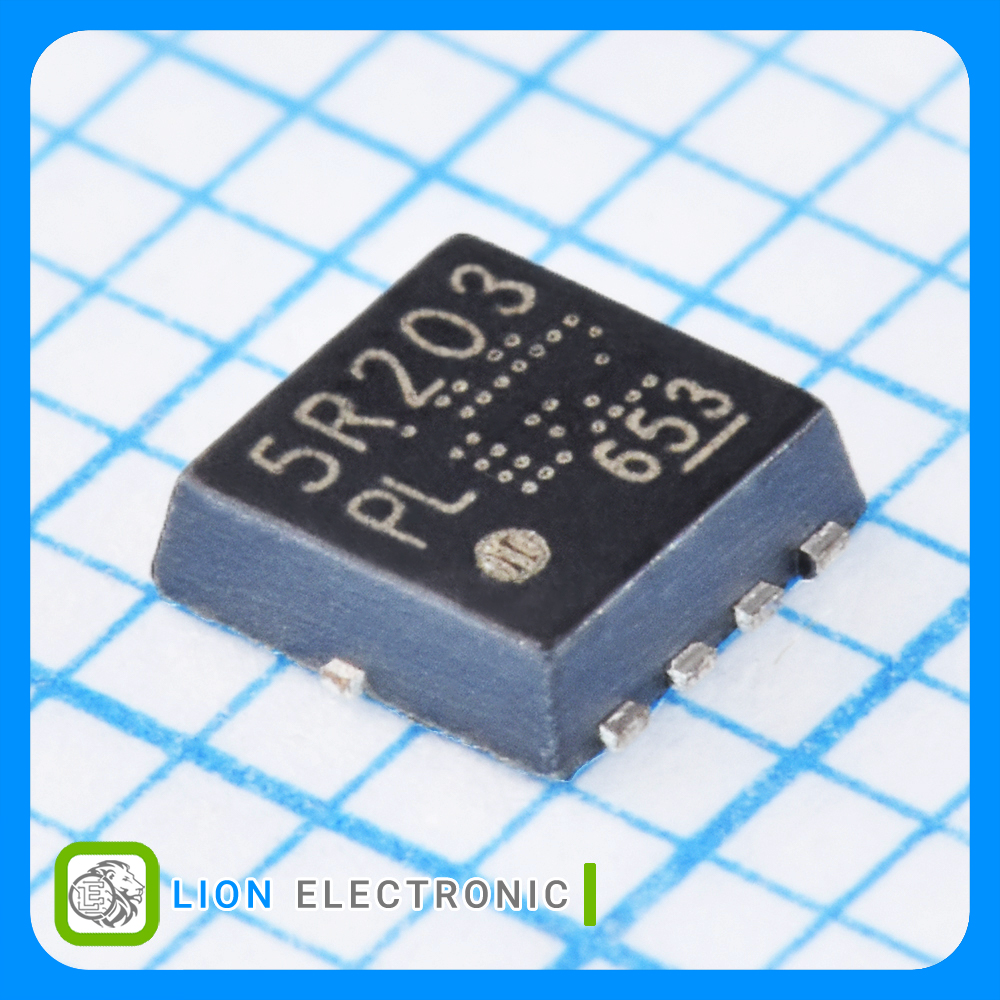

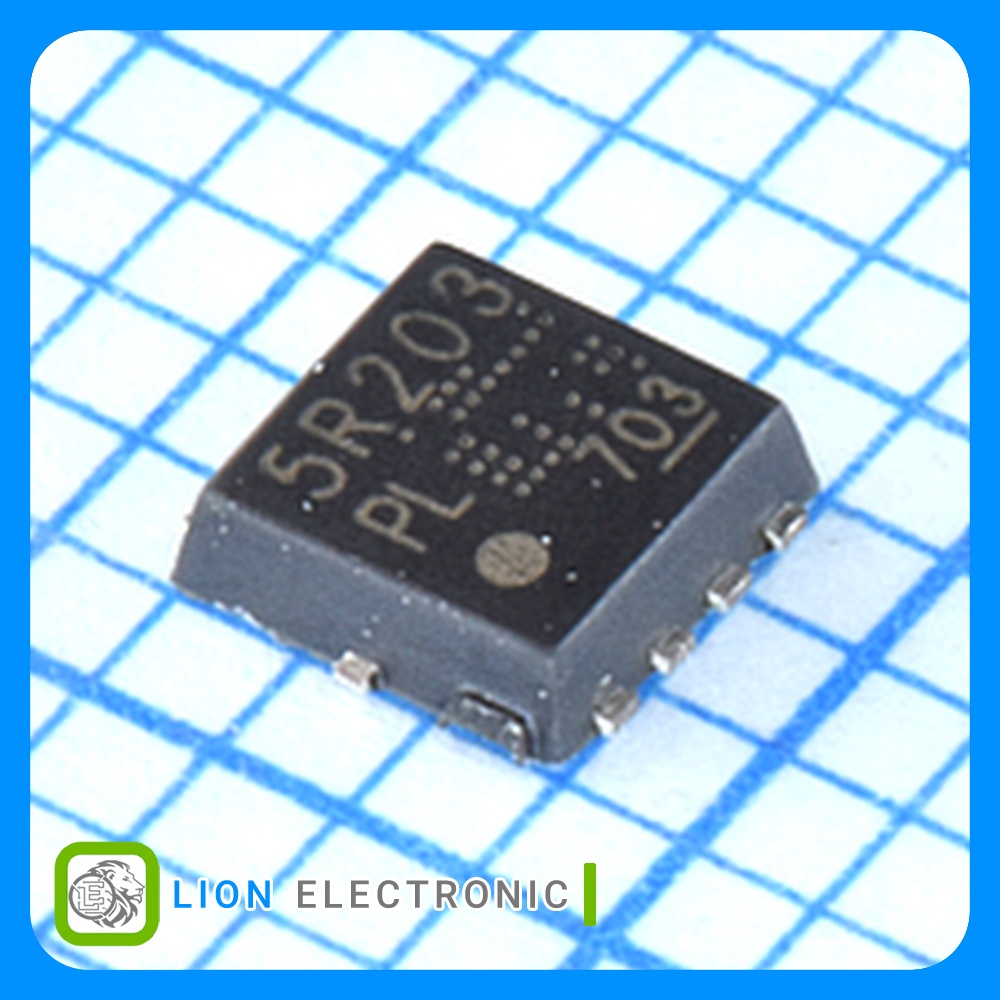

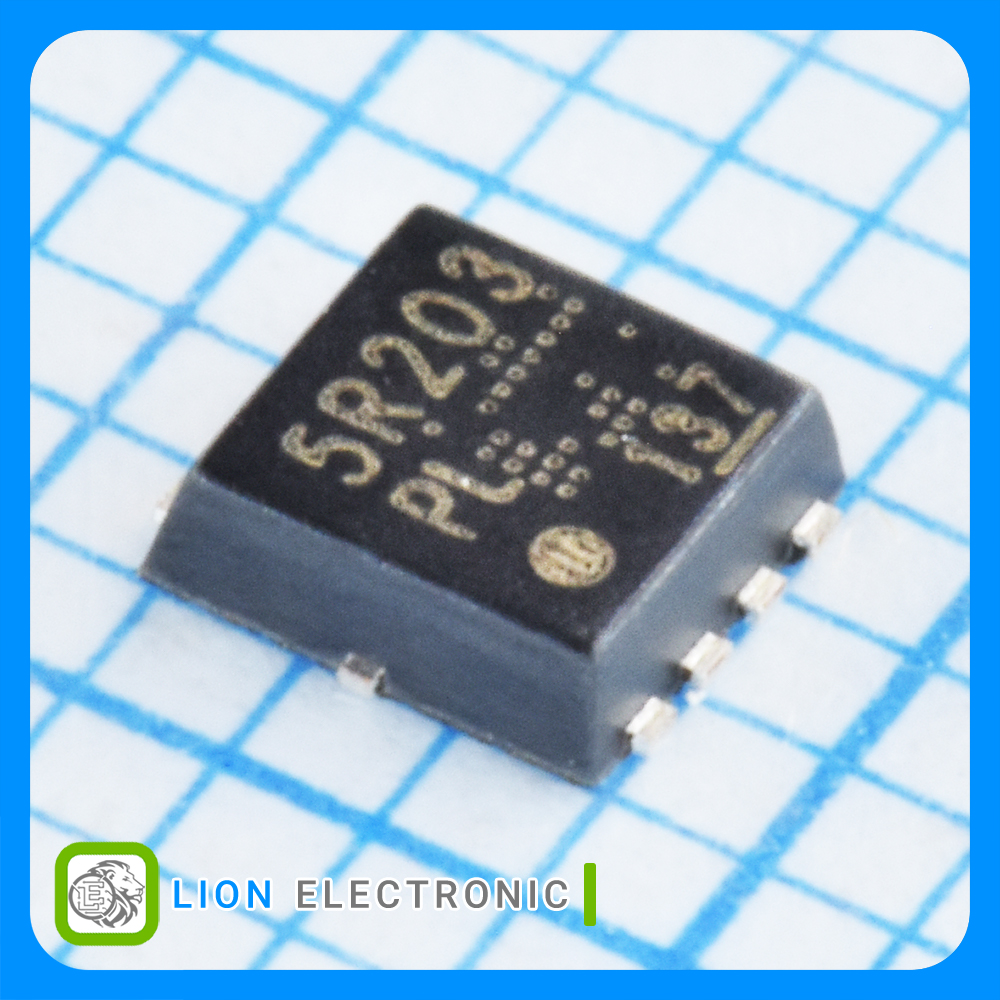

ماسفت TPN5R203PL,LQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
3.9mΩ
Rds On - Drain - Source Resistance
1.1V
Vgs th - Gate - Source Threshold Voltage
22nC
Qg - Gate Charge
61W
Pd - Power Dissipation
38A
Id - Continuous Drain Current
TSON-8
Package-Case
