TOSHIBA
معرفی

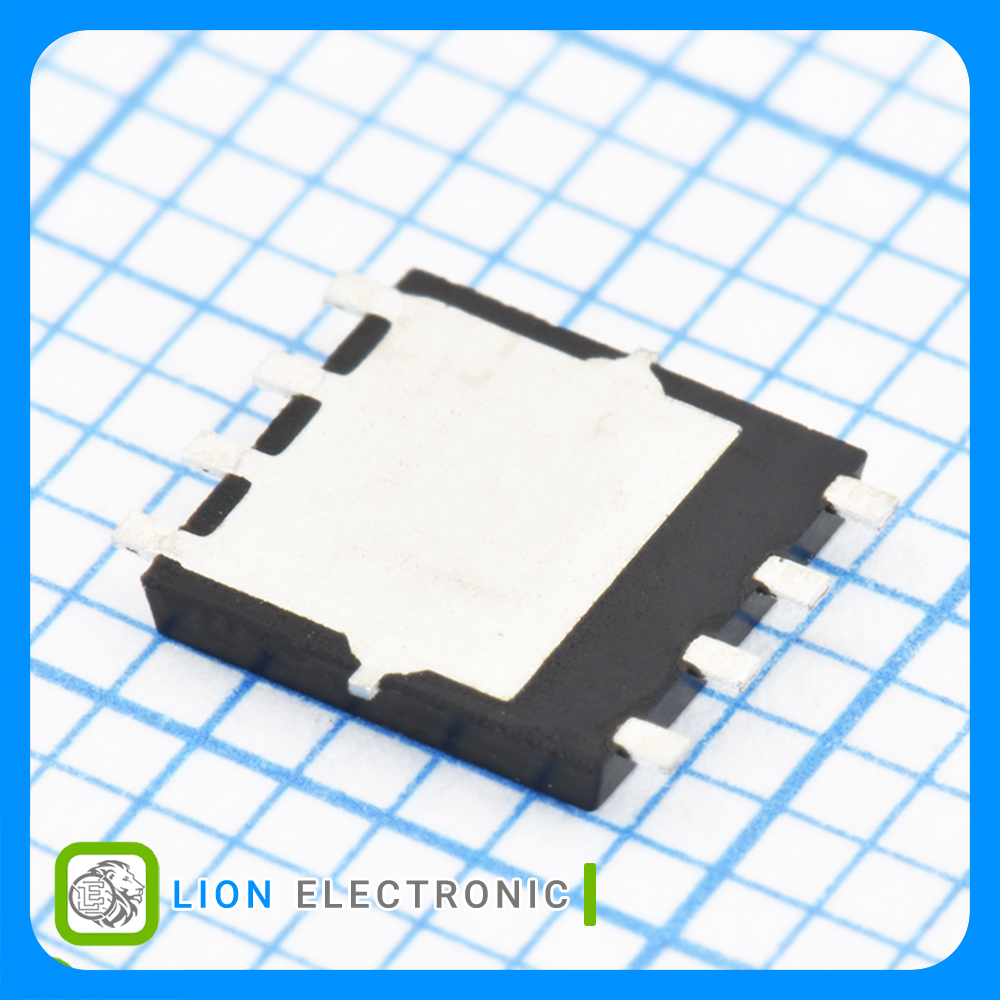

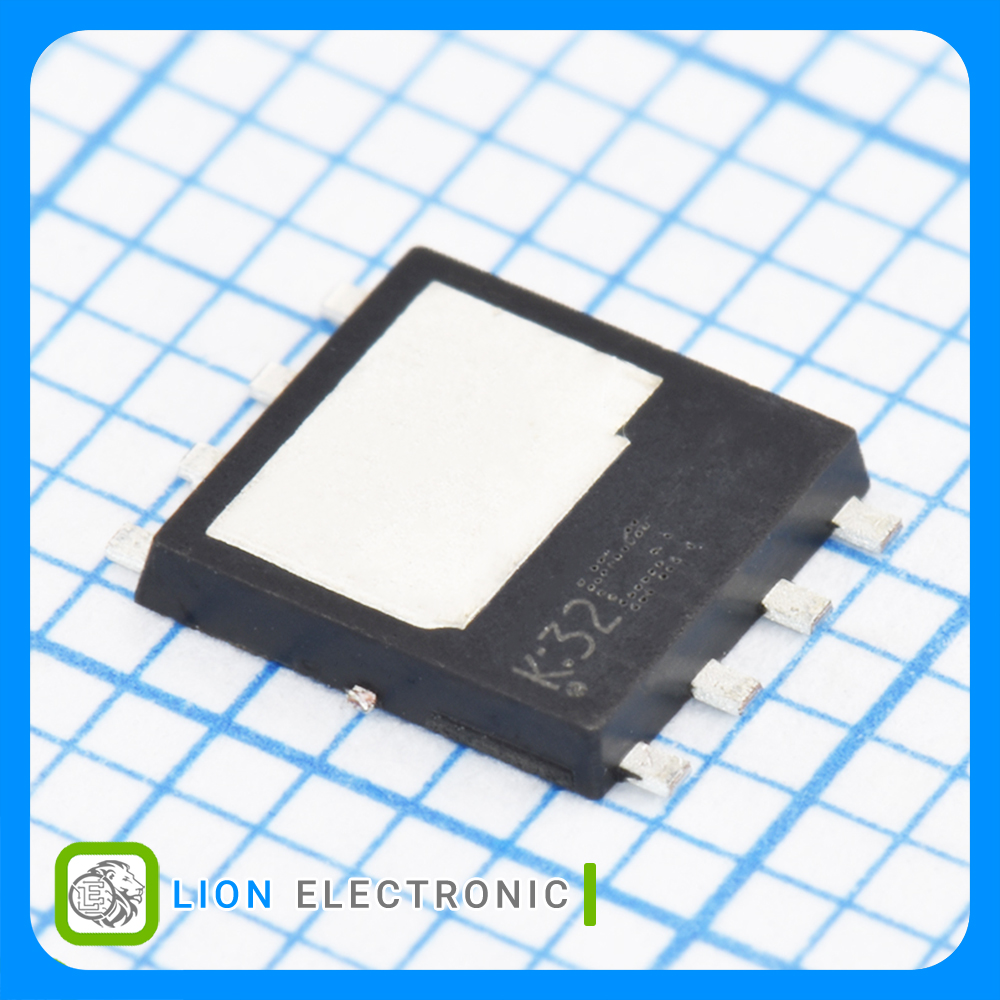

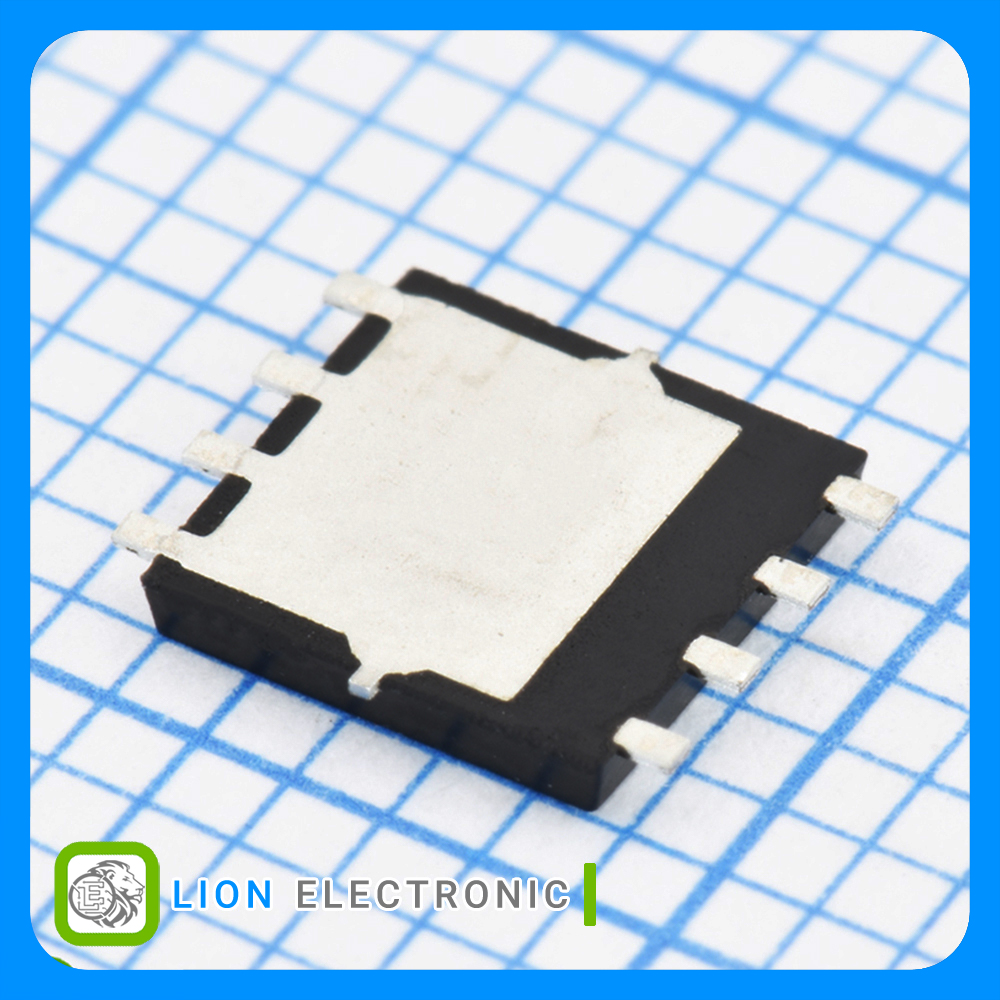

ماسفت 30 ولت 150 آمپر نوع N با پکیج DSOP-8
N-CH MOSFET 30V, 150A with DSOP-8 Package
Specifications
- Package/Case: DSOP-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 150A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 360uΩ
- Pd - Power Dissipation: 170W
- Qg - Gate Charge: 110nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPWR6003PL,L1Q
ماسفت TPWR6003PL,L1Q
Part Number
360uΩ
Rds On - Drain - Source Resistance
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
1.1V
Vgs th - Gate - Source Threshold Voltage
DSOP-8
Package-Case
110nC
Qg - Gate Charge
150A
Id - Continuous Drain Current
170W
Pd - Power Dissipation
