TA-I Tech
معرفی
مقاومت شنت 1mΩ 3 وات تلرانس 1% سایز 2512

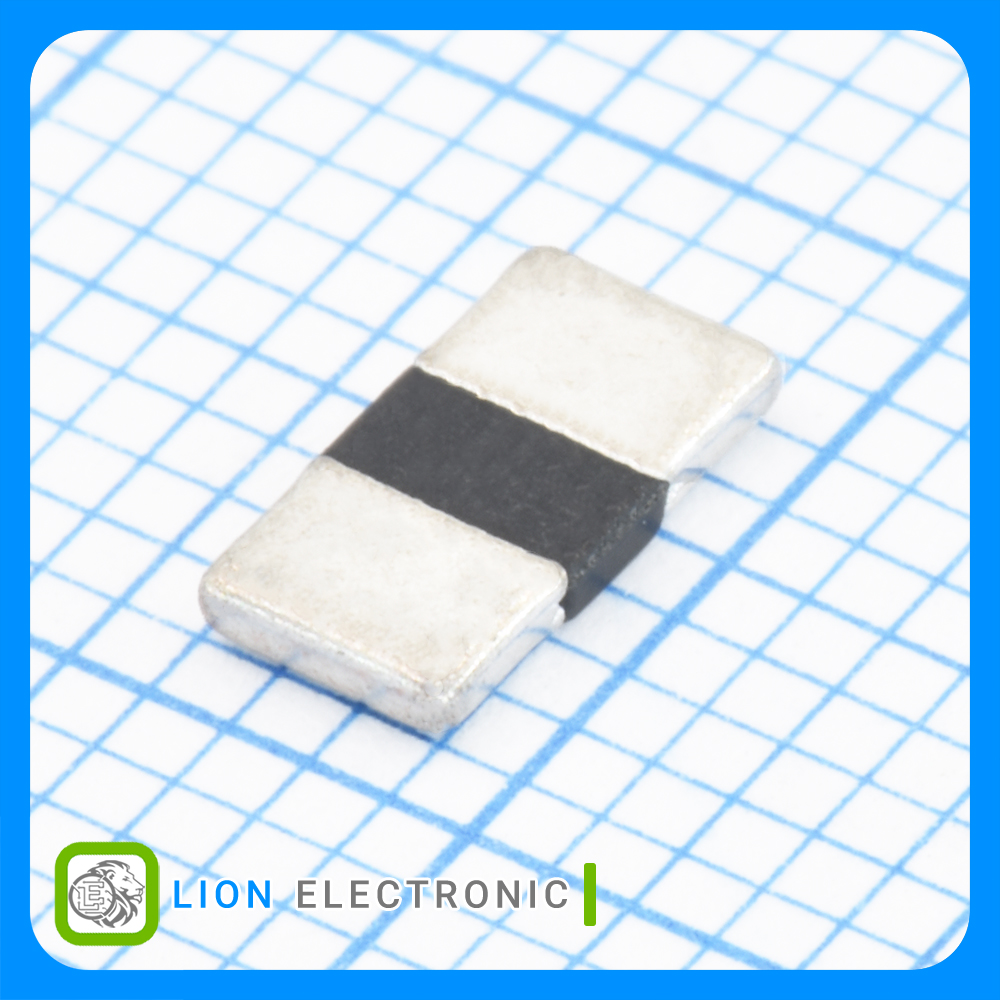

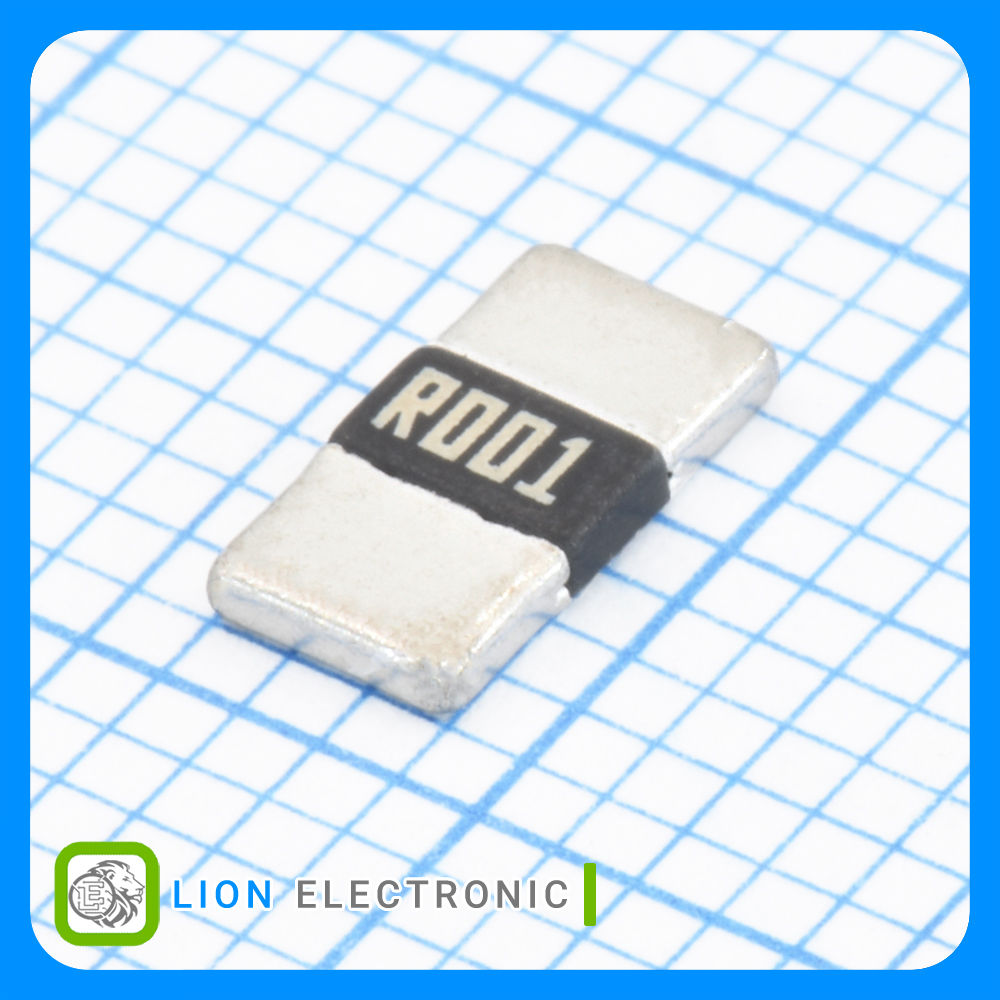

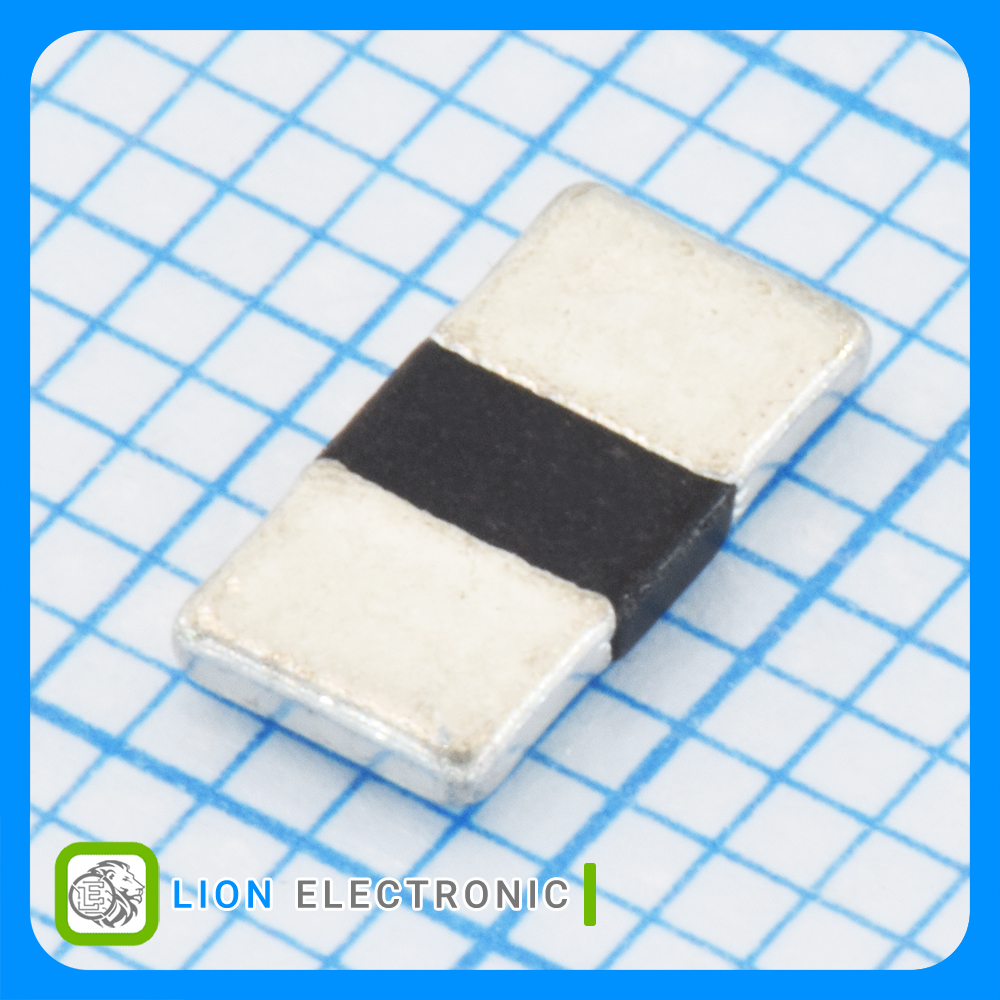

Current Sense Shunt Resistor 1mΩ, 3W with 2512 Size
Specifications
- Case Code - in: 2512
- Resistance: 1mΩ
- Power Rating: 3W
- Tolerance: 1%
- Temperature Coefficient: 50PPM/C
- Termination style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +170C
- Packaging: Reel
مشخصات مقاومت شنت RLP25FEGR001

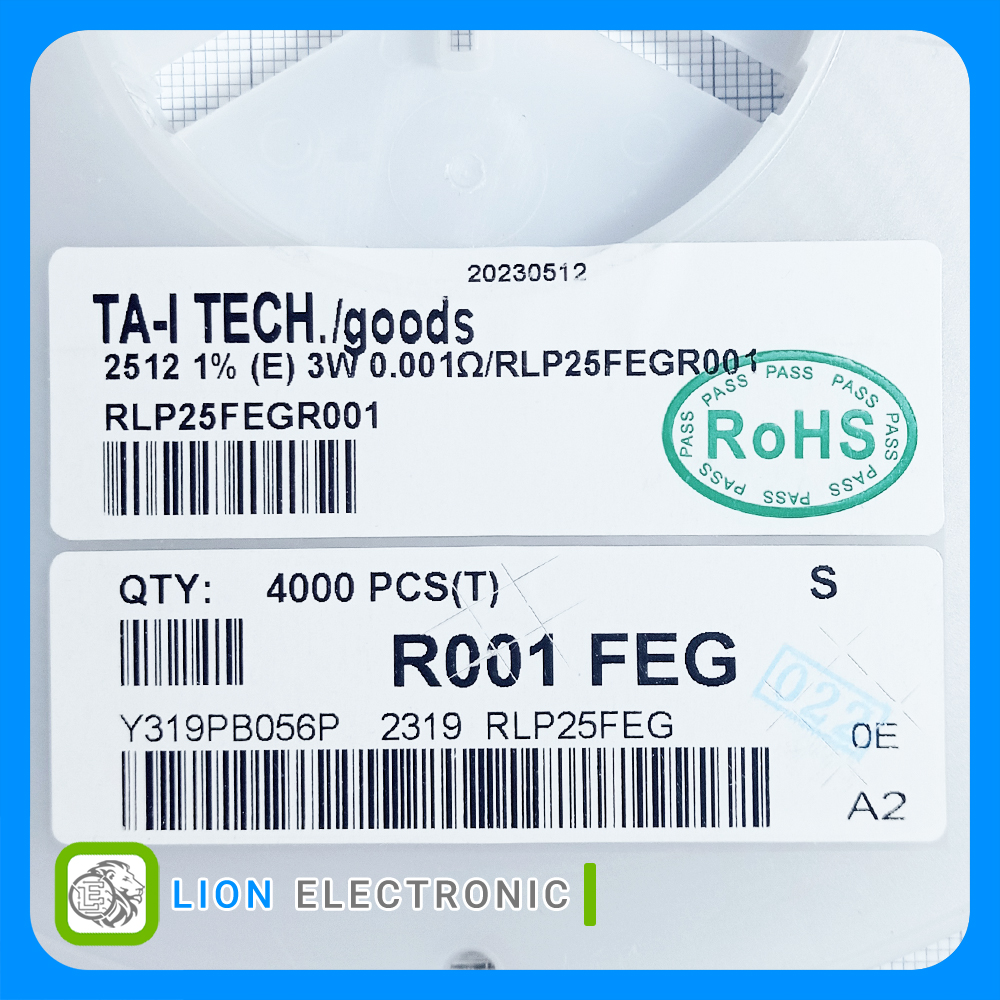

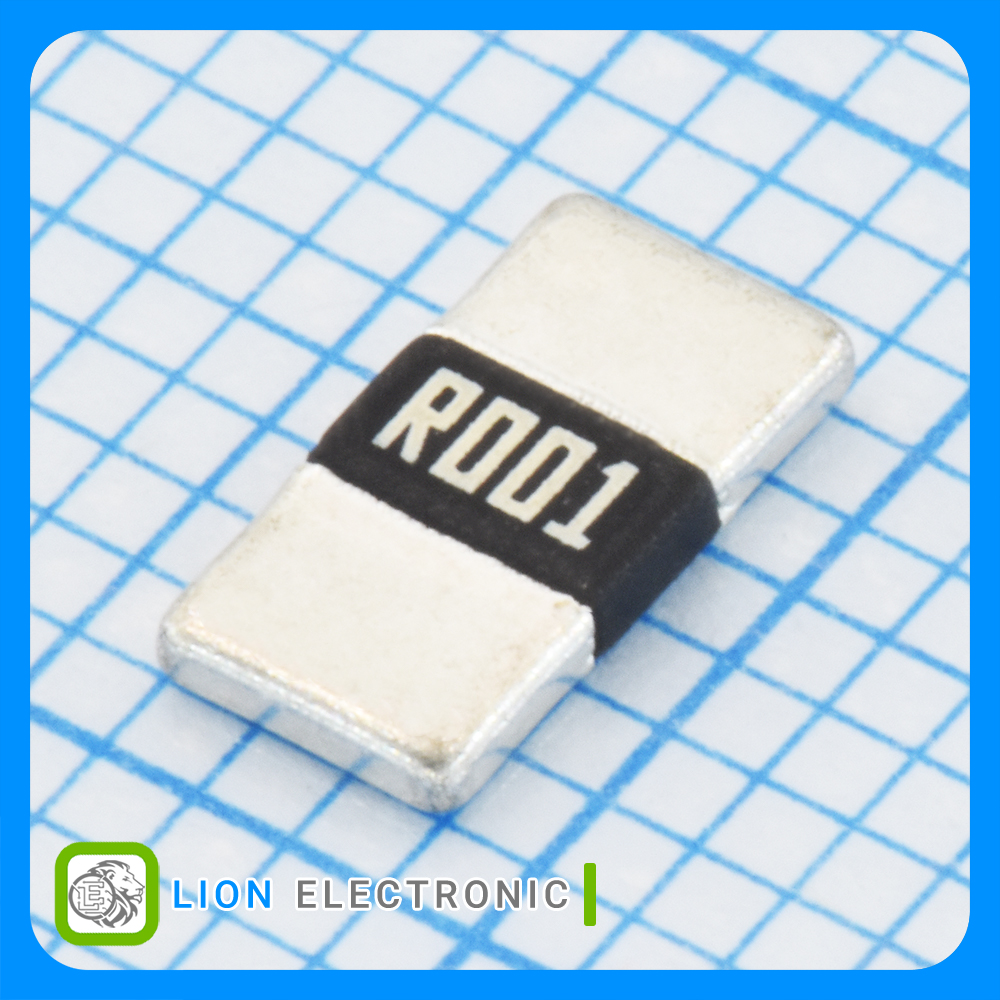

مقاومت شنت RLP25FEGR001
Part Number
-55C
Minimum Operating Temperature
1mΩ
Resistance
Reel
Packaging
SMD/SMT
Termination style
1%
Tolerance
2512
Case Code - in
50PPM/C
Temperature Coefficient
3W
Power Rating
+170C
Maximum Operating Temperature
