سوئیچ لمسی 6 میلیمتر×6 میلیمتر×4.3 میلیمتر، 12 ولت 50 میلیآمپر، SPST، با نیروی 250 گرم

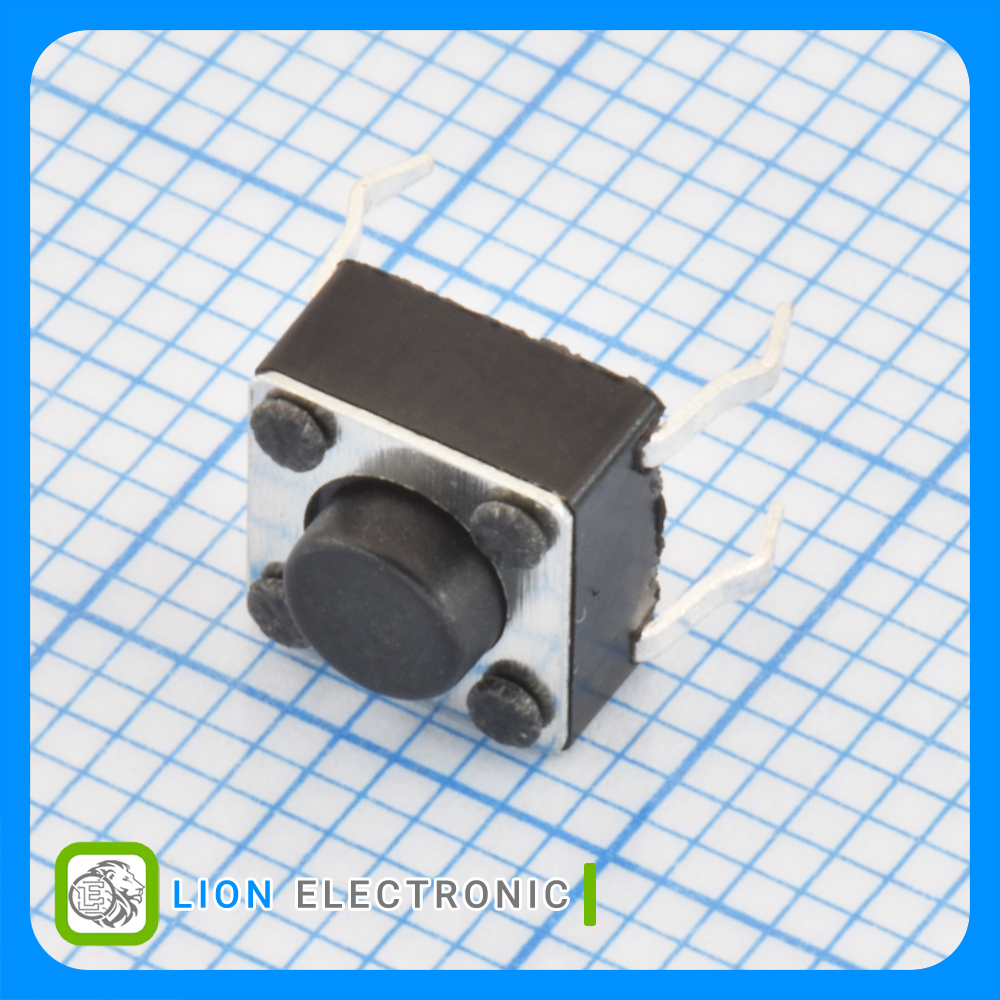

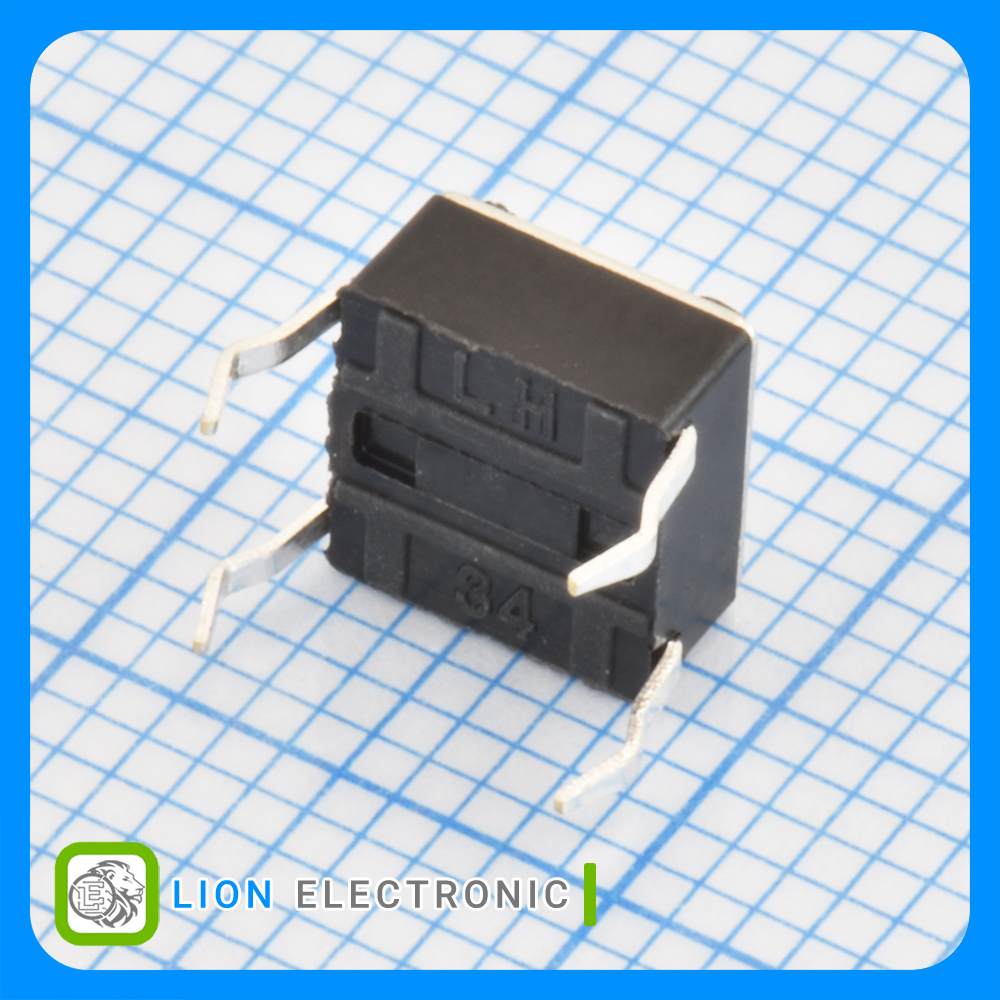

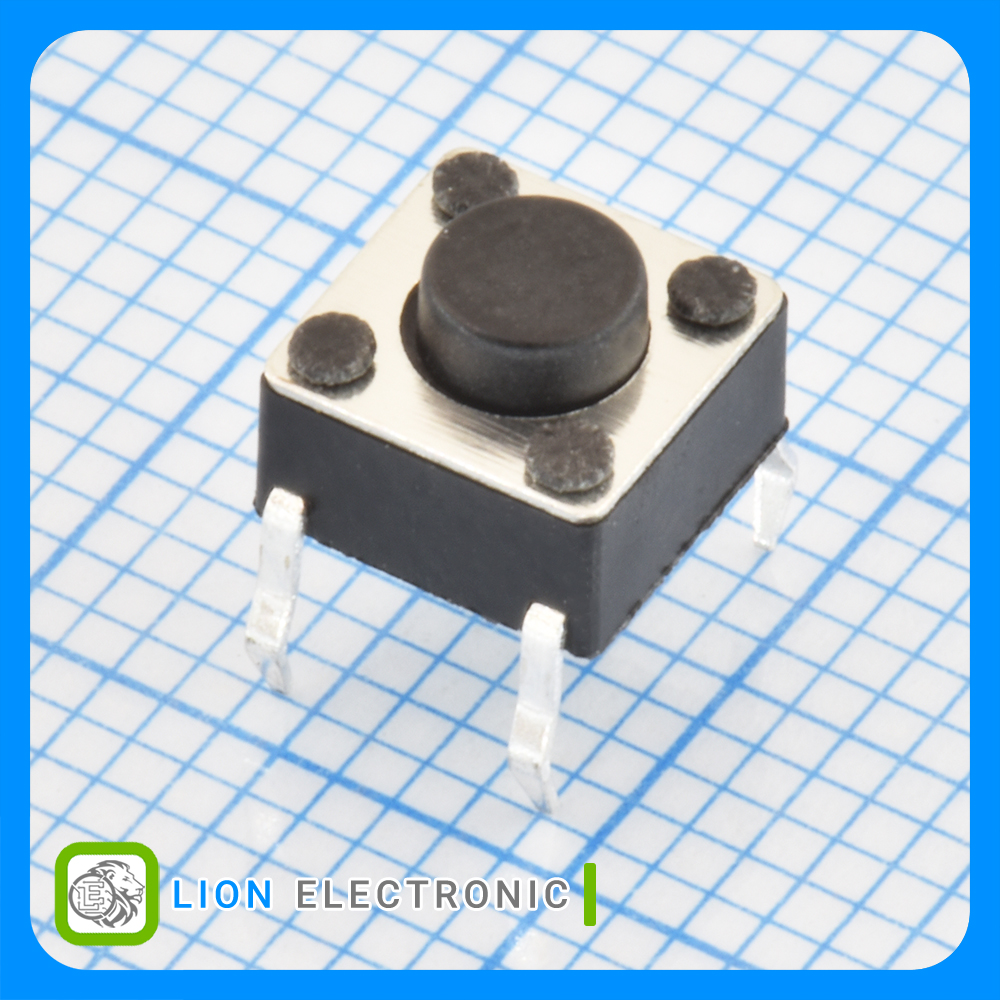

Tactile Switch 6x6x4.3mm, SPST NO, 12V 50mA, with 250g Operating Force
Specifications
- Operating Force: 250g
- Life: 100000 Cycle
- Color: Black
- Voltage Rating DC: 12VDC
- Current Rating: 50mA
- Length: 6mm
- Width: 6mm
- Height: 4.3mm
- Mounting Direction: Straight
- Termination style: Solder Pin
- Mounting Style: Through Hole
- Packaging: Bag
مشخصات تک سوئیچ TS6643CJ
تک سوئیچ TS6643CJ
Part Number
Bag
Packaging
Straight
Mounting Direction
Black
Color
50mA
Current Rating
Solder Pin
Termination style
12VDC
Voltage Rating DC
Through Hole
Mounting Style
6mm
Length
250g
Operating Force
100000 Cycle
Life
6mm
Width
4.3mm
Height
