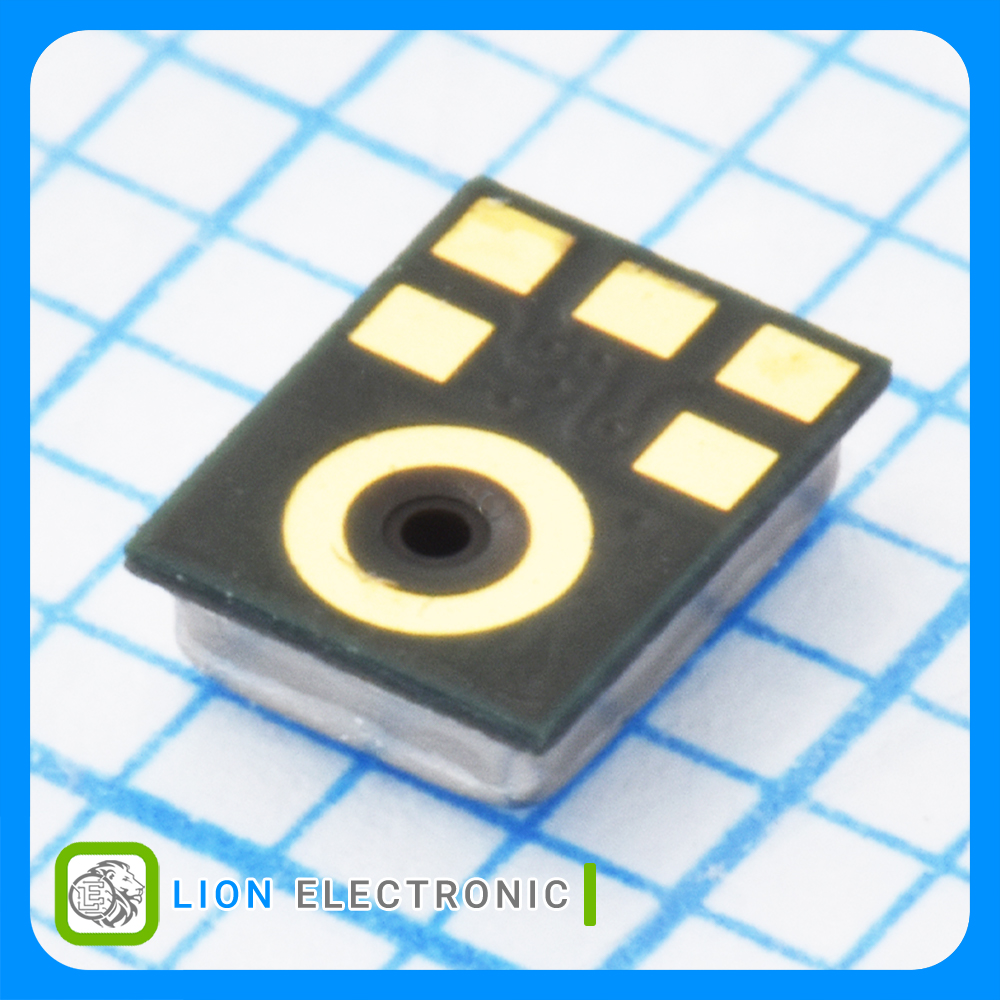

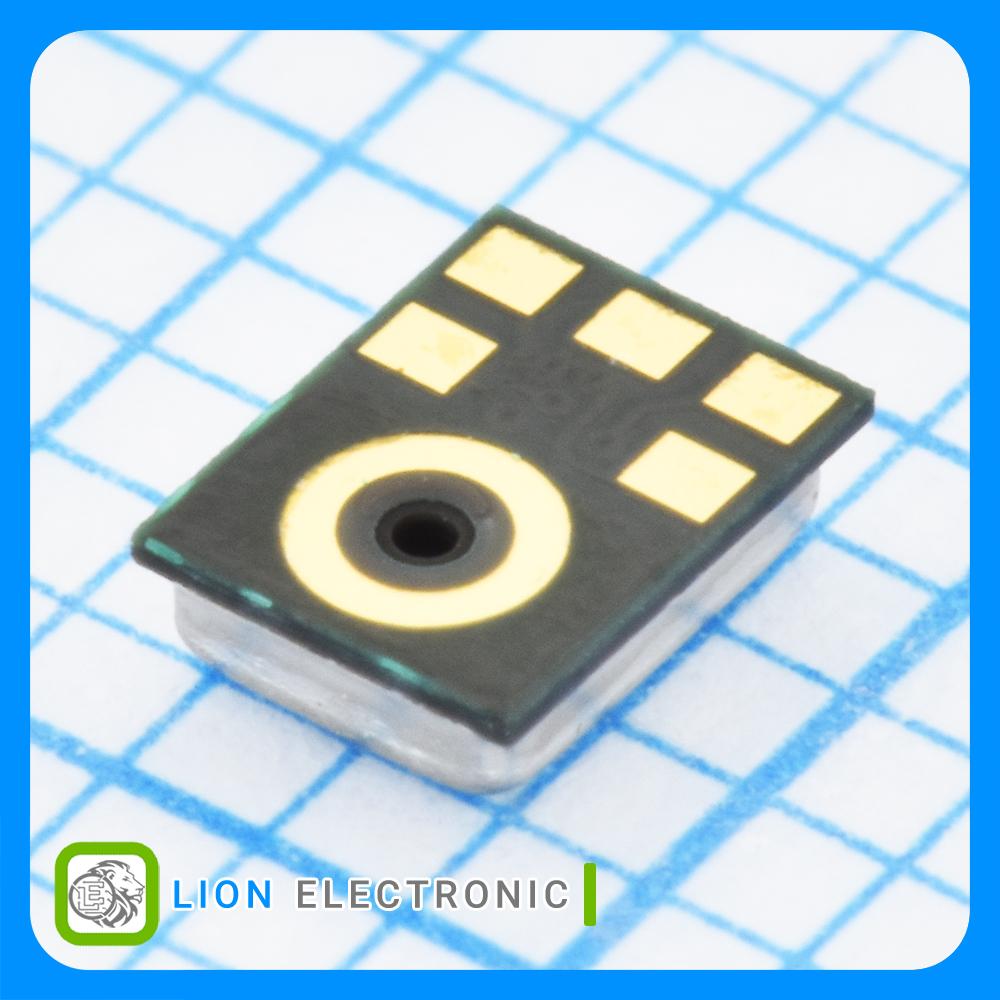

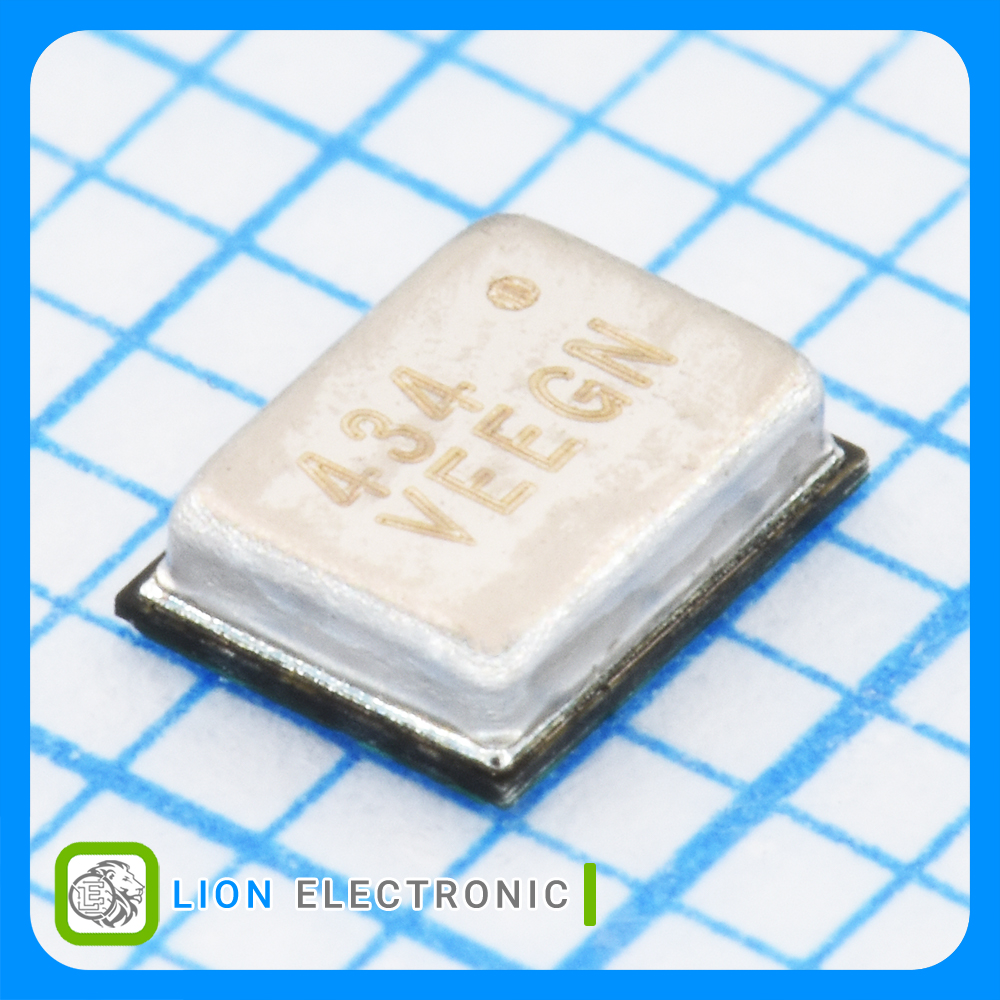

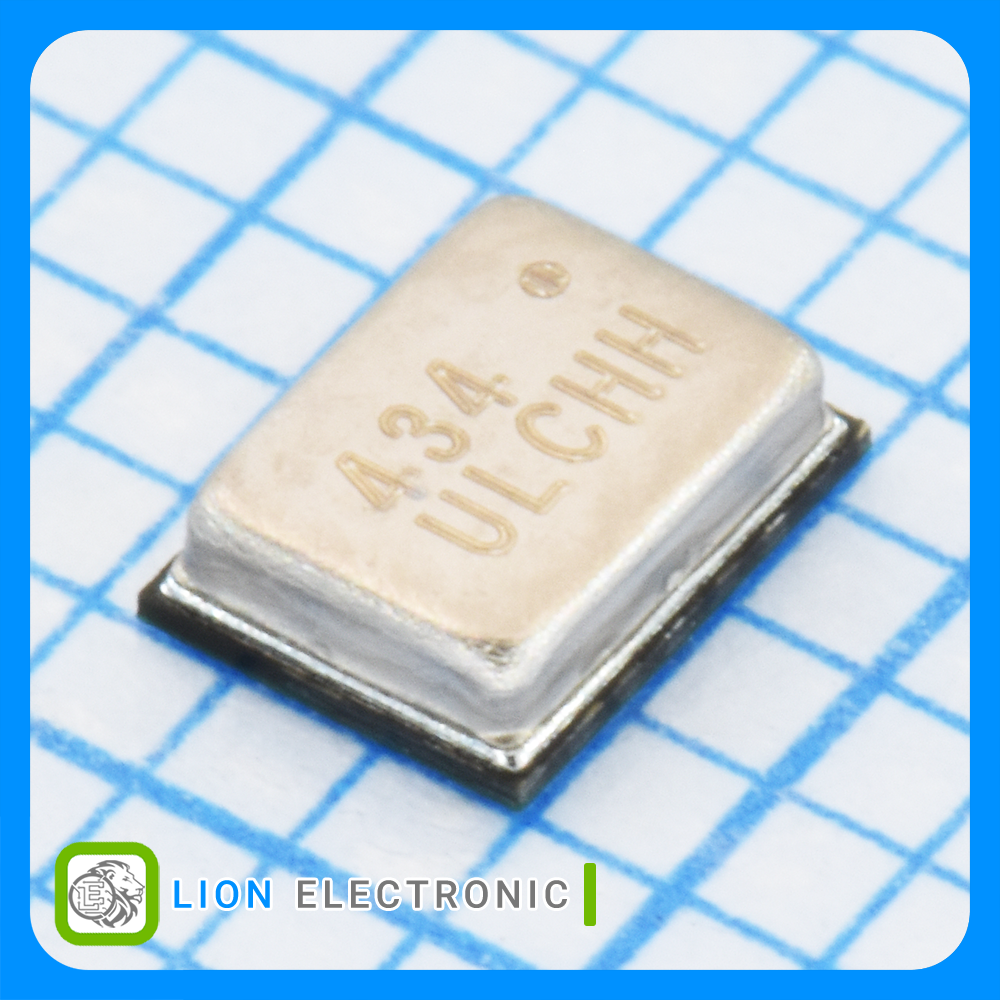

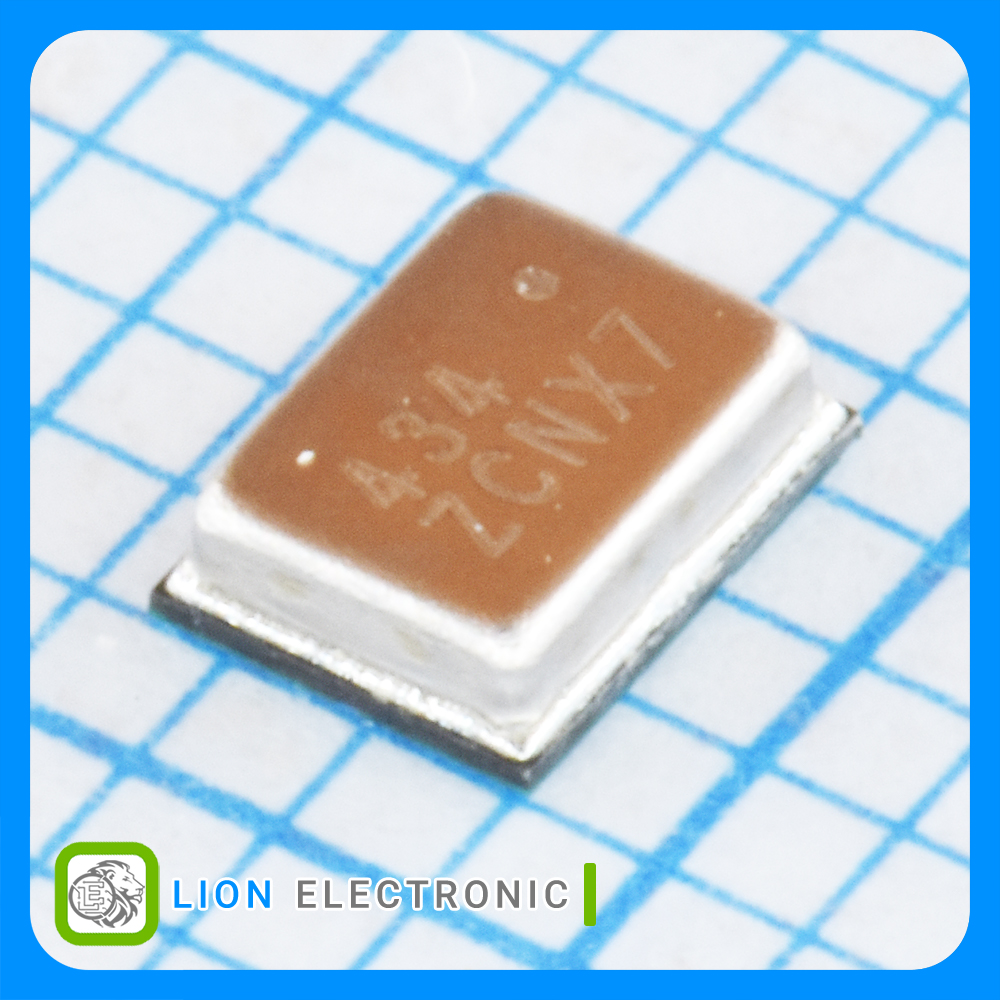

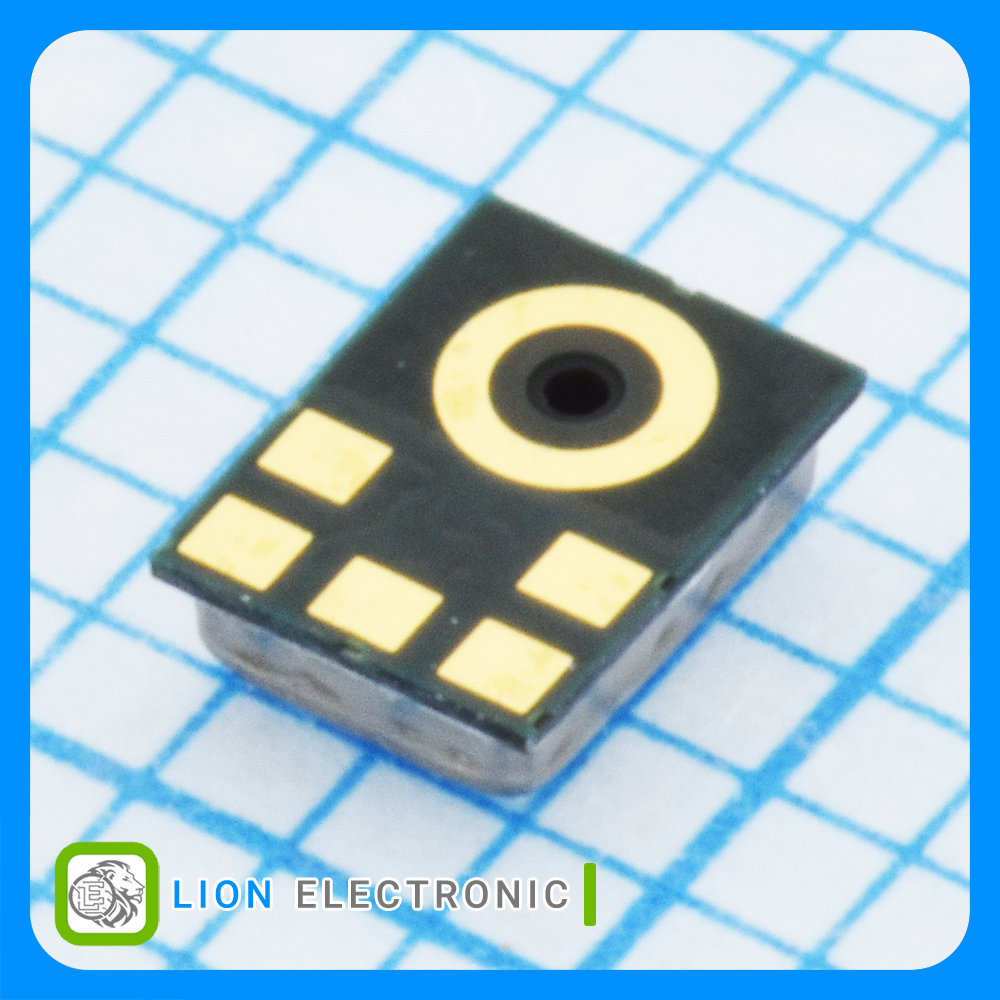

ICS-43434
ICS-43434
Part Number
4178
Lion Part
Datasheet
TDK Manufacture
میکروفن MEMS چندحالته با خروجی دیجیتال I2S پورت پایین، SNR 64dB و حساسیت -26dB و بازه فرکانسی 60 هرتز تا 20 کیلوهرتز
Multi-Mode MEMS Microphone I2S Digital Output, Bottom Port, 64dB SNR, -26dB Sensitivity, 60Hz - 20kHz Frequency Range
معرفی
میکروفن MEMS چندحالته با خروجی دیجیتال I2S پورت پایین، SNR 64dB و حساسیت -26dB و بازه فرکانسی 60 هرتز تا 20 کیلوهرتز
Multi-Mode MEMS Microphone I2S Digital Output, Bottom Port, 64dB SNR, -26dB Sensitivity, 60Hz - 20kHz Frequency Range
Specifications
- Type: Multi-Mode Microphone
- Port Type: Bottom
- Frequency Range: 60Hz - 20kHz
- Output Type: Digital
- SNR - Signal to Noise Ratio: 64dB
- Sensitivity: -26dB
- Operating Supply Voltage: 1.8V
- Supply Voltage - Min: 1.65V
- Supply Voltage - Max: 3.63V
- Operating Supply Current: 490uA
- Tolerance: 1dB
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +80C
- Packaging: Reel
مشخصات میکروفون(MEMS) ICS-43434
میکروفون(MEMS) ICS-43434
Part Number
Bottom
Port Type
Reel
Packaging
-40C
Minimum Operating Temperature
60Hz - 20kHz
Frequency Range
64dB
SNR - Signal to Noise Ratio
SMD/SMT
Mounting Style
+80C
Maximum Operating Temperature
-26dB
Sensitivity
Digital
Output Type
3.63V
Supply Voltage - Max
1.65V
Supply Voltage - Min
N/A
Impedance
1dB
Tolerance
1.8V
Operating Supply Voltage
490uA
Operating Supply Current
Multi-Mode Microphone
Type
