CSD19533Q5A
CSD19533Q5A
Part Number
4187
Lion Part
Datasheet
Texas Instruments Manufacture
ماسفت 100 ولت 100 آمپر نوع N با پکیج VSONP-8
N-CH MOSFET 100V, 100A with VSONP-8 Package
معرفی
ماسفت 100 ولت 100 آمپر نوع N با پکیج VSONP-8
N-CH MOSFET 100V, 100A with VSONP-8 Package
Specifications
- Package/Case: VSONP-8
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 7.8mΩ
- Pd - Power Dissipation: 96W
- Qg - Gate Charge: 27nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت CSD19533Q5A

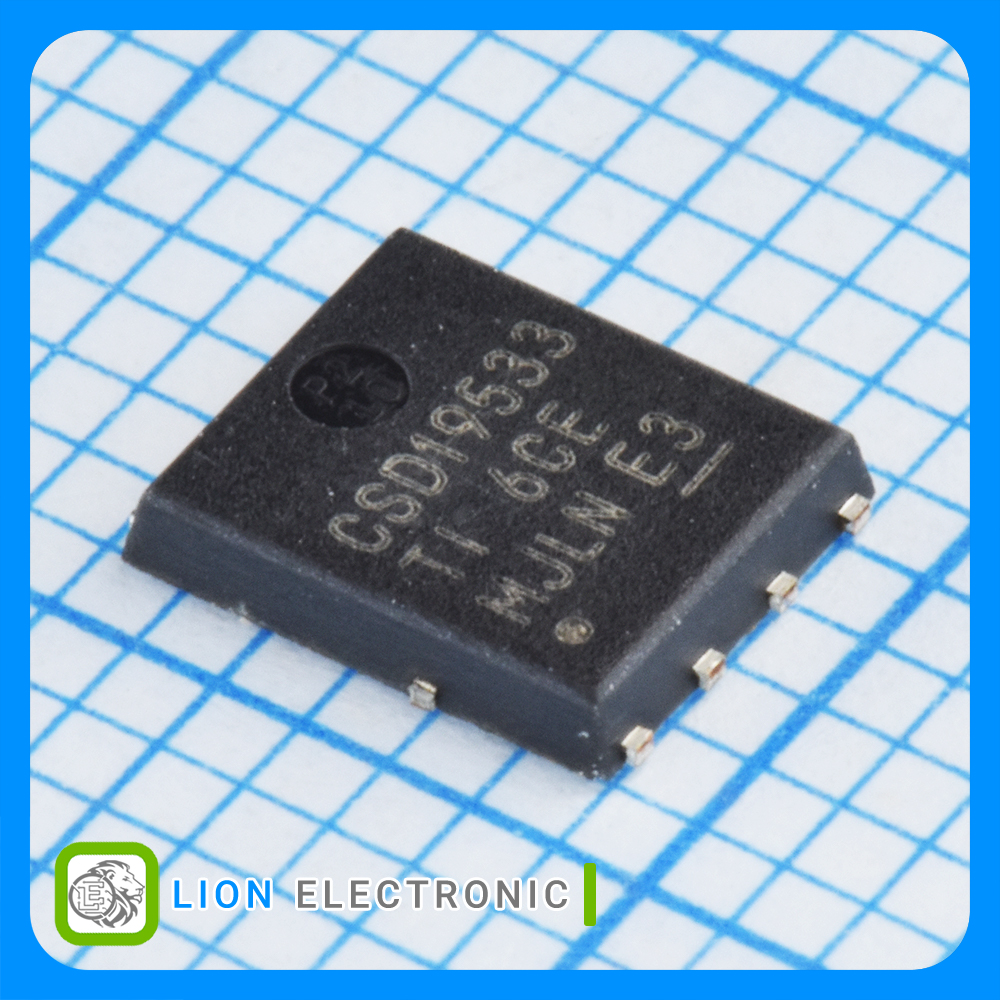

ماسفت CSD19533Q5A
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
2.2V
Vgs th - Gate - Source Threshold Voltage
7.8mΩ
Rds On - Drain - Source Resistance
27nC
Qg - Gate Charge
96W
Pd - Power Dissipation
100A
Id - Continuous Drain Current
VSONP-8
Package-Case
