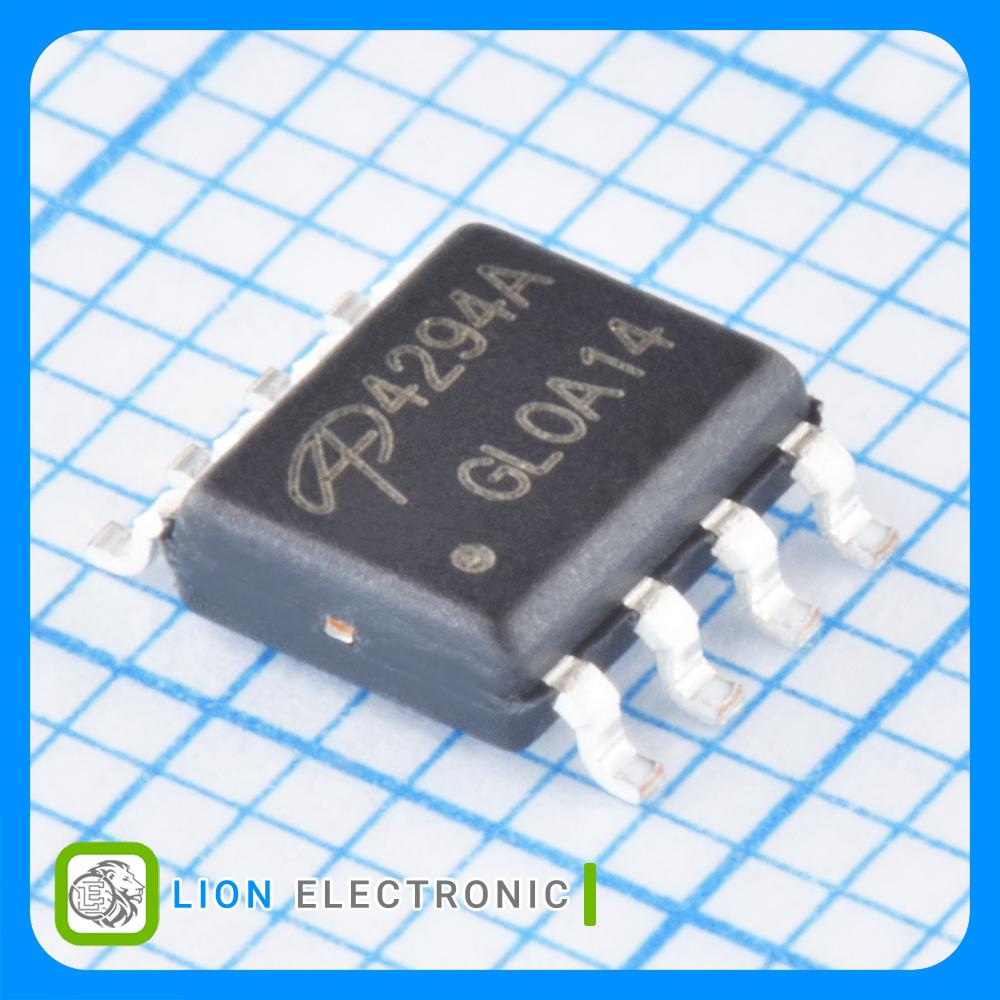

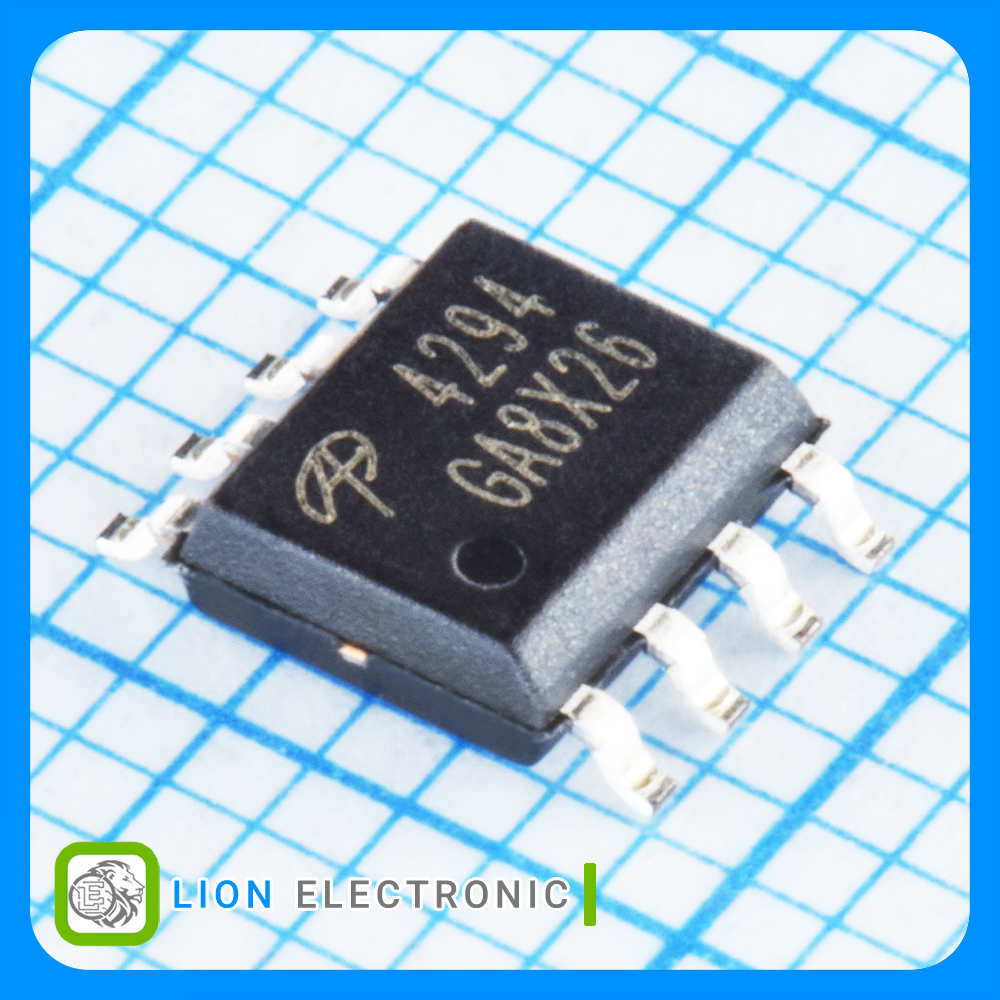

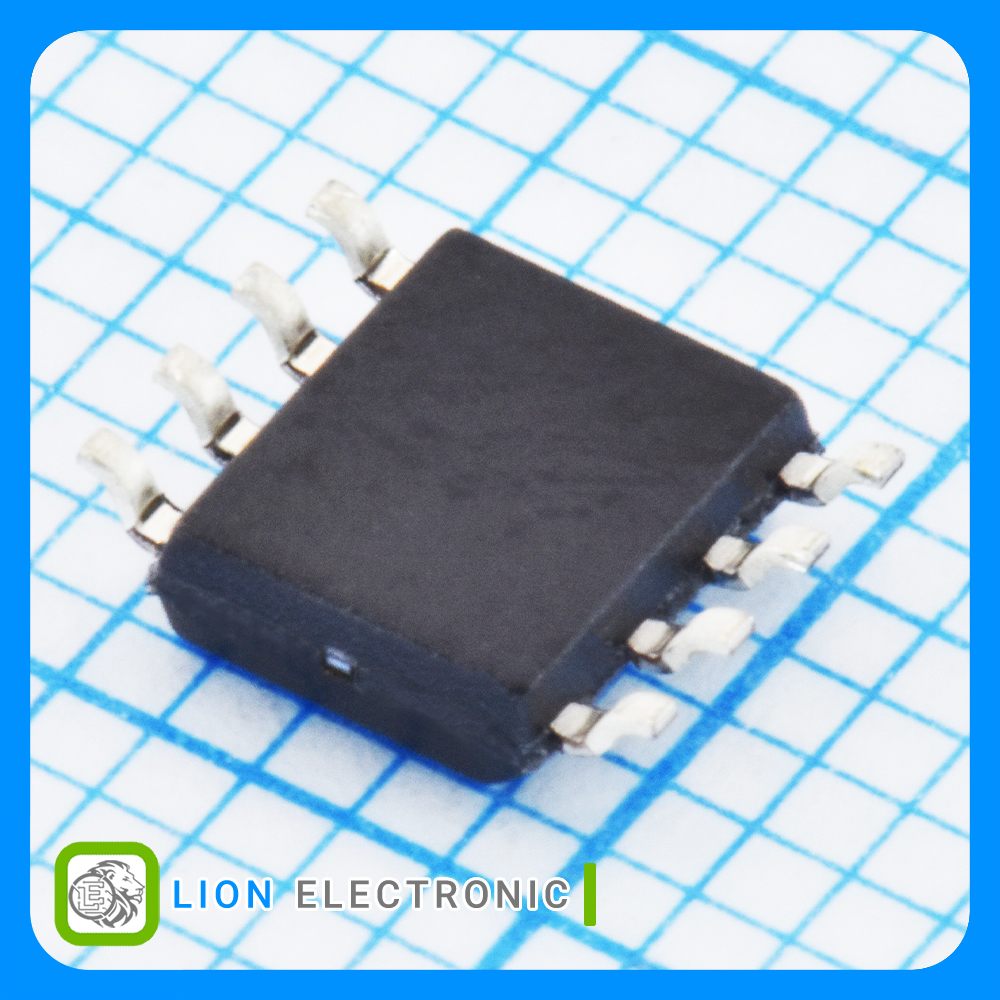

AO4294A
AO4294A
Part Number
4192
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 100 ولت 11.5 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 100V, 11.5A with SOIC-8 Package
معرفی
ماسفت 100 ولت 11.5 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 100V, 11.5A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 11.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 10mΩ
- Pd - Power Dissipation: 3.1W
- Qg - Gate Charge: 32.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AO4294A

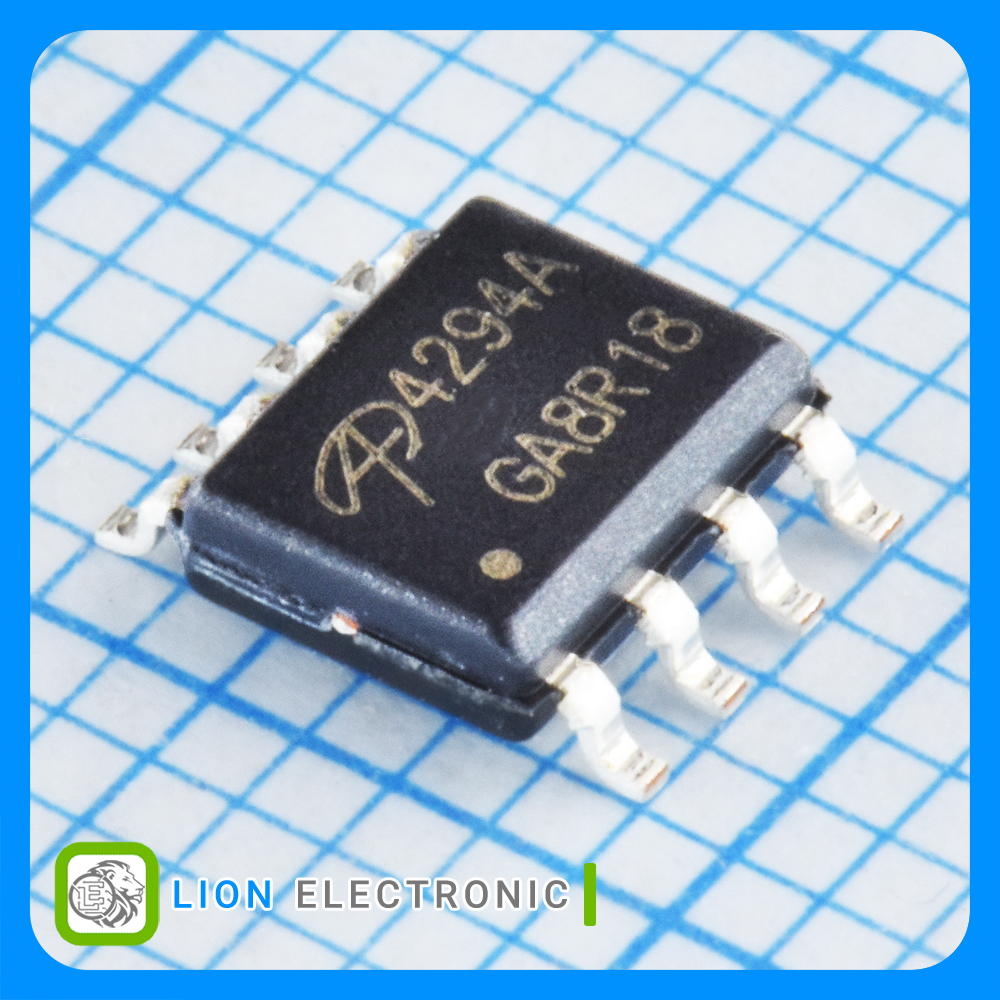

ماسفت AO4294A
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1.5V
Vgs th - Gate - Source Threshold Voltage
10mΩ
Rds On - Drain - Source Resistance
32.5nC
Qg - Gate Charge
3.1W
Pd - Power Dissipation
11.5A
Id - Continuous Drain Current
SOIC-8
Package-Case
