معرفی
کانکتور برد به سیم 11 پین نری تک ردیفه XH با فاصله پایه 2.54 میلیمتر جریان 3 آمپر با زاویه 90 درجه

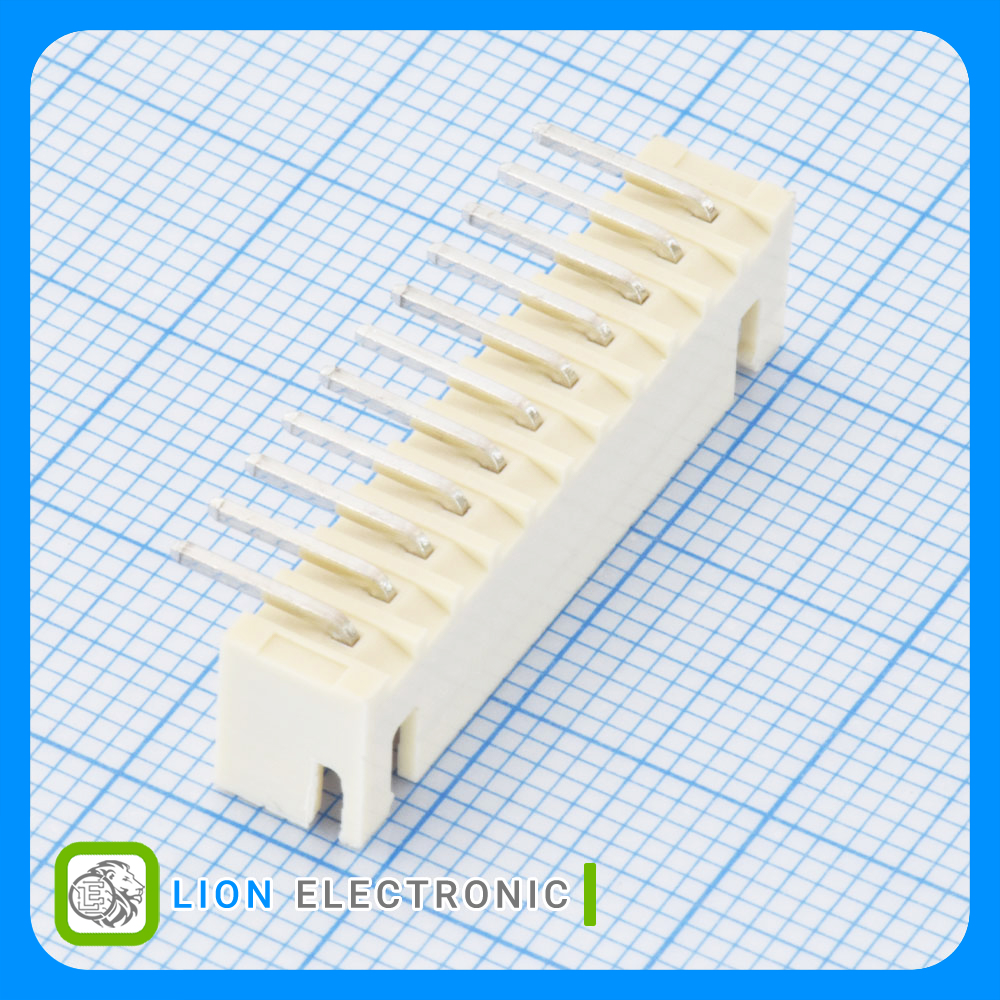

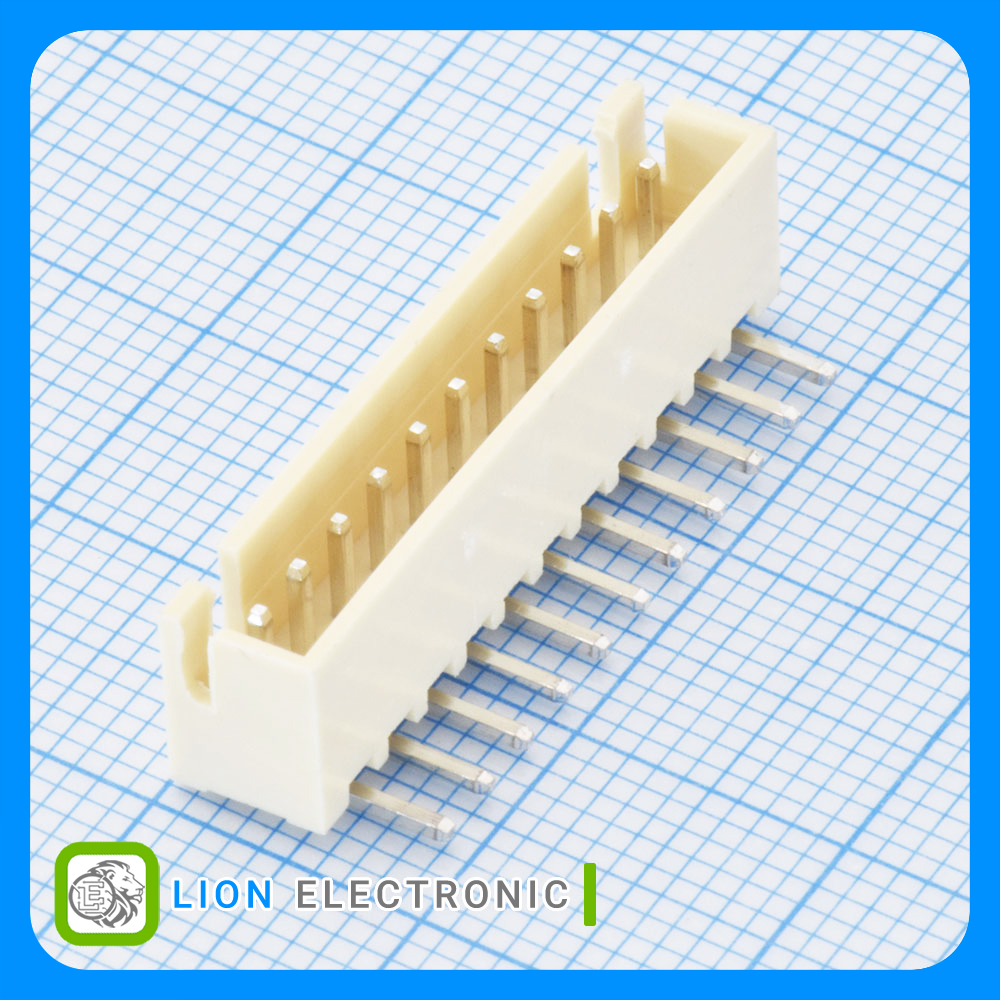

Wire to Board Connector 1x11P XH male 11 Position, 2.54mm with 3A and Right Angle
Specifications
- Type: XH2.54mm Connector
- Number of Rows: 1 Row
- Number of Positions: 11 Position
- Pitch: 2.54mm
- Voltage Rating: 250VAC
- Current Rating: 3A
- Termination style: Solder Pin
- Mounting Angle: Right Angle
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات کانکتور 2.54mm-11P WZ-MS
کانکتور 2.54mm-11P WZ-MS
Part Number
Right Angle
Mounting Angle
1 Row
Number of Rows
Bag
Packaging
Solder Pin
Termination style
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
2.54mm
Pitch
11 Position
Number of Positions
3A
Current Rating
250VAC
Voltage Rating
XH2.54mm Connector
Type
