TA-I Tech
معرفی
مقاومت شنت 10 میلیاهم 500 میلیوات تلرانس 1% ضریب حرارتی ±50ppm/℃ سایز 0805

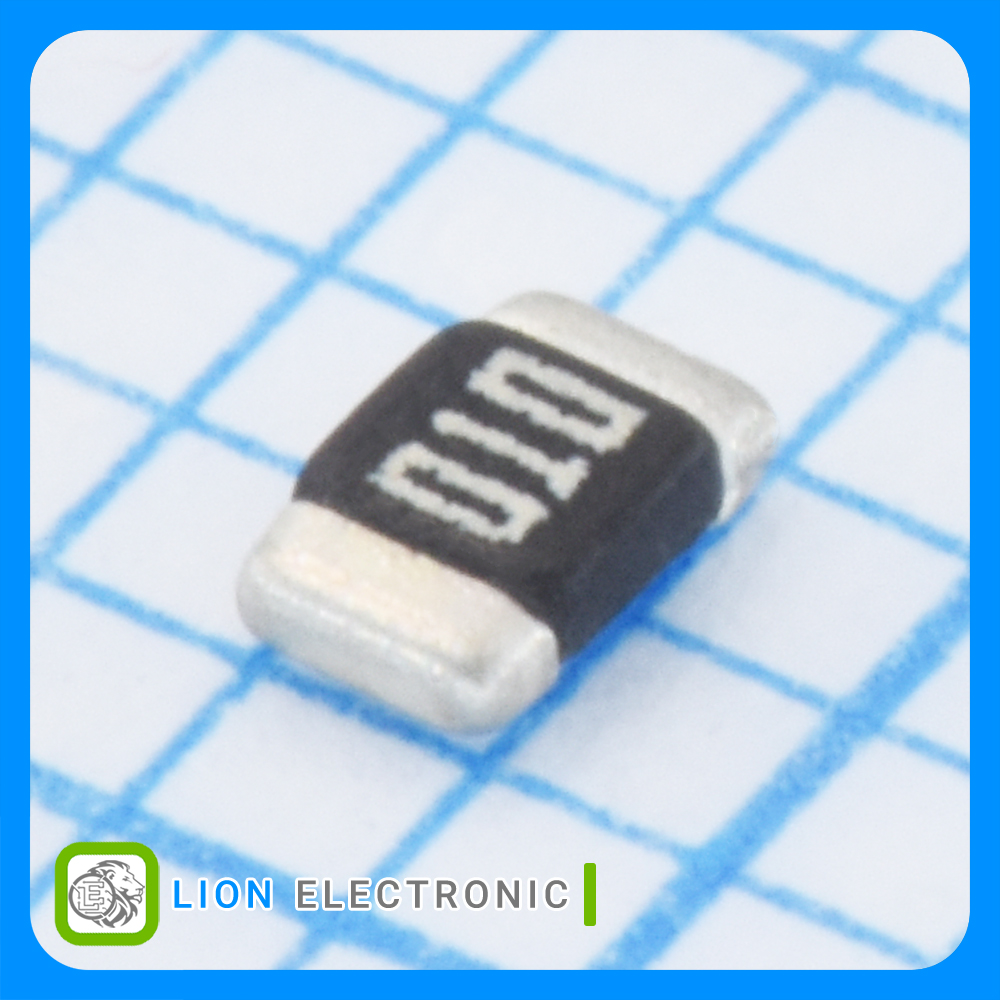

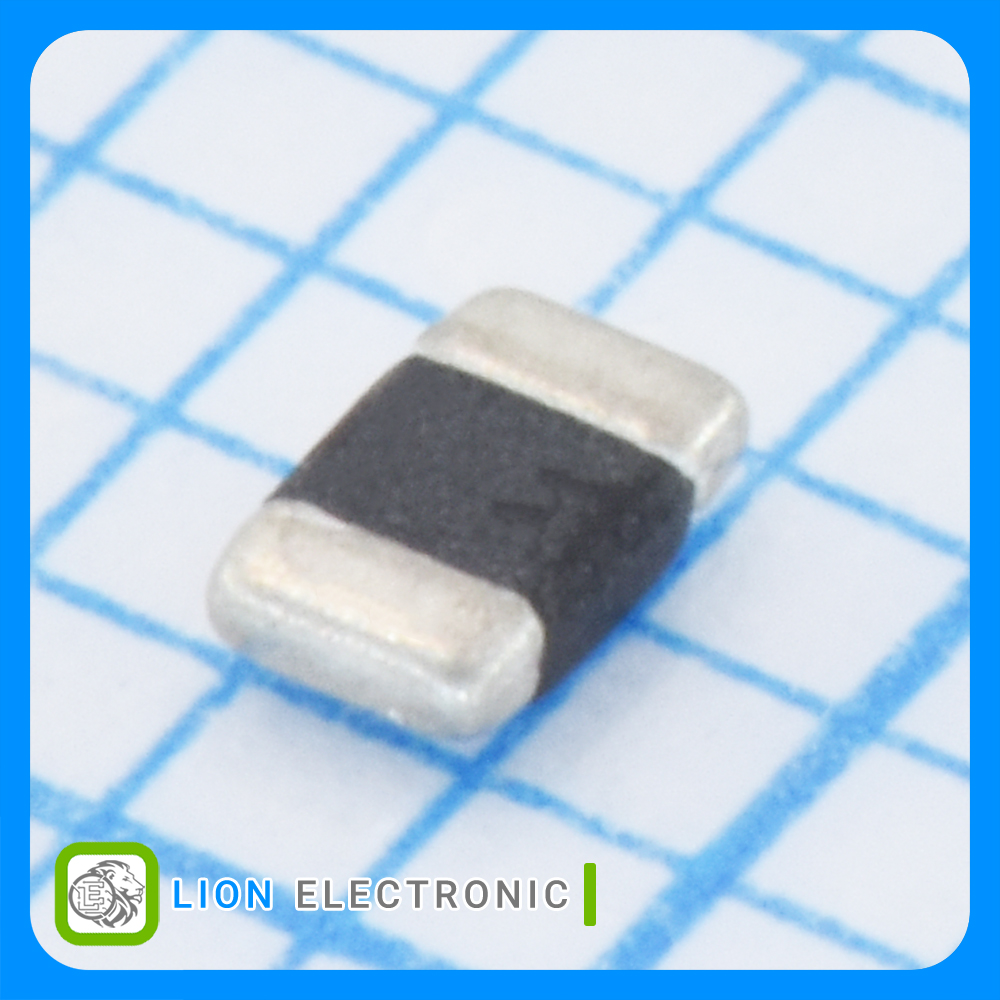

Current Sense Shunt Resistor 10mΩ, 500mW, ±50ppm/℃, ±1% with 0805 Size
Specifications
- Case Code - in: 0805
- Resistance: 10mΩ
- Power Rating: 500mW
- Tolerance: 1%
- Temperature Coefficient: 50PPM/C
- Termination style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +170C
- Packaging: Reel
مشخصات مقاومت شنت RLM10FTSMR010
مقاومت شنت RLM10FTSMR010
Part Number
0805
Case Code - in
-55C
Minimum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
1%
Tolerance
50PPM/C
Temperature Coefficient
10mΩ
Resistance
500mW
Power Rating
+170C
Maximum Operating Temperature
