GZP160-010S
GZP160-010S
Part Number
4443
Lion Part
Datasheet
Sencoch Semiconductor Manufacture
سنسور فشار گیج -10 تا 10 کیلوپاسکال خروجی آنالوگ ولتاژی mV با دقت 0.3%FS با پکیج SOP-6

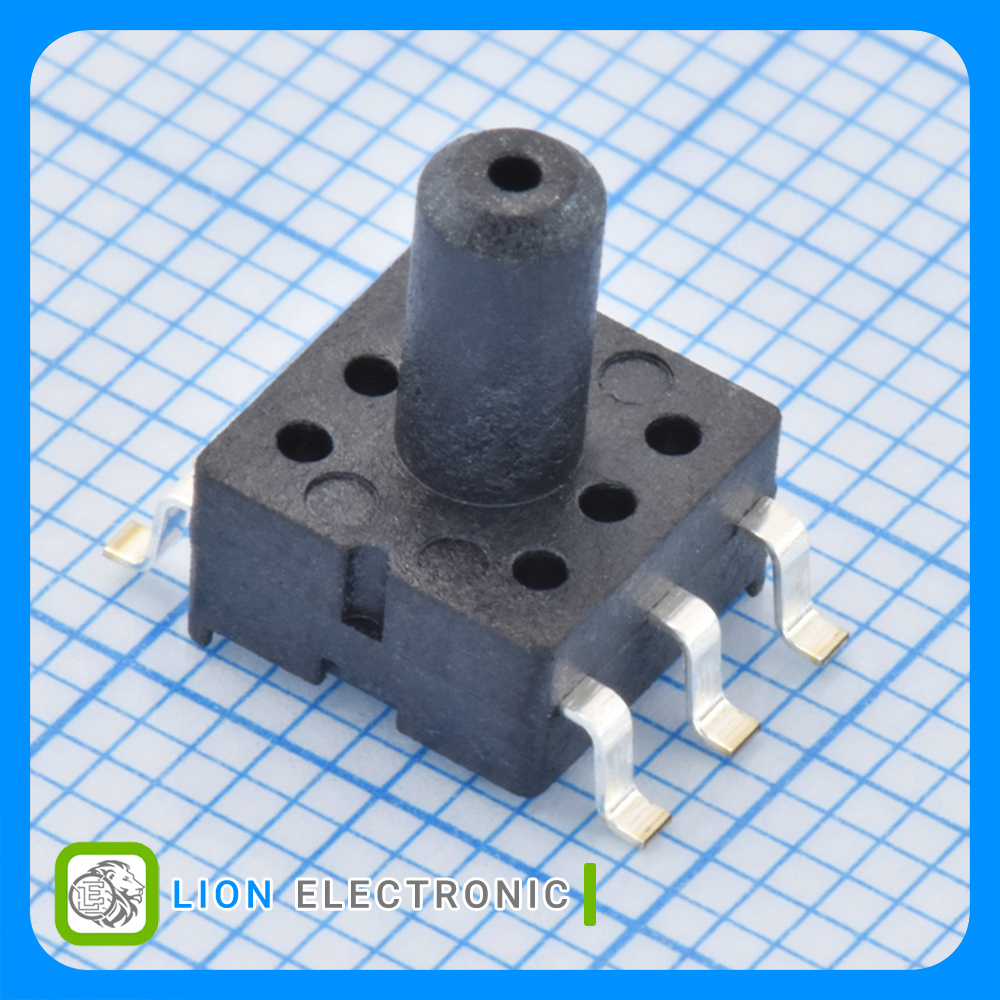

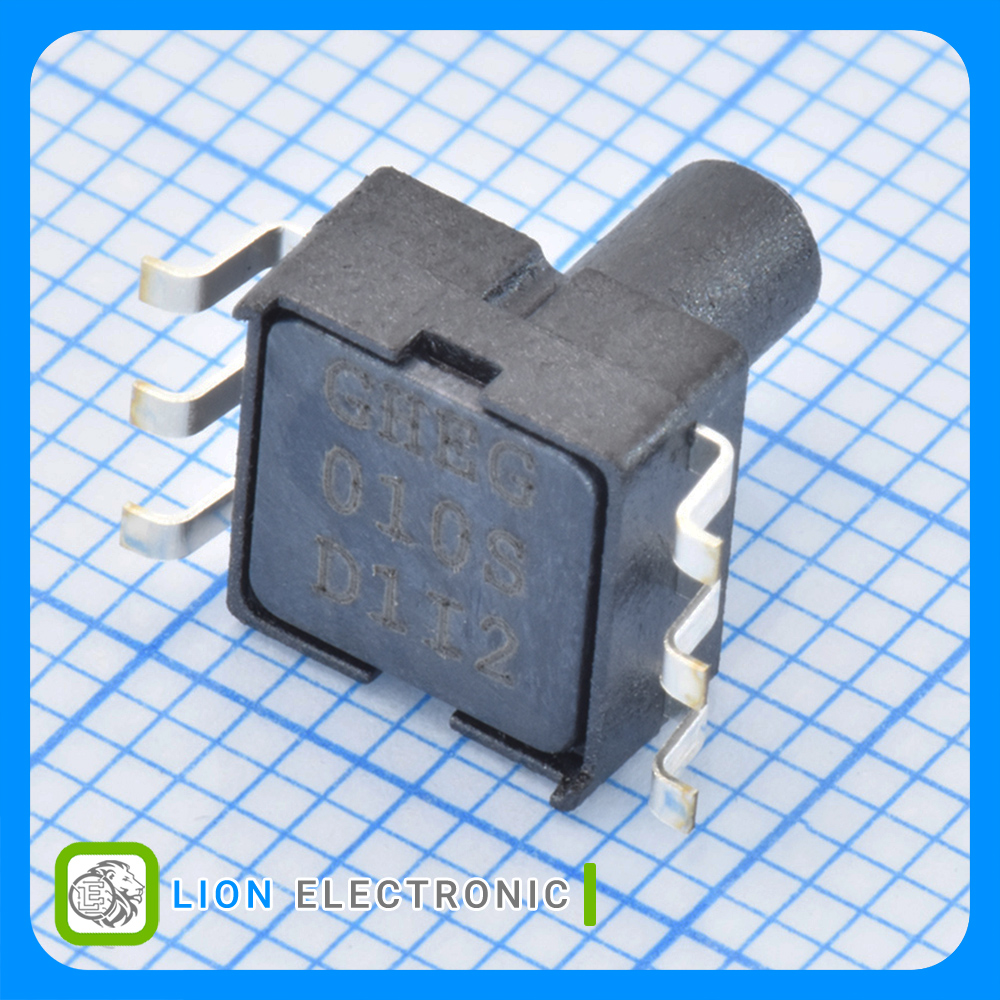

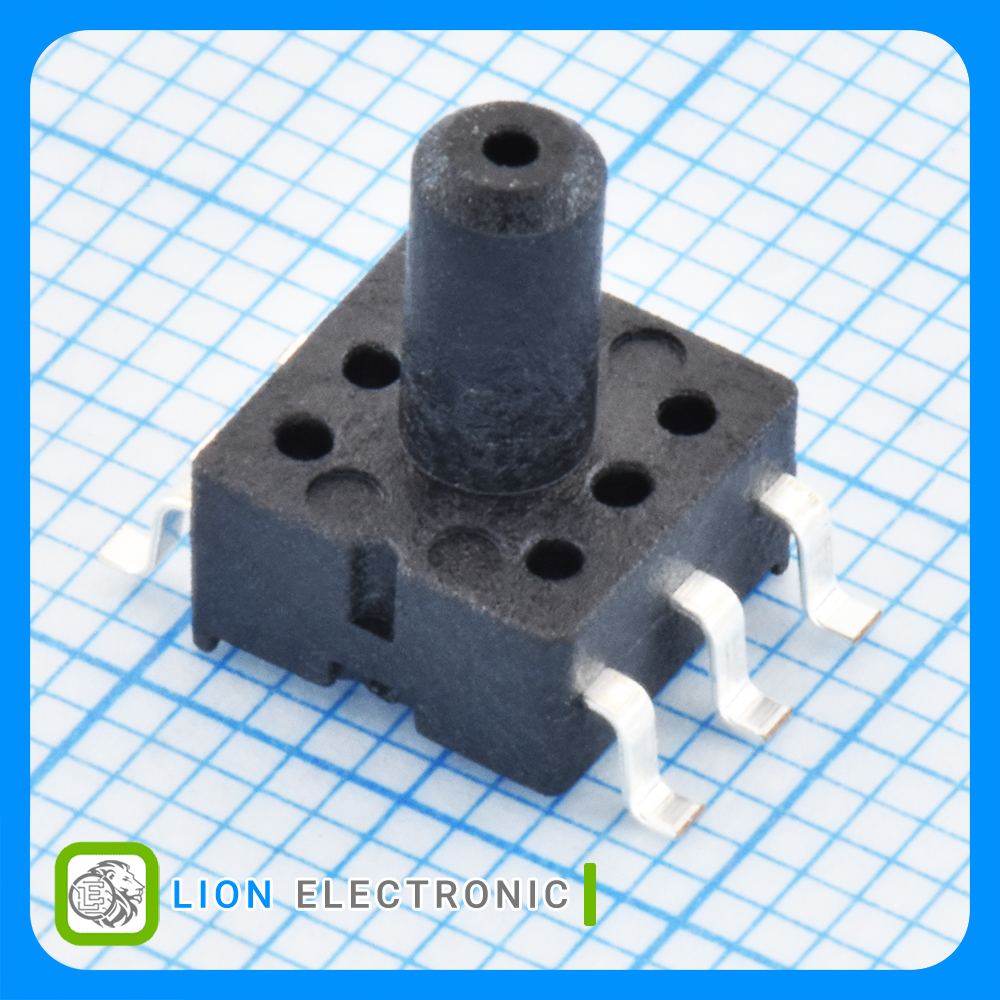

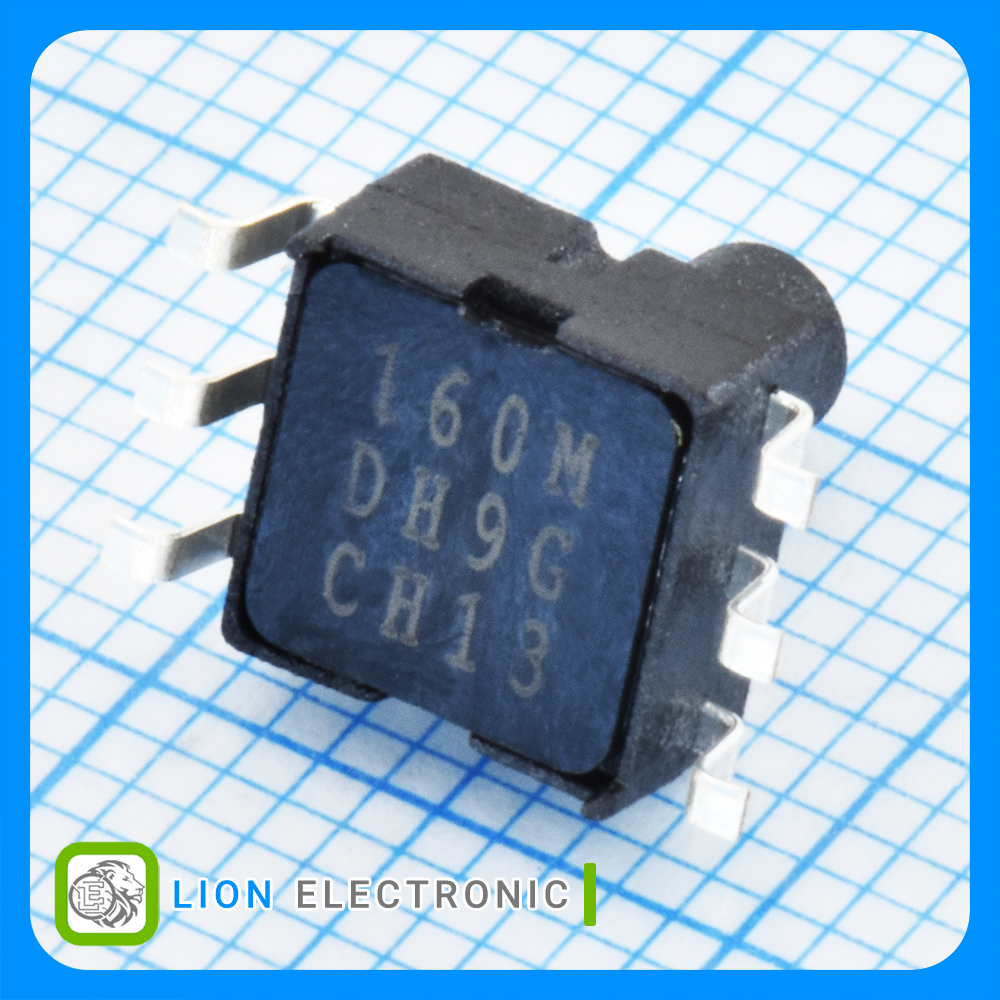

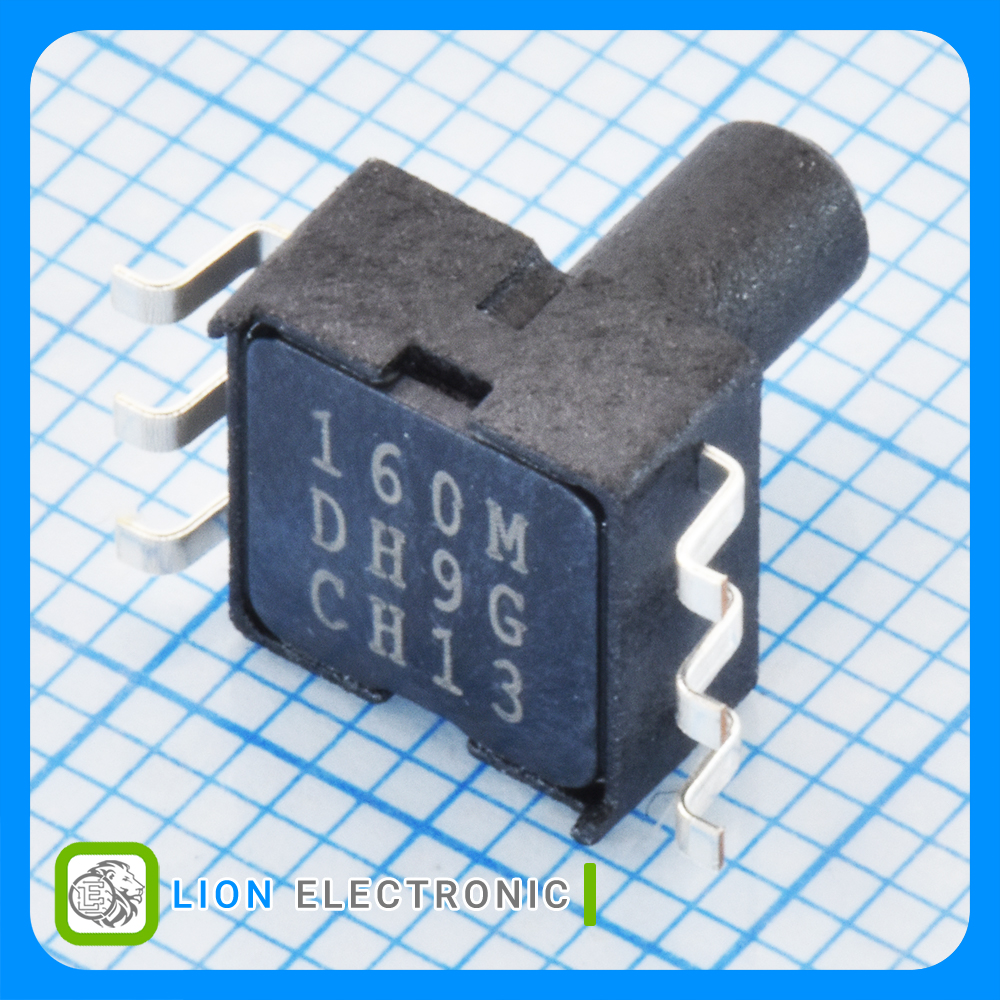

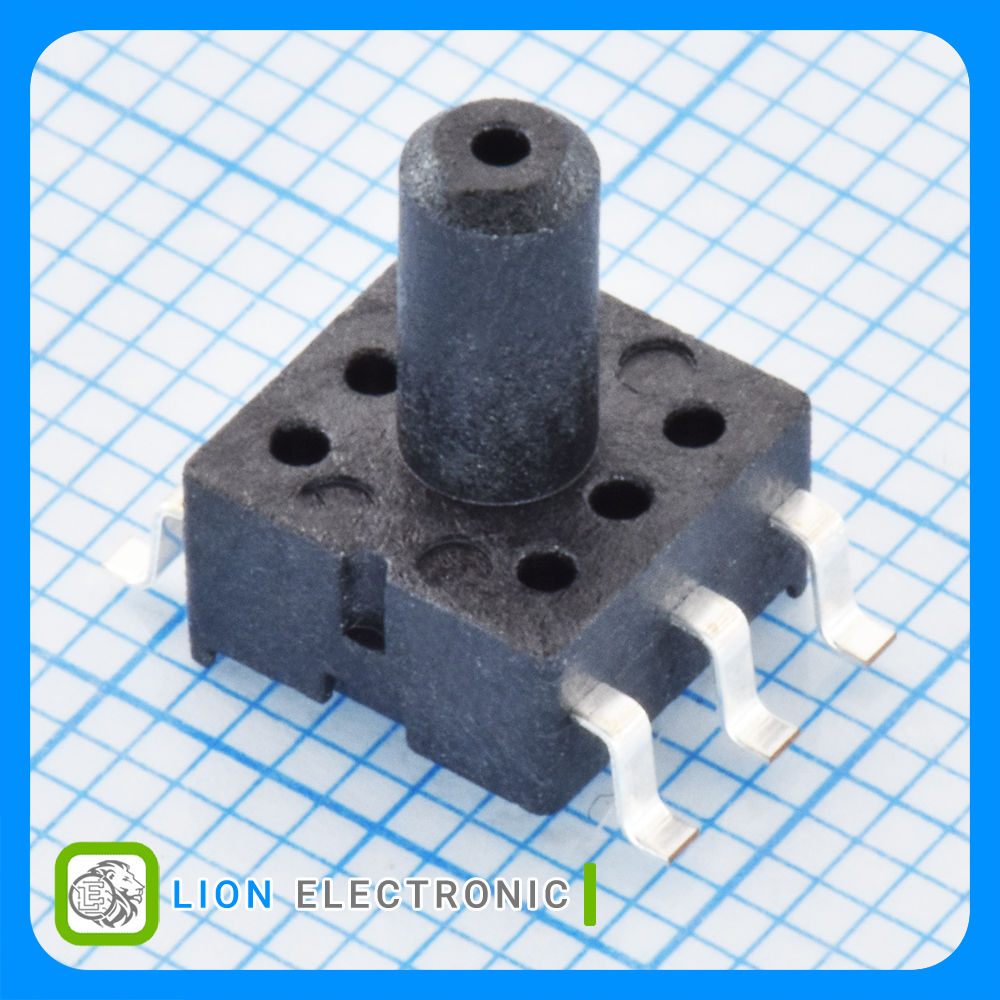

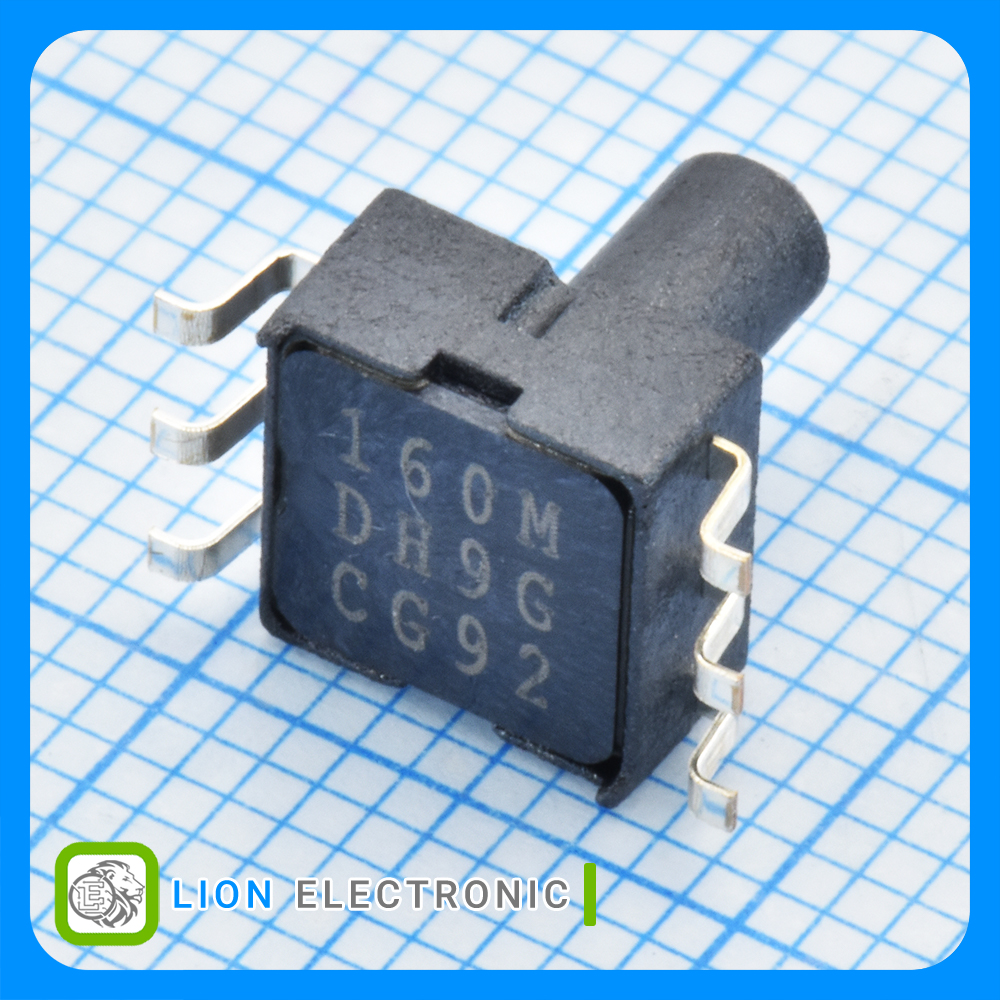

Pressure Sensor Gauge -10kPa to 10kPa, Analog Voltage mV Output 0.3%FS Accuracy with SOP-6 Package
معرفی
سنسور فشار گیج -10 تا 10 کیلوپاسکال خروجی آنالوگ ولتاژی mV با دقت 0.3%FS با پکیج SOP-6
Pressure Sensor Gauge -10kPa to 10kPa, Analog Voltage mV Output 0.3%FS Accuracy with SOP-6 Package
Specifications
- Pressure Type: Gauge
- Operating Pressure: -10kPa to 10kPa
- Port Type: Single Port
- Resolution: 12bit
- Output Type: Analog mV
- Accuracy: 0.3%FS
- Operating Supply Current: 3mA
- Mounting Style: SMD/SMT
- Package/Case: SOP-6
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +100C
- Packaging: Tube
مشخصات GZP160-010S
GZP160-010S
Part Number
Gauge
Pressure Type
12bit
Resolution
Analog mV
Output Type
-30C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
Single Port
Port Type
+100C
Maximum Operating Temperature
-10kPa to 10kPa
Operating Pressure
0.3%FS
Accuracy
3mA
Operating Supply Current
SOP-6
Package-Case
