GZP168-003S
GZP168-003S
Part Number
4446
Lion Part
Datasheet
Sencoch Semiconductor Manufacture
سنسور فشار گیج -3kPa تا 3kPa خروجی آنالوگ mV با دقت ±1.5% با پکیج SOP-6

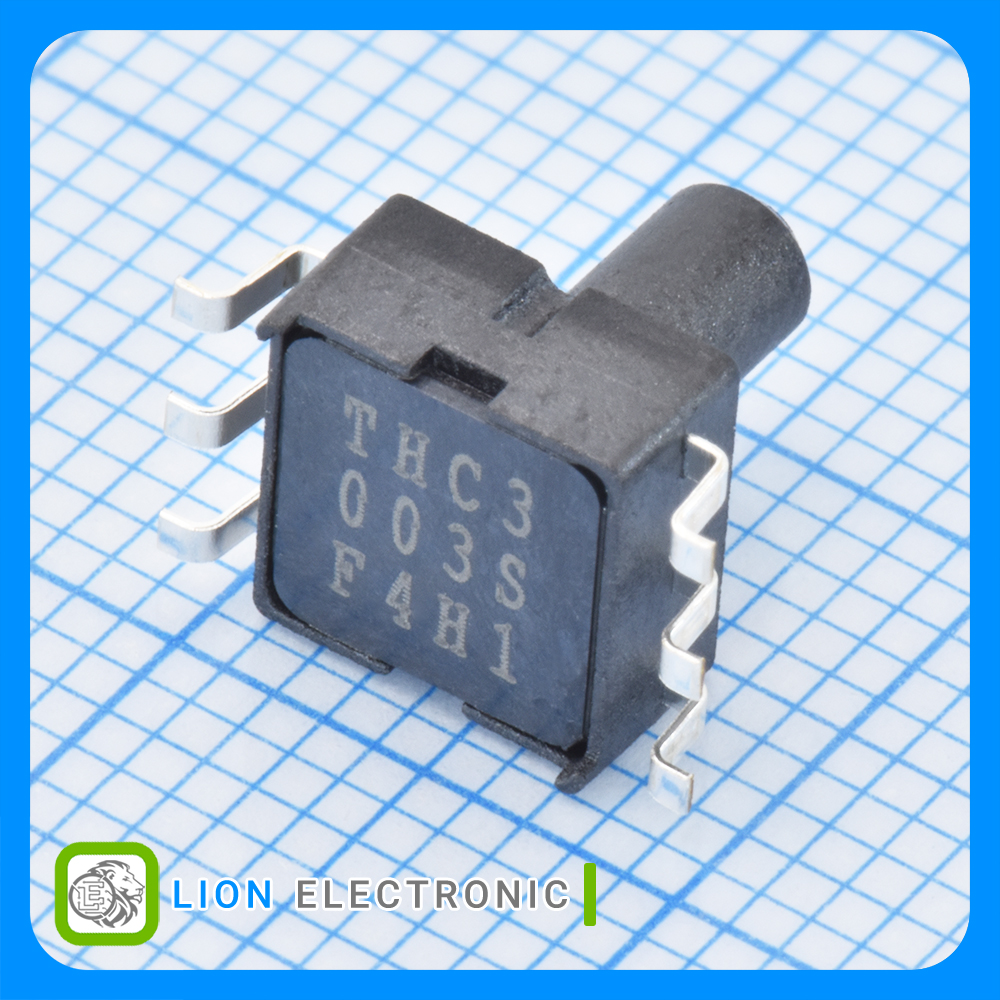

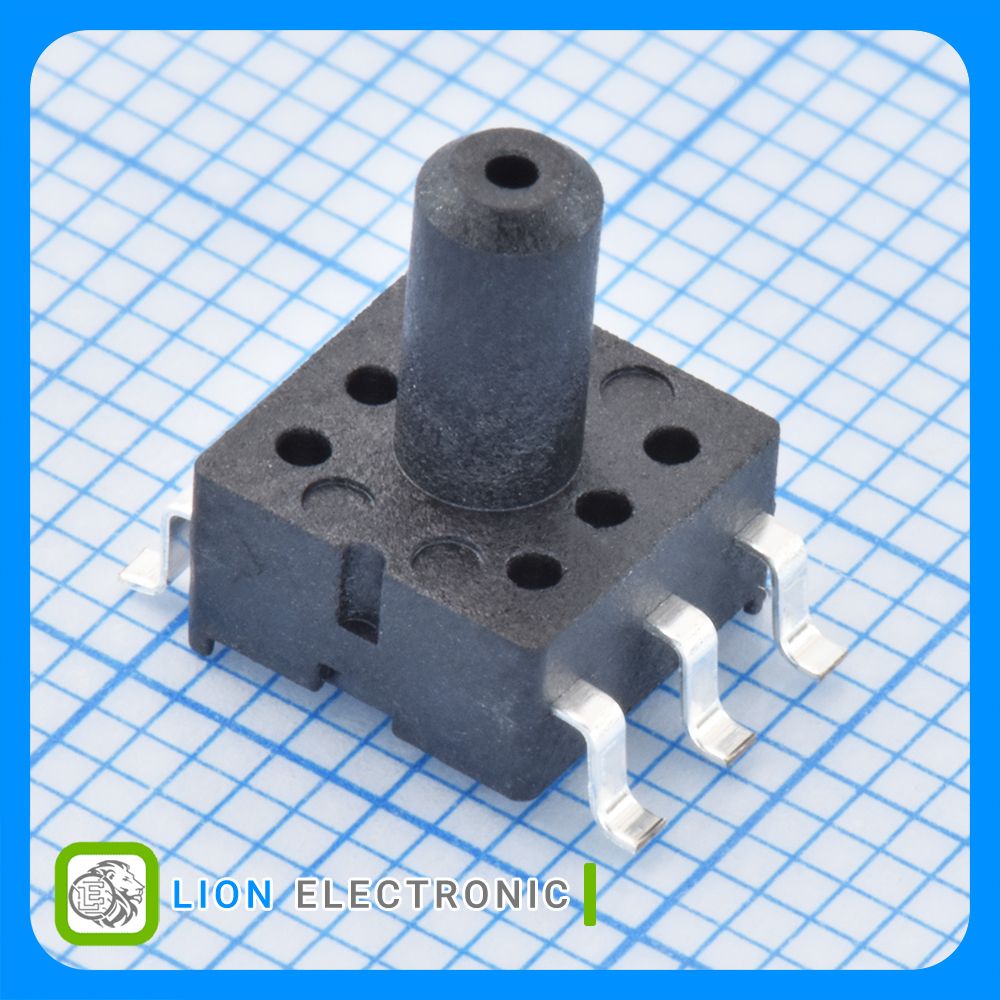

Pressure Sensor Gauge -3kPa to 3kPa, Analog mV Output ±1.5% Accuracy with SOP-6 Package
معرفی
سنسور فشار گیج -3kPa تا 3kPa خروجی آنالوگ mV با دقت ±1.5% با پکیج SOP-6
Pressure Sensor Gauge -3kPa to 3kPa, Analog mV Output ±1.5% Accuracy with SOP-6 Package
Specifications
- Pressure Type: Gauge
- Operating Pressure: -3kPa to 3kPa
- Port Type: Single Port
- Output Type: Analog mV
- Accuracy: ±1.5%
- Operating Supply Current: 3mA
- Mounting Style: SMD/SMT
- Package/Case: SOP-6
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +100C
- Packaging: Tube
مشخصات سنسور فشار GZP168-003S
سنسور فشار GZP168-003S
Part Number
Gauge
Pressure Type
Analog mV
Output Type
-30C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
Single Port
Port Type
+100C
Maximum Operating Temperature
±1.5%
Accuracy
-3kPa to 3kPa
Operating Pressure
N/A
Resolution
3mA
Operating Supply Current
SOP-6
Package-Case
