IXYS
معرفی
ماسفت کاهشی نوع N با ولتاژ 800 ولت و جریان 20 میلیآمپر با پکیج SOT-23-3
N-Channel Depletion Mode MOSFET 800V, 20mA with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 800V
- Id - Continuous Drain Current: 20mA
- Transistor Polarity: N-Channel
- Channel Mode: Depletion
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3.1V
- Vgs - Gate - Source Voltage: ±15V
- Rds On - Drain - Source Resistance: 380Ω
- Pd - Power Dissipation: 400mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +110C
- Packaging: Reel
مشخصات ماسفت CPC3982TTR

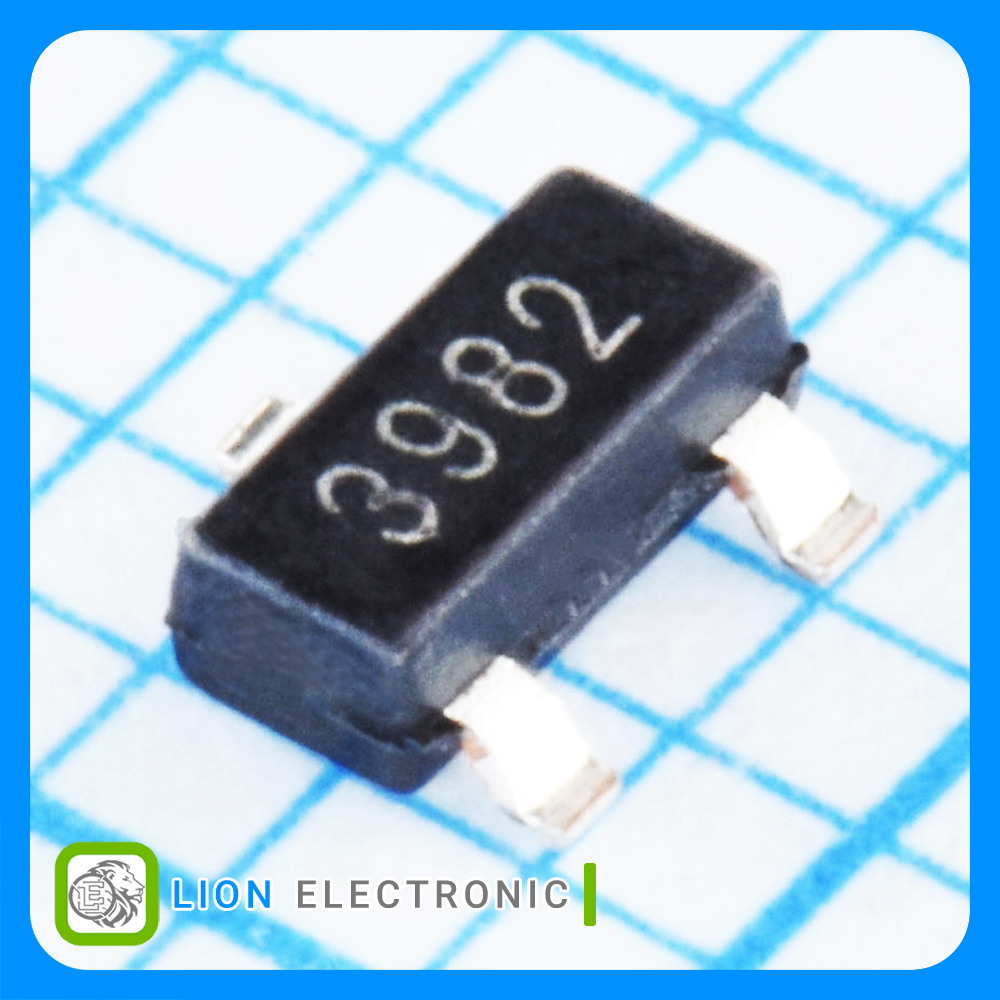

ماسفت CPC3982TTR
Part Number
Depletion
Channel Mode
1
Number of Channels
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±15V
Vgs - Gate - Source Voltage
+110C
Maximum Operating Temperature
400mW
Pd - Power Dissipation
800V
Vds - Drain - Source Breakdown Voltage
20mA
Id - Continuous Drain Current
3.1V
Vgs th - Gate - Source Threshold Voltage
N/A
Qg - Gate Charge
380Ω
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
