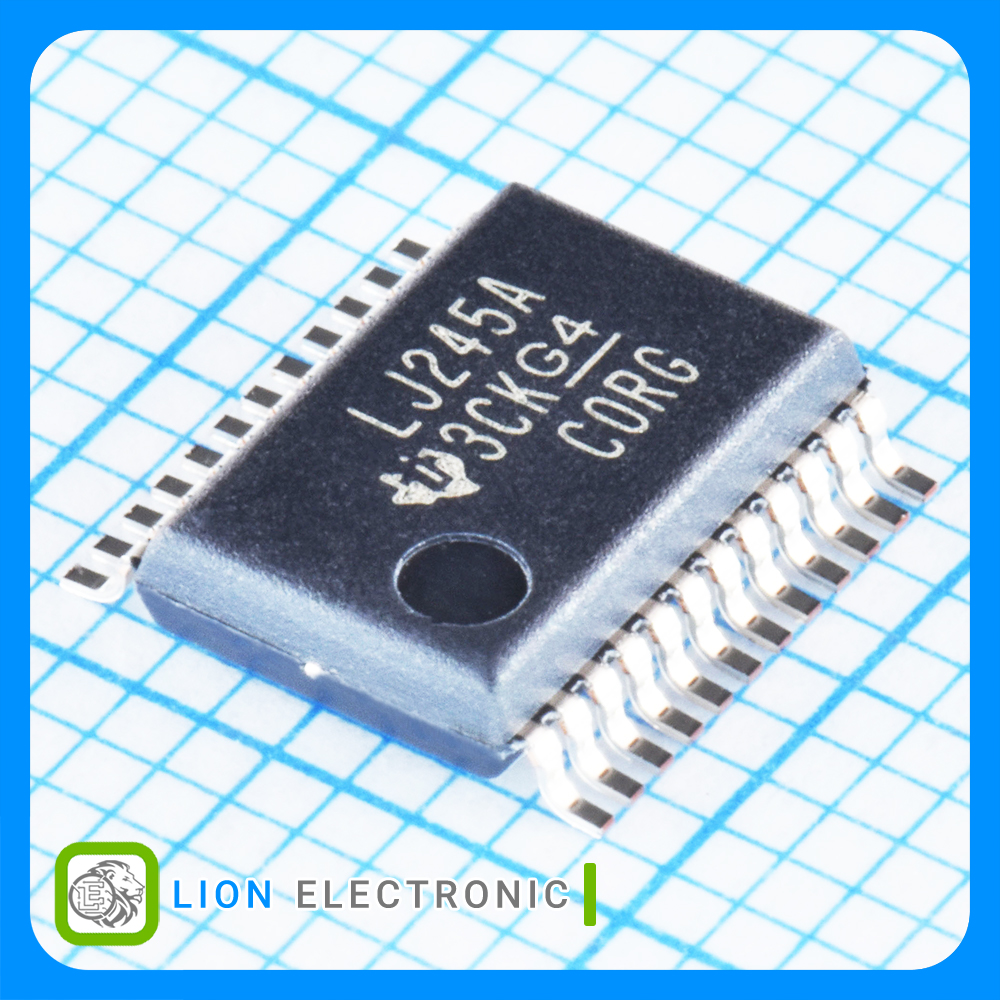

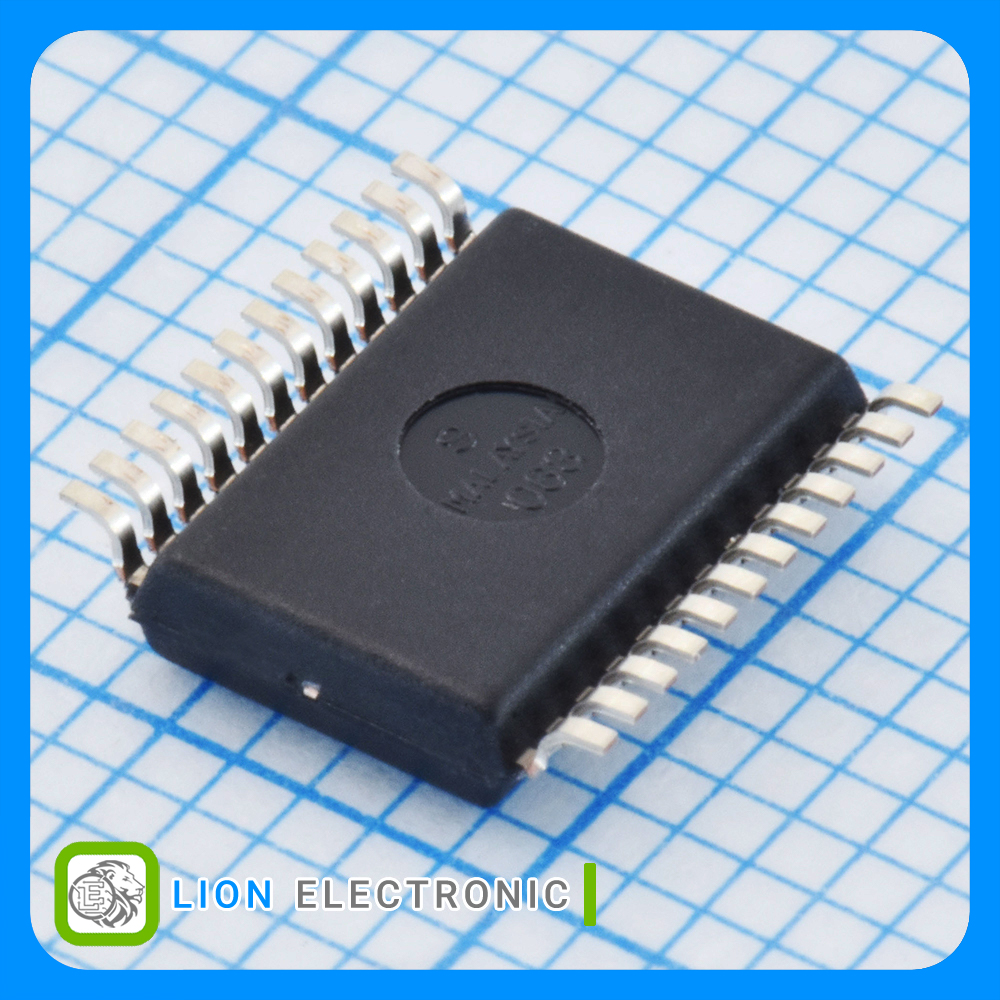

SN74LVC4245ADBR
SN74LVC4245ADBR
Part Number
4520
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک مبدل سطح ولتاژ هشت کاناله دوطرفه مبدل 3.3 ولت به 5 ولت با خروجی 3-State، 8 ورودی ولتاژ VccA4.5V, VccB2.7V تا VccA5.5V, VccB3.6V با پکیج SSOP-24
Logic IC Voltage Level Translator, Octal Bidirectional Bus Transceiver 3.3V to 5V Shifter with 3-State Outputs, 8 Input Lines, VccA4.5V, VccB2.7V - VccA5.5V, VccB3.6V Supply with SSOP-24 Package
معرفی
آیسی لاجیک مبدل سطح ولتاژ هشت کاناله دوطرفه مبدل 3.3 ولت به 5 ولت با خروجی 3-State، 8 ورودی ولتاژ VccA4.5V, VccB2.7V تا VccA5.5V, VccB3.6V با پکیج SSOP-24
Logic IC Voltage Level Translator, Octal Bidirectional Bus Transceiver 3.3V to 5V Shifter with 3-State Outputs, 8 Input Lines, VccA4.5V, VccB2.7V - VccA5.5V, VccB3.6V Supply with SSOP-24 Package
Specifications
- Logic Family: LVC
- Logic Type: Voltage Level Translator
- Number of Input Lines: 8
- Number of Output Lines: 8
- Supply Voltage - Max: VccA5.5V, VccB3.6V
- Supply Voltage - Min: VccA4.5V, VccB2.7V
- Mounting Style: SMD/SMT
- Package/Case: SSOP-24
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آیسی منطقی SN74LVC4245ADBR

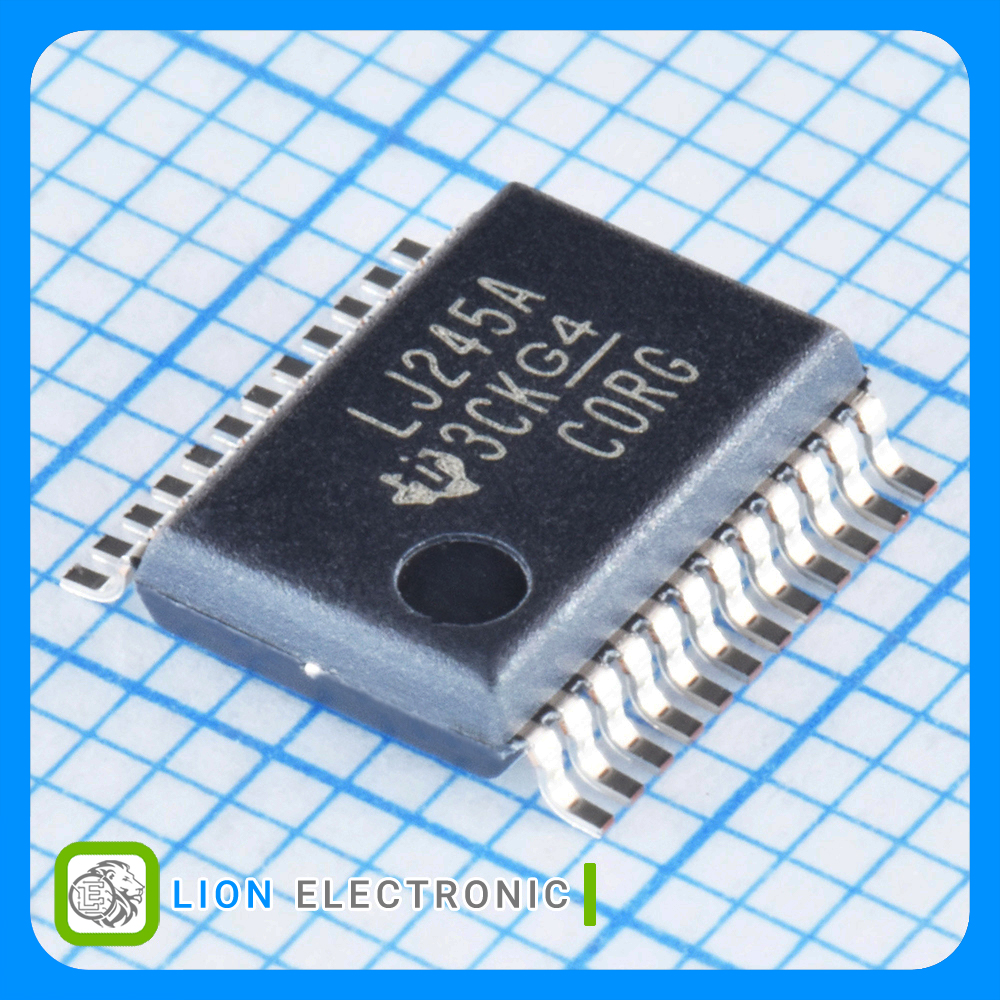

آیسی منطقی SN74LVC4245ADBR
Part Number
Reel
Packaging
8
Number of Output Lines
-40C
Minimum Operating Temperature
8
Number of Input Lines
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Voltage Level Translator
Logic Type
LVC
Logic Family
VccA5.5V, VccB3.6V
Supply Voltage - Max
VccA4.5V, VccB2.7V
Supply Voltage - Min
SSOP-24
Package-Case
