MF72 22D9
MF72 22D9
Part Number
4548
Lion Part
Datasheet
Nanjing Shiheng Elec Manufacture
ترمیستور NTC مقاومت 22 اهم جریان 1 آمپر توان 2 وات تلرانس 20% B 3000K با تلرانس 10% با پکیج پلاگین، P=7.5mm

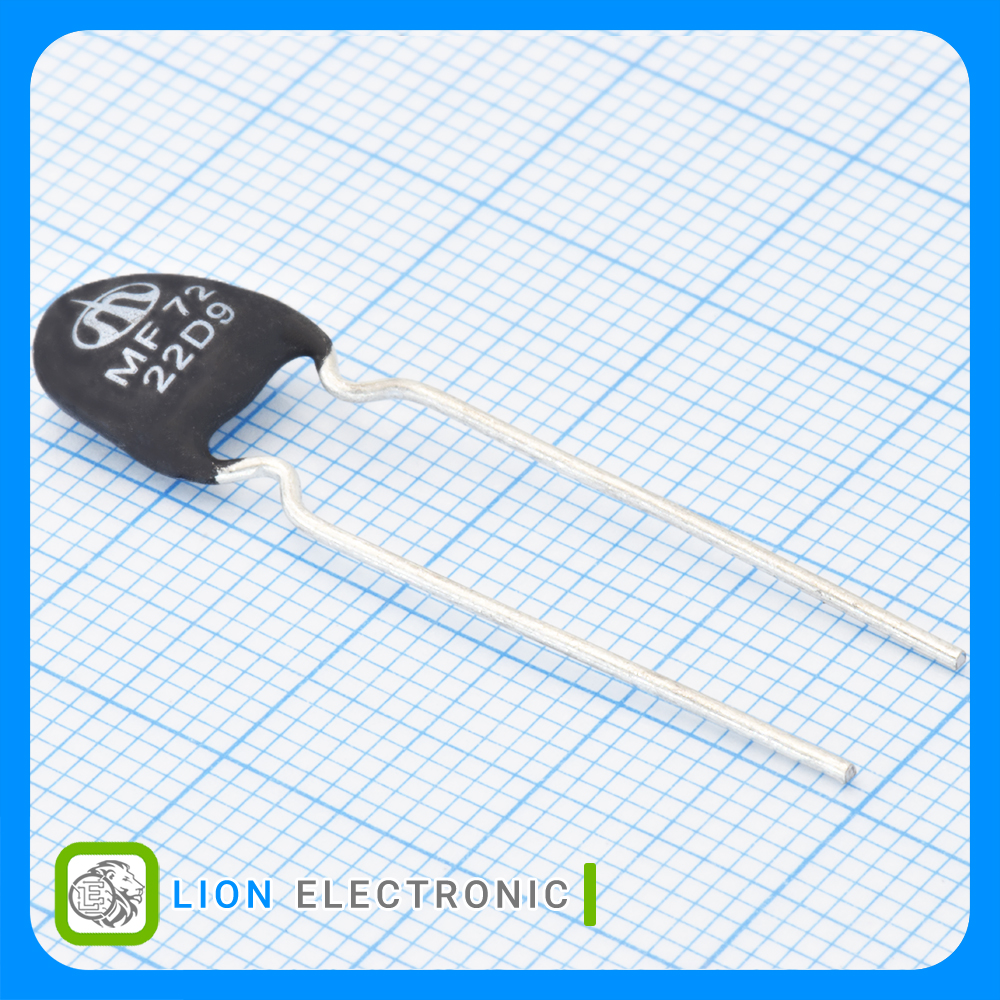

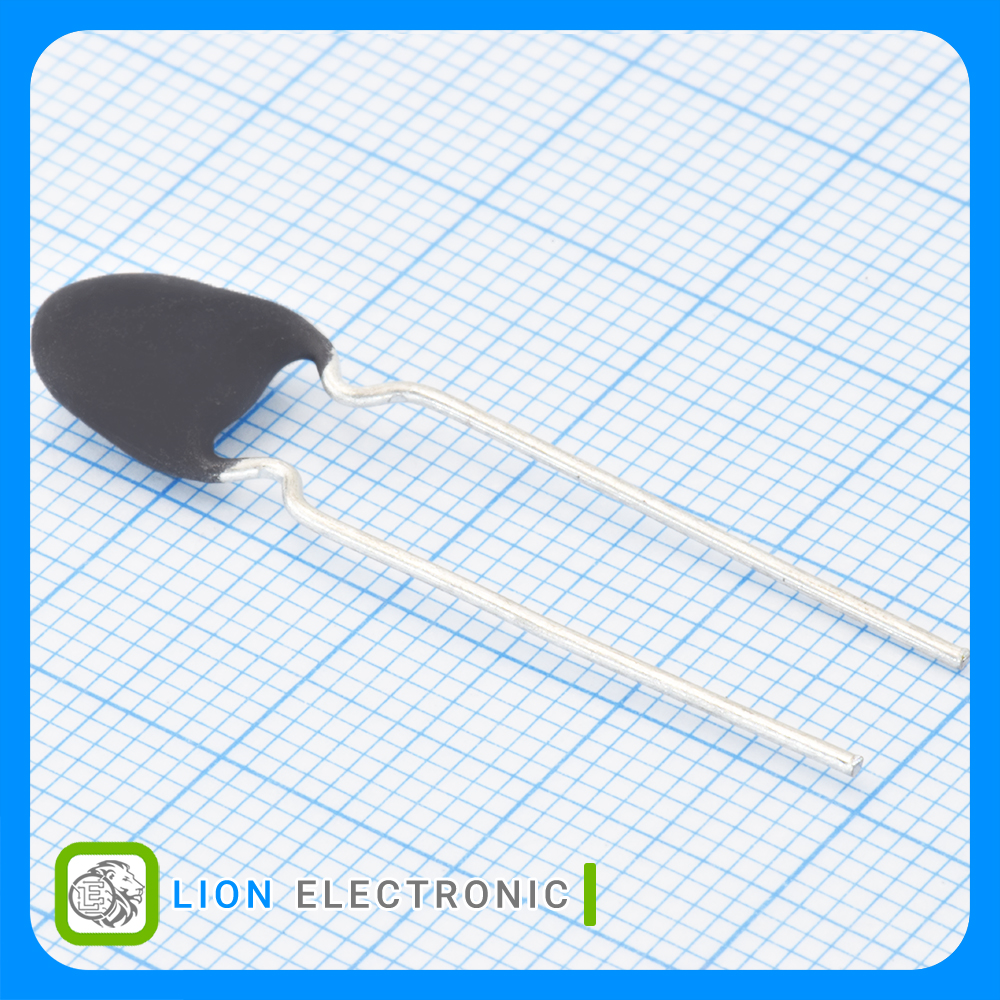

NTC Thermistor 22Ω, 1A, 2W, 20%, B 3000K ±10% with Plugin,P=7.5mm Package
معرفی
ترمیستور NTC مقاومت 22 اهم جریان 1 آمپر توان 2 وات تلرانس 20% B 3000K با تلرانس 10% با پکیج پلاگین، P=7.5mm
NTC Thermistor 22Ω, 1A, 2W, 20%, B 3000K ±10% with Plugin,P=7.5mm Package
Specifications
- B Parameter: 3000K
- Resistance: 22Ω
- Power Rating: 2W
- Tolerance: 20%
- Diameter: 11mm
- Height: 7mm
- Width: 25.4mm
- Length: 25mm
- Mounting Style: Through Hole
- Package/Case: Plugin,P=7.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +170C
- Packaging: Bulk
مشخصات MF72 22D9
MF72 22D9
Part Number
3000K
B Parameter
Bulk
Packaging
-40C
Minimum Operating Temperature
Through Hole
Mounting Style
20%
Tolerance
11mm
Diameter
2W
Power Rating
+170C
Maximum Operating Temperature
7mm
Height
25mm
Length
25.4mm
Width
22Ω
Resistance
Plugin,P=7.5mm
Package-Case
