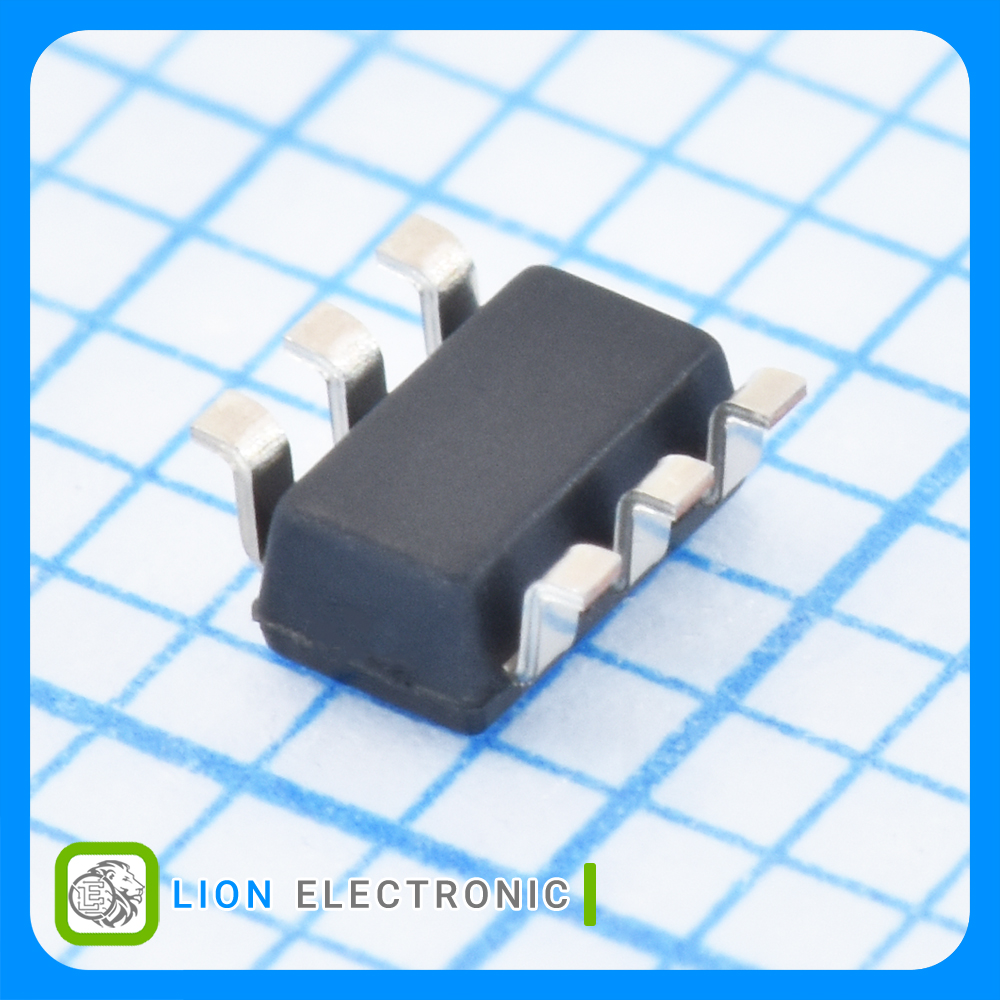

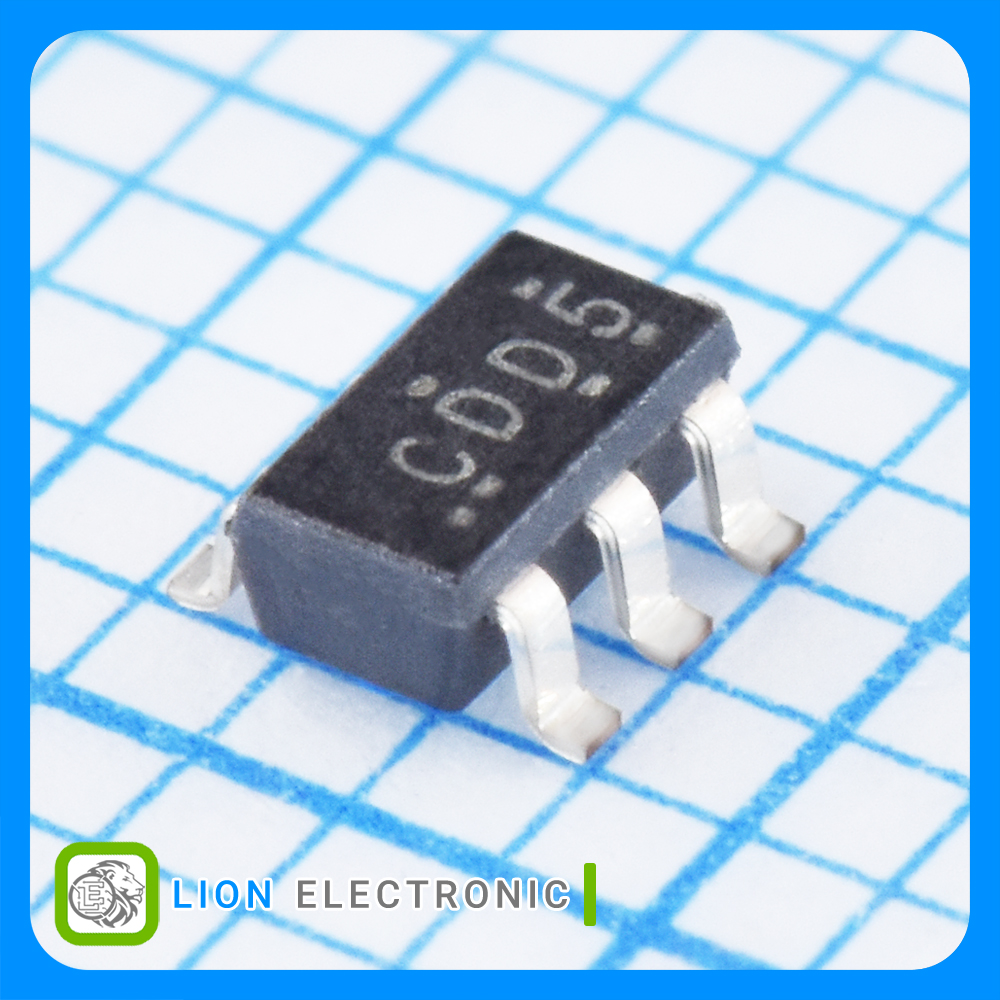

SN74LVC1G3208DBVR
SN74LVC1G3208DBVR
Part Number
4584
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک گیت OR-AND تک کانال با 3 ورودی ولتاژ 1.65 تا 5.5 ولت با پکیج SOT-23-6
Logic IC Single 3-Input Positive OR-AND Gate, 1.65V - 5.5V Supply with SOT-23-6 Package
معرفی
آیسی لاجیک گیت OR-AND تک کانال با 3 ورودی ولتاژ 1.65 تا 5.5 ولت با پکیج SOT-23-6
Logic IC Single 3-Input Positive OR-AND Gate, 1.65V - 5.5V Supply with SOT-23-6 Package
Specifications
- Logic Family: LVC
- Logic Type: OR-AND Gate
- Number of Input Lines: 3
- Number of Output Lines: 1
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.65V
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات SN74LVC1G3208DBVR
SN74LVC1G3208DBVR
Part Number
1
Number of Output Lines
3
Number of Input Lines
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
OR-AND Gate
Logic Type
LVC
Logic Family
+125C
Maximum Operating Temperature
1.65V
Supply Voltage - Min
5.5V
Supply Voltage - Max
SOT-23-6
Package-Case
