D1s
D1s
Part Number
4696
Lion Part
Datasheet
Allwinner Tech Manufacture
تراشه SoC با هسته XuanTie C906 فرکانس 1 گیگاهرتز با رم 64 مگابایت با پکیج LQFP-128

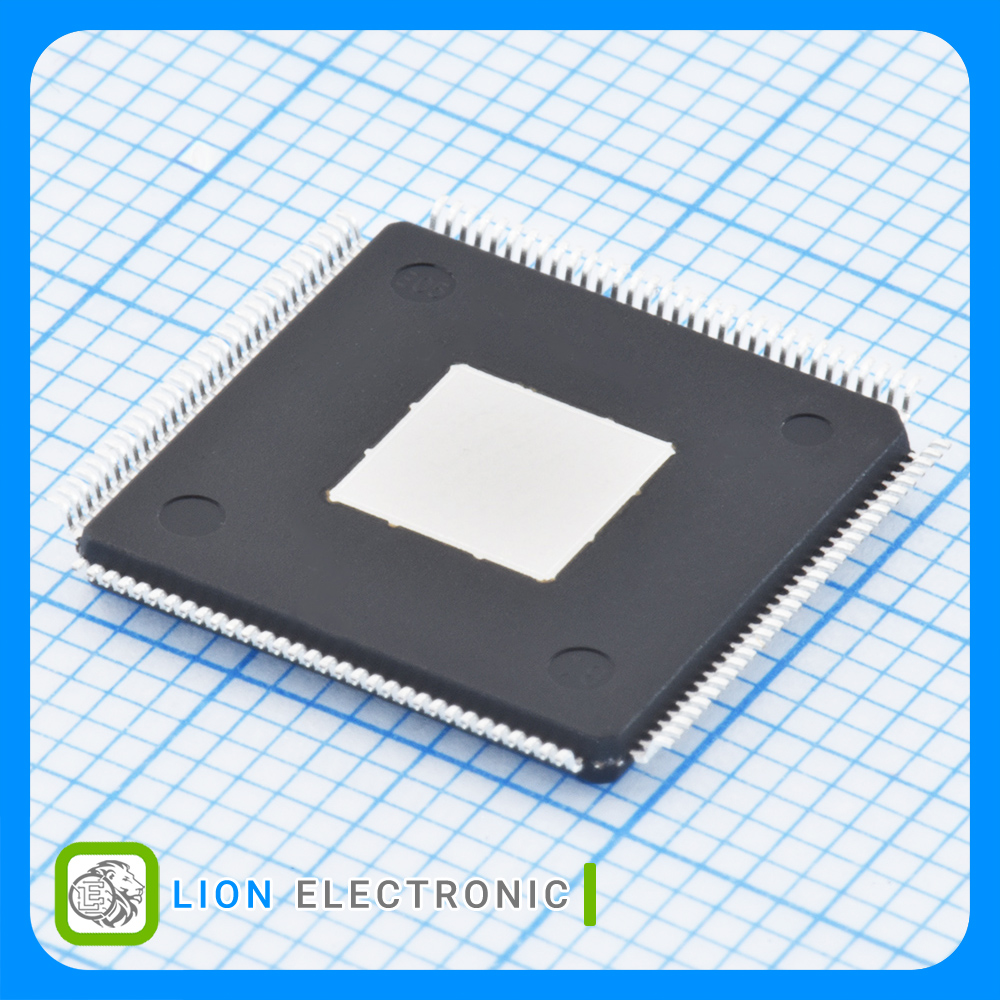

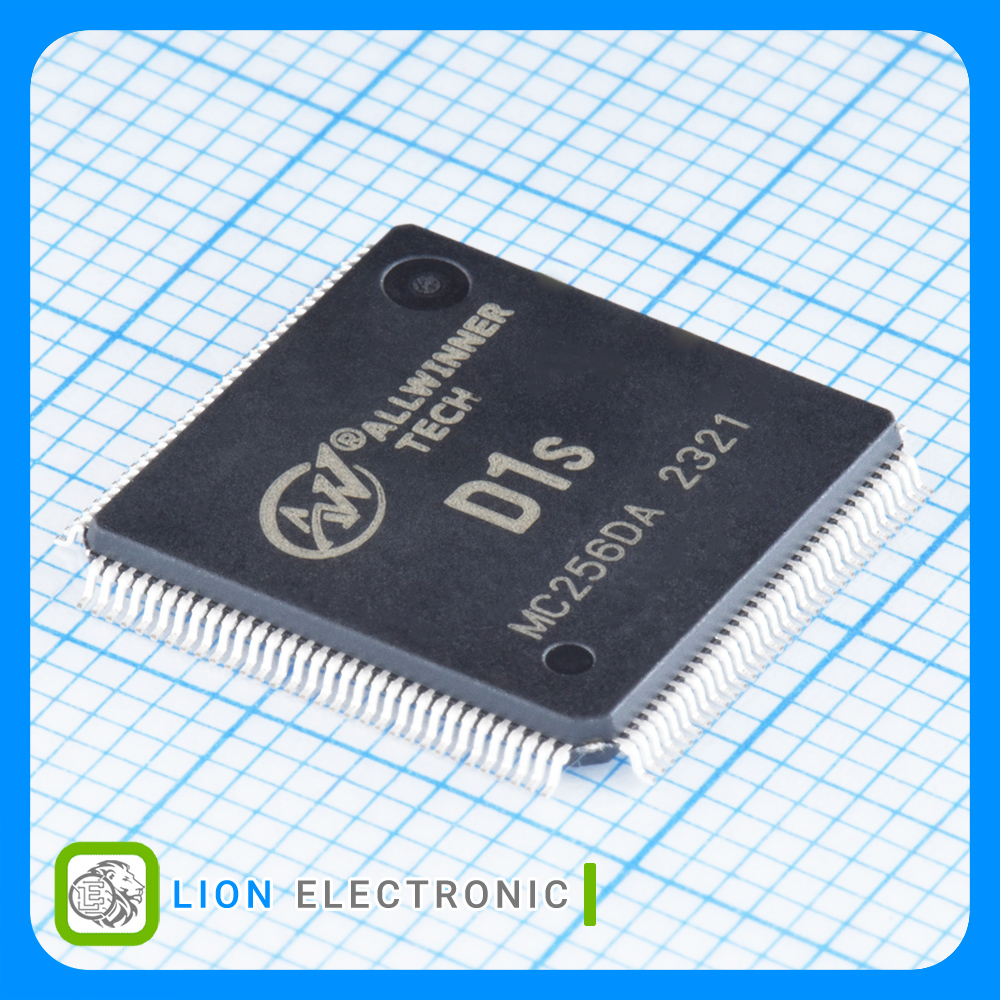

SoC with XuanTie C906 Core, 1GHz with 64MB RAM with LQFP-128 Package
معرفی
D1s is a cost-effective AIoT chip designed by Allwinner for the intelligent decoding market. It uses a 64bit RISC-V ISA Alibaba T-Head C906 CPU, built-in 64M DDR2, supports Linux system, and integrates a large number of self-developed audio and video related IP, which can support full format decoding such as H.265, H.264, MPEG-1 /2/4, JPEG. D1s supports ADC/DAC/I2S/PCM/DMIC/OWA and other audio interfaces. It can be widely used in smart home panels, HMI, industrial control, smart cars and other products
مشخصات پروسسور و دیکودر ویدیو D1s
پروسسور و دیکودر ویدیو D1s
Part Number
+70C
Maximum Operating Temperature
Tray
Packaging
64bit
Data Bus Width
SMD/SMT
Mounting Style
-25C
Minimum Operating Temperature
N/A
Program Memory Size
XuanTie C906
Core
1.8V
Operating Supply Voltage
1GHz
Maximum Clock Frequency
64MB
Data RAM Size
101
Number of I-Os
LQFP-128
Package-Case
