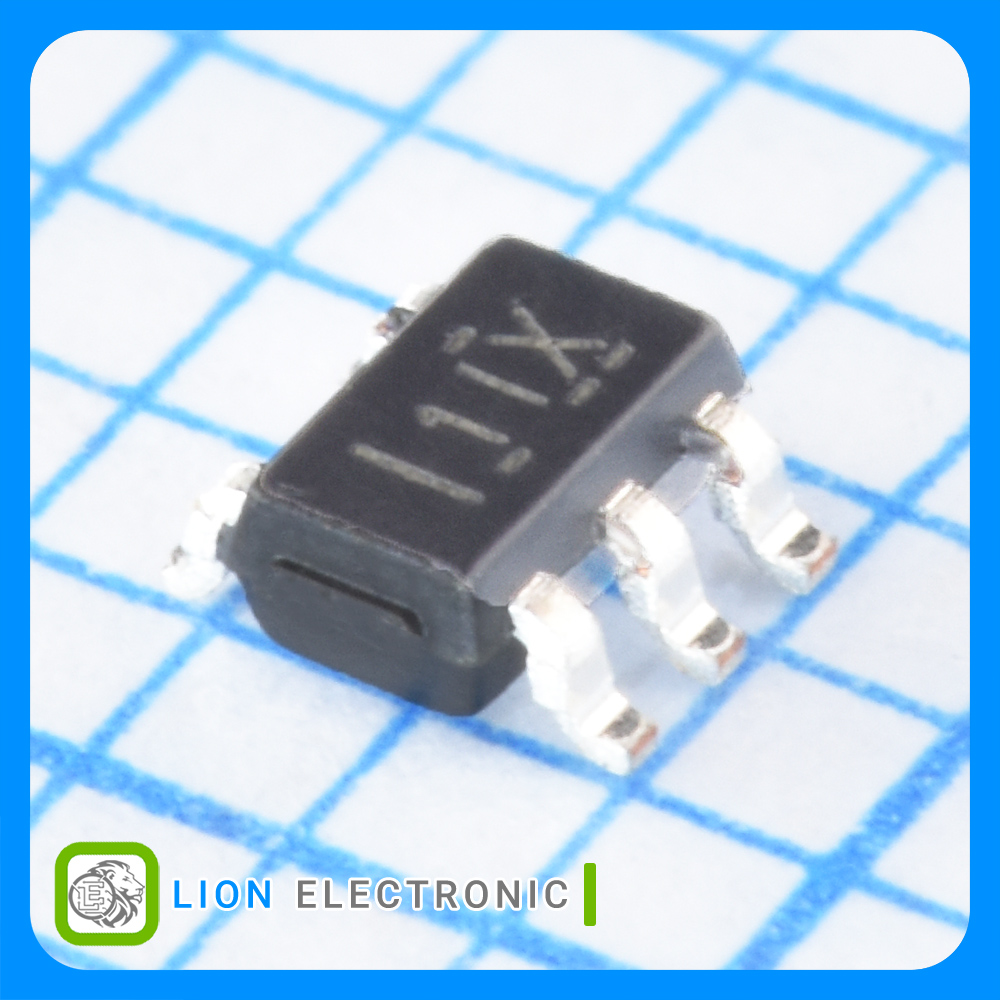

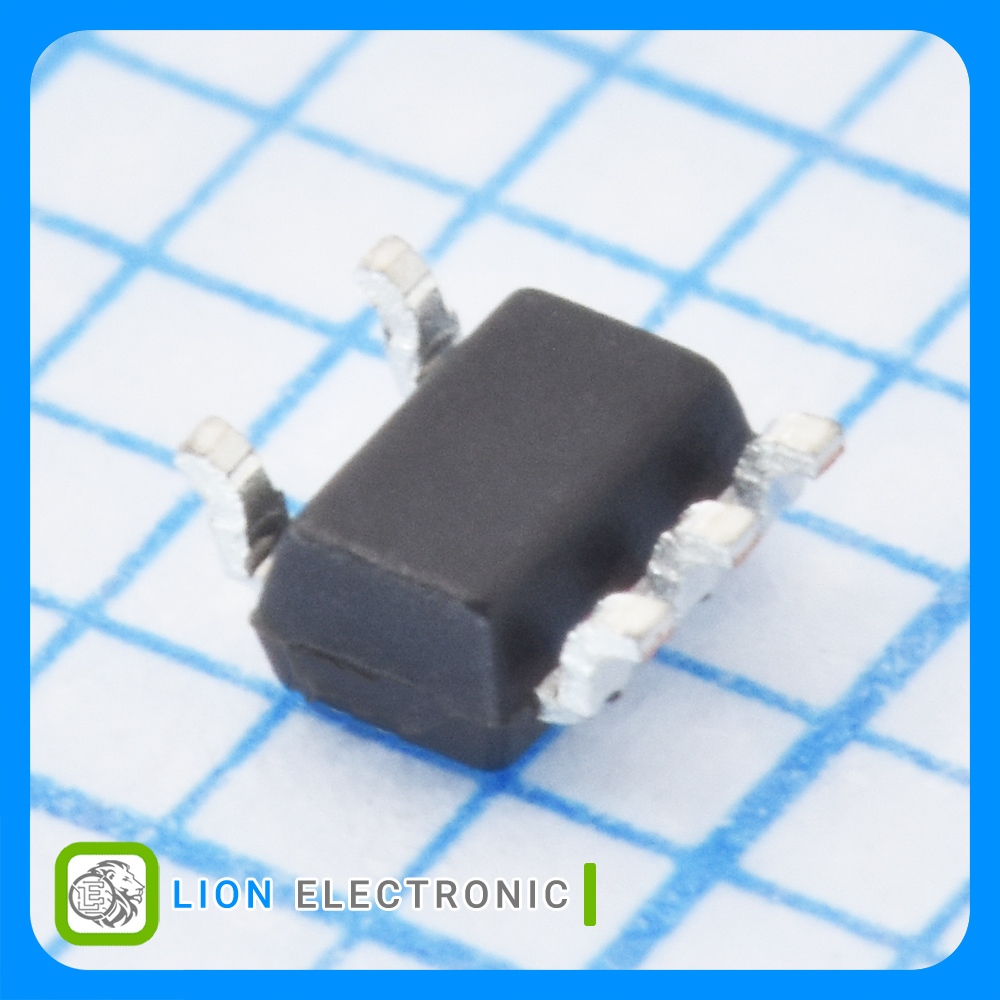

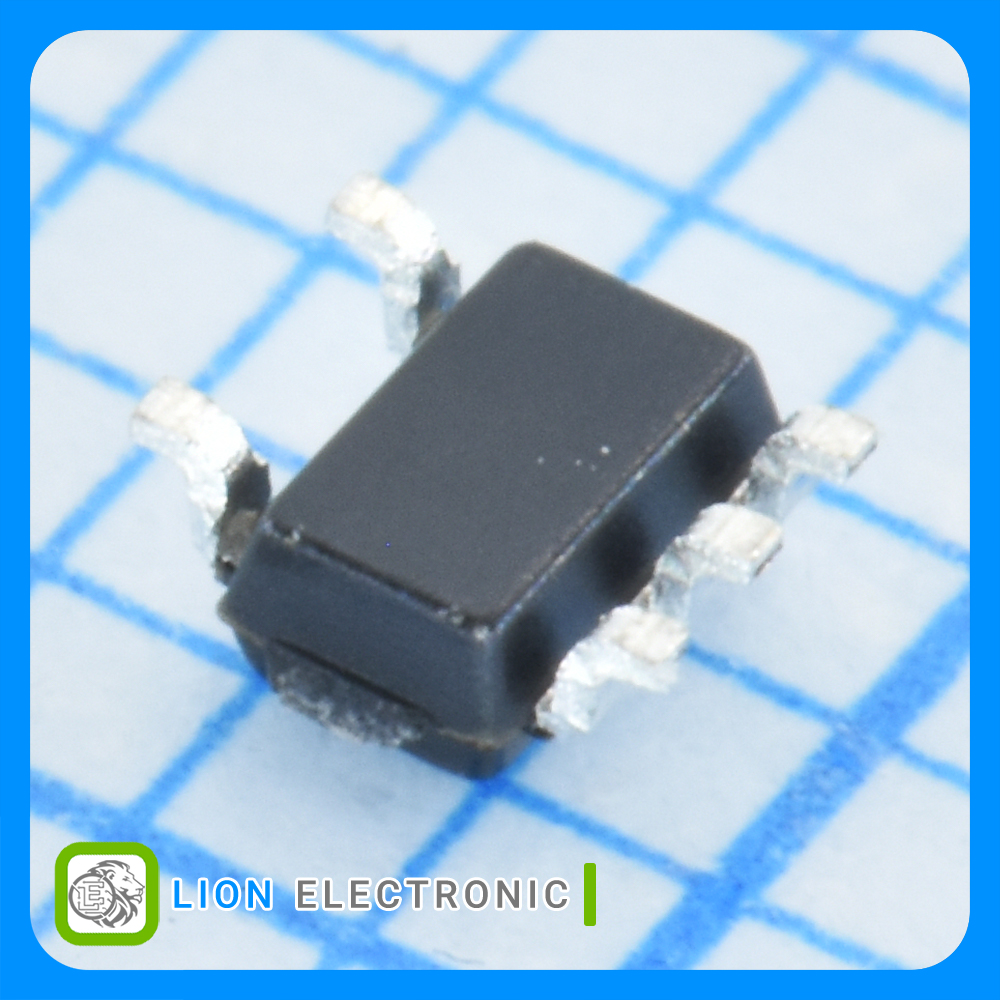

TPS92360DCKR
TPS92360DCKR
Part Number
4773
Lion Part
Datasheet
Texas Instruments Manufacture
درایور LED بوست کانورتر با ورودی 2.7 تا 5.5 ولت و خروجی تا 38 ولت 1.2 آمپر مناسب برای بکلایت LCD، پکیج SC-70-5
LED Driver Boost Topology, 2.7V to 5.5V Input, 38V 1.2A Switch Current Limit Single Channel LED Backlight Driver, SC-70-5 Package
معرفی
درایور LED بوست کانورتر با ورودی 2.7 تا 5.5 ولت و خروجی تا 38 ولت 1.2 آمپر مناسب برای بکلایت LCD، پکیج SC-70-5
LED Driver Boost Topology, 2.7V to 5.5V Input, 38V 1.2A Switch Current Limit Single Channel LED Backlight Driver, SC-70-5 Package
Specifications
- Features: PWM Dimming, Open LED Protection
- Topology: Boost
- Operating Frequency: 1.2MHz
- Output Voltage: 2.7 - 38V
- Input Voltage Min: 2.7V
- Input Voltage Max: 5.5V
- Mounting Style: SMD/SMT
- Package/Case: SC-70-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی LED درایور TPS92360DCKR

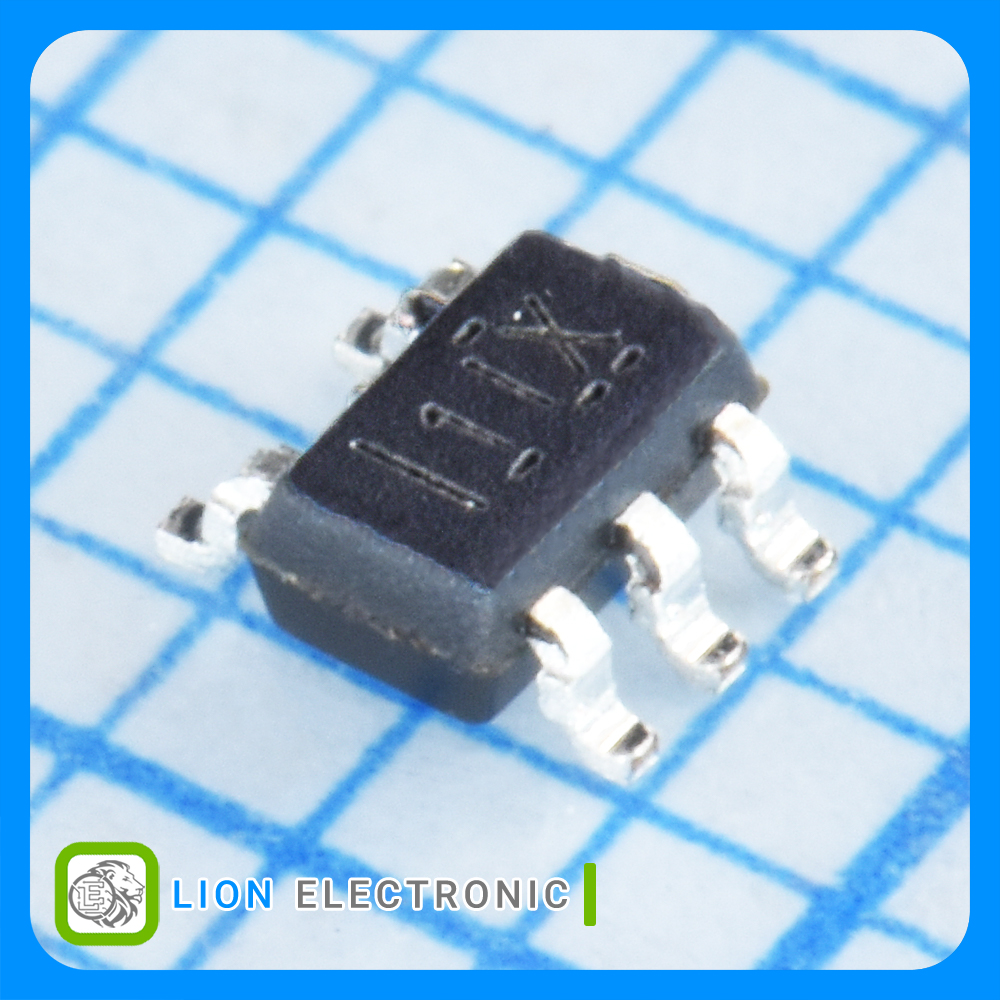

آیسی LED درایور TPS92360DCKR
Part Number
Boost
Topology
Reel
Packaging
-40C
Minimum Operating Temperature
PWM Dimming, Open LED Protection
Features
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
1.2MHz
Operating Frequency
2.7V
Input Voltage Min
N/A
Output Current
2.7 - 38V
Output Voltage
SC-70-5
Package-Case
