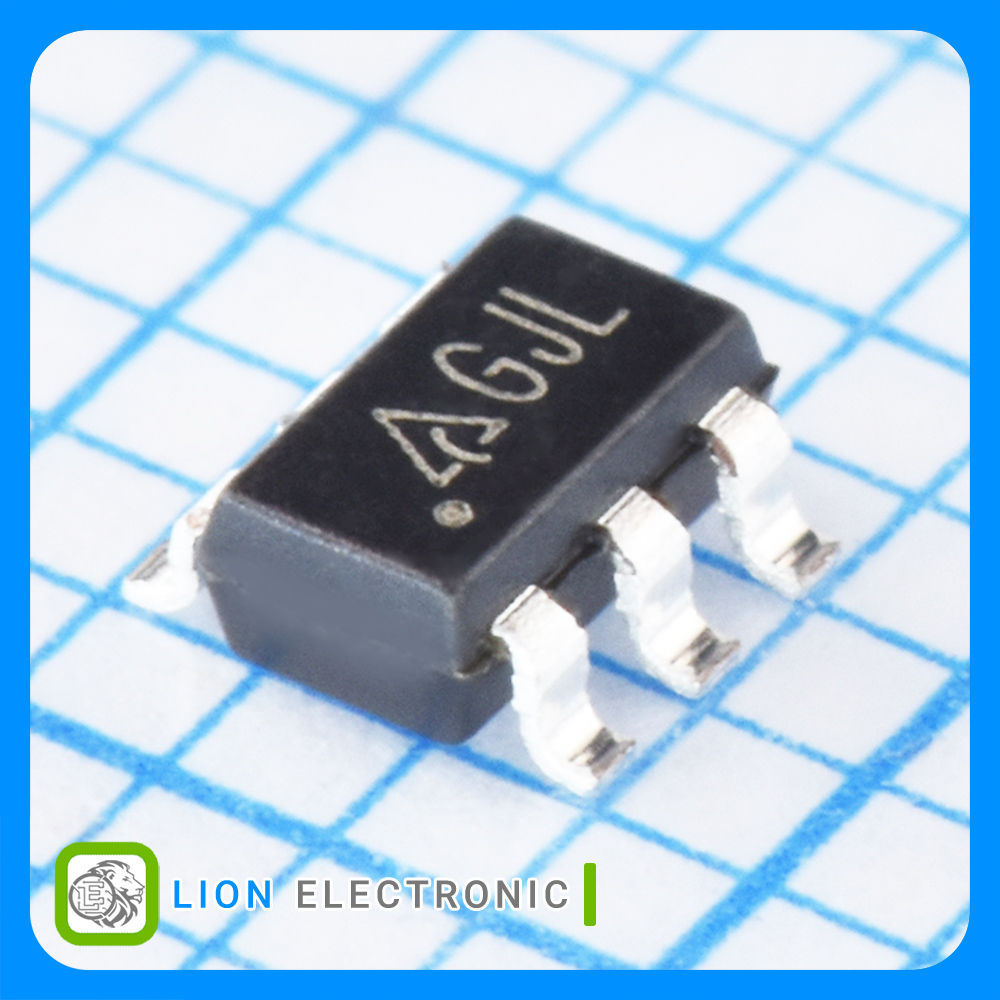

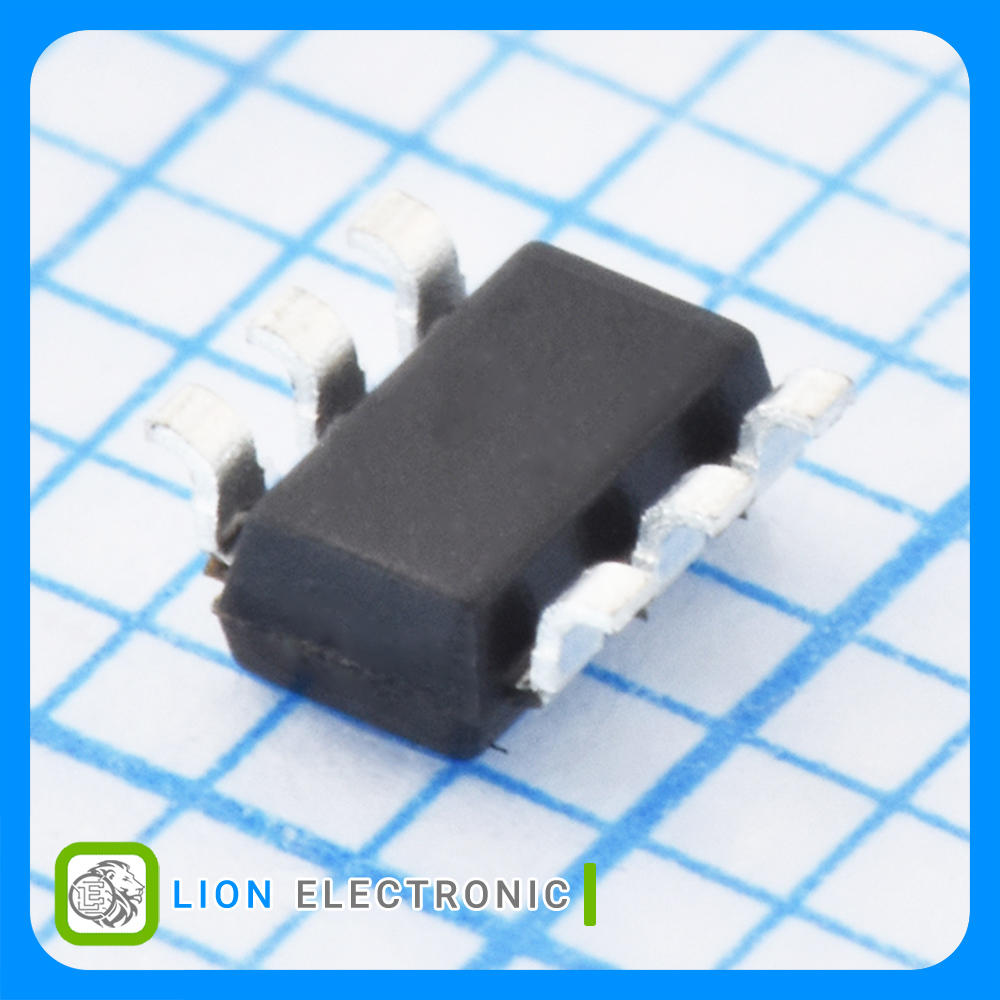

AP3032KTR-G1
AP3032KTR-G1
Part Number
4800
Lion Part
Datasheet
Diodes Incorporated Manufacture
درایور LED بوست کانورتر DC/DC مبتنی بر سلف، مناسب برای بکلایت LCD، ورودی 2.7 تا 9 ولت، با پکیج SOT-23-6
Inductor-based DC/DC Boost Converter LED Driver Designed to Drive up to 4 Rows of LEDs with 7 Series, 2.7V to 9V Input, with SOT-23-6 Package
معرفی
درایور LED بوست کانورتر DC/DC مبتنی بر سلف، مناسب برای بکلایت LCD، ورودی 2.7 تا 9 ولت، با پکیج SOT-23-6
Inductor-based DC/DC Boost Converter LED Driver Designed to Drive up to 4 Rows of LEDs with 7 Series, 2.7V to 9V Input, with SOT-23-6 Package
Specifications
- Features: PWM Dimming, Open LED Protection
- Topology: Boost
- Operating Frequency: 750kHz - 1.3MHz
- Output Voltage: 37 - 38V
- Input Voltage Min: 2.7V
- Input Voltage Max: 9V
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آیسی LED درایور بوست AP3032KTR-G1
آیسی LED درایور بوست AP3032KTR-G1
Part Number
Boost
Topology
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
PWM Dimming, Open LED Protection
Features
+85C
Maximum Operating Temperature
9V
Input Voltage Max
750kHz - 1.3MHz
Operating Frequency
2.7V
Input Voltage Min
N/A
Output Current
37 - 38V
Output Voltage
SOT-23-6
Package-Case
