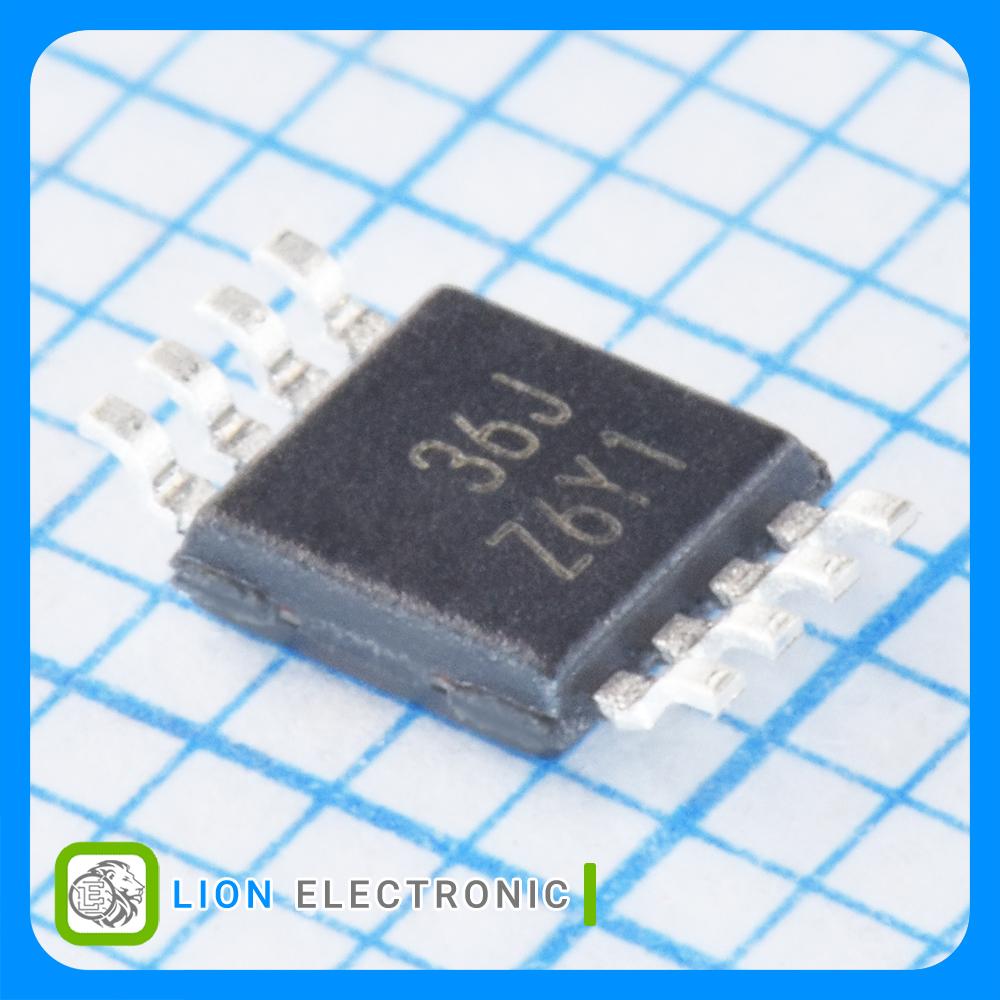

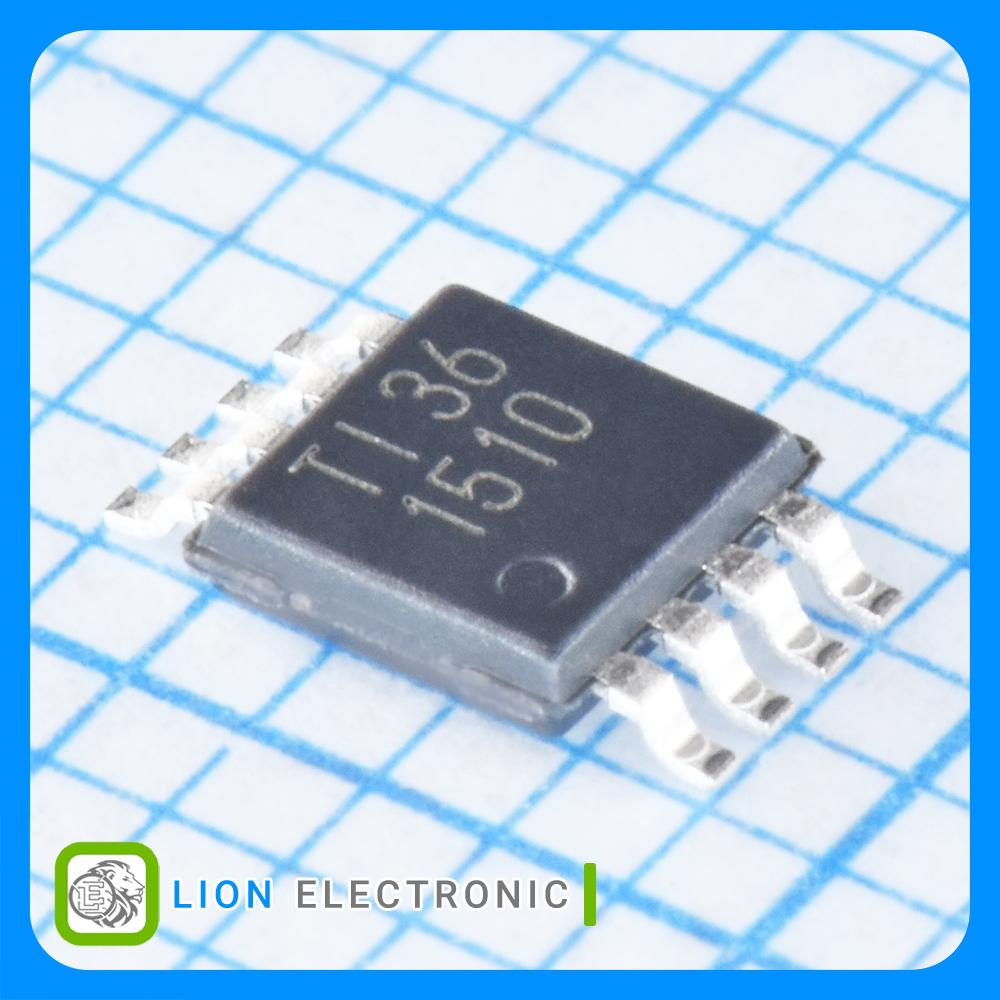

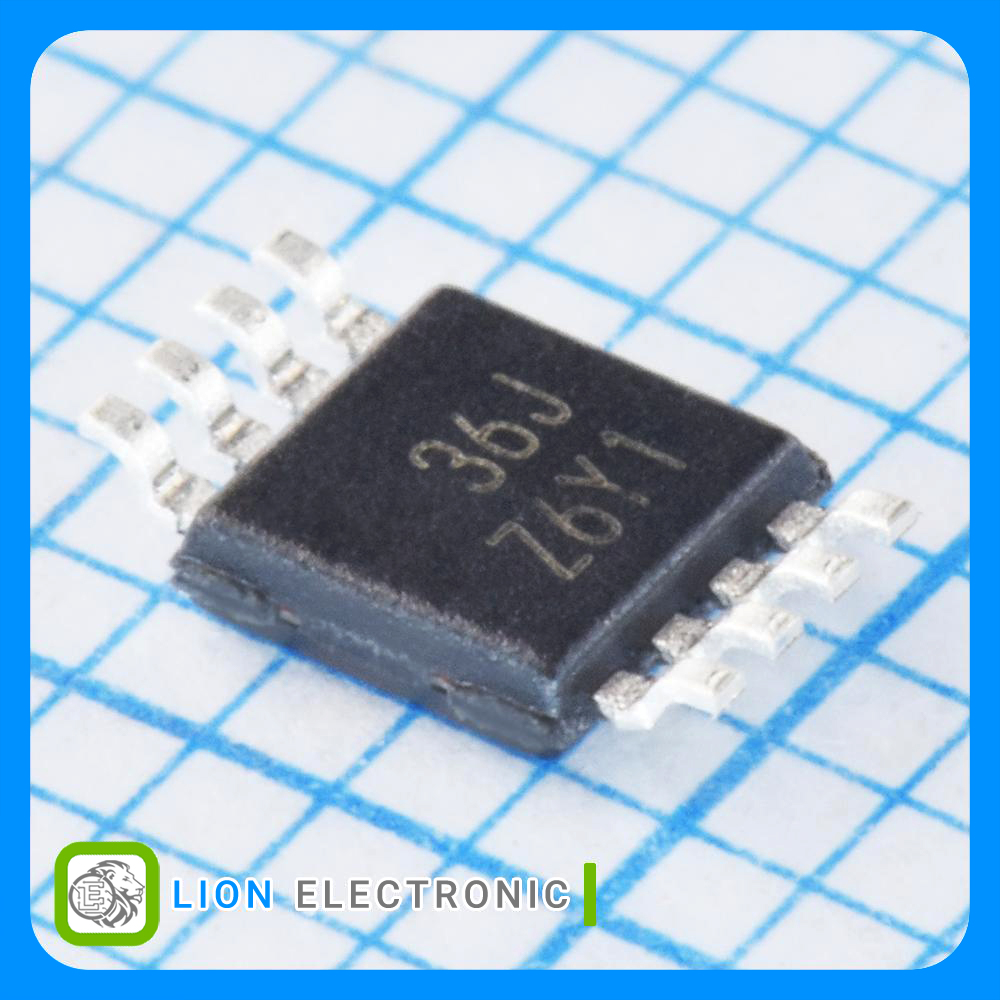

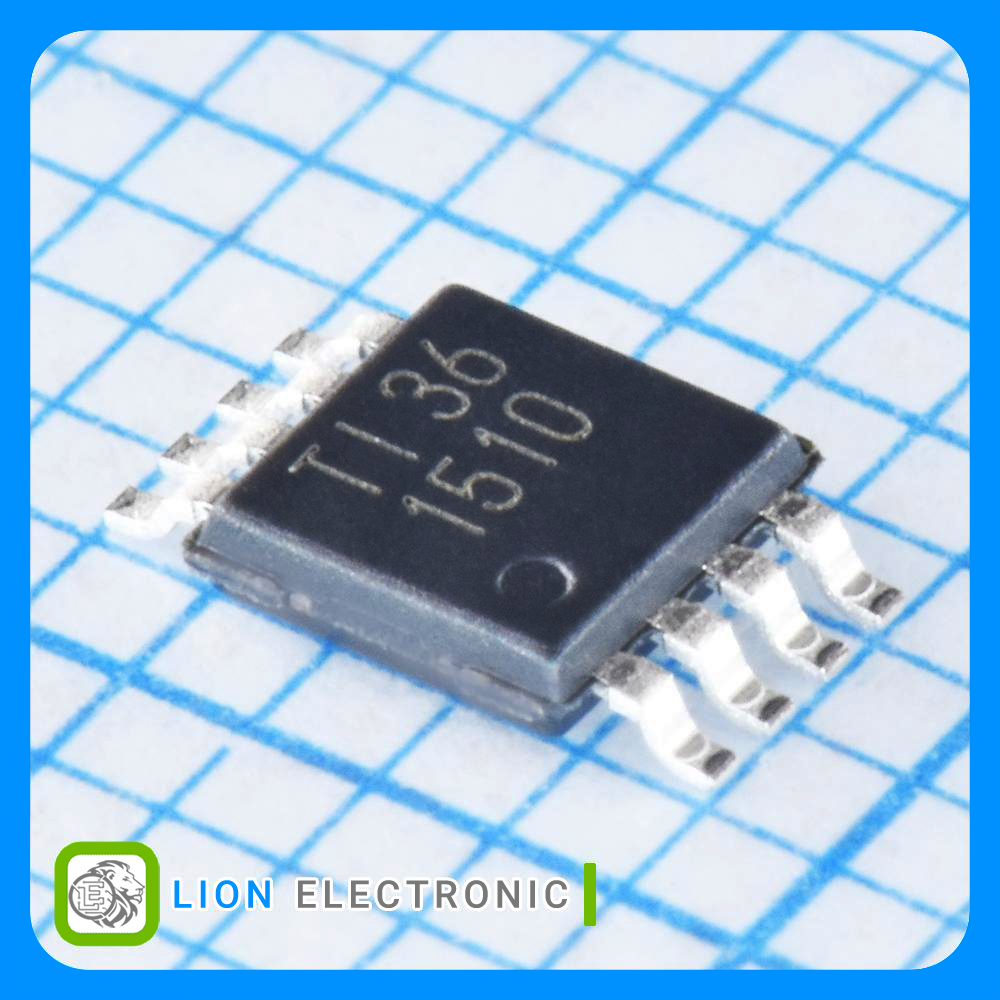

THVD1510DGKR
THVD1510DGKR
Part Number
4833
Lion Part
Datasheet
Texas Instruments Manufacture
ترنسیور RS-485 کممصرف 500kbps نیمهدوطرفه با حفاظت ESD تا ±18 کیلوولت IEC و هیسترزیس بزرگ گیرنده برای حذف نویز، تغذیه 4.5 تا 5.5 ولت با پکیج VSSOP-8
Low Power RS-485 Transceiver 500kbps, Half Duplex, with ±18kV IEC ESD Protection and Large Receiver Hysteresis for Noise Rejection, 4.5V to 5.5V, with VSSOP-8 Package
معرفی
ترنسیور RS-485 کممصرف 500kbps نیمهدوطرفه با حفاظت ESD تا ±18 کیلوولت IEC و هیسترزیس بزرگ گیرنده برای حذف نویز، تغذیه 4.5 تا 5.5 ولت با پکیج VSSOP-8
Low Power RS-485 Transceiver 500kbps, Half Duplex, with ±18kV IEC ESD Protection and Large Receiver Hysteresis for Noise Rejection, 4.5V to 5.5V, with VSSOP-8 Package
Specifications
- Product Type: RS-485 Interface IC
- Number of Drivers: 1
- Number of Receivers: 1
- Data Rate: 500kb/s
- Duplex: Half Duplex
- Function: Transceiver
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 700uA
- Mounting Style: SMD/SMT
- Package/Case: VSSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات THVD1510DGKR
THVD1510DGKR
Part Number
1
Number of Drivers
1
Number of Receivers
Half Duplex
Duplex
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Transceiver
Function
500kb/s
Data Rate
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
4.5V
Supply Voltage - Min
RS-485 Interface IC
Product Type
700uA
Operating Supply Current
VSSOP-8
Package-Case
