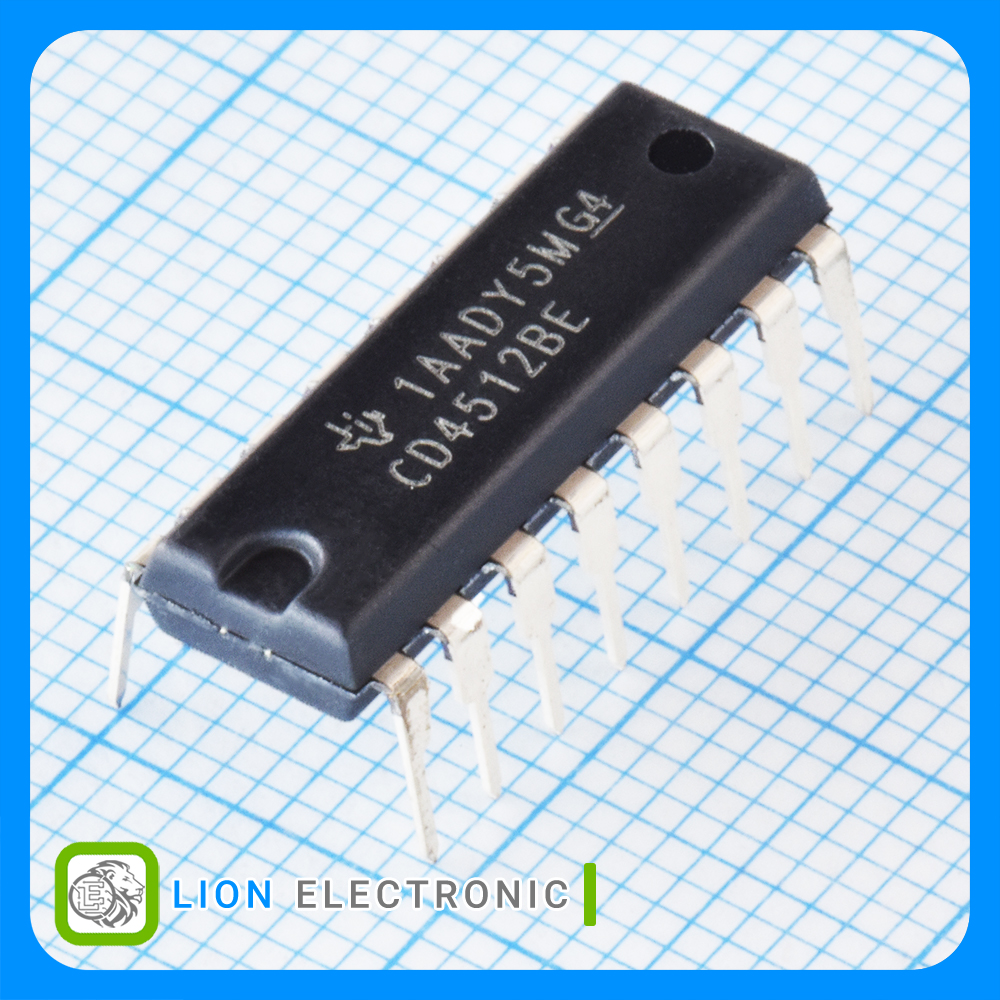

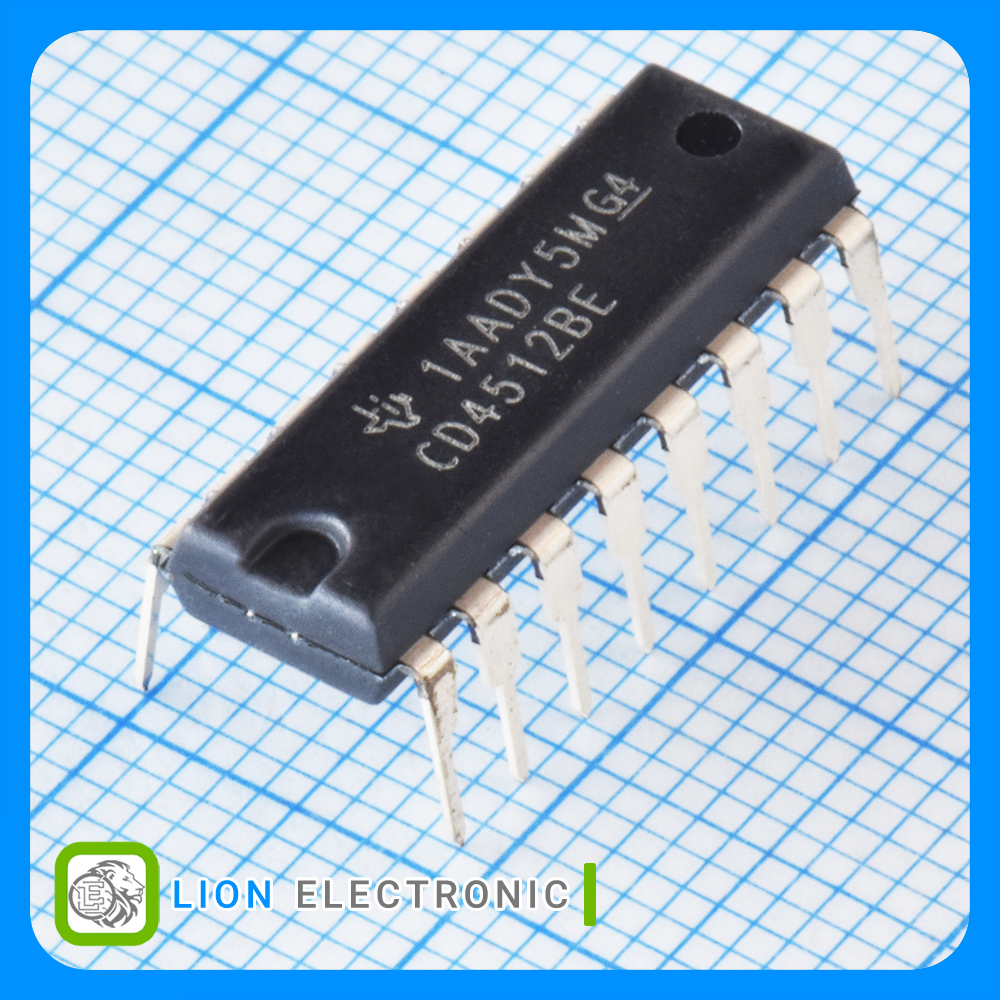

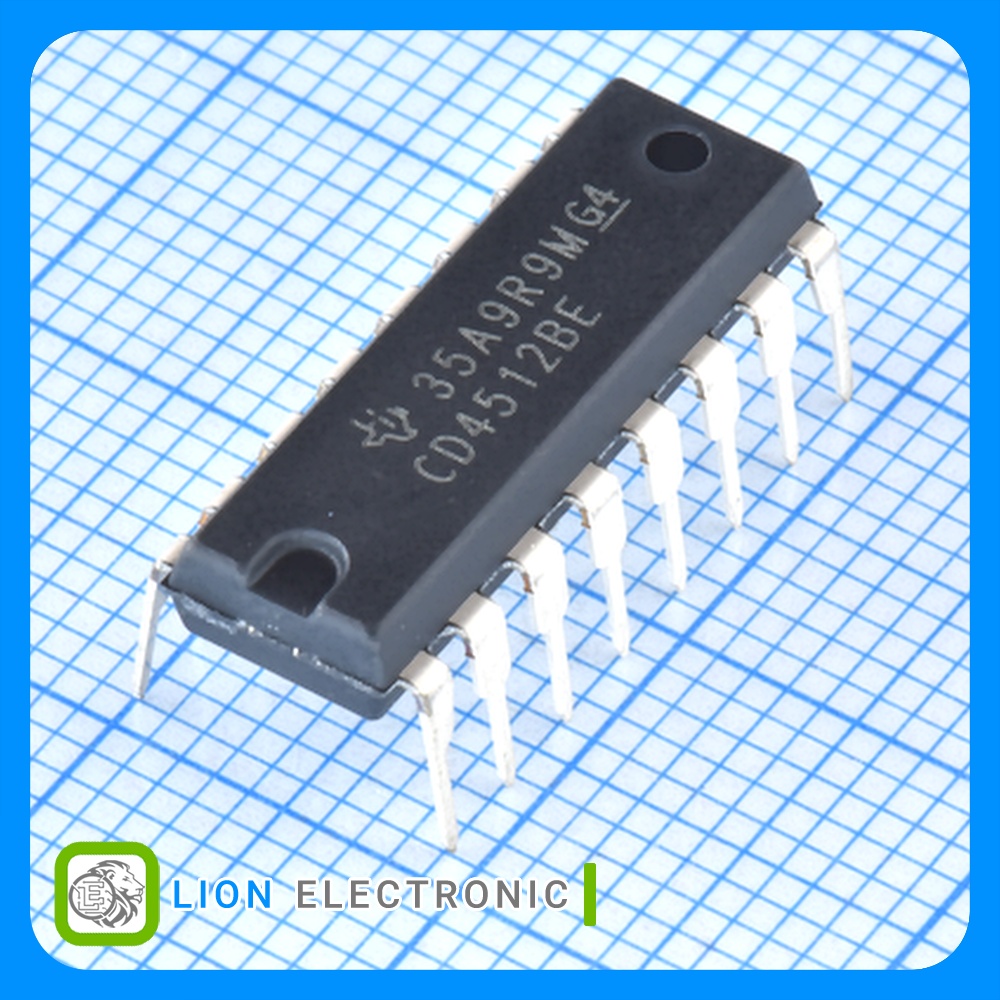

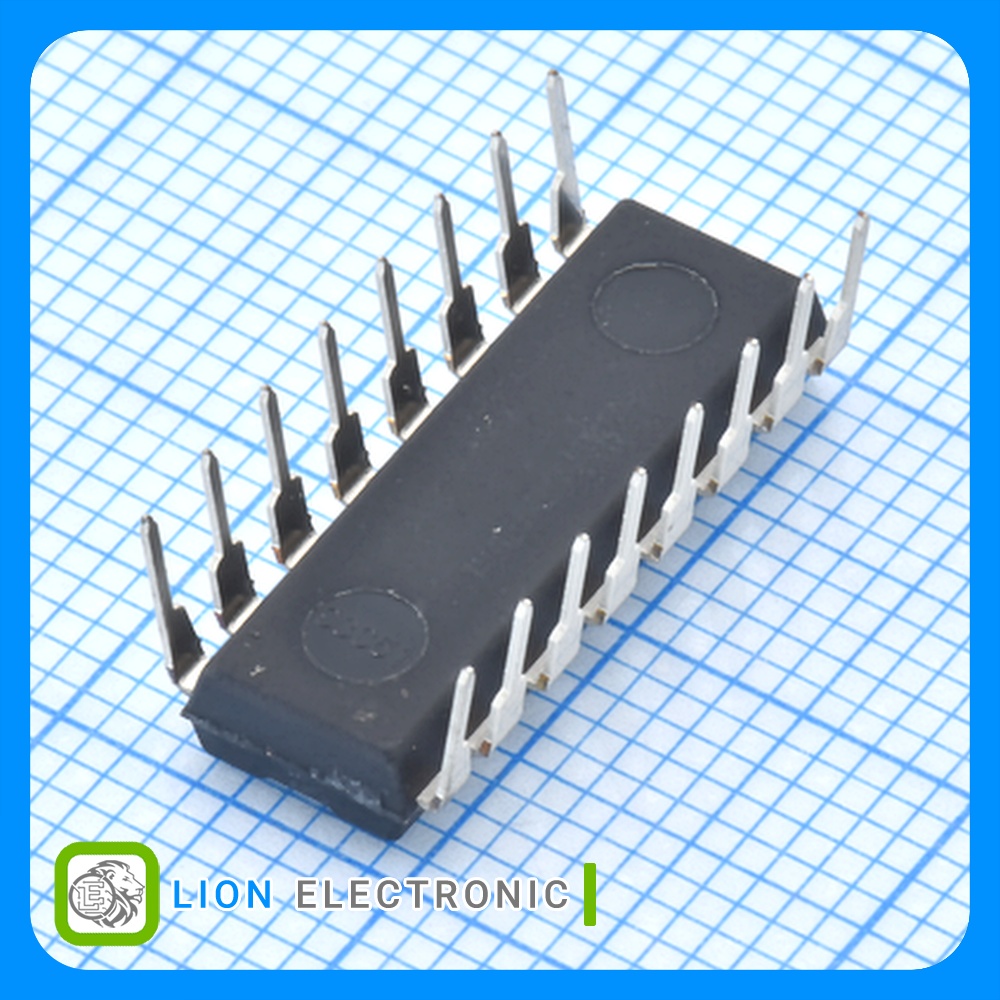

CD4512BE
CD4512BE
Part Number
484
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی سلکتور داده 8 کاناله ولتاژ بالا CMOS با 8 ورودی، ولتاژ 3 تا 18 ولت با پکیج DIP-16
CMOS 8-Channel High Voltage Data Selector, 8 Input Lines, 3V - 18V Supply with DIP-16 Package
معرفی
آیسی سلکتور داده 8 کاناله ولتاژ بالا CMOS با 8 ورودی، ولتاژ 3 تا 18 ولت با پکیج DIP-16
CMOS 8-Channel High Voltage Data Selector, 8 Input Lines, 3V - 18V Supply with DIP-16 Package
Specifications
- Logic Family: CD4000
- Logic Type: Data Selector
- Number of Input Lines: 8
- Number of Output Lines: 1
- Supply Voltage - Max: 18V
- Supply Voltage - Min: 3V
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات CD4512BE
CD4512BE
Part Number
1
Number of Output Lines
-55C
Minimum Operating Temperature
80nA
Quiescent Current
Multiplexer
Function
CD4000
Logic Family
8
Number of Input Lines
Tube
Packaging
Through Hole
Mounting Style
Data Selector
Logic Type
+125C
Maximum Operating Temperature
140ns
Propagation Delay Time
3V
Supply Voltage - Min
18V
Supply Voltage - Max
DIP-16
Package-Case
3 - 18V
Operating Supply Voltage
