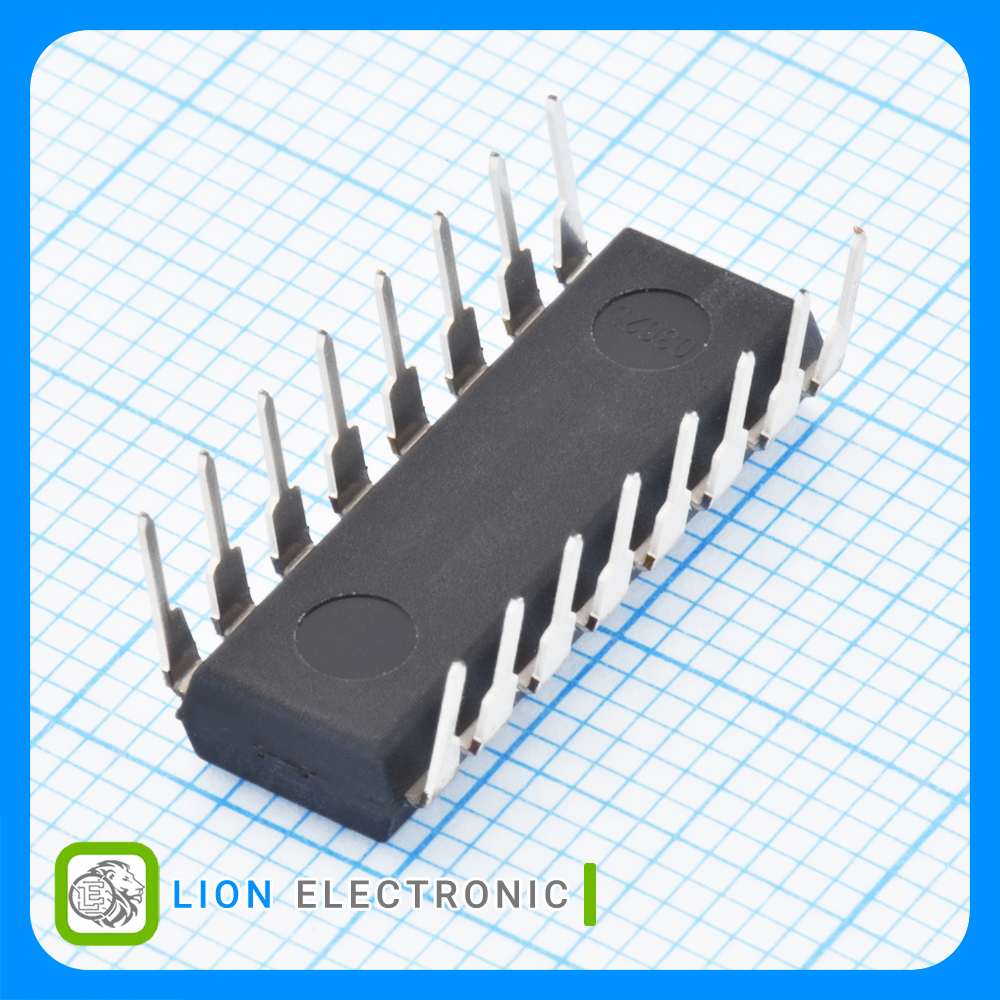

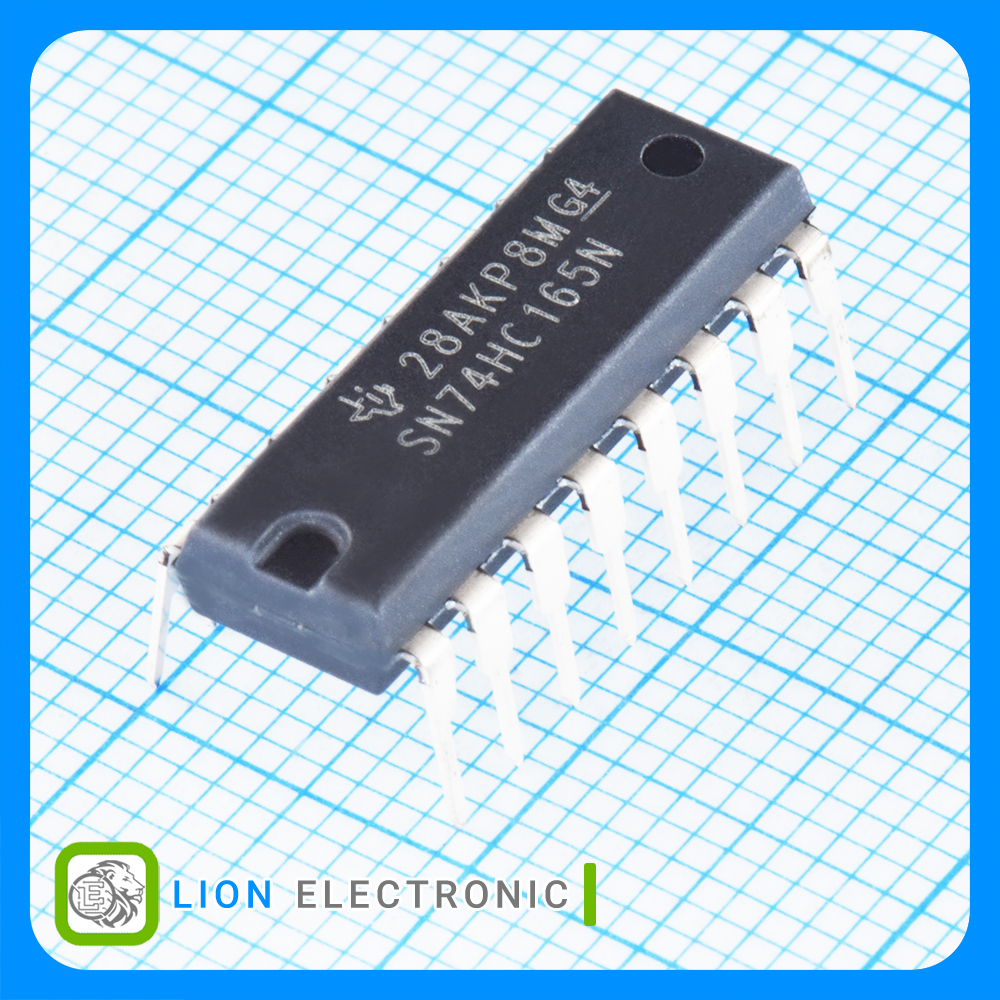

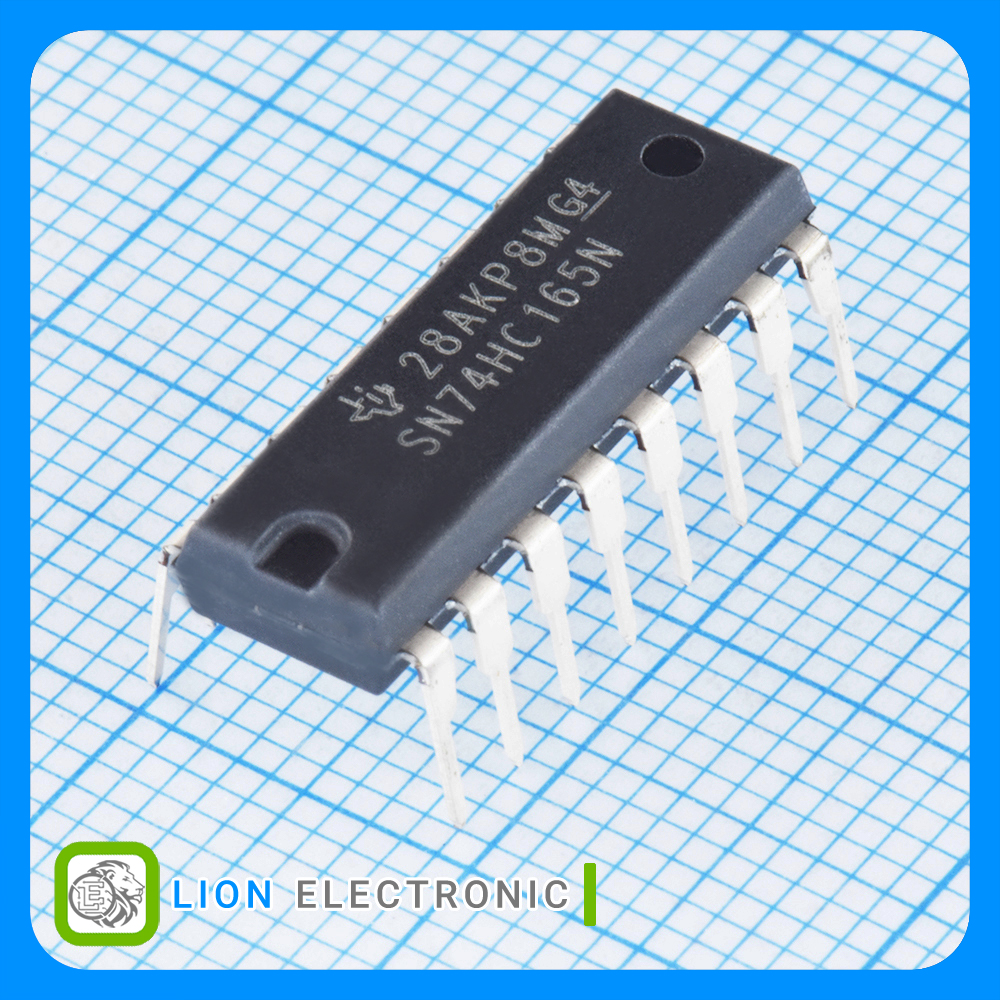

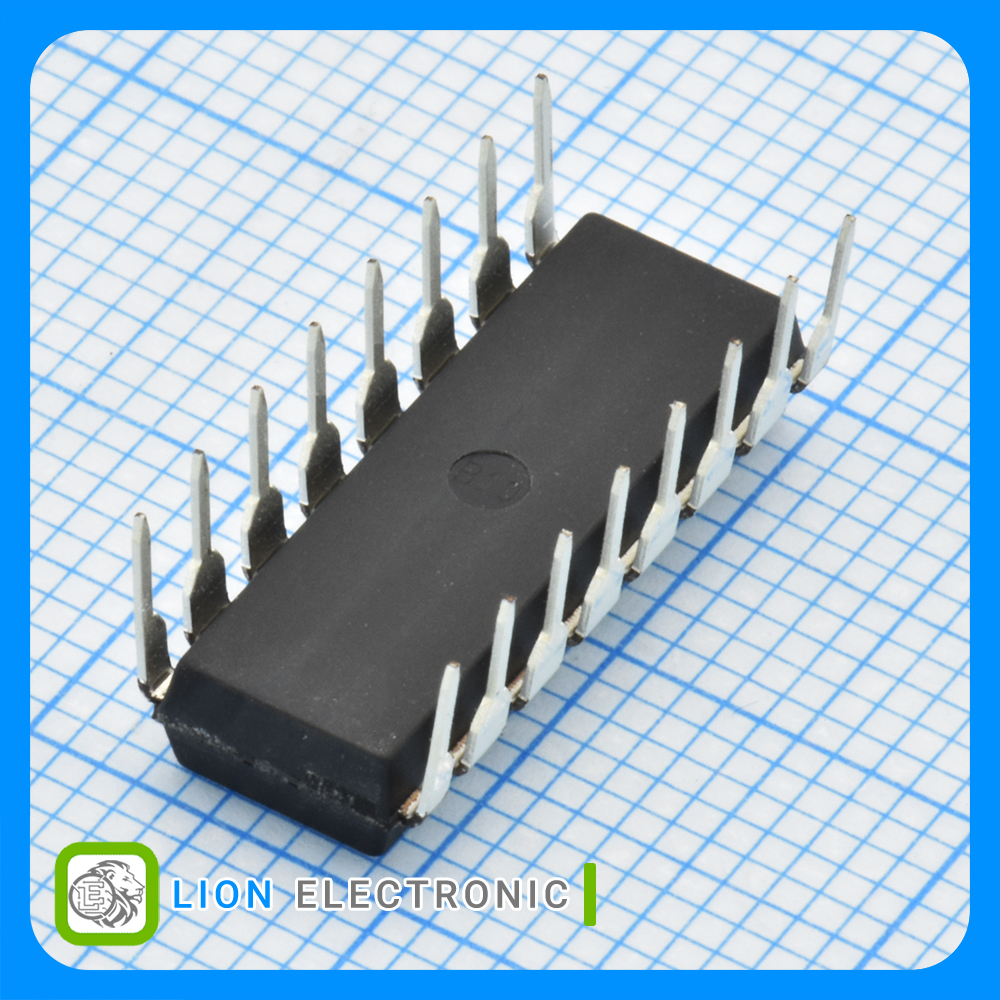

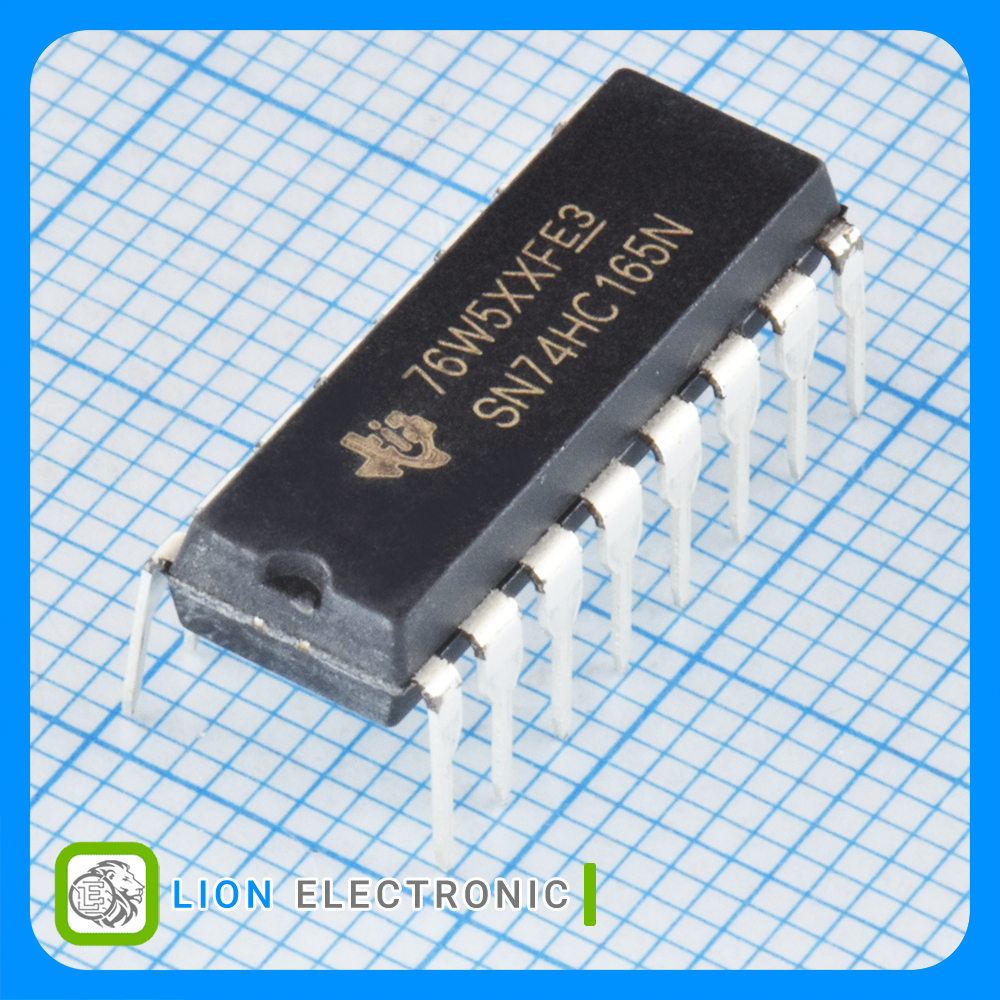

SN74HC165N
SN74HC165N
Part Number
488
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک شیفت رجیستر 8 بیتی با ورودی داده موازی و خروجی سریال با 9 ورودی ولتاژ 2 تا 6 ولت با پکیج DIP-16
Logic IC Shift Register, High Speed CMOS 8-Bit Parallel-In/Serial-Out Shift Register, 9 Input Lines, 2V - 6V Supply with DIP-16 Package
معرفی
آیسی لاجیک شیفت رجیستر 8 بیتی با ورودی داده موازی و خروجی سریال با 9 ورودی ولتاژ 2 تا 6 ولت با پکیج DIP-16
Logic IC Shift Register, High Speed CMOS 8-Bit Parallel-In/Serial-Out Shift Register, 9 Input Lines, 2V - 6V Supply with DIP-16 Package
Specifications
- Logic Family: HC
- Logic Type: Shift Register
- Number of Input Lines: 9
- Number of Output Lines: 1
- Supply Voltage - Max: 6V
- Supply Voltage - Min: 2V
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات SN74HC165N
SN74HC165N
Part Number
1
Number of Output Lines
8Bit Parallel Load
Function
-40C
Minimum Operating Temperature
HC
Logic Family
Tube
Packaging
9
Number of Input Lines
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
150ns
Propagation Delay Time
2V
Supply Voltage - Min
Shift Register
Logic Type
6V
Supply Voltage - Max
2 - 6V
Operating Supply Voltage
DIP-16
Package-Case
