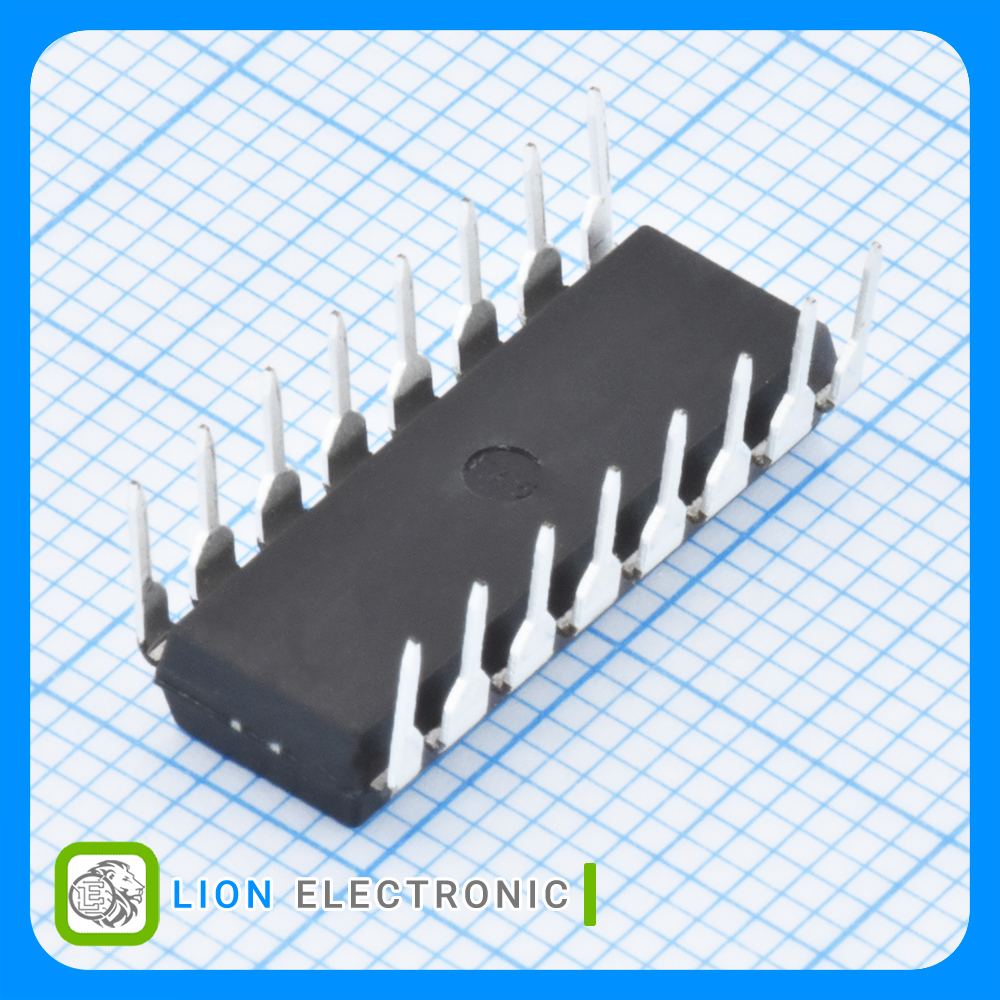

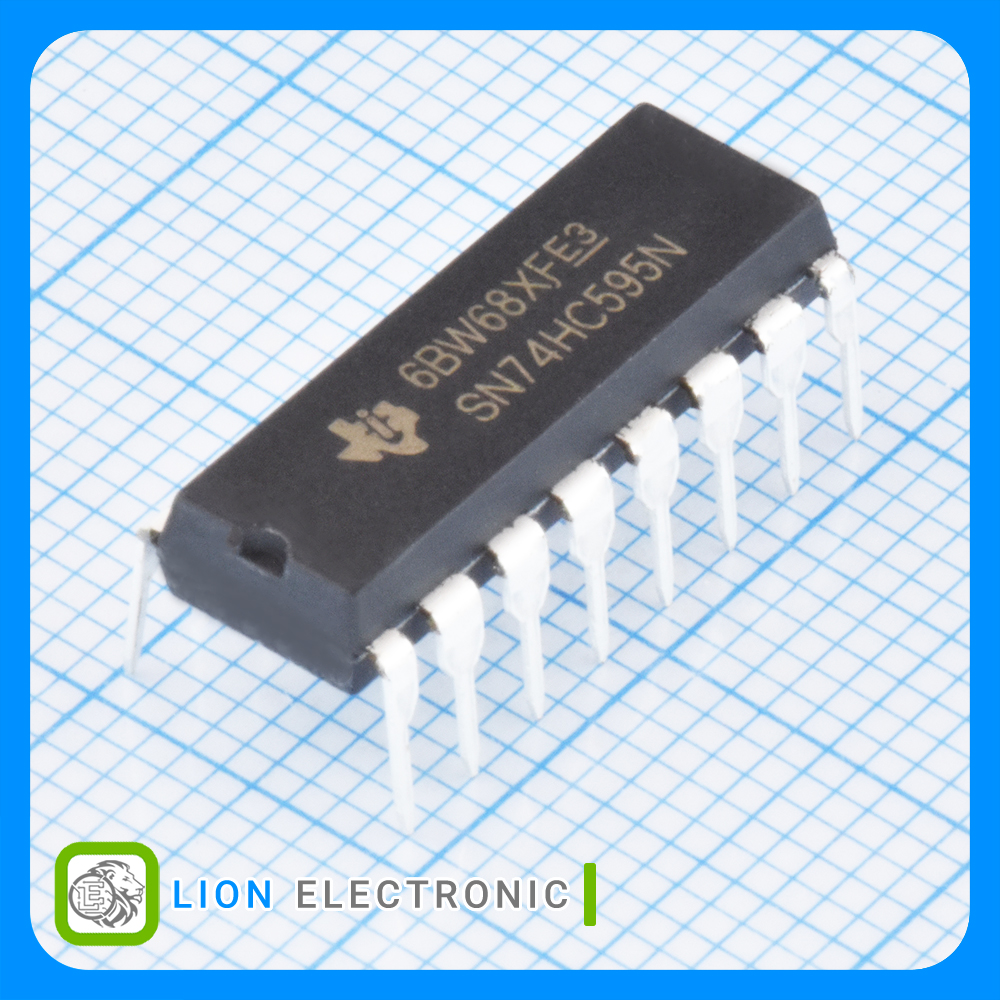

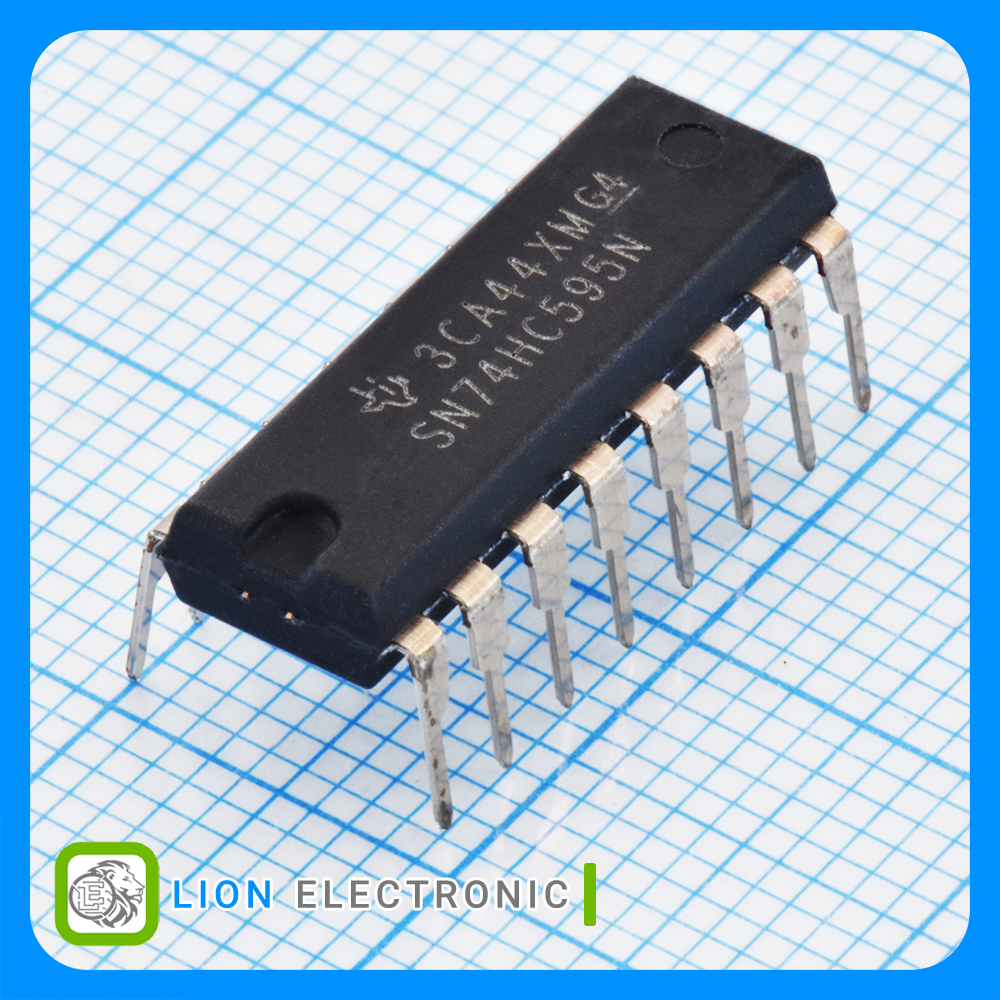

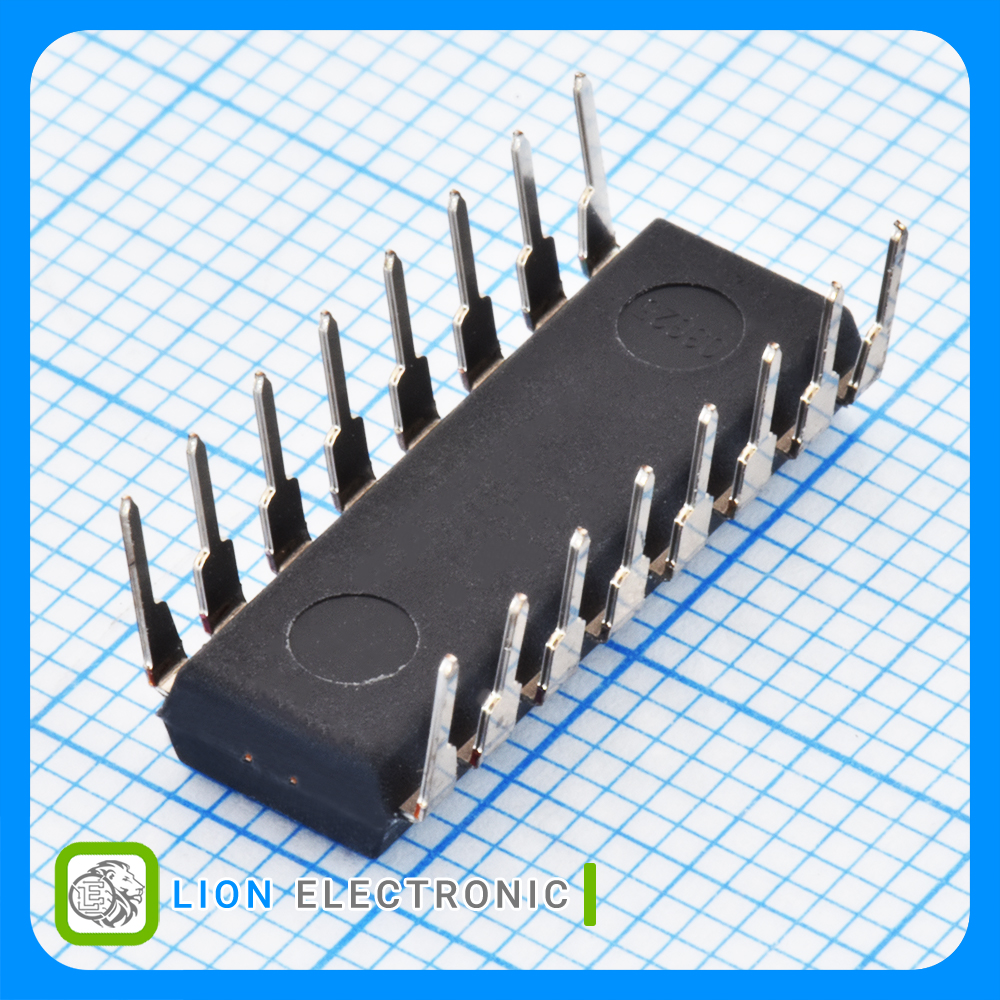

SN74HC595N
SN74HC595N
Part Number
489
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک شیفت رجیستر 8 بیتی با ورودی سریال و خروجی 3 وضعیتی با 5/10 ورودی ولتاژ 2 تا 6 ولت با پکیج DIP-16
Logic IC Shift Register, 8-Bit Shift Register with 3-State Output Register, 5/10 Input Lines, 2V - 6V Supply with DIP-16 Package
معرفی
آیسی لاجیک شیفت رجیستر 8 بیتی با ورودی سریال و خروجی 3 وضعیتی با 5/10 ورودی ولتاژ 2 تا 6 ولت با پکیج DIP-16
Logic IC Shift Register, 8-Bit Shift Register with 3-State Output Register, 5/10 Input Lines, 2V - 6V Supply with DIP-16 Package
Specifications
- Logic Family: HC
- Logic Type: Shift Register
- Number of Input Lines: 5/10
- Number of Output Lines: 10
- Supply Voltage - Max: 6V
- Supply Voltage - Min: 2V
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات SN74HC595N
SN74HC595N
Part Number
3-State
Output Type
5/10
Number of Input Lines
-40C
Minimum Operating Temperature
10
Number of Output Lines
HC
Logic Family
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
2V
Supply Voltage - Min
Shift Register
Logic Type
6V
Supply Voltage - Max
2 - 6V
Operating Supply Voltage
DIP-16
Package-Case
