TOSHIBA
معرفی
ماسفت N-CH با ولتاژ 60 ولت و جریان 2 آمپر با پکیج UDFN-6
N-CH MOSFET 60V, 2A with UDFN-6 Package
Specifications
- Package/Case: UDFN-6
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 2A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 800mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 220mΩ
- Pd - Power Dissipation: 500mW
- Qg - Gate Charge: 6nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت SSM6K407TU

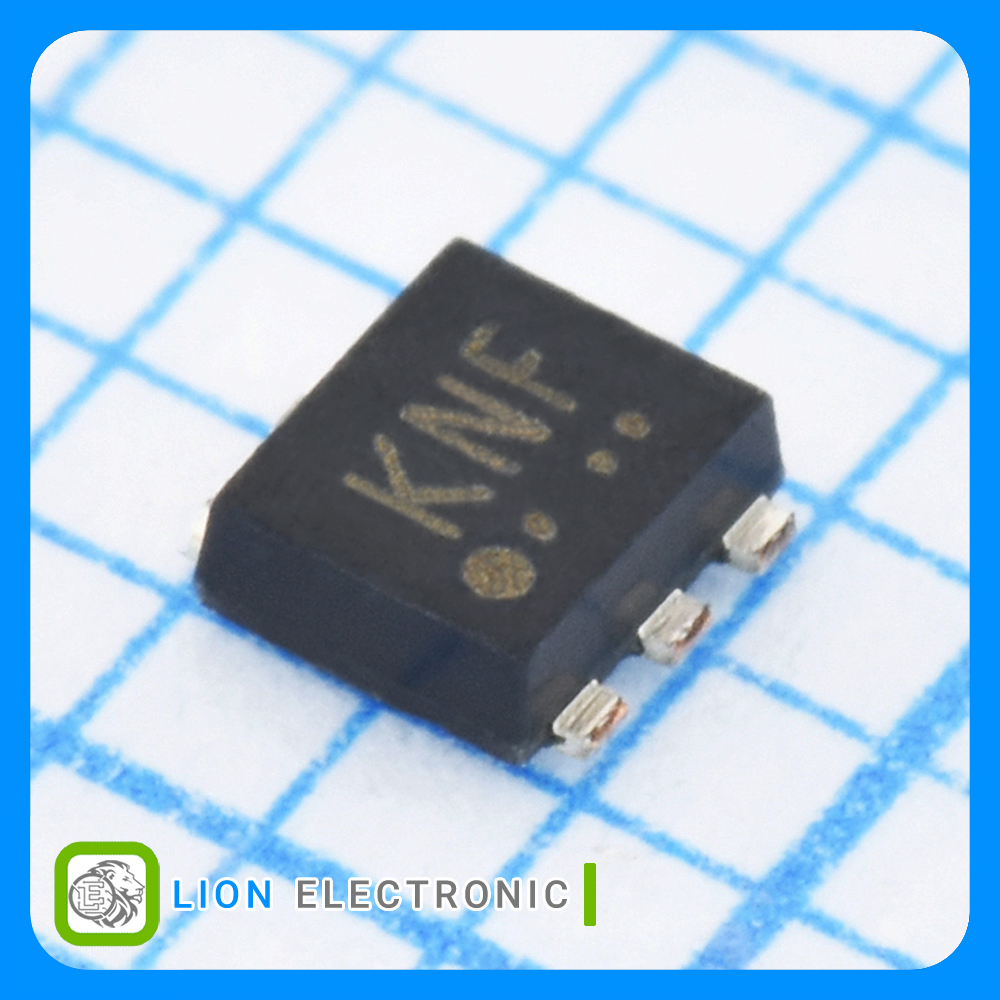

ماسفت SSM6K407TU
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
6nC
Qg - Gate Charge
+150C
Maximum Operating Temperature
800mV
Vgs th - Gate - Source Threshold Voltage
500mW
Pd - Power Dissipation
2A
Id - Continuous Drain Current
220mΩ
Rds On - Drain - Source Resistance
UDFN-6
Package-Case
