TOSHIBA
معرفی

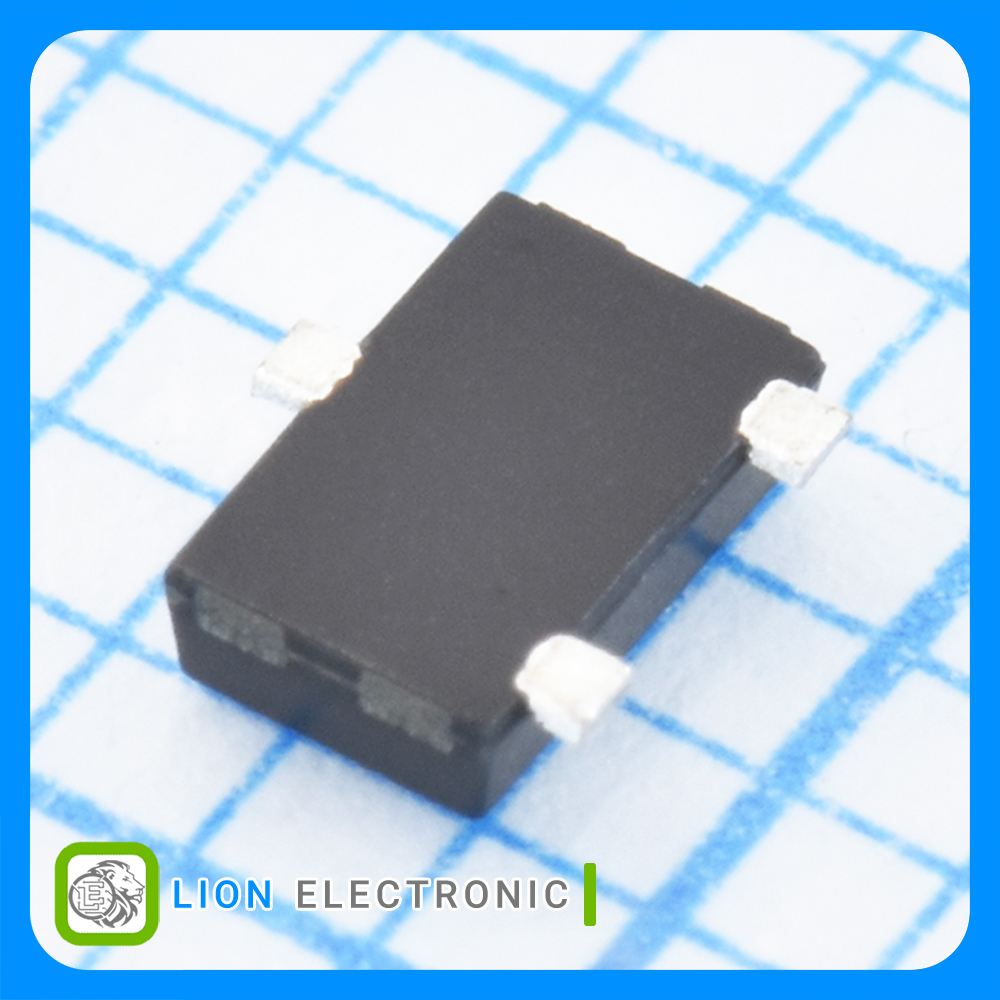

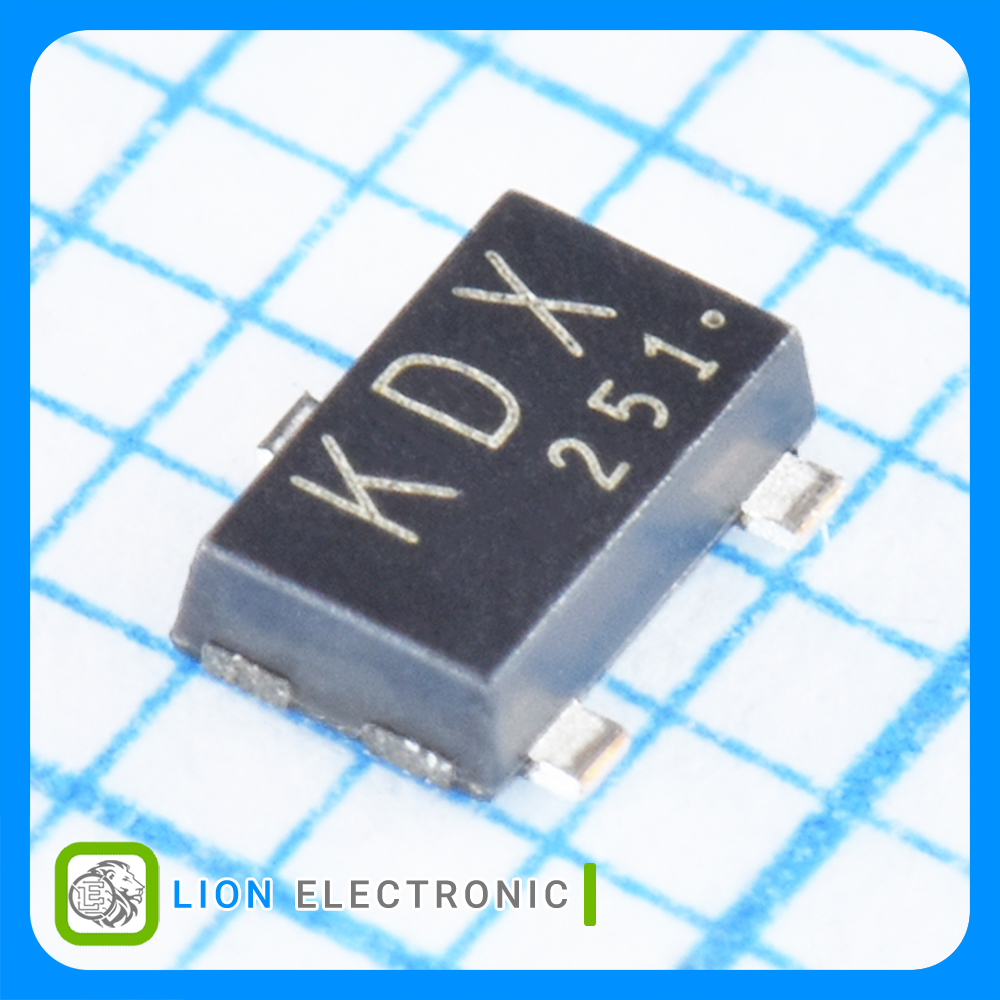

ماسفت N-CH با ولتاژ 60 ولت و جریان 2.5 آمپر با پکیج SOT-23F
N-CH MOSFET 60V, 2.5A with SOT-23F Package
Specifications
- Package/Case: SOT-23F
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 2.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.8V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 83.5mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 7nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت SSM3K318R
ماسفت SSM3K318R
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
7nC
Qg - Gate Charge
1.8V
Vgs th - Gate - Source Threshold Voltage
2.5A
Id - Continuous Drain Current
2W
Pd - Power Dissipation
83.5mΩ
Rds On - Drain - Source Resistance
SOT-23F
Package-Case
