TOSHIBA
معرفی

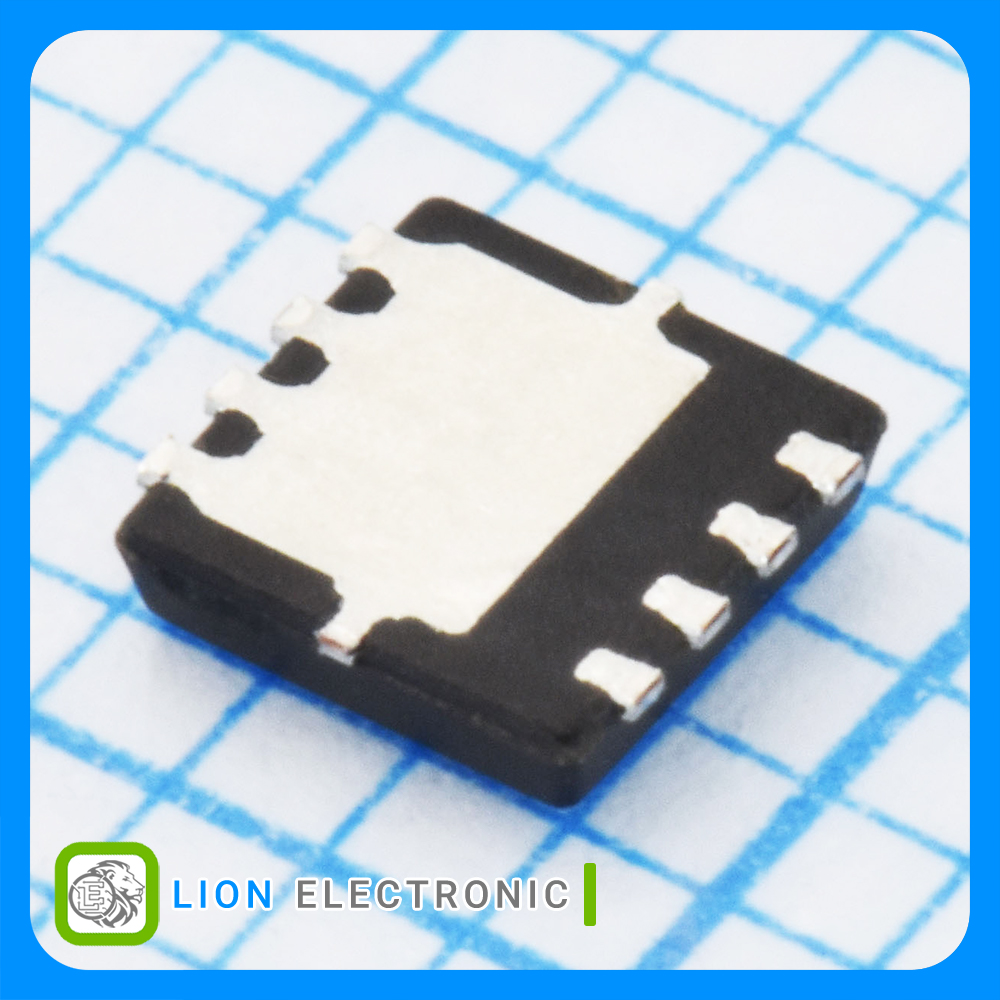

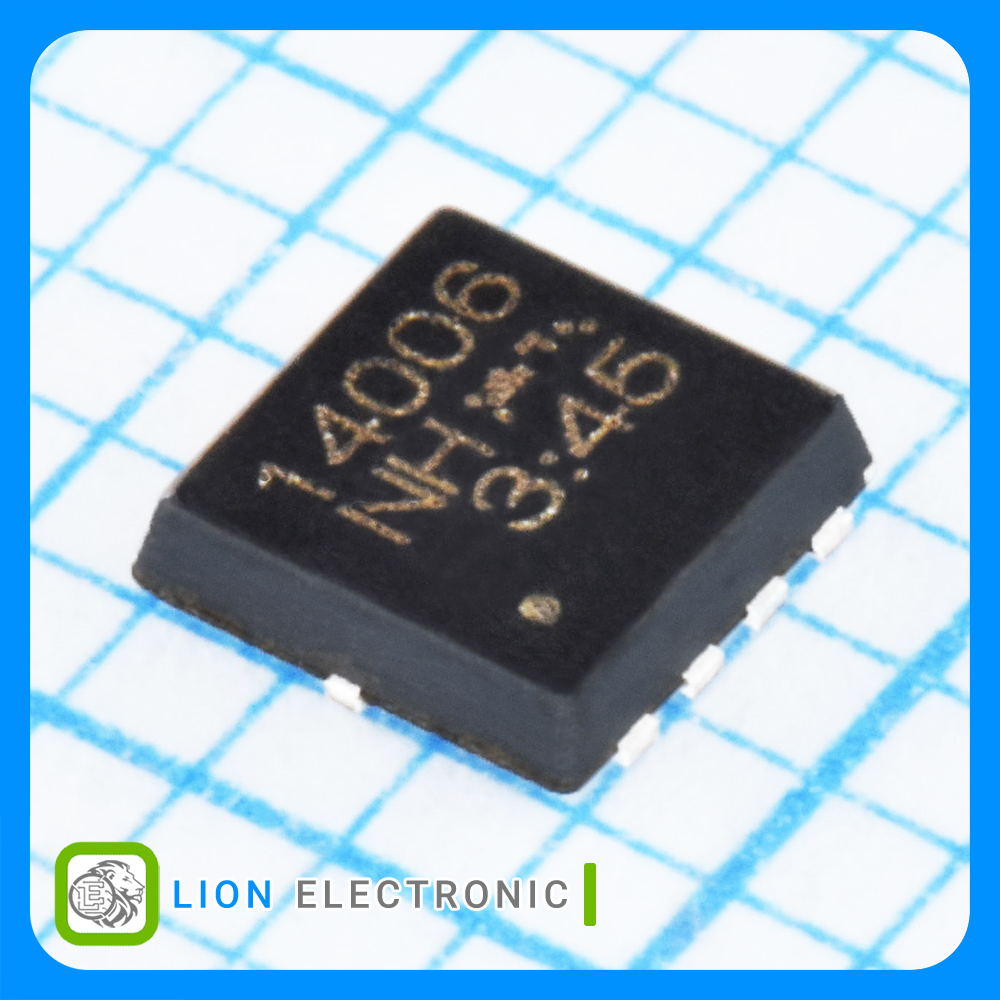

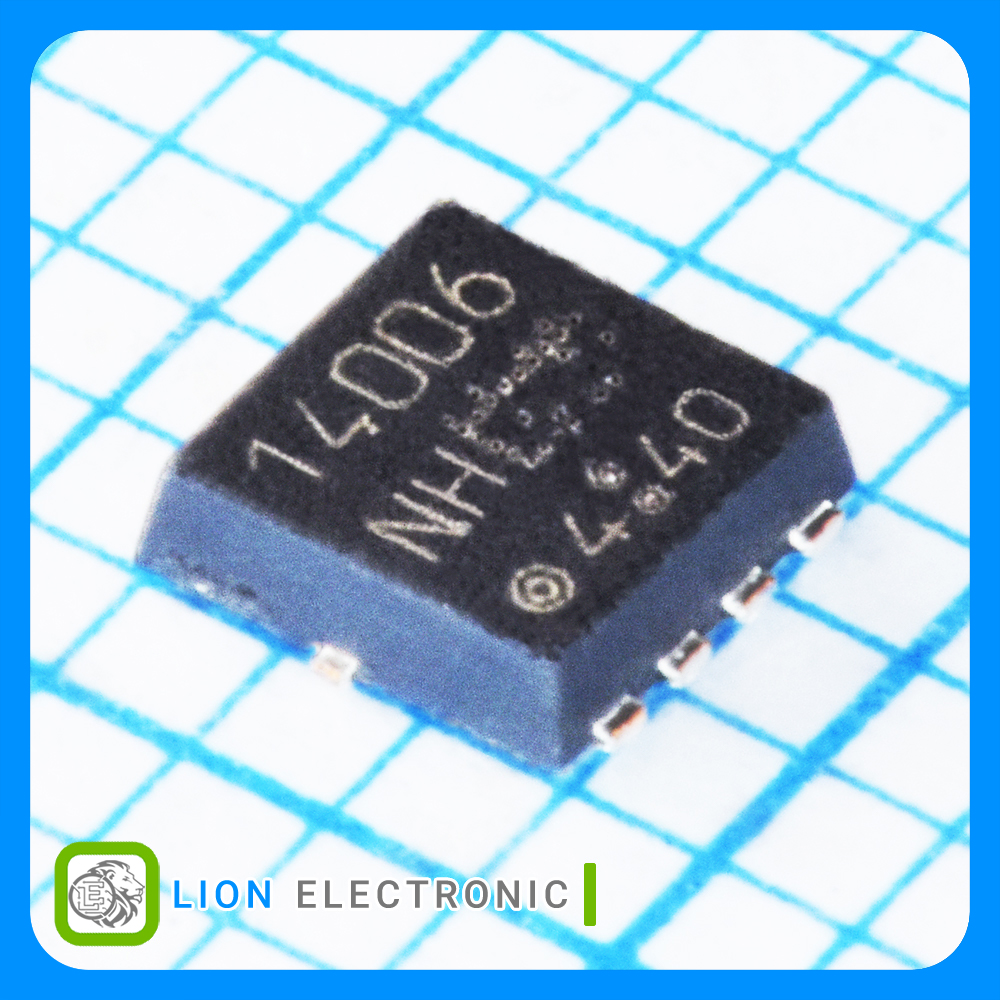

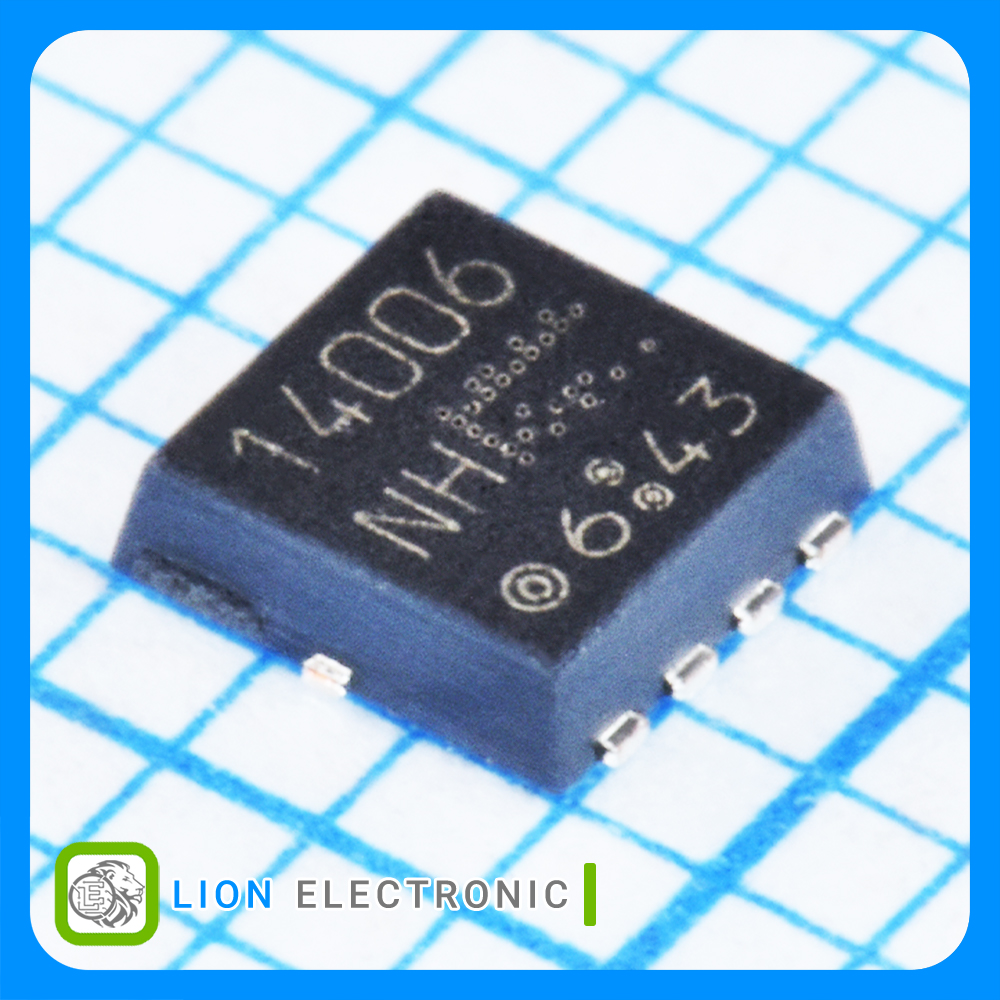

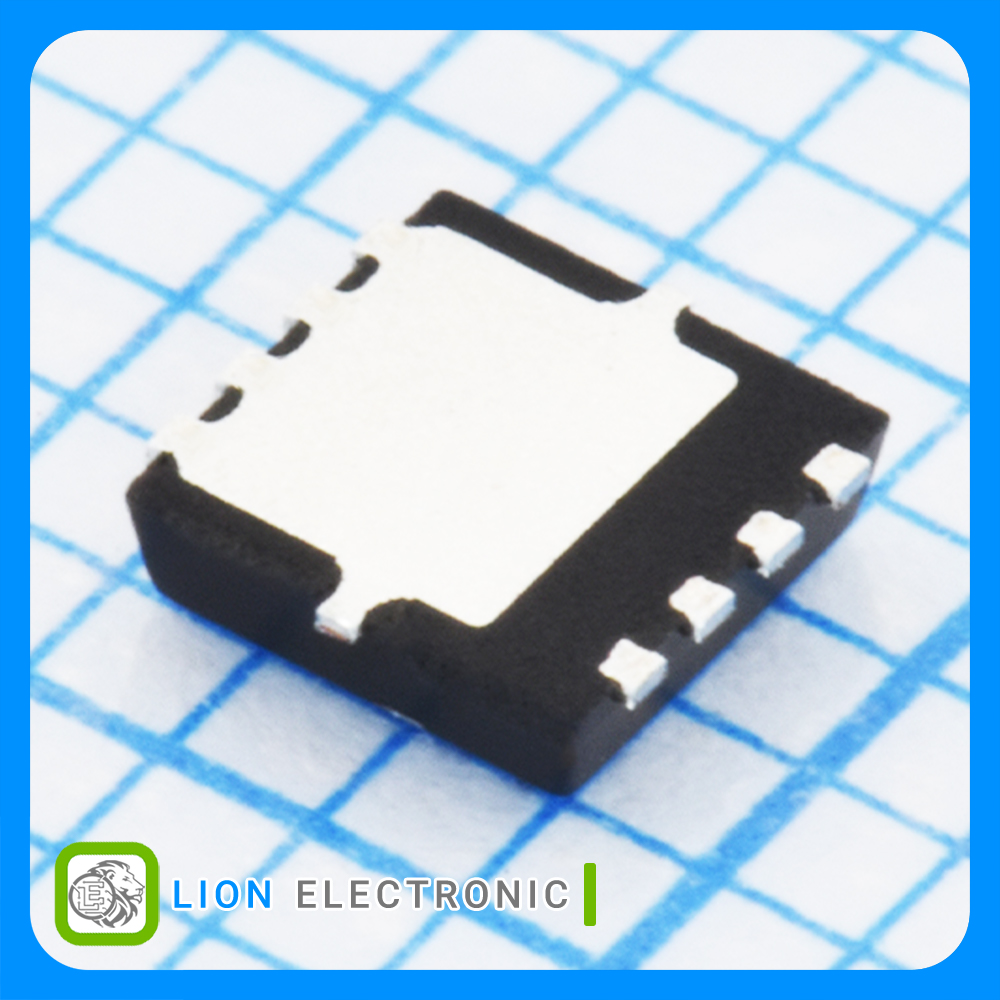

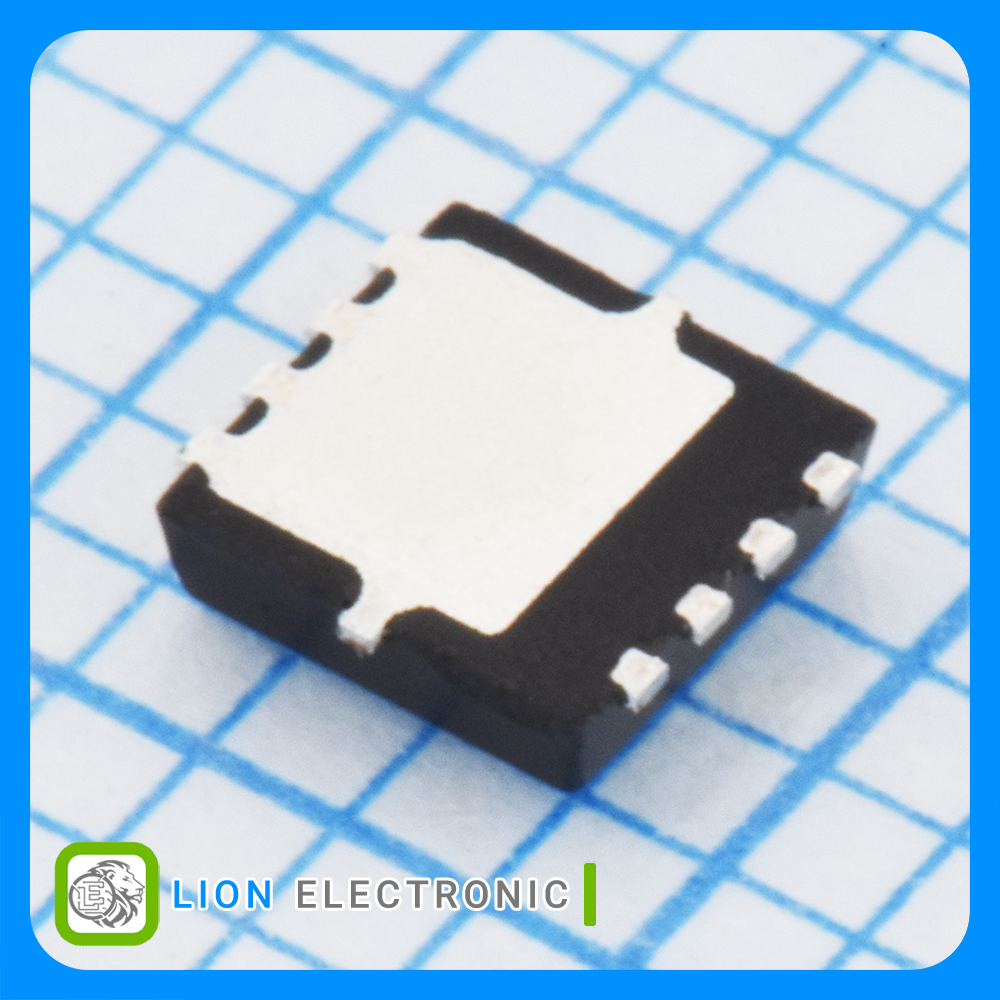

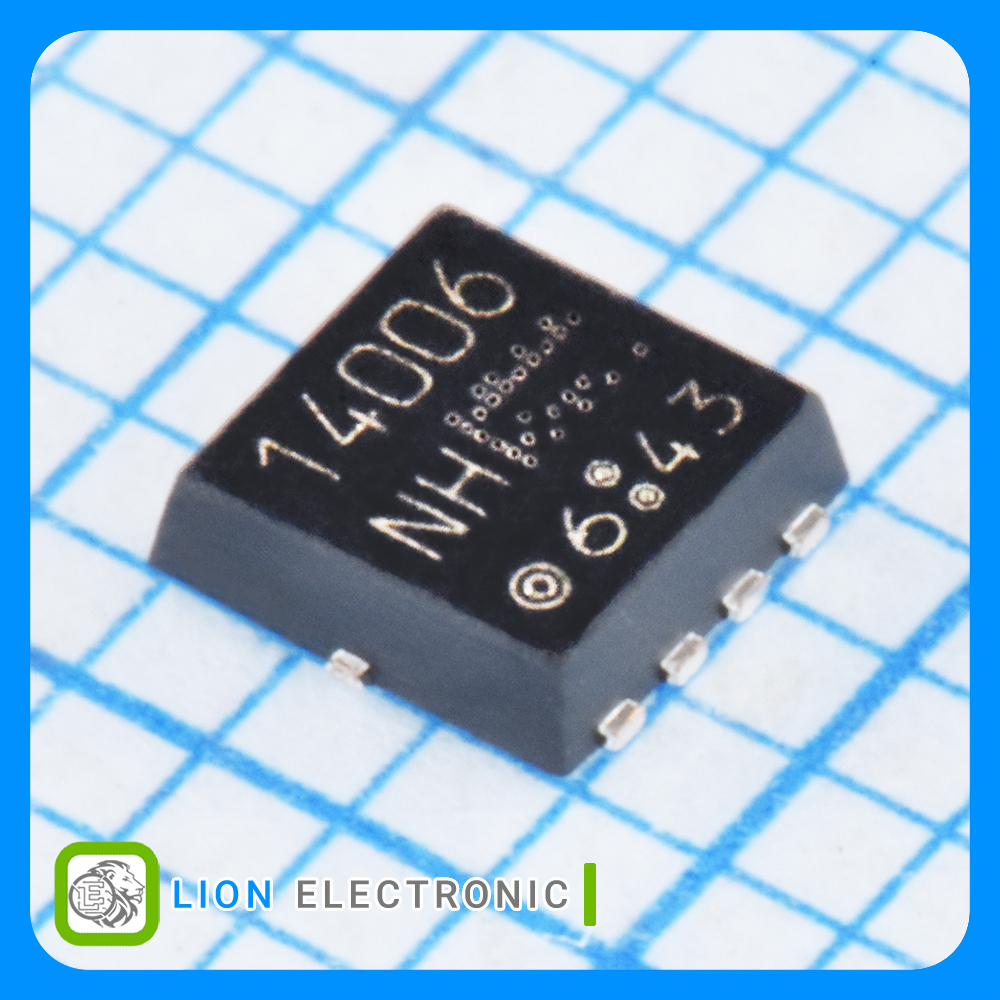

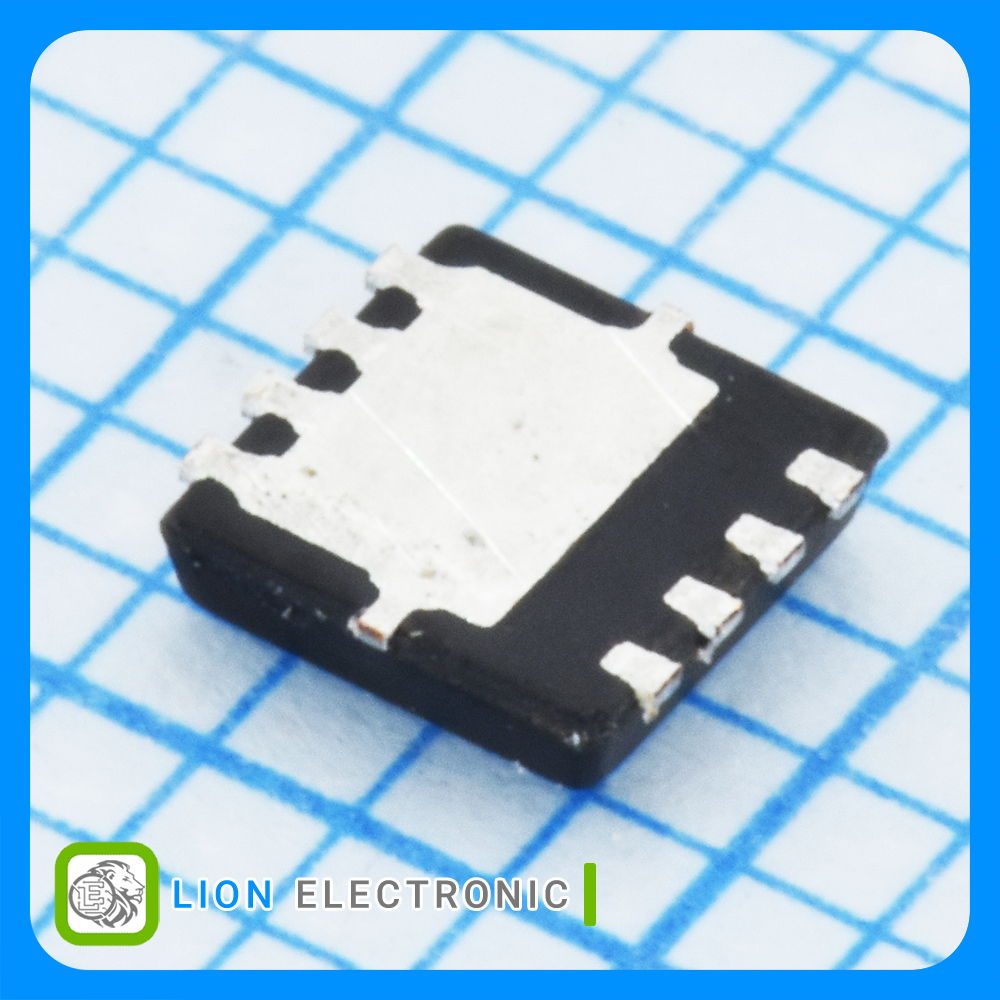

ماسفت 60 ولت 33 آمپر نوع N با پکیج TSON-Advance-8
N-CH MOSFET 60V, 33A with TSON-Advance-8 Package
Specifications
- Package/Case: TSON-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 33A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 11mΩ
- Pd - Power Dissipation: 30W
- Qg - Gate Charge: 15nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت TPN14006NH

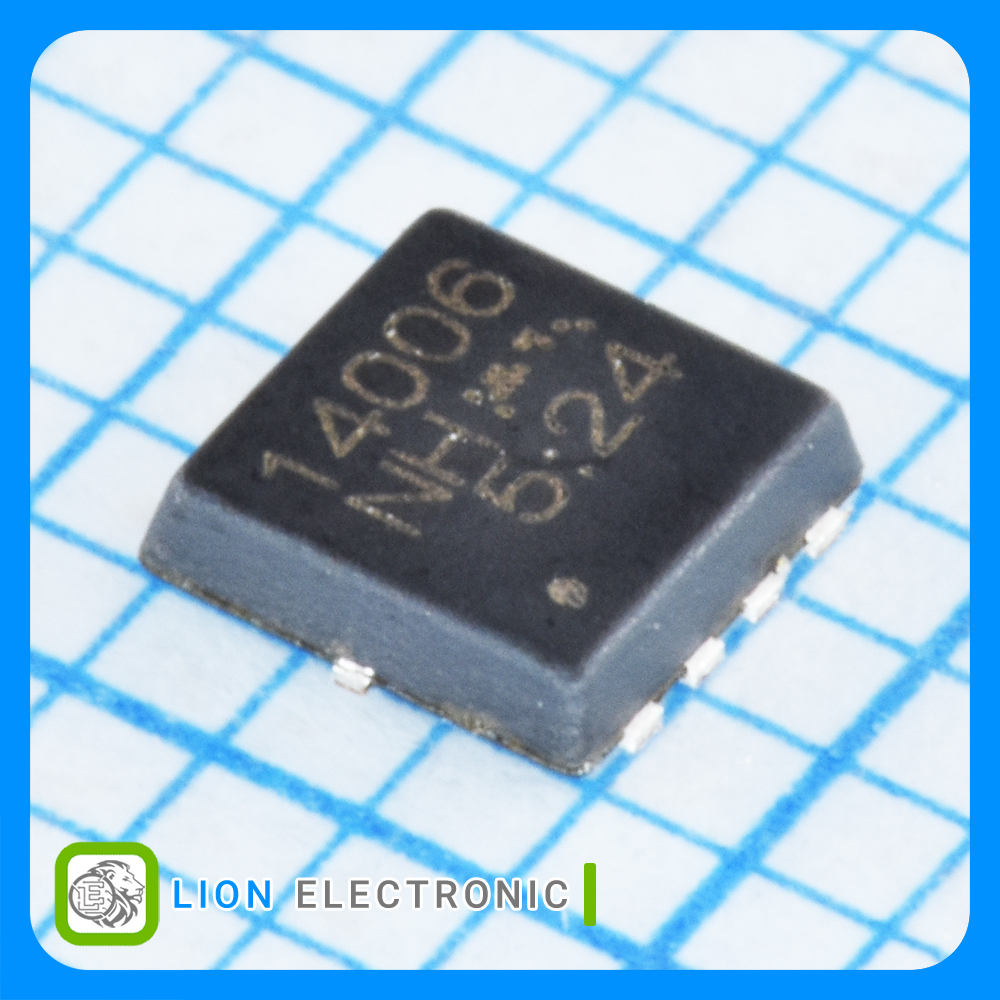

ماسفت TPN14006NH
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
15nC
Qg - Gate Charge
11mΩ
Rds On - Drain - Source Resistance
30W
Pd - Power Dissipation
33A
Id - Continuous Drain Current
TSON-8
Package-Case
