TOSHIBA
مشخصات ماسفت TPN11006NL

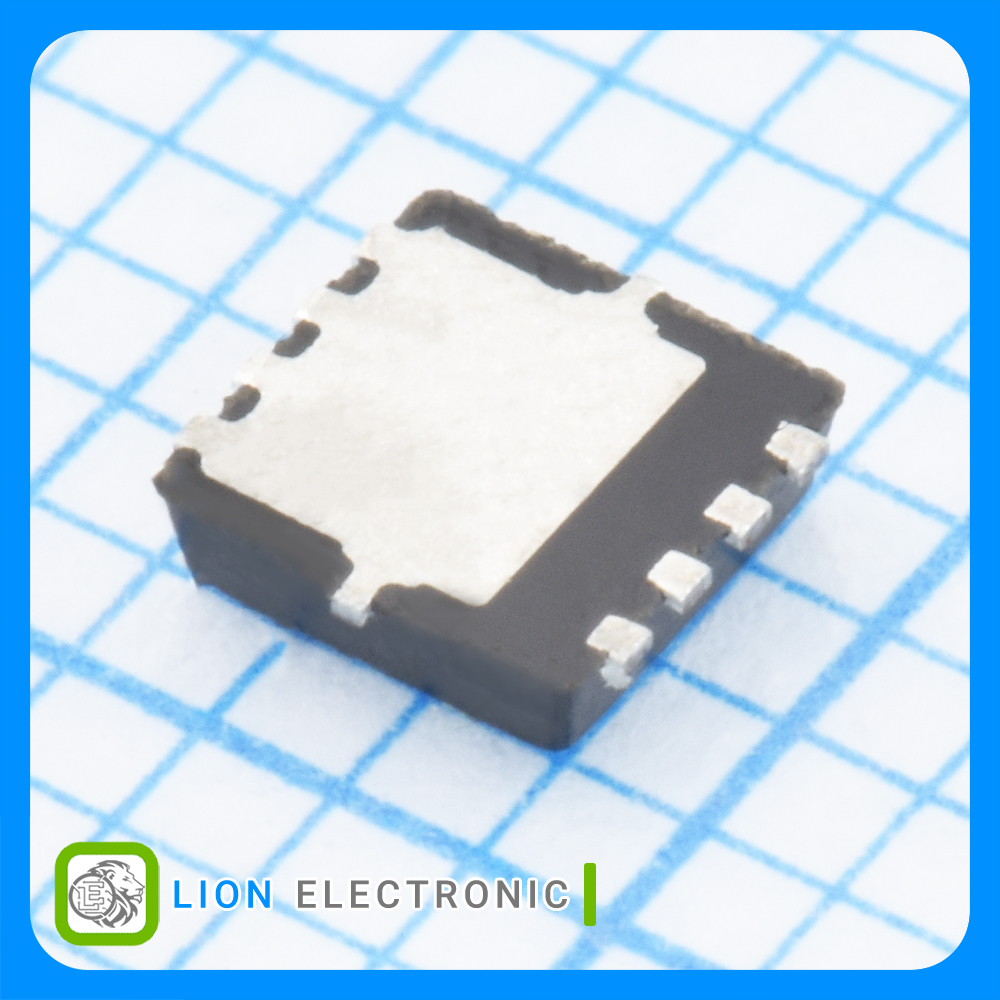

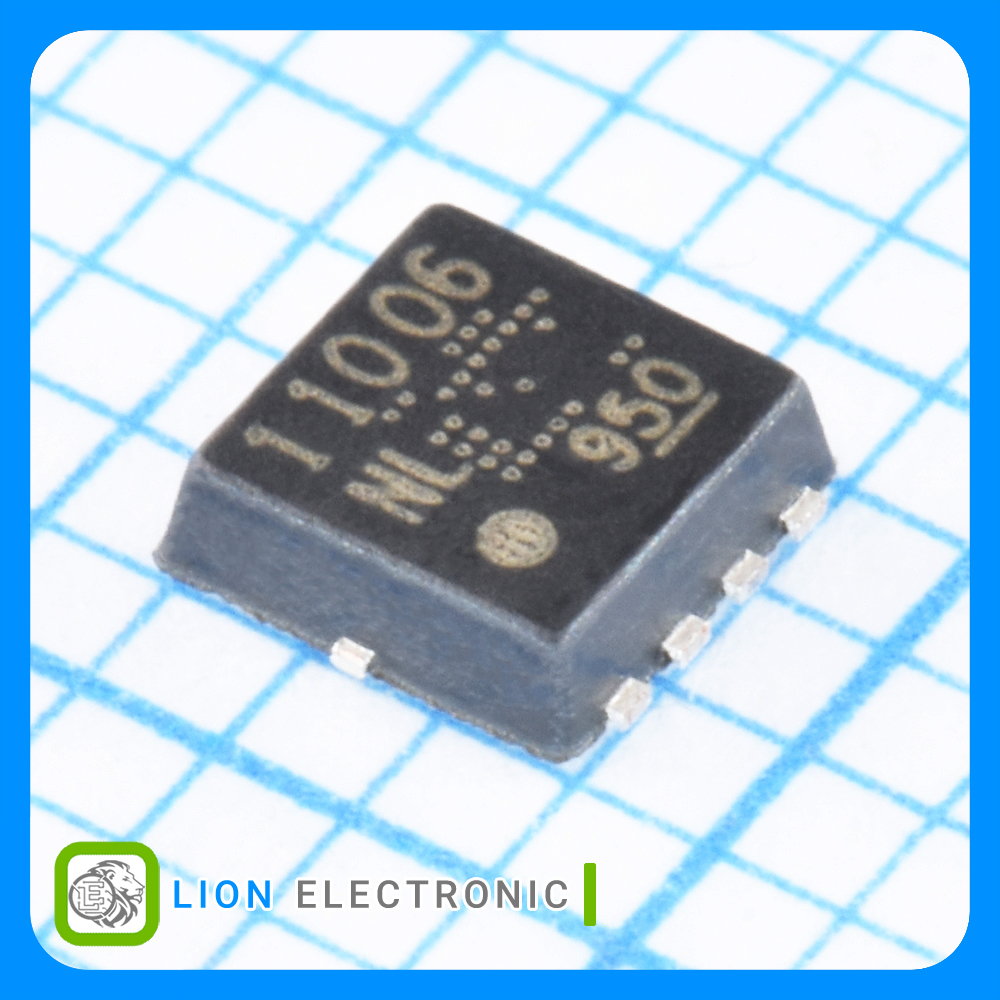

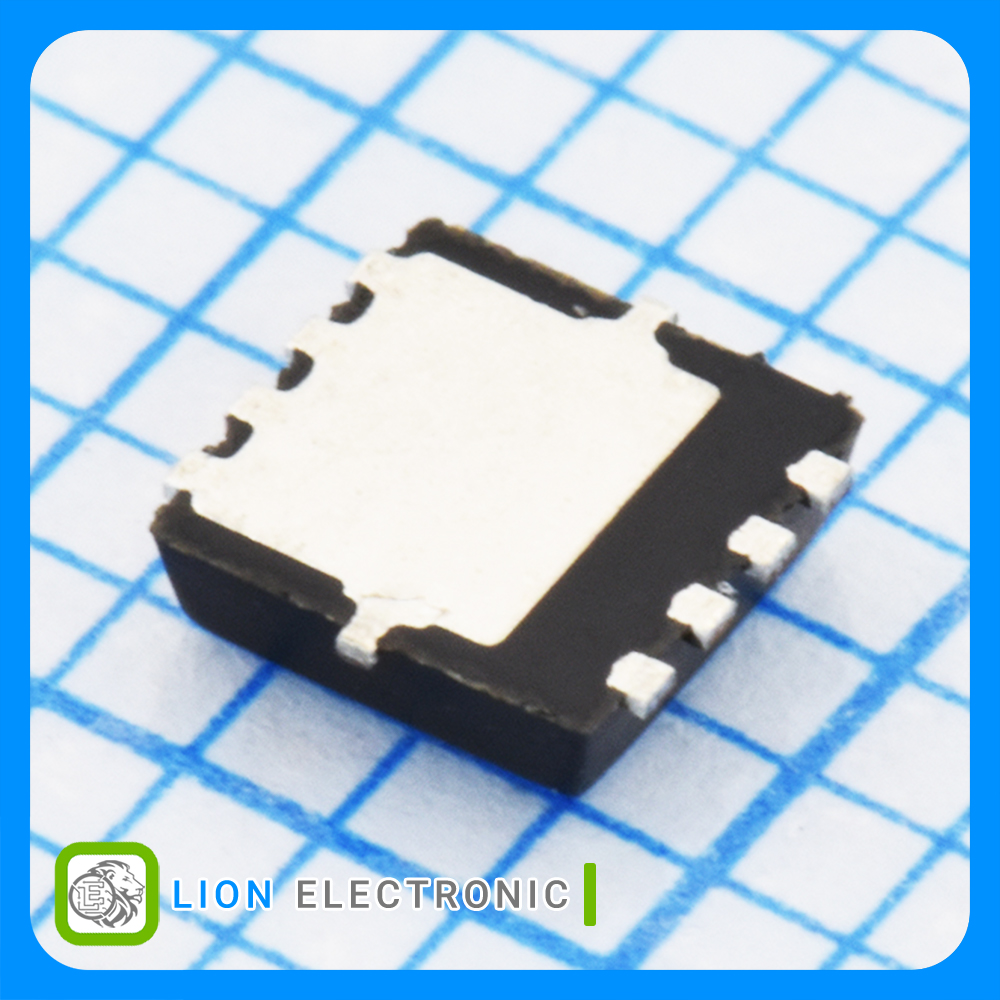

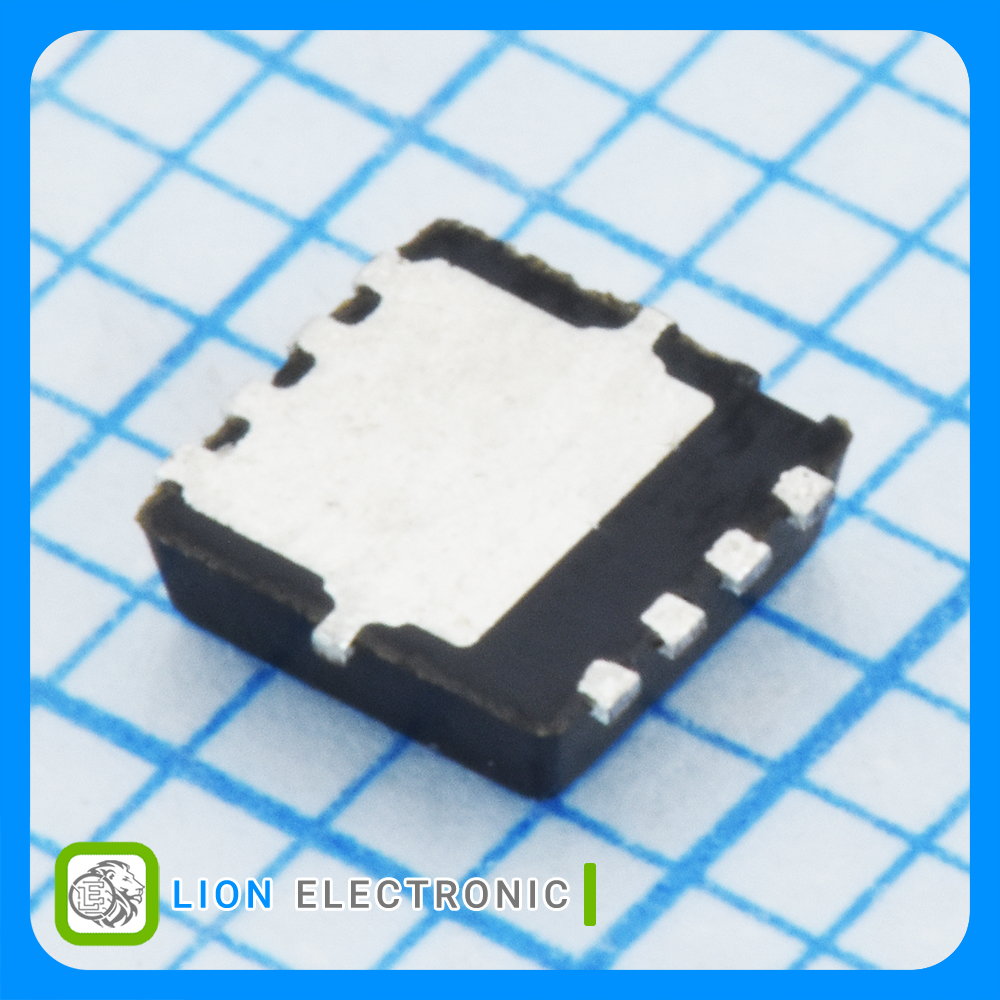

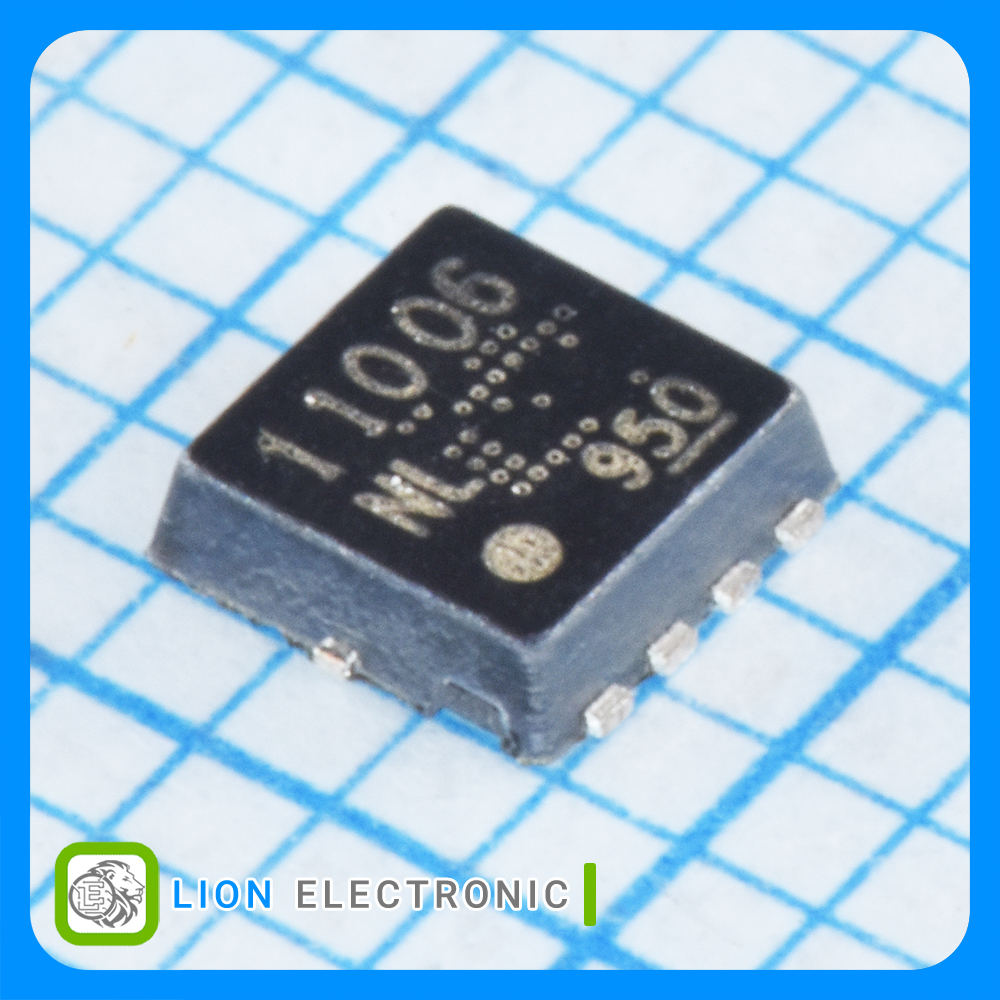

ماسفت TPN11006NL
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
1.5V
Vgs th - Gate - Source Threshold Voltage
9.6mΩ
Rds On - Drain - Source Resistance
23nC
Qg - Gate Charge
30W
Pd - Power Dissipation
37A
Id - Continuous Drain Current
TSON-8
Package-Case
